Learnew 2700 6500K Ra>90 35W/35W 1919 dimm bicolor LED cob chip

Product Overview

Description

Learnew 2700-6500K Ra>90 35W/35W 1919 dimm bicolor LED cob chip

LEARNEW MEANS LEARN NEW, KEEPING LEARNING AND INNOVATING.



TO BE A FOLLOWER OF INNOVATOR, LEARNEW IS A PROFESSIONAL LED ARRAY, UV LED, COB LED MODULE CHIP & POWER LED MANUFACTURER!



TO LEARN NEW PRODUCTS/ADVANCED TECHNOLOGIES & BE A LEARNEWERS,

PLEASE VISIT LEARNEW OFFICIAL WEBSITE: WWW.LEARNEW-LED.COM



PLEASE VISIT LEARNEW SOCIAL NETWORK IN LINKEDIN.COM BY SEARCHING"SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO.,LTD".



PRODUCT NAME:	2700-6000K Ra>90 35W/35W 1919 dimm bicolor LED cob chip
POWER DISSIPATION:	30W/30W(Max=35W)
COLOR TEMPERATURE:	CW  Cool White= 5500-7000K
	NW Natural White =3500-5000K
	WW Warm White=2700-3500K
LUMINOUS EFFICACY:	110-120LM/W
INPUT CURRENT:	800mA-1000mA
INPUT VOLTAGE:	35-38V

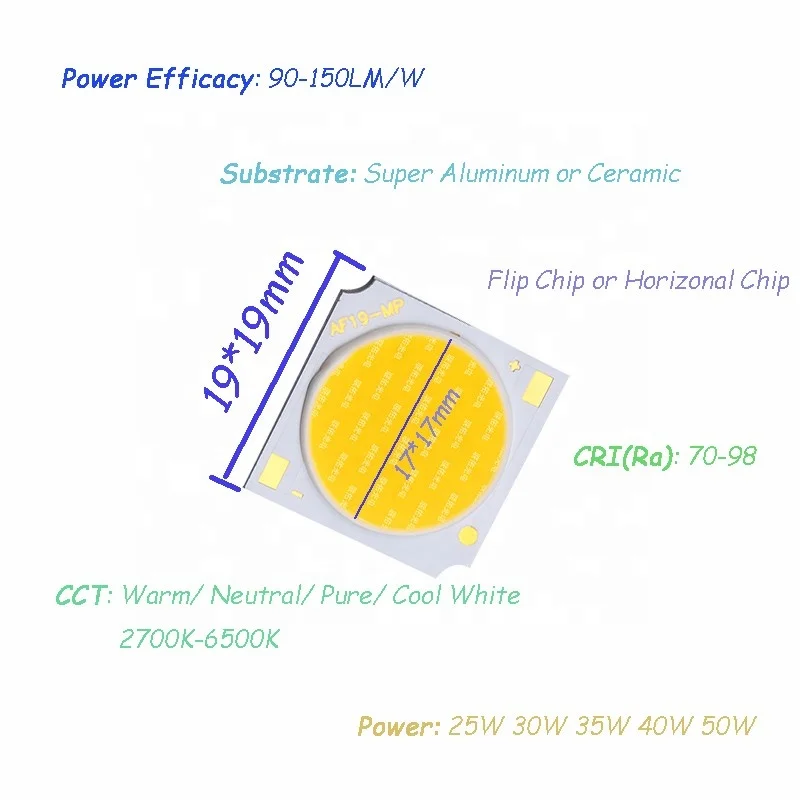

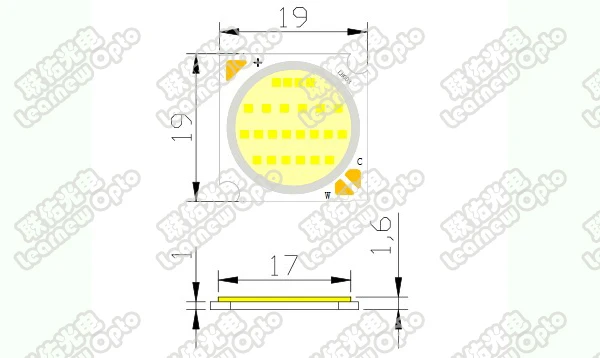

COB SIZE:	19*19MM
LES(EMIT AREA):	Dia.17MM
VIEW ANGLE:	120DEG
CHIPS PKG MODEL:	FLIP CHIP PKG
SUBSTATE LOAD:	SUPER ALUMINUM or Aluminum Nitride
MANUFACTURER:	LEARNEW OPTO





























































• FLIP CHIP ADVANTAGE: No wire bonding


• FLIP CHIP ADVANTAGE: Produce easier and fast


• FLIP CHIP ADVANTAGE: More stability


• FLIP CHIP ADVANTAGE: Lower heat resistance


• FLIP CHIP ADVANTAGE: Higher luminous efficacy


• FLIP CHIP ADVANTAGE: Assemble easier


• FLIP CHIP ADVANTAGE: Longer life-span


• FLIP CHIP ADVANTAGE: Leading time is shorter


• FLIP CHIP ADVANTAGE: Reduce structures of PKG for less heat level


• FLIP CHIP ADVANTAGE: Heat transfer via ALN or Superconductive aluminum

STRUCTURE OF LEARNEW LOW HEATING 80W COB SQUARE LED CHIP PKG & LEARNEW FLIP-CHIP TECHNOLOGIES:

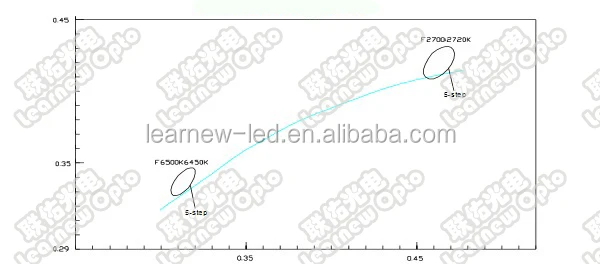

HDRAWS & COLOR COORDINATE:





HEAT RESISTANCE OF LOW HEATING 80W COB SQUARE LED CHIP PKG:





HEAT RESISTANCE OF LEARNEW LOW HEATING 80W COB SQUARE LED CHIP PKG:
