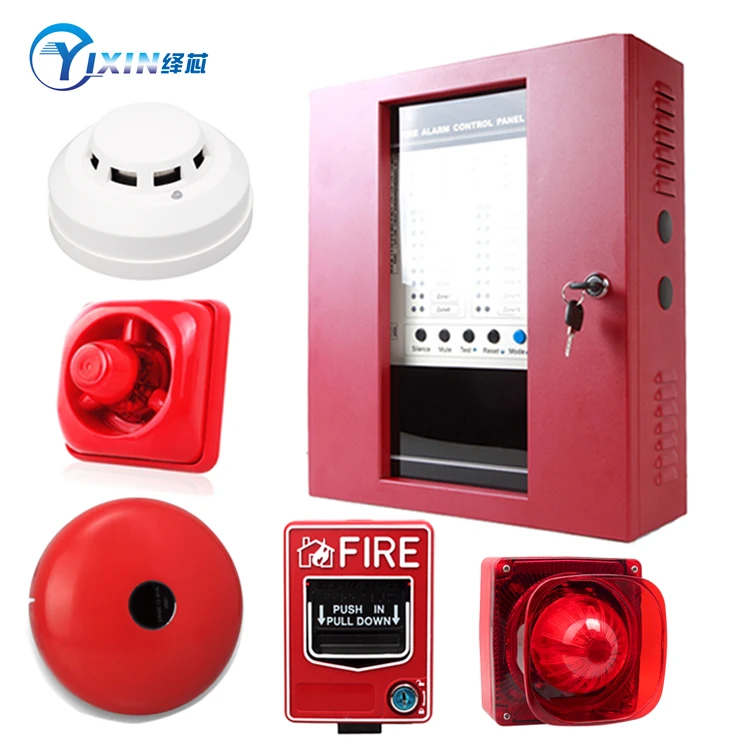

High Quality Conventional Fire Alarm System For Fire Alarm Protection
- Category: Fire Alarm Control Panel >>>
- Supplier: Guangzhou Wasion Electronic Factory
Share on (60730054588):
Product Overview
Description
Product Description

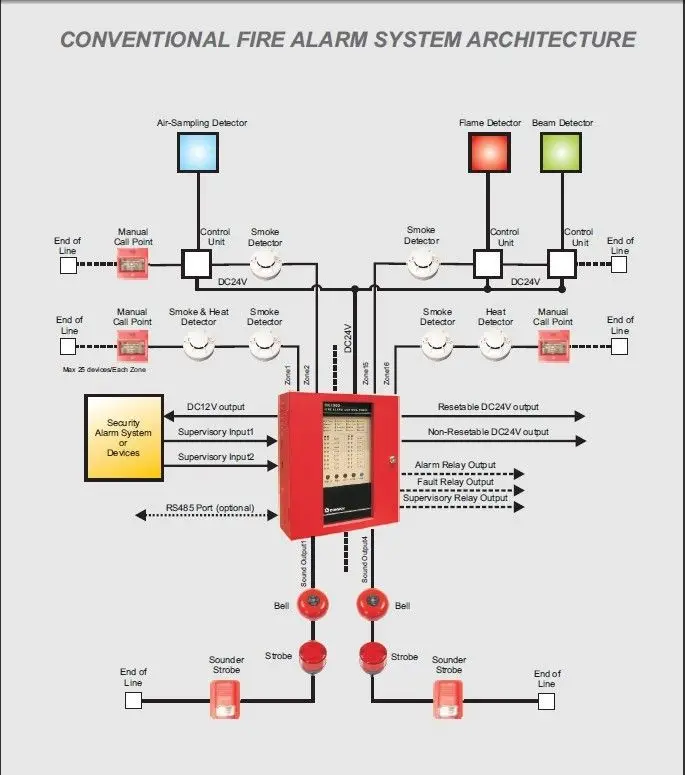

4/6/8/16 Zone Fire Alarm Panel Conventional Fire Alarm Control Panel
Features:

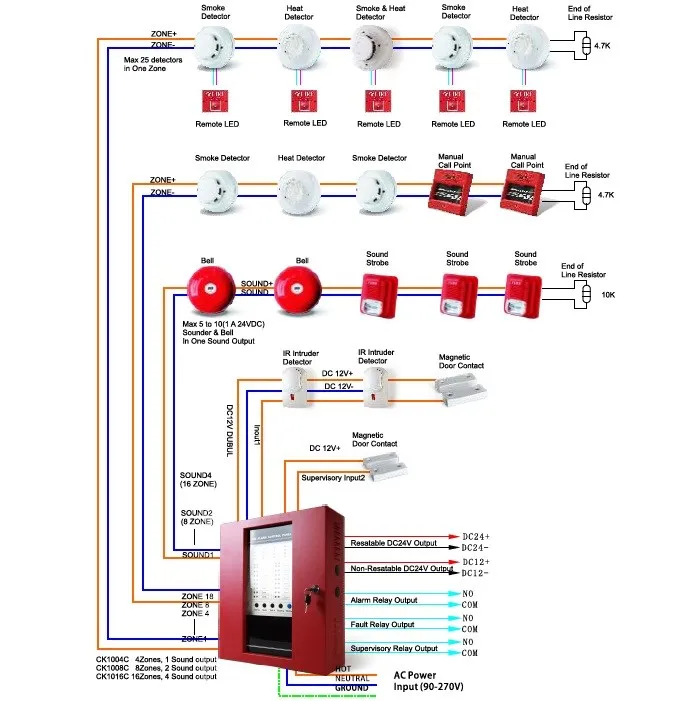

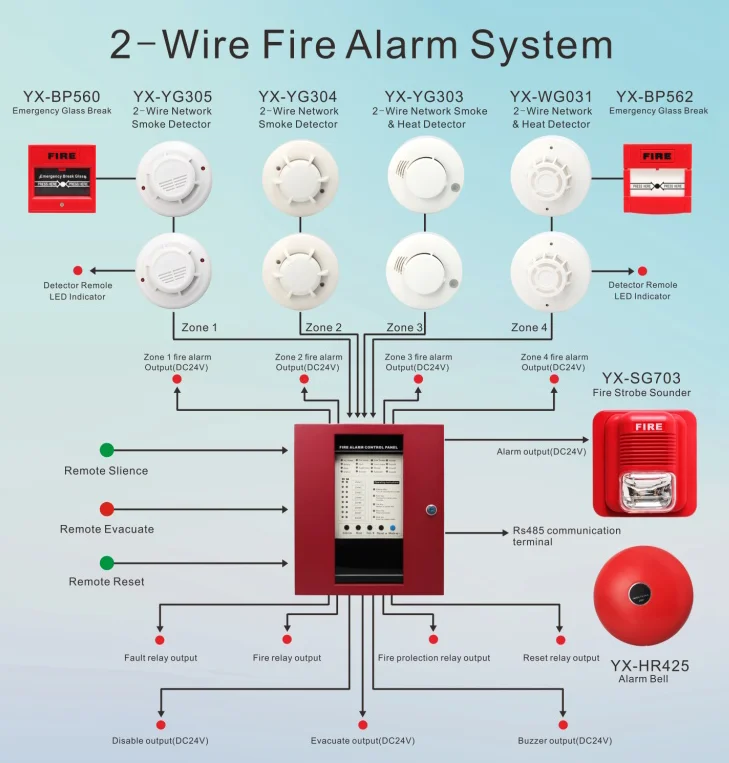

* Four, Eight, Sixteen Zone Style B (Class B) Initiating Device Circuits (IDCs), All zones accept two-wire smoke detectors and any normally-open contact devices.Two Supervisory Input with DC12V output, ideal to connect security alarm devices.
* Three General Alarm, Trouble and Supervisory, Form A Relay Output.
* One, Two, Four Built-in Sound Output, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs), NACs may be programmed: Silenceable or Non-Silenceable.
* 3.0 amps of total system power. Resettable DC24V & Non-resettable DC24V Output.
* Zone Input Short Circuit can be set to “Alarm” or “ Fault” mode.
* RS485 Communication Port (optional). Automatic/Manual mode can be programmed.
* Disable/Enable control per Zone (IDC) can be programmed.
* Disable/Enable Sound Output(NACs) can be programmed.
Technical Specifications:
* AC POWER: 220VAC, 50 Hz.
* BATTERY: Sealed lead-acid batteries only. Maximum charging circuit: 27.6VDC @ 0.8 amp for normal flat charge. Maximum battery charger capacity: 18AH battery.
* NOTE: Two 10AH batteries can be housed in the cabinet. Larger batteries require a separate battery box.
* Total DC24V system power: 3.0 amps.
* Maximum current per NAC: 1.25 amps.
* Maximum battery charging capability: 18 AH.
* Resettable four-wire smoke detector power output.
* Non-resettable power output.
* Integral Form-A Alarm, Trouble and Supervisory relays, rated at: 2.0 amps @ 30 VDC (resistive), 2.0 amps @ 30 VAC (resistive).
Package included
1 sets fire alarm control panel
1 x English Manual

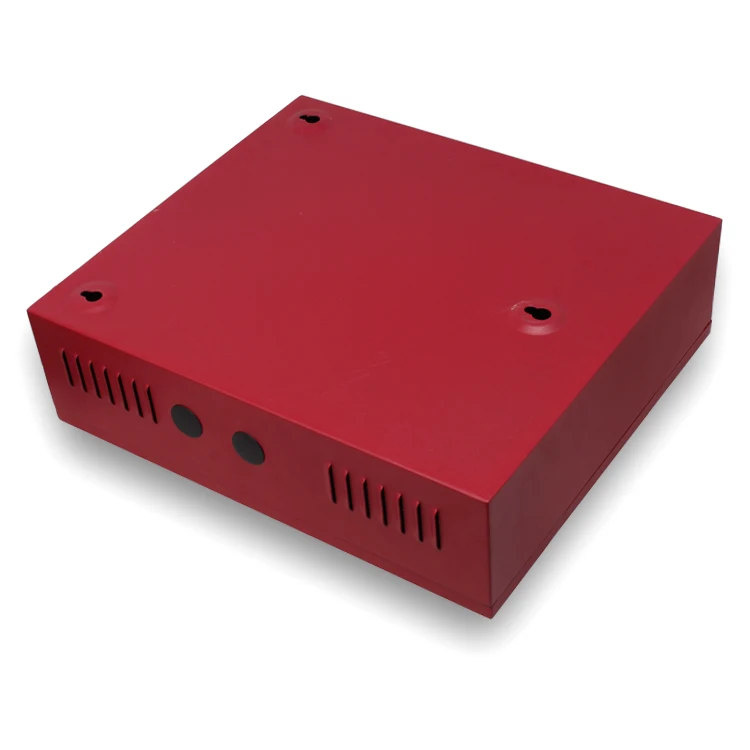

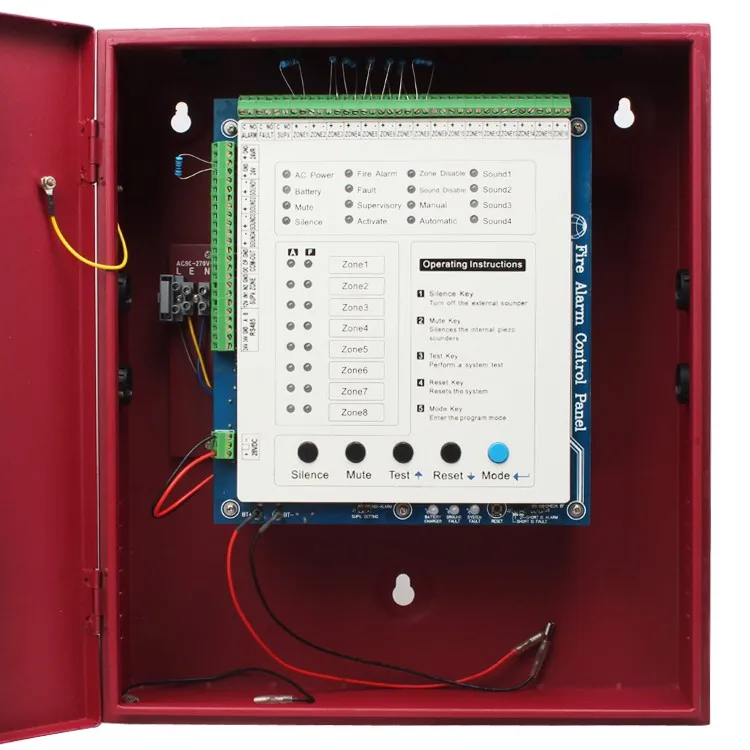

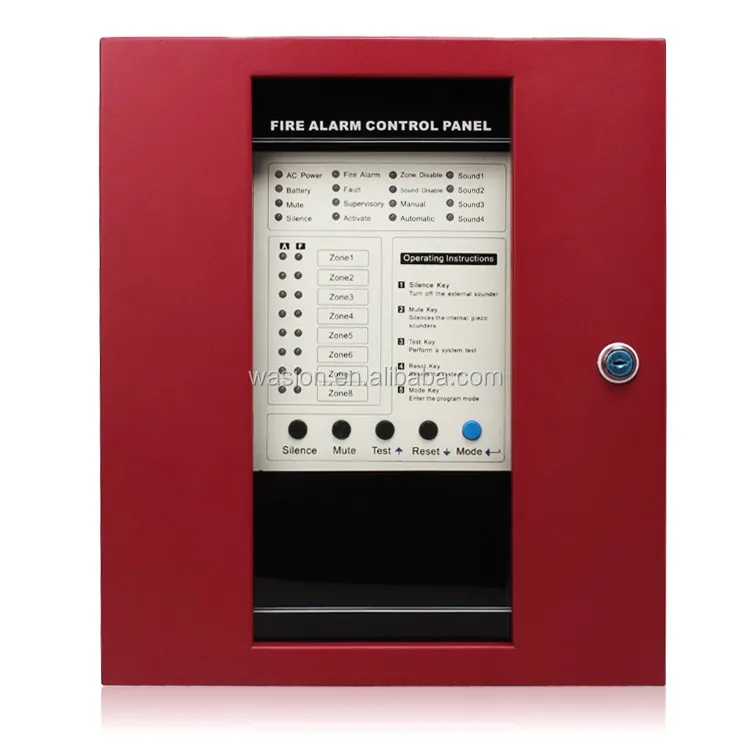

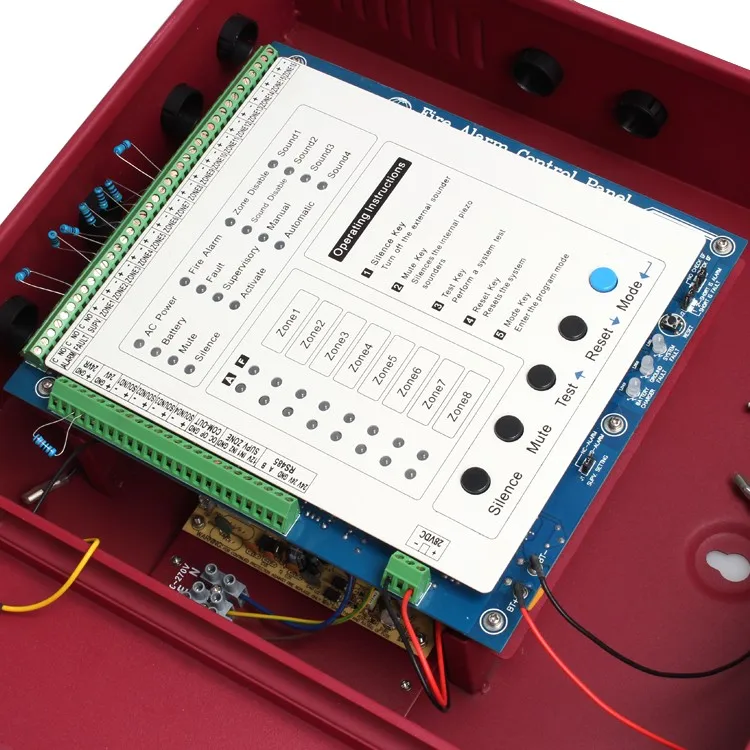

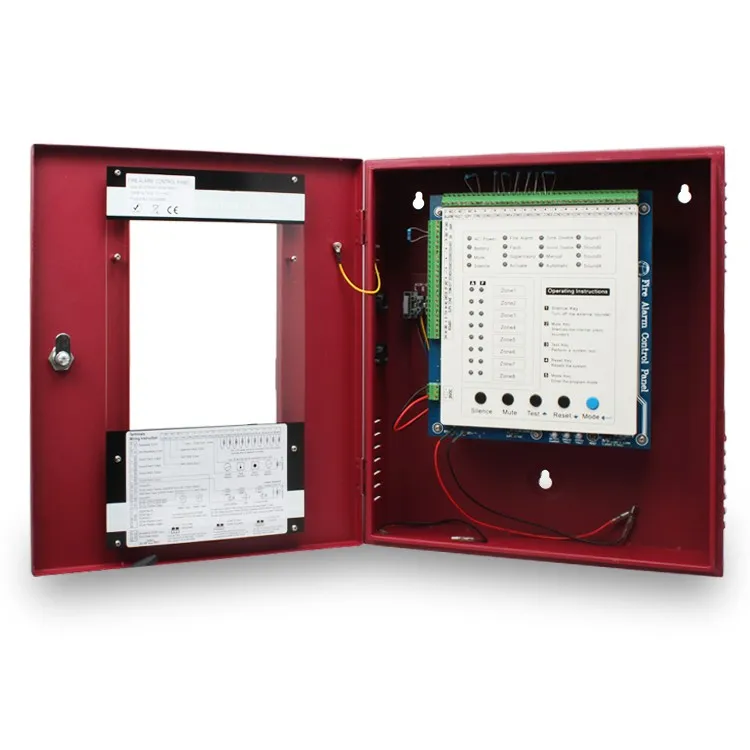

Products Show
Packing & Delivery
Packing Details :1sets/Carton,
Package Size:420x180x170mm
Gross Weight: 7KgsDelivery Details : 2-5 days for sample order, 15-20days for container order, Delivery time according the quantities
1. Attractive Individual packaging
2. Suitable carton size
3. Standard export carton packing

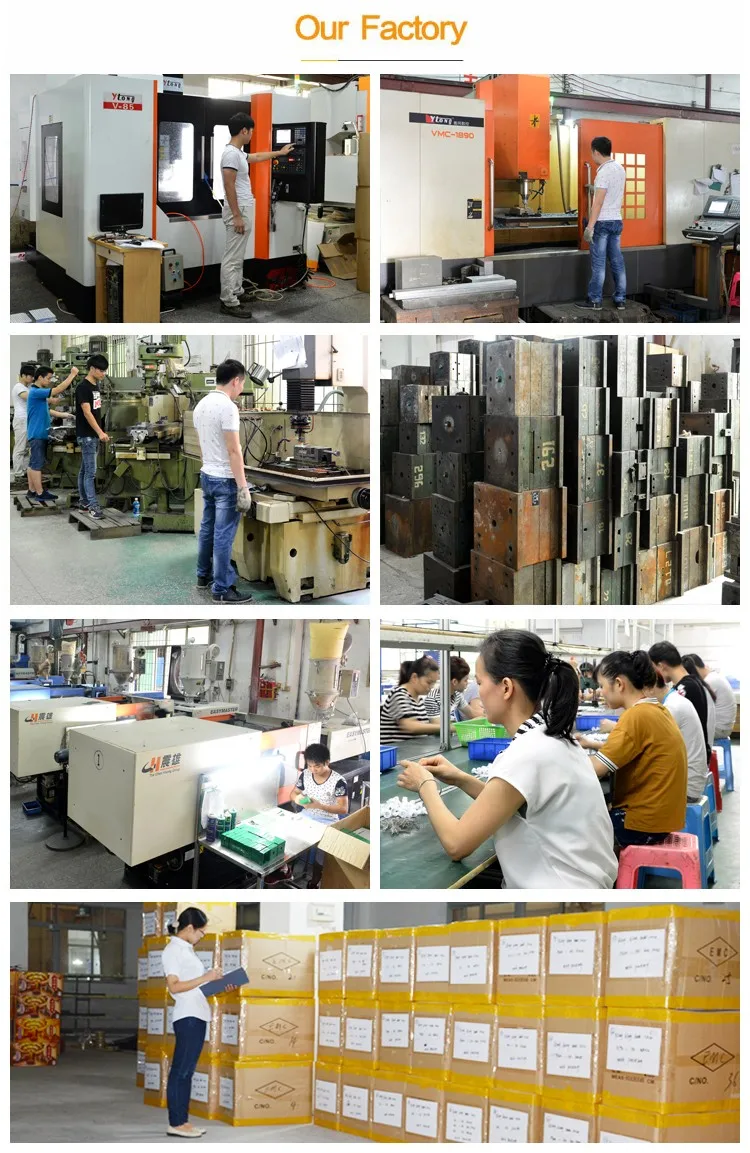

Our company

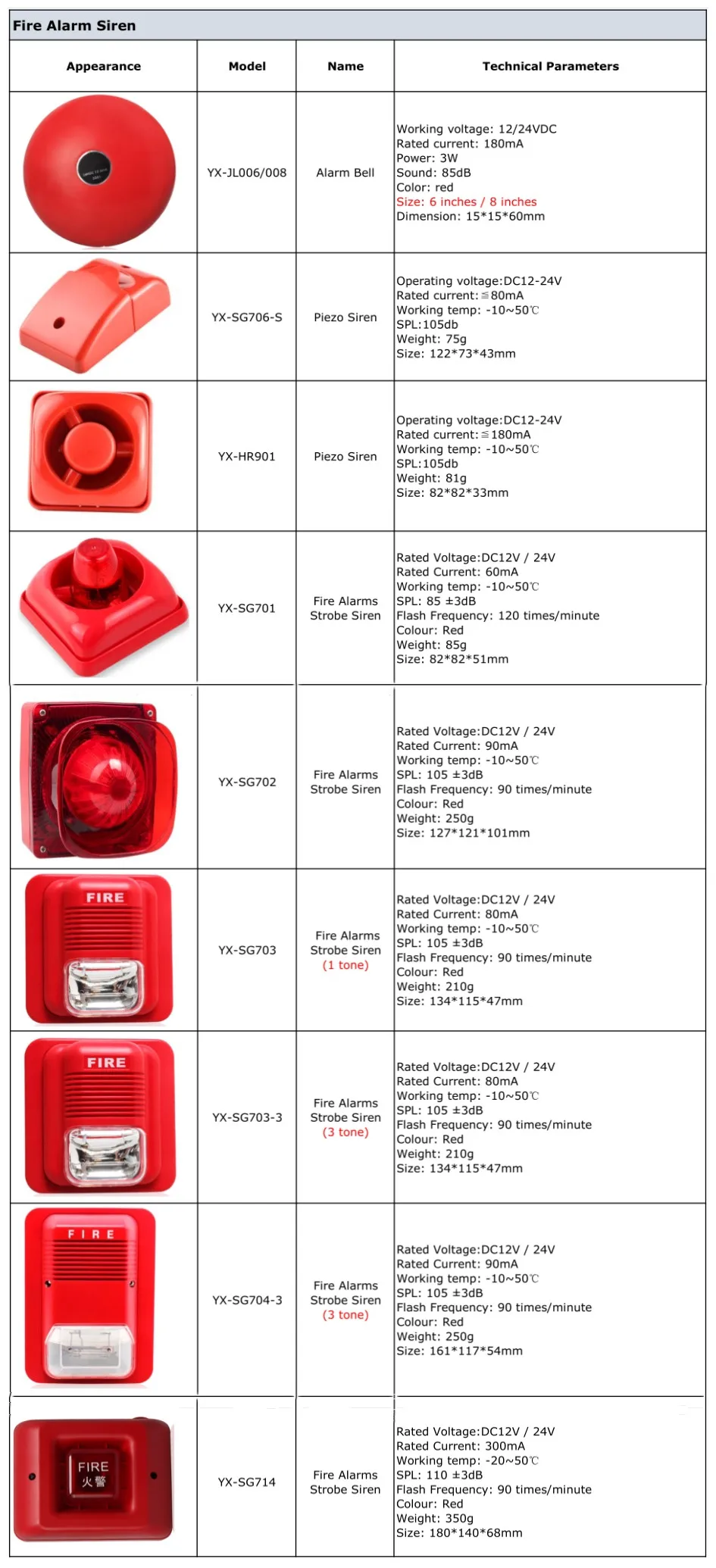

Ralated Product
