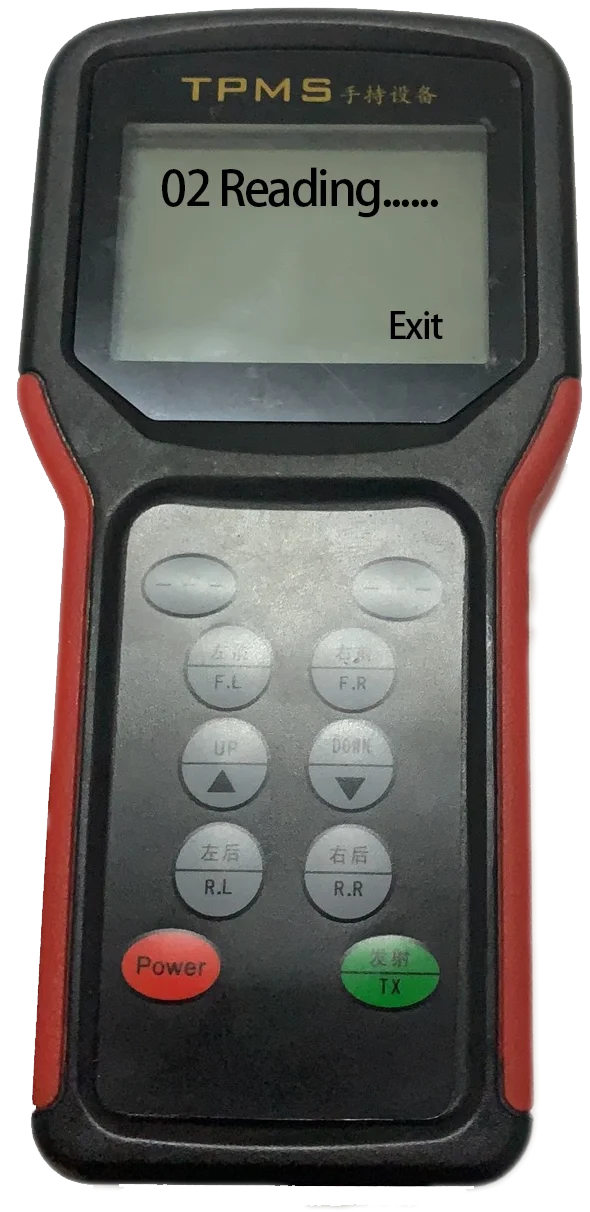

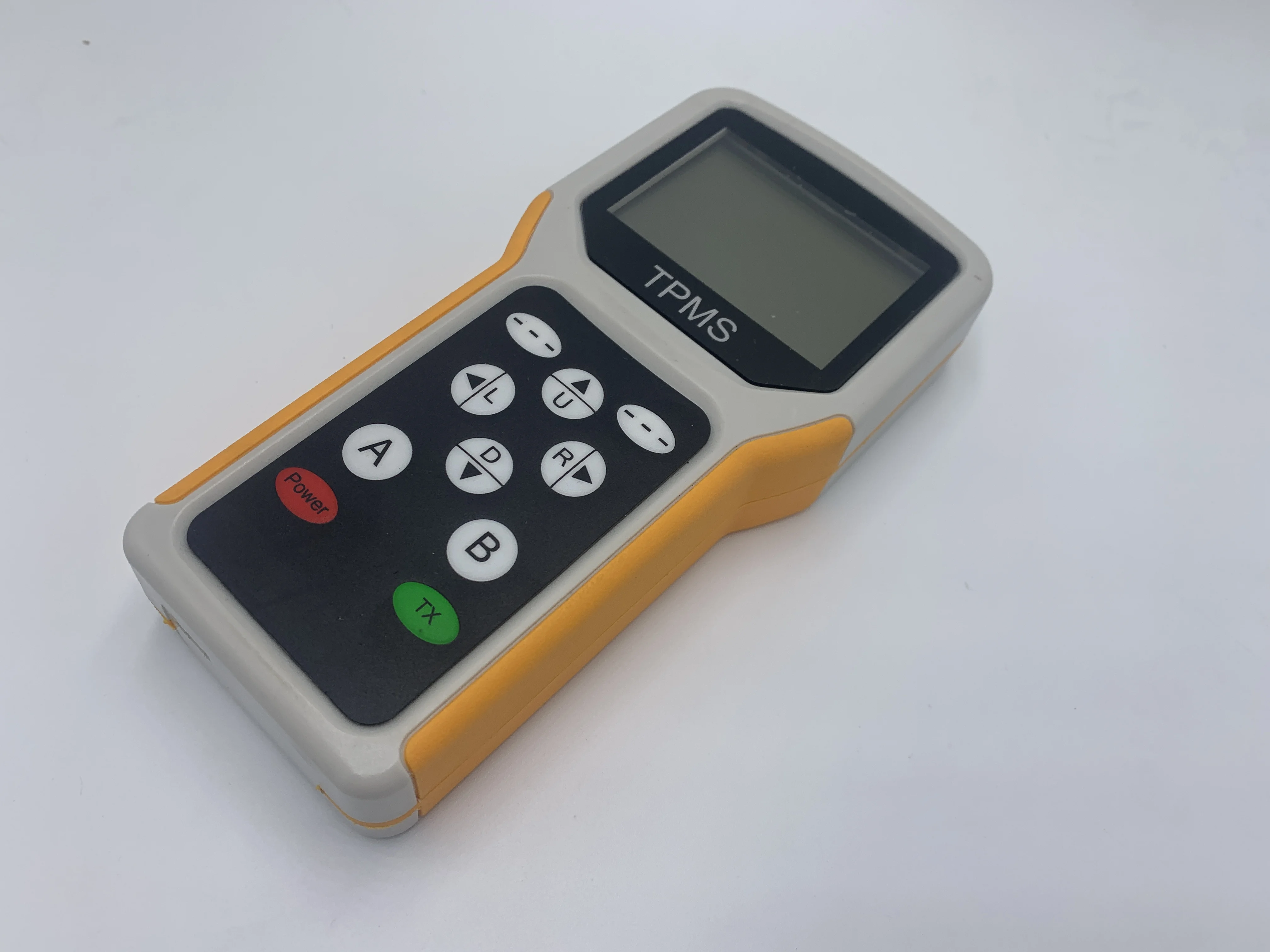

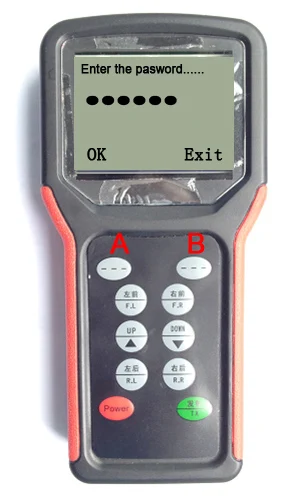

TPMS wake up tool hand held for tire pressure monitoring system, tpms

1. Name: Wake up and programming tool for tire pressure minitoring system tpms bus truck or car sensor

2. Model: HD01T

3. Function

3.1. Through Low Frequency(LF trigger) to wake up Sensors;

3.2. High Frequency to receive sensor signal and data;

3.3. High Frequency transmit sensor data to tpms receiver or Monitor

3.4. Check sensor status in office or in tire.

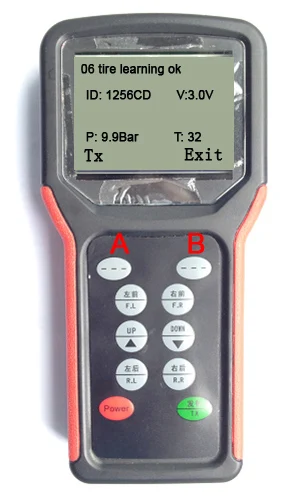

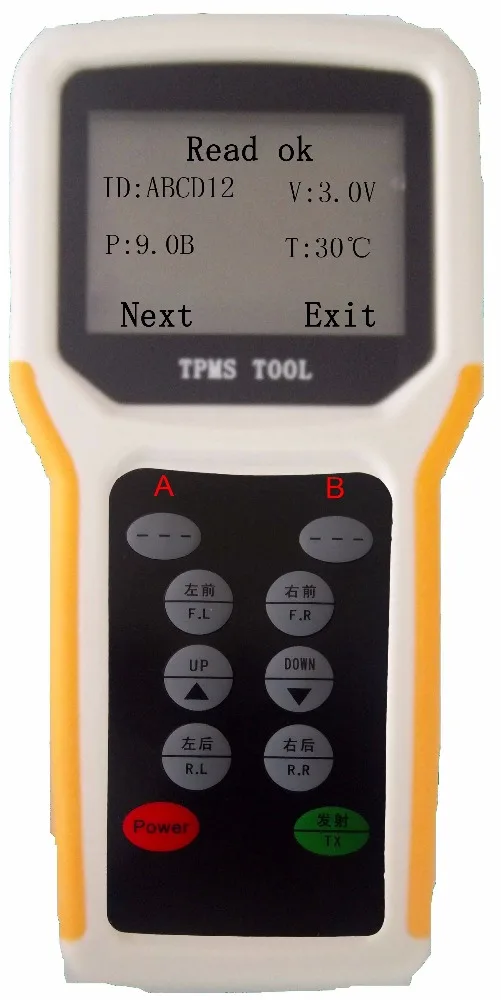

3.5. Read sensor id number, check sensor voltage

3.6. Compare tire data with another tpms Monitor.

Basic Function:

1, Through low frequency wake up sensors;

2, High frequency receive sensor’s message;

3, High frequency emit sensor’s signal to host, as CAN main box,RS232 etc TPMS receive;

4,For truck and car sensor

Technical parameters

1,Work Voltage: DC4V--DC6V

2,Display:3.2 inch LCD black and white display

3,RF Transmitting frequency:433.92MHz±50KHz

4,RF Signal receive Sensitivity:-50dbm

5,RF Transmit signal modulation:FSK

6,RF Transmit signal encoding:DBP Manchester

7,RF Transmit signal baud rate:5Kbps

8,RF Signal transmission power:-20dbm

9,LF Signal work frequency:125KHz±5 KHz

10,LF Signal Modulation:ASK

11,LF Signal Encoding:Manchester

12,LF Signal baud rate:3.9Kbps

13, Wakeup Distance:Open area 1cm--50cm,after install tire<30cm

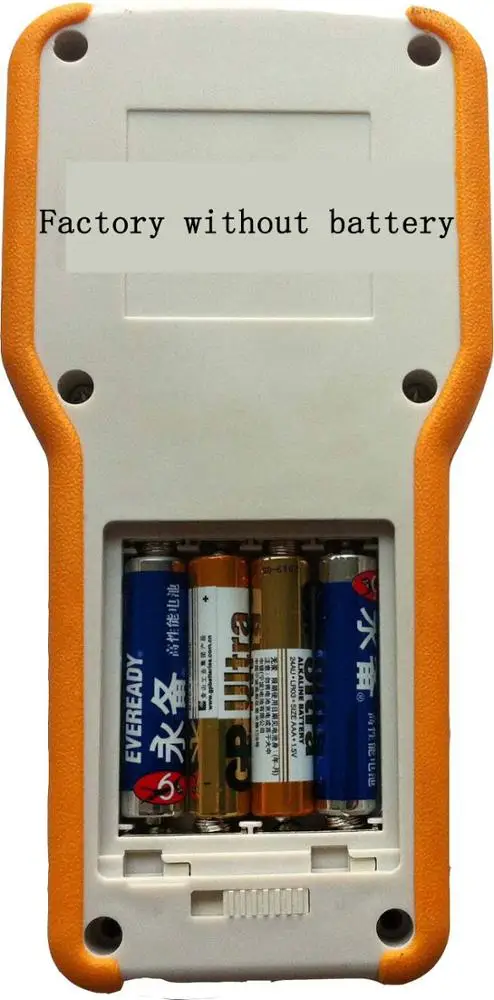

14, Power:7# 4pcs battery

5,Battery life:normal is 15 working days,standby is 3 months

16,Work temperature:-20℃~75℃

Our company:

Dongguan Tiremagic Electronic Technology Co.,Ltd, is a new high-tech enterprise which specializes in developing, producing and marketing TPMS products for more than 14 years. At present, we have launched tens of products into market, covered almost every vehicle types and satisfied for different markets. And with Tiremagic Brand in china.

Packing

16.5*7.5*3.5

Delivery

we can complete your sample order within 2 days, Use the mode of transportation you like
