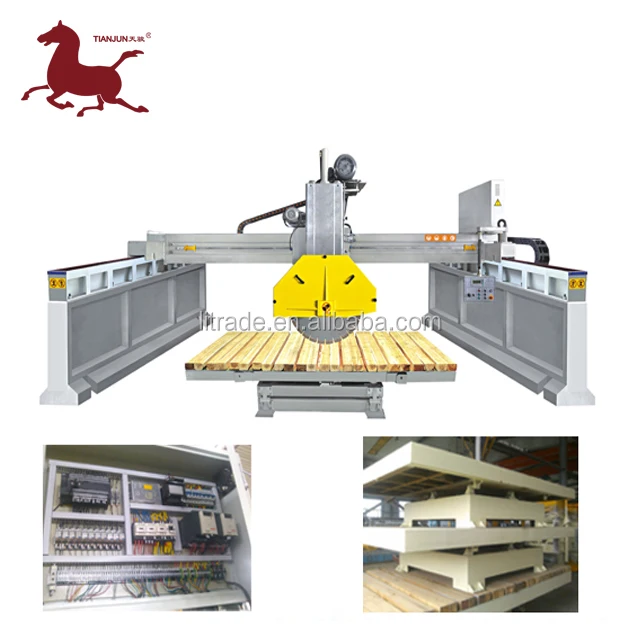

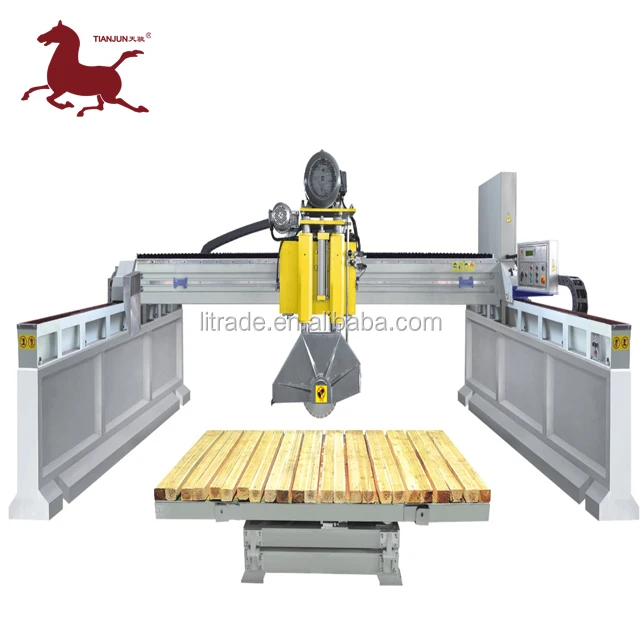

TJQH 600(90 degree) Infrared Fully Automatic Bridge Cutting Machine

Product Overview

Description

TJQH-600(90 degree) Infrared Fully Automatic Bridge Cutting Machine



Modle		TJQH-600
Blade diameter	mm	400~600
Blade up/down stroke	mm	380
Main motor power	KW	18.5
Feeding motor	KW	1.5
Slicing motor	KW	1.1
Worktable size(Max. cutting size)	mm	3200*3200
Worktable rotation degree(by hydraulic)	°	90
Dimension(L*w*H)	mm	5870*4700*2720
Worktable upturing angle	°	0-85
Weight	kg	6000
Notes:
output:150m²/set 12hours







Electric system

--Laser collimator as for facilitate the position of the blade on the cutting line.

--Reading the data is by magnetic ruler which is imported from German.

--Contemporaneousness possibility of vertical and horizontal disk holder head movement for productivity increase.

--The electric parts of this bridge saw we adopt famous brand, like Schneider inverter, Omron PLC.
