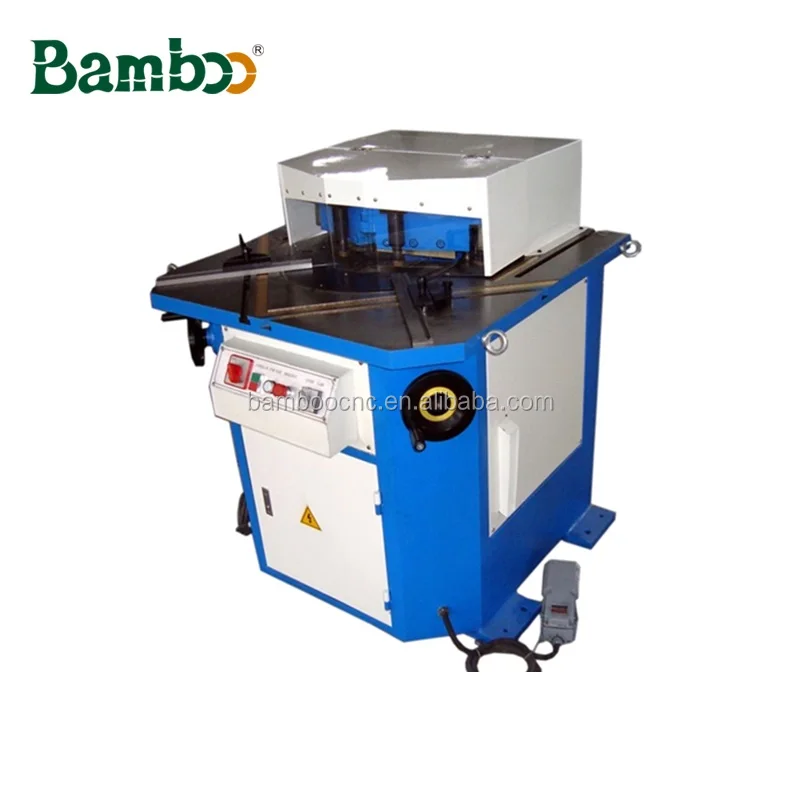

QF28 series variable angle hydraulic angle cutting machine,hydraulic notching machine new design in 2018
QF28 series variable angle hydraulic angle cutting machine,hydraulic notching machine new design in 2018
QF28 series variable angle hydraulic angle cutting machine,hydraulic notching machine new design in 2018
QF28 series variable angle hydraulic angle cutting machine,hydraulic notching machine new design in 2018
QF28 series variable angle hydraulic angle cutting machine,hydraulic notching machine new design in 2018
QF28 series variable angle hydraulic angle cutting machine,hydraulic notching machine new design in 2018
QF28 series variable angle hydraulic angle cutting machine,hydraulic notching machine new design in 2018

QF28 series variable angle hydraulic angle cutting machine,hydraulic notching machine new design in 2018

Share on (60730975593):


Price:RUB 343,452.60 - RUB 427,407.68

Quantity:


Product Overview

Description

Company Profile

BAMBOO CNC MACHINERY TECHNOLOGY CO., LTD

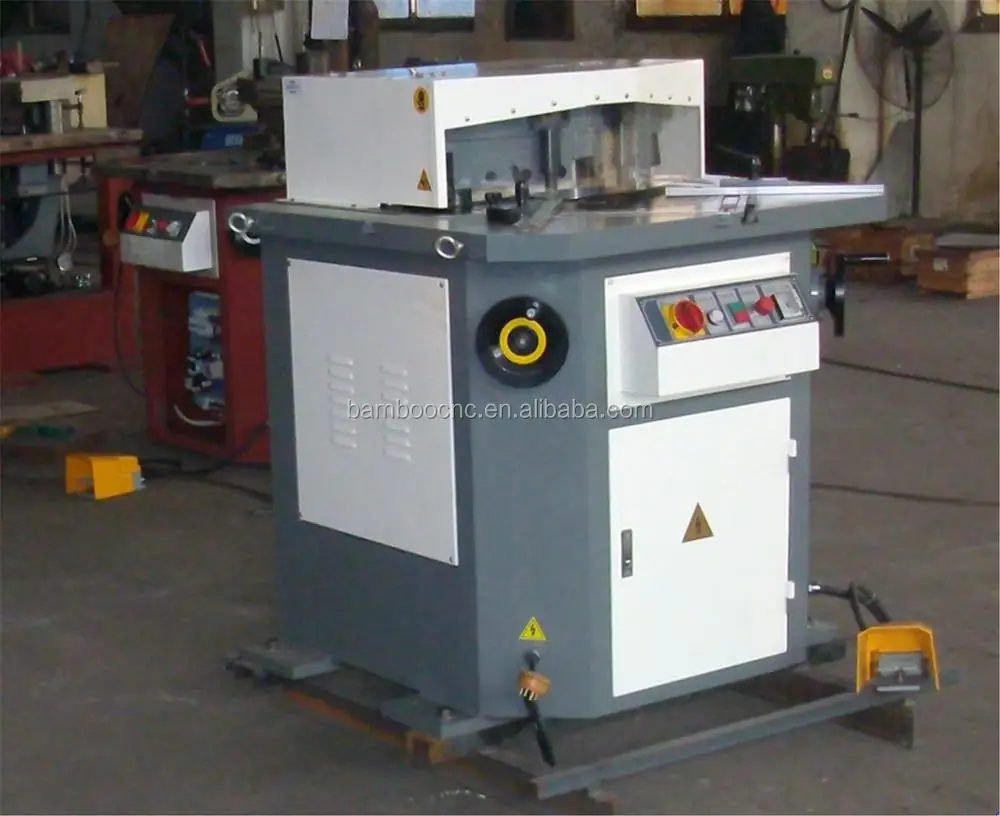

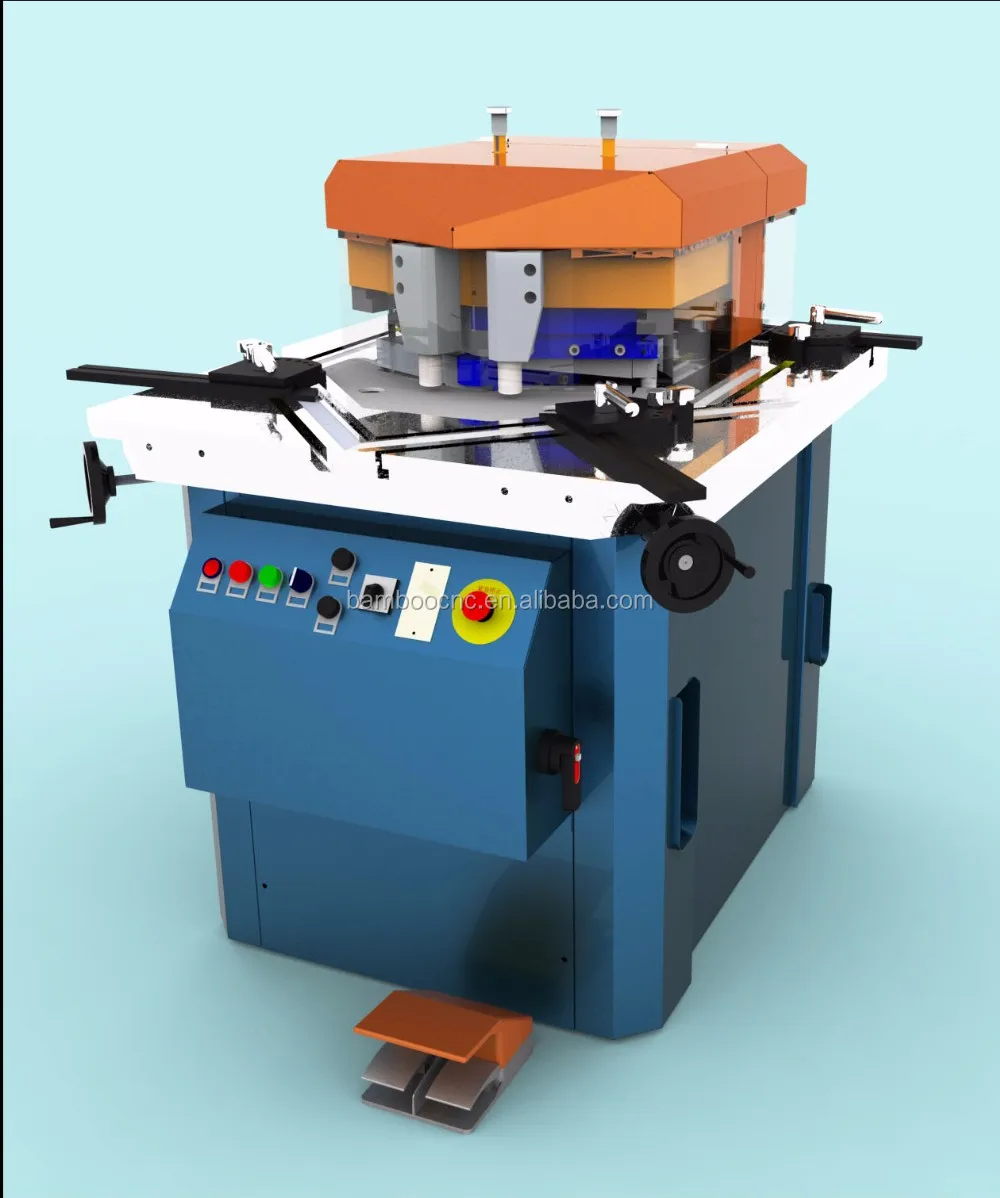

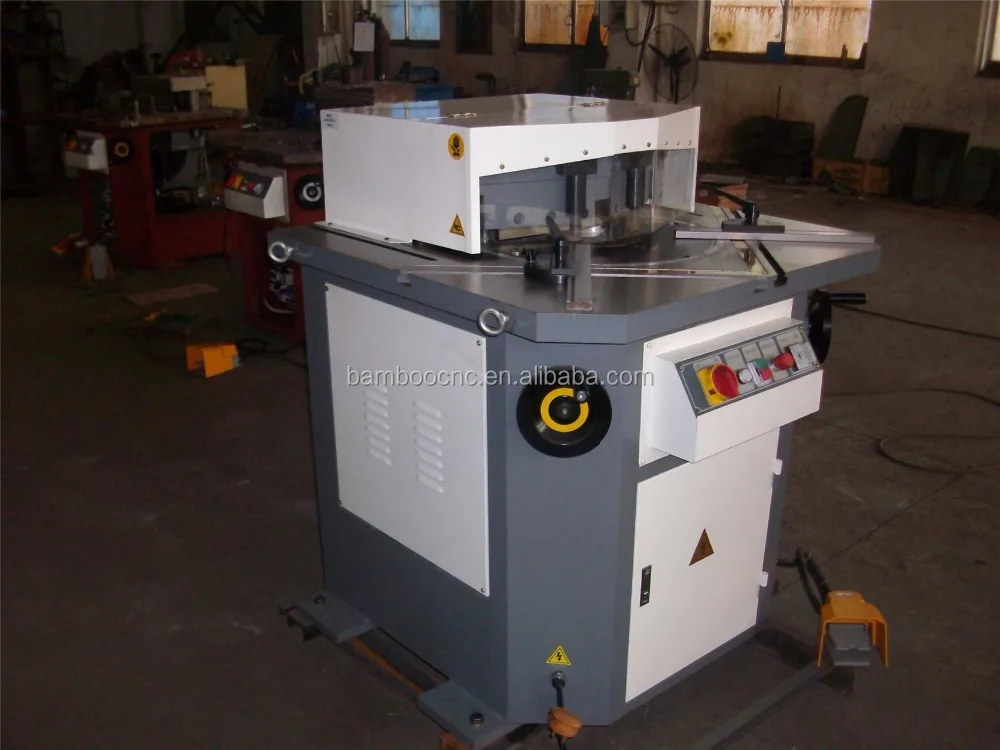

QF28Y-6x220B Bamboo adjustable corner notching machine sheet metal circle cutting machine

BAMBOO is a leading manufacturer and global supplier of sheet metal working machinery specializing in the production of CNC press brake,Hydrualic Shearing Machine ,Hydraulic Press .Power Press ,Iron worker and Laser cutting macine.etc

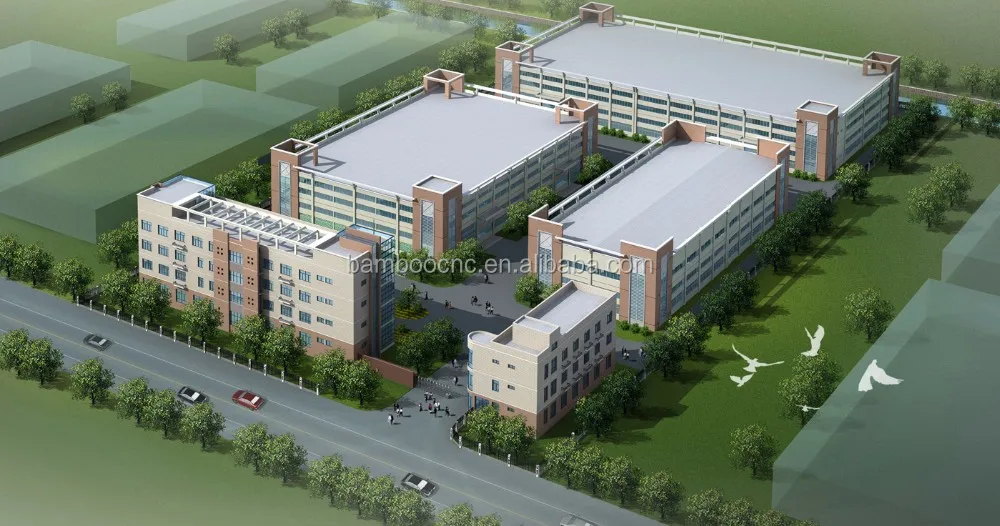

BAMBOO With 10 years of experience in a 2000 m2 modern production facility by a qualified team of 220 people adopting efficiency and quality as primary principles besides leading Sheet Metal Processing Machines sector via its powerful R&D structure.

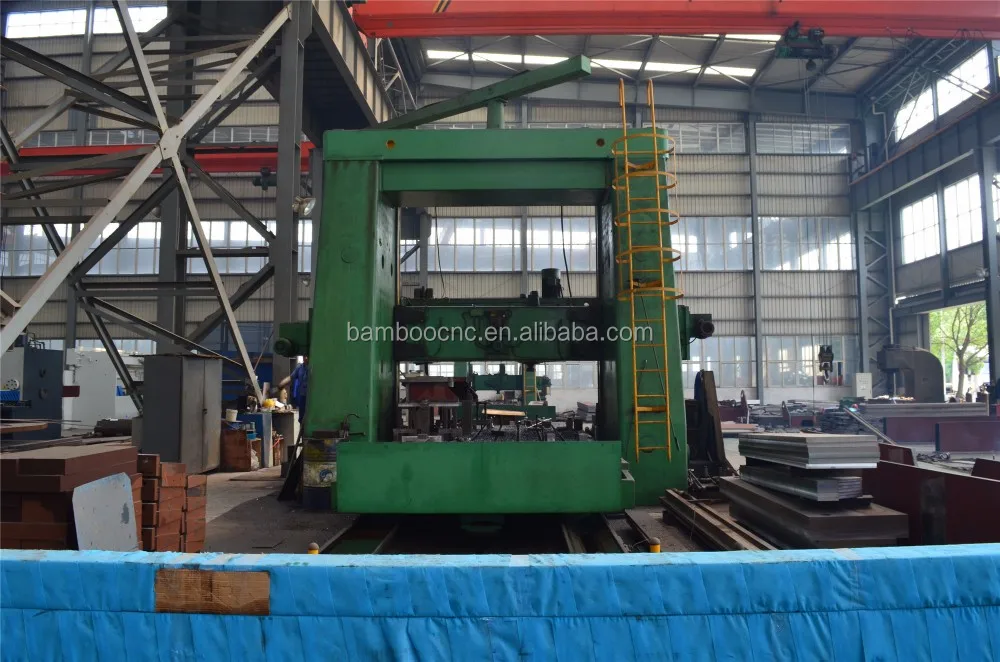

Production Line Of Hdyraulic Press

4-Column Hydraulic Press

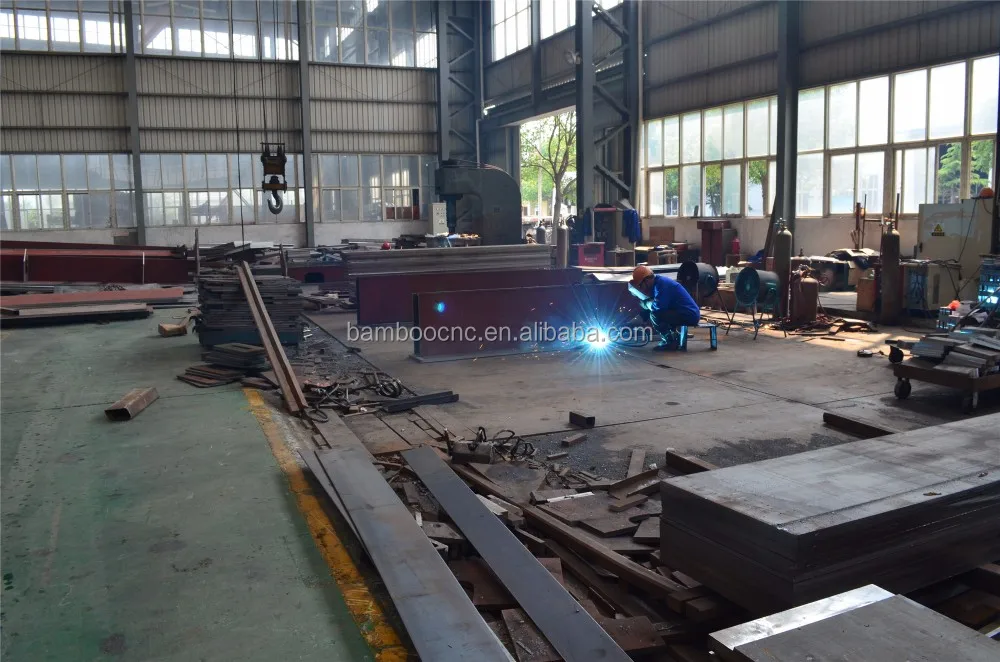

Welding

Product Description

Notching Machine Main Features

●Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

●The thing that sets our corner notchers apart from other sheet metal equipment out there is our patented blade gap adjustment that allows the operator to cut different thickness without any adjustments needed by the operator.This allows our blades to last longer and gives us a nice burr free cut.
●Our machines shear with the blades in the negative position as well as the positive position. Which one you use is based on which part you want to keep, the finished part pulled from the machine (best is Negative) or the dropped piece (best is Positive). Negative cut allows for less deformation on the finished part. Negative cutting clamps the sheet metal down so there isn't any movement. Positive cutting will want to move the sheet away from the stops allowing for room for error.
Product Type:
4-Column Hydraulic Press with Double Action
Press Material:
Metal/ Stainless Steel /Carbon Steel /Aluminum
Gear pump
SJapan Oil Research
Shear blade
Material: H13K
Electric Parts
Schneider IDEC and Omron
Main Motor
Siemens (China)Co,.Ltd
 Standard
Europe CE/South America NR12
After-sales Service
Engineers available to service machinery overseas

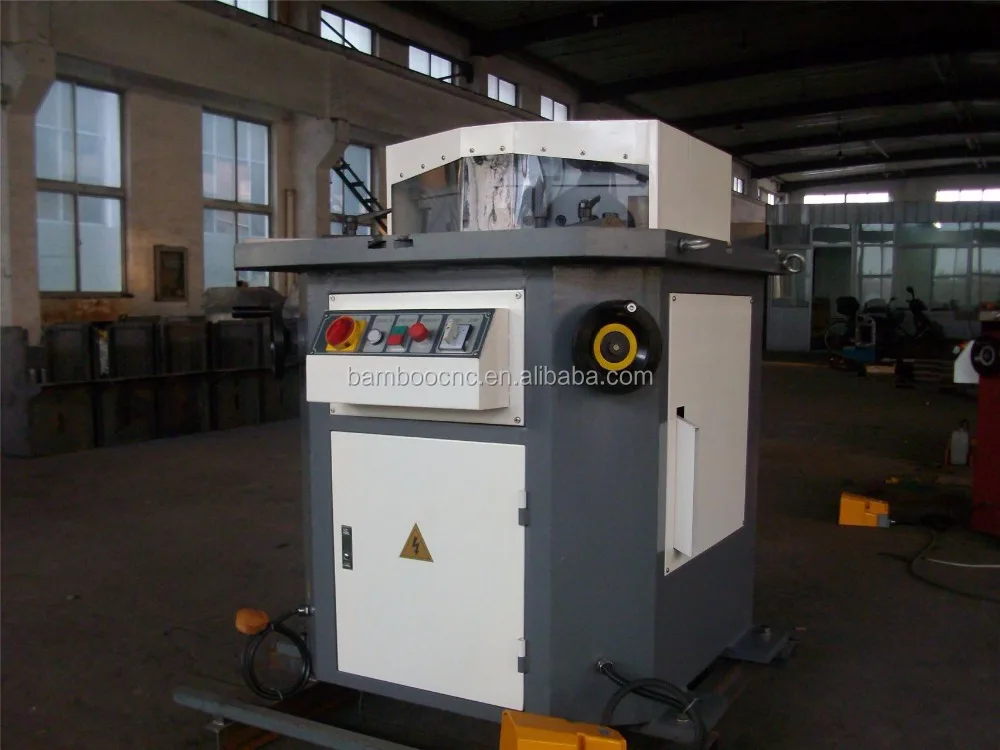

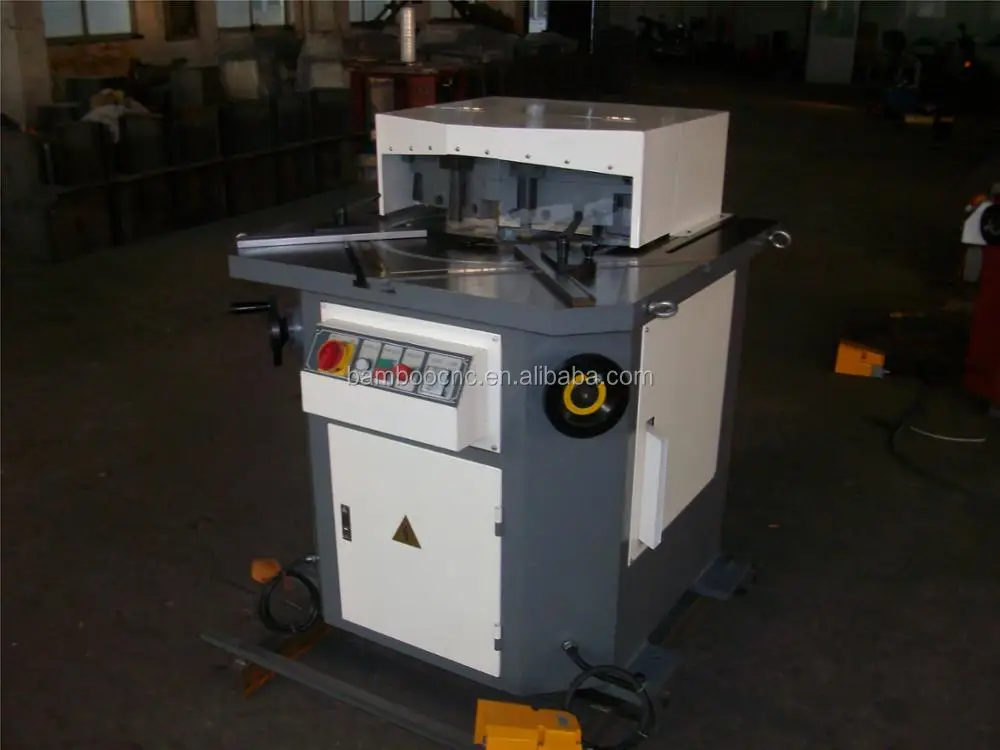

Notching Machine Details

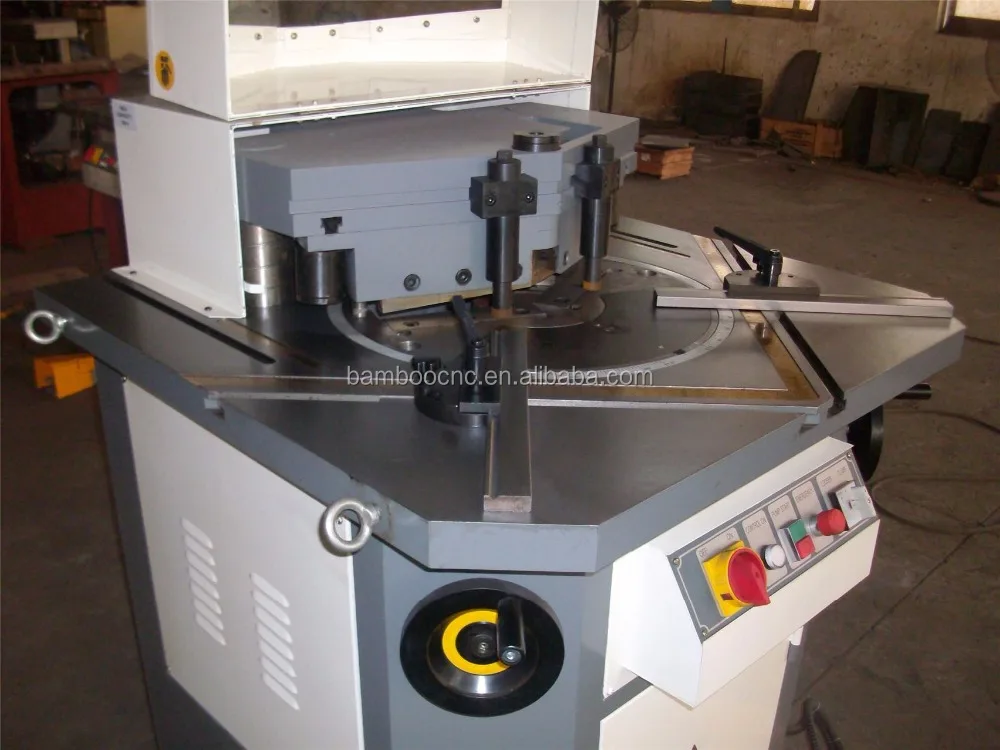

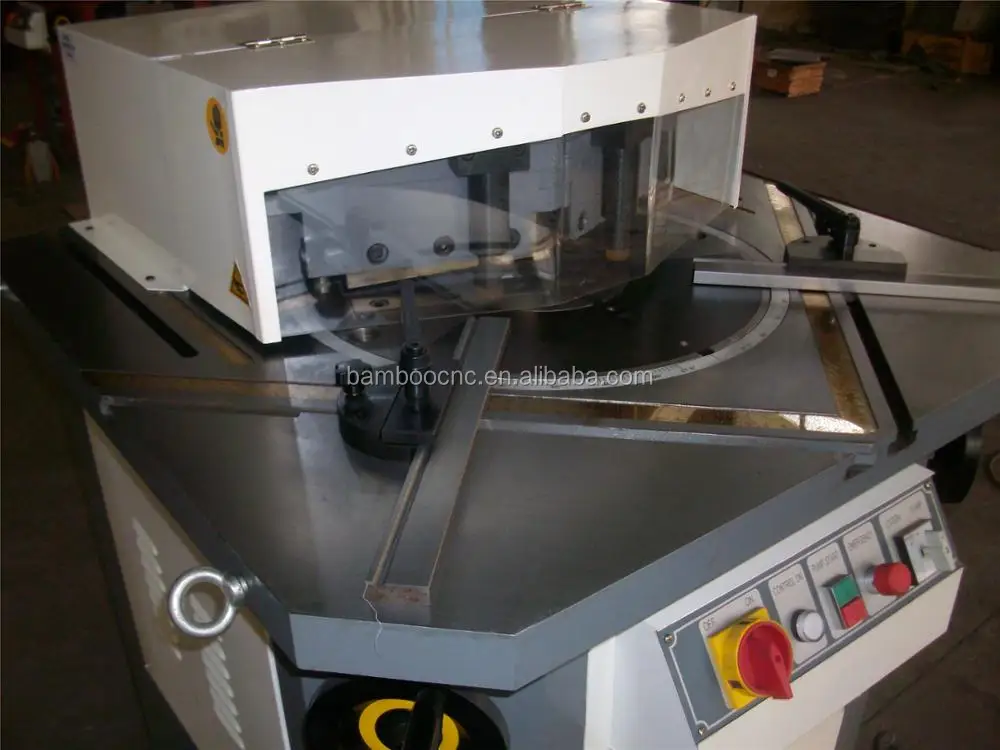

●Regarding our variable angle notchers, the variable angle blades are fixedin three positions. The pivot point and the end points of each blade is fixed after adjustment to angle is made. This type of rigidity separates us from other sheet metal fabricating equipment on the market.

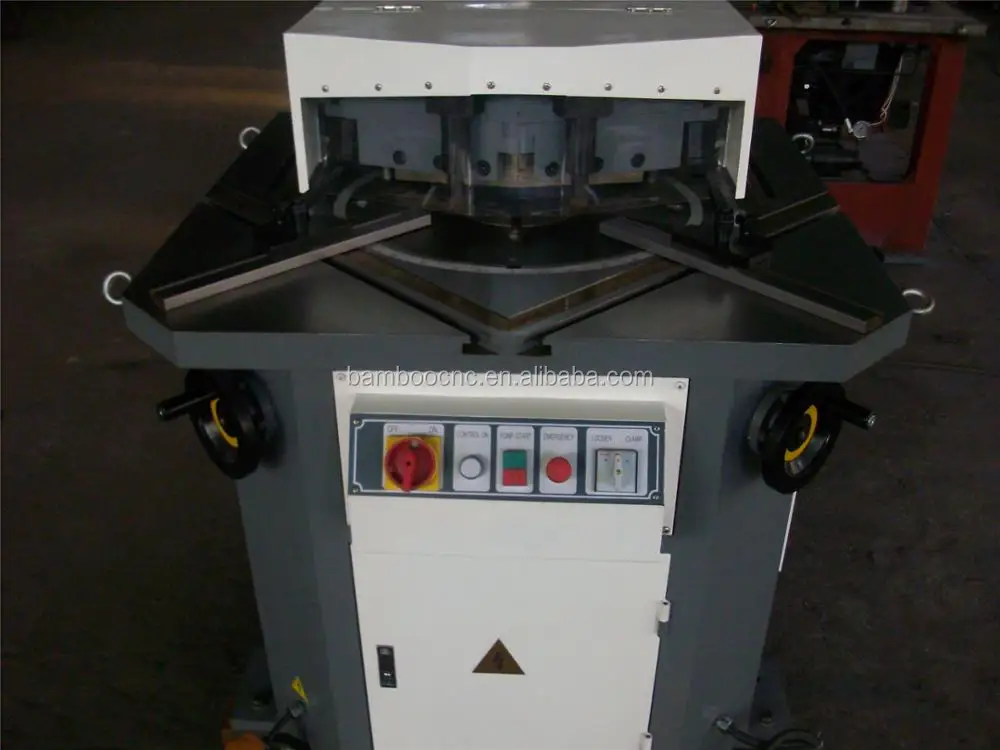

Parts Details



 ●Our variable angle machines can notch from 40°up to 130°. We can shear a 130°notch in one pass with one drop, some other machines require two cuts resulting in two drops.


 ●Bamboo notching drop the waste into a chute and the chute drops the waste in a bin outside of the machine. Believe it or not, there are some machines on the market where the dropped material goes into a bin in the middle of the machine making the operator have to bend into the machine to take out a heavy bin of scrap to throw out. Thus our machines offer a more ergonomically friendly machine for the operators back.

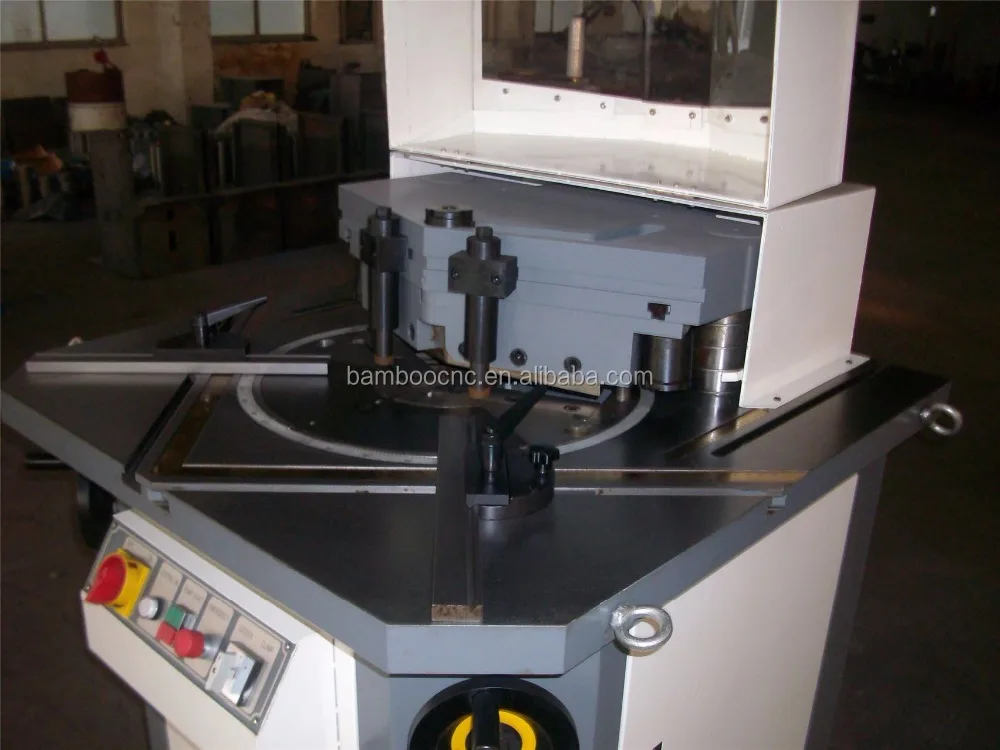

●The stop guides have dove tail grooves in the tail that allows for a tighter more secure guide setting, allowing our machine more accuracy and repeatability.

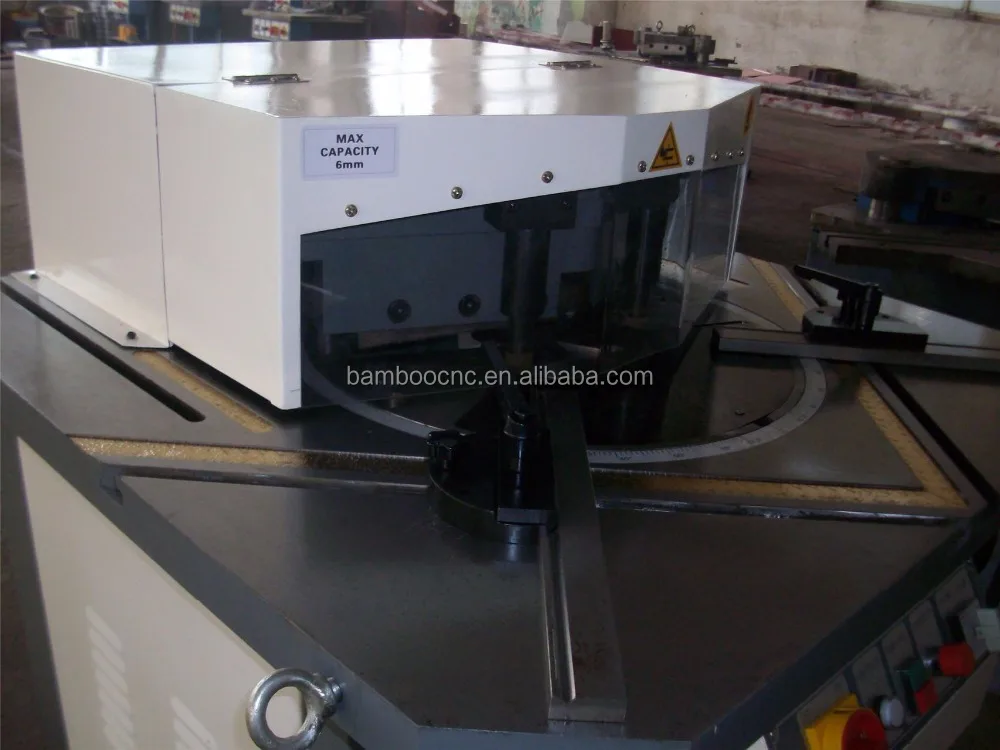

●Bamboo offer notchers that can shear up to 3/8" thick mild steel, with blades up to 9-3/4" long.



●The shearing head is the most rigid in the industry because we employ a five point fixed head. A stable shearing head is very important to blade life,and machine life when notching heavier plate.


Technical Specifications

Why Choose Us

Q1:How Can i calculate the Machine Capacity?
A: Just send me the Max thickness and Length .Engineer will tell us the capacity directly

Q2:How about the machine warranty?Is the whole machine?
A:We canoffer 4 years warranty for the following parts :
--Hydraulic System with pump and Valve
--Hydraulic Cylinders
--Electric units
--Hydraulic Cylinders
--Gasket Ring( We will send you extra with the machine also )
--Tube Connector
--Control Button
--Limit Switch
--Controller
During the warranty period we provide any accessories for free

Q3: What is your MOQ?
A:To let more customer know our quality, we accepty trial order service,So the MOQ is 1 set.
Q4: what is your delivery time?
A:We supply prompt delivery time:25-30days.
Q5:What kind of payment does your company support?
A:T/T, L/C , Cash, Western Union are all accepted

Packing & Delivery

1. Bamboo fixed Notching Machine in container by steel wire and all of the machine is by plastic film;
2.Small Notching Machine  we use wooden package to protect it

3. Normally we use 20 GP to loading
4. Delivery time 35-45days
