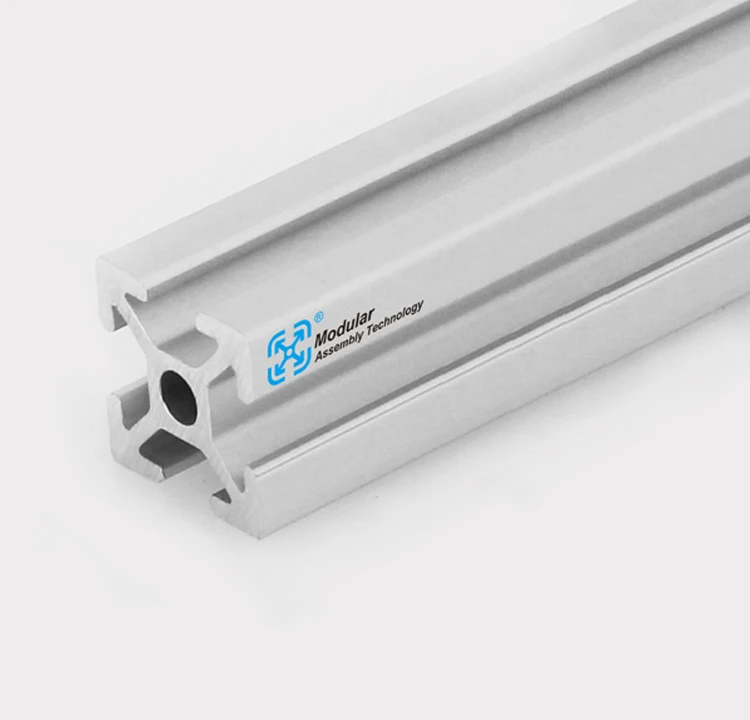

PG20 20x20 4 slot
- Category: Aluminum Profiles >>>
- Supplier: Dalian Modular Assembly Technology Co. Ltd.
Share on (60731443264):
Product Overview
Description
Free Sample
Specification
| T Slot Symbol | Cross Section (mm) | Core Hole (Φ) | Slot Width (mm) | Slot Depth (mm) | Wall Thickness (mm) | Profile Group |
 |  | 5.0 | 6.2 | 6.0 | 2.0 | PG15 PG20 |

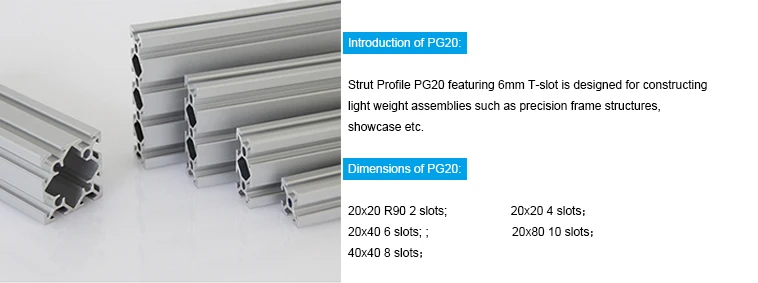

PG20 20x20, 4 slots
PG20 20x20 R90 2 slots | PG20 20x20 4 slot | PG20 20x40 6 slots |
| |  |
PG20 20x60 8 slots | PG20 20x80 10 slots | PG20 40x40 4 slots |
 |  |  |
| Description | Moment of Inertia lx(cm4) | Moment of Inertia ly(cm4) | Moment of Resistance Wx(cm3) | Moment of Resistance Wy(cm3) | Mass (kg/m) | Part No. |

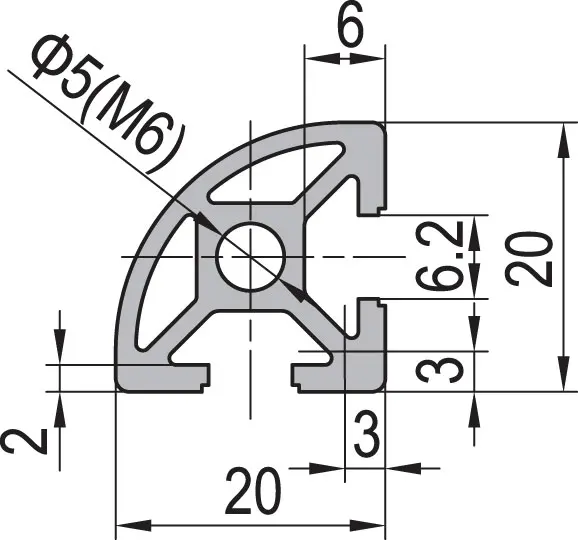

| Strut Profile PG20 20x20 R90 2 slots | 0.6 | 0.6 | 0.5 | 0.5 | 0.45 | 1.11.20.020020.R90.02 |

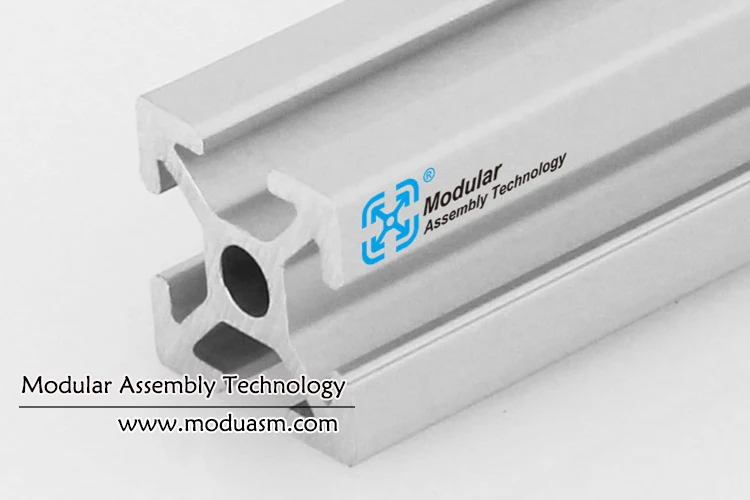

| Strut Profile PG20 20x20 4 slots | 0.8 | 0.8 | 0.8 | 0.8 | 0.5 | 1.11.20.020020.04 |
| Strut Profile PG20 20x40 6 slots | 1.4 | 5.1 | 1.4 | 2.5 | 0.9 | 1.11.20.020040.06 |
| Strut Profile PG20 20x60 8 slots | 2.0 | 15.8 | 2.0 | 5.3 | 1.3 | 1.11.20.020060.08 |
| Strut Profile PG20 20x80 10 slots | 2.6 | 35.9 | 2.6 | 9.0 | 1.7 | 1.11.20.020080.10 |
Other Alu Profile
n
Packaging & Shipping
s
aluminium profile extrusion tube frame fence die casting pipe production casting product alloy building material door handle ladders 6063 s parts pallet pergola balustrade door locks catalogue wire 8mm 10mm 6mm 4mm 3mm
FAQ
FAQ to save your precious time!
Q1: What’s the standard length of your profiles and tube
A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What’s your MOQ?
A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.
Q3: what is your payment terms?
A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.
Q4: What’s the lead time for small order and mass production?
A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
