Acedills H22 Integral Steel Drill Rod Jack Hammer Equipment Blast Hole Rock Drilling Tools Atlas Type

Product Overview

Description

Acedills H22 Integral Steel Drill Rod Jack Hammer Equipment Blast Hole Rock Drilling Tools Atlas Type

Basic Information Nitoce

Material	55SiMnMo
Production Lead time	Normally 7-20 days
Transit time	Normally 7-15 days
Packaging	As customer required or standard packaging
Protection	Antirust oil
Quality assurance	Formally Contract Paper
Technical support	For all user we have technical engineer support



 Products Introduction



Integral Drill Steels: Integral Drill Steel is mainly used in small-hole drilling, such as stone quarrying, foundation drilling, tunneling, underground mining, road cutting, and trenching and so on, and equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, which can be used for drilling bore hole diameter from 23mm to 45mm usually.

	Effective Length
	400~4000mm
	400~9600mm
	800~6400mm
Shank Style
H19*108mm
H22*108mm
H25*159mm
	Head Diameter
	23~35mm
	26~41mm
	35~42mm

PRODUCT SPECIFICATION

Acedrills’ integral drill steels are available in:

Shank Style	Effective Length		Head Diameter
	mm	foot/inch	mm	inch
Hex19 × 108mm	400 ~ 4,000	1’ 4” ~ 13’ 1”	23 ~ 35	27/32 ~ 1 3/8
Hex22 × 108mm	400 ~ 9,600	1’ 4” ~ 31’ 6”	26 ~ 41	1 1/32 ~ 1 39/64
Hex25 × 108mm	600 ~ 6,400	1’ 11 5/8” ~ 21’	33 ~ 45	1 19/64 ~ 1 25/32
Hex25 ×159mm	800 ~ 6,400	2’ 7” ~ 21’	35 ~ 42	1 3/8 ~ 1 21/32

Specification Notice

Notes:    1. The above table only indicates the most commonly used and produced products range, all of them are produced with chisel bit type, for cross bits type and other special requested products, please contact us with your requested details.        2. How to order? Shank Style + Effective Length + Bit Diameter   For brochure and more product information, please click here  to tell us the detail.

To Chose the Right Products

Integral Drill Steels usually have forged collar, and are fixed length with a shank at one end and a bit at the other. This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. They are able to drill to a depth equivalent to their effective length. The bit may consist of a single chisel shaped tungsten carbide insert or four such inserts. Holes are typically drilled in 0.4m increments to accommodate the air-leg feed length. To drill deep holes (up to 2.0m), the rods are designed to be used in a series where the length of any rod used is longer and the head size is slightly smaller than the one used just before it in the sequence. To do this, a series of rods must be produced so that the bit diameter is reduced for each increase in length of rod to prevent jamming of the bit in the hole.

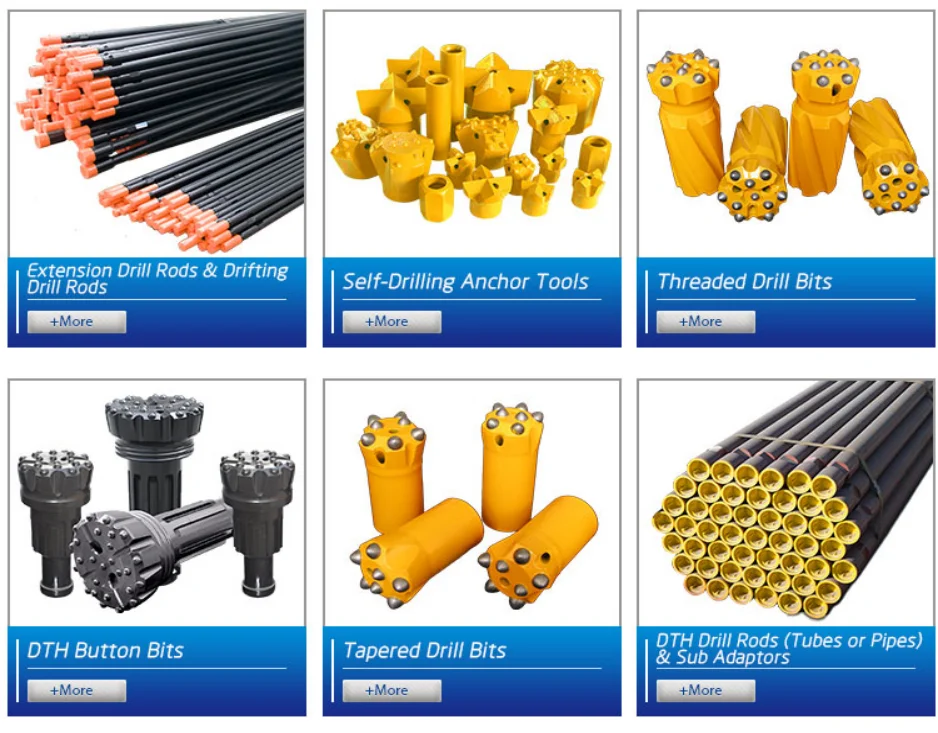

Related Products

History

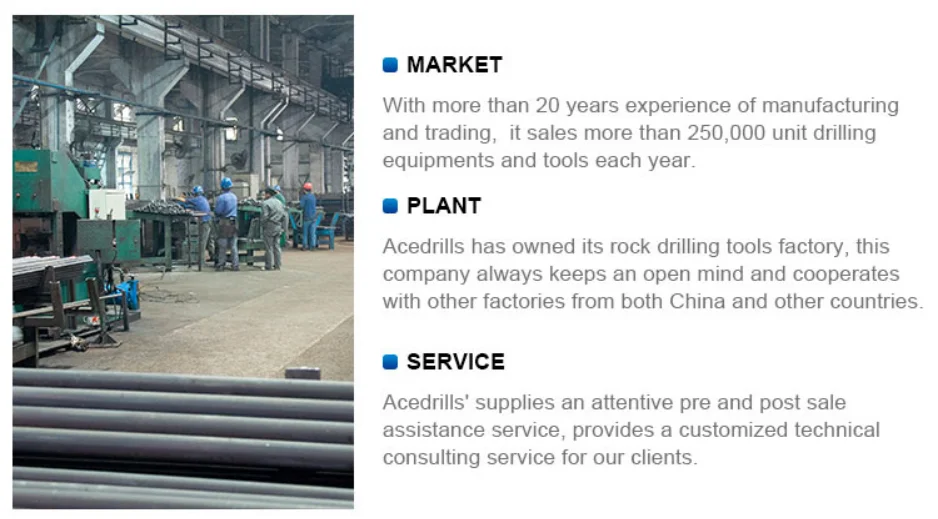

Production Line



Why Choose Us

 Certificates

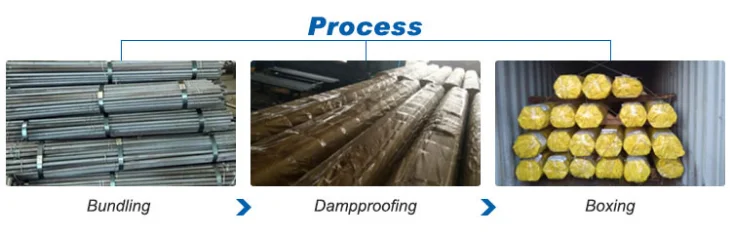

Packing standard and Display

Standard: Special packing specification will be strictly based on the customers’ requirements, in line with the standard of transportation by sea or air.
