Product Overview

Description




Product Description

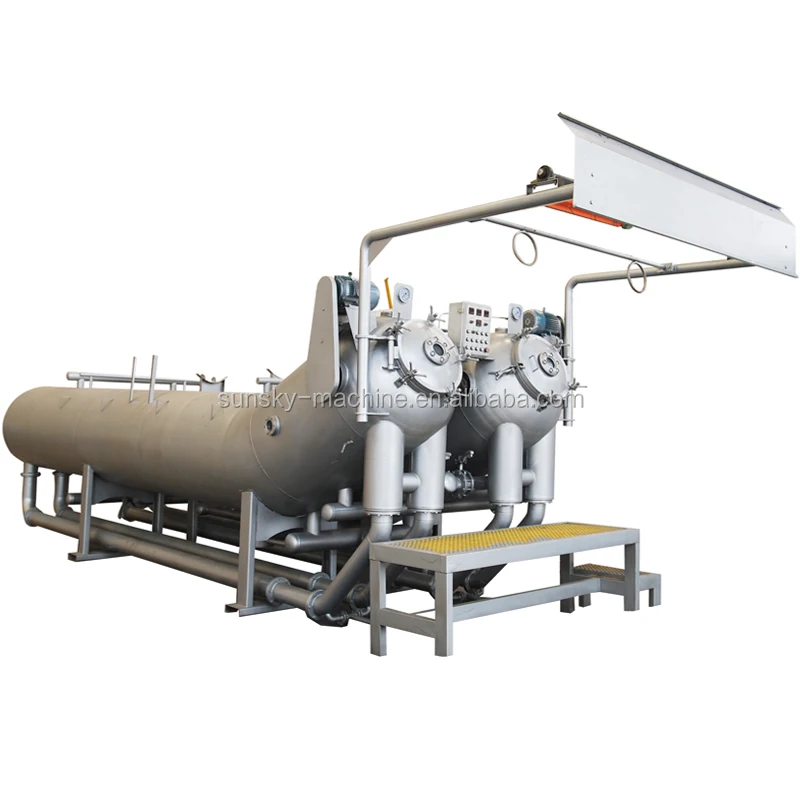

OH series low liquor ratio,low power consumption,low maintenance cost,high-temperature high pressure overflow fabric dyeing machine is suitable for the scouring/bleaching/dyeing/washing of all types of knitted and woven fabrics :Cotton,Modal,Viscose,Tencel,Rayon,Wool,Acrylic,Lyocell,Nylon,Polyester blended and lycra blended,etc.



Machine is designed and manufactured in accordance with pressure vessel standards GB 150, with maximum working temperature of 140 degrees and maximum working pressure of 0.36 Mpa. All parts in touch with dye liquor is made of corrosion-resistant stainless steel S31603 (316L) material. With a specially-designed nozzle structure, it enables the fabrics in loose and expanded conditions during the dyeing process. It has an excellent performance in dyeing tight and heavy fabrics and can eliminate the crease mark problem,which is usually seen in other dyeing machines. Meanwhile, the machine has two ropes loading capability.

Technical Data
  1.  HT-HP Fabric Dyeing Machine,Low Liquor Ratio; 1:3.5~5 (100% cotton maximum 1:5).
  2. Operating Speed: 450M per minute
  3. Maximum working temperature: 140'C
  4. Maximum working pressure: 0.36Mpa
  5. Temperature heating rate: 5'C per minute on average from 25 to 100'C, 2.5'C per minute on average from 100 – 130'C (Pressure of dry saturated vapor: 0.7Mpa)
  6. Temperature cooling rate: 3'C per minute on average from 130 to 100'C, 2'C per minute on average from 100 to 85'C (Cooling water pressure: 0.3Mpa, 25'C).



ModelNrs of TubesLoad (KG)Length(mm)Width(mm)Height(mm)MainPumpRunning Power(KW)
Power(KW)
OH-300-113003500540034005.513
OH-300-226004800540034007.519
OH-300-339005900540034001526
OH-300-44120071005400340018.534
OH-300-6618009500540034003047
OH-300-88240012500540034004556
Flow chart comparasi

QQ20150930085628

Execellent Performance by using new technologies:

  1. The low liquor ratio fabric dyeing machine vertical heat exchanger enables the condensated water to be drained instantly and reduces time in the shifting between hot and cold water.Also,it can avoid the formation of water scale,extend the service life of heat exchanger.
  2. The inlet pipe of the main pump is optimized,the height of water inlet is lowered and hence the water consumption is reduced significantly.
  3. The U-shaped fabric tank and synchronized fabric plaiting system increase the loading capacity by 20%,meanwhile,by plaiting in multiple directions,tangling problems can be completely avoided.
  4. Leading dyeing control system,in combination with dually balancing flow feeding system and constant pressure and stable flow rate,a uniform dyeing is guaranteed.
  5. The height of machine and operation platform is lowered and size of the operation platform is reduced,making operation much more convenient.The bottom of dye vat is specially designed so as to reduce water storage and lower liquor ratio effectively.
  6. With unique main vat circulation system,the temperature difference of entire dye vat from top and bottom and evennessof feeding is controlled at optimum conditions.
  7. Rotating spray is adopted from main vat cleaning and the whole vat is within the range of cleaning,ensuring a thorough cleaning.
  8. Dye liquor runs longitudinally,Longitudinal running of dye liquor and multidirection suction system greatly reduces the liquor ratio and optimizes the evenness of dye liquor.

Eco-friendly,energy saving and high-efficiency:

  1. The low liquor ratio dyeing machine reduces water consumption greatly.
  2. Comparing with traditional dyeing machine,the water,auxiliary and steam consumption can be saved by 50%
  3. Lowest installed power,hence lowest electrical energy consumption.
  4. Fast dyeing cycle,enhanced productivity.Larger Capacity in 300kg per chamber.
  5. User-friendly operation and easy maintenance.
Company Information

Sunsky is an experienced machinery manufacturer since 2004,it's located in Wuxi,JiangSu Province,China(50mins by train from Shanghai).We're focusing on dyeing and finishing machines for various textiles.After a decade of innovations and development, Sunsky becomes an expert in the field of textile dyeing machines, including normal temperature dyeing machine, high temperature dyeing machine, pre-treatment and after-treatment machines. We make designs according our customer's requirement, continuously improve our techniques, optimize designs and also take the issue of environment into consideration. Sunsky dyeing machine has been well received by domestic and foreign customers.On the basis of 10years professional manufacturing experience,we have successfully developed a new generation of liquor ratio 1:3.5~5, energy saving type OH/UH,and 1:2.8~3.5 yarn dyeing machine model SS241H.

-11

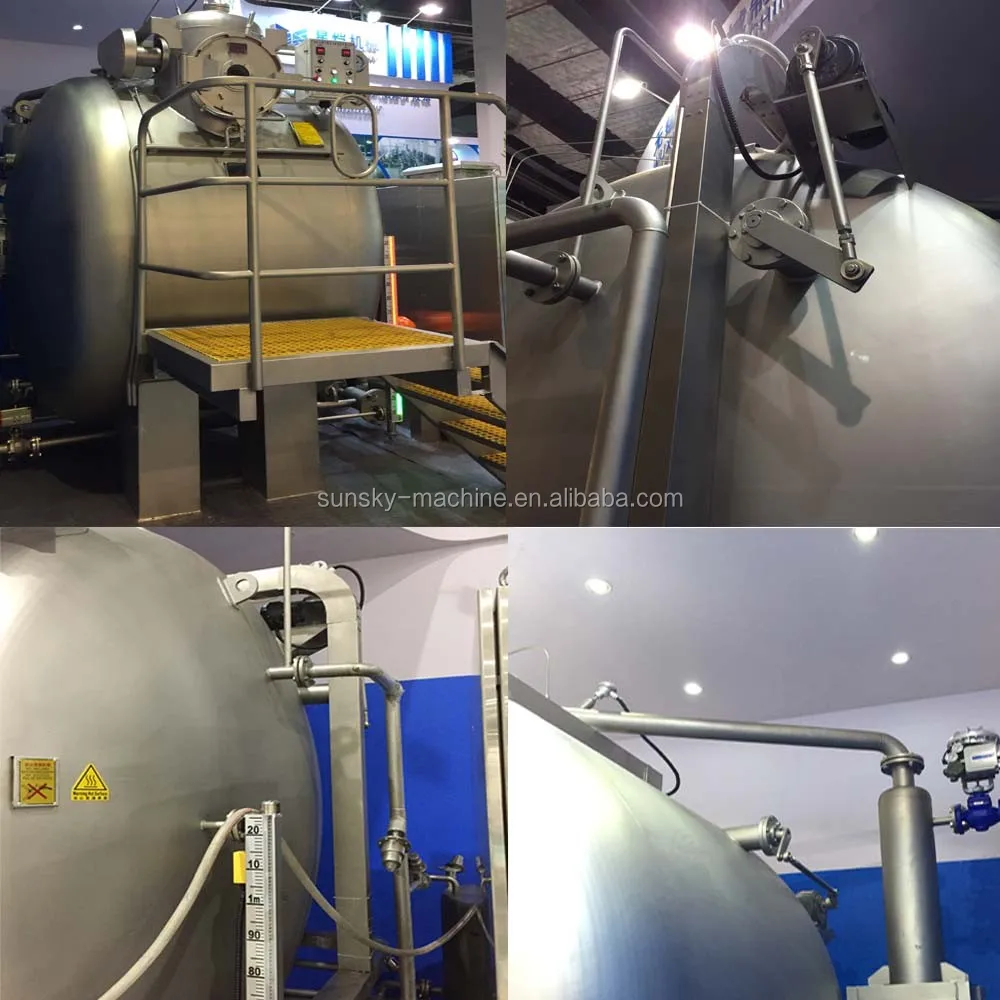

Detailed Images

-2

Model:OH-300-4(4Chambers),Fabric Maximum loading capacity at 1,200kgs.Main Pump 18.5KW,total install power 34KW.Liquor ratio 1:3.5~5,High efficiency energy saving fabric dyeing machine.Low liquor ratio;Low power consumption;Low maintenance cost.


Packaging & Shipping


005

Packaging of Electrical Control Panel:

-1

Our Services
  • Your any inquiries will be replied within 12 hours.
  • We offer you professional services in fluent English.
  • Quality: we have QC on each process in production.
  • We will give the right schedule and quality machine.
  • Without man-made faults,the warranty is 18months,spare parts can be replaced within 3mths since the delivery of machine.
  • Engineers available to service machinery overseas,commissioning and technical support,etc.
  • Our factory is located in Wuxi,JiangSu(50mins by train from Shanghai)
  • To contact us by email Dyeing(a)sunsky-machine.com Wechat:cpa588
