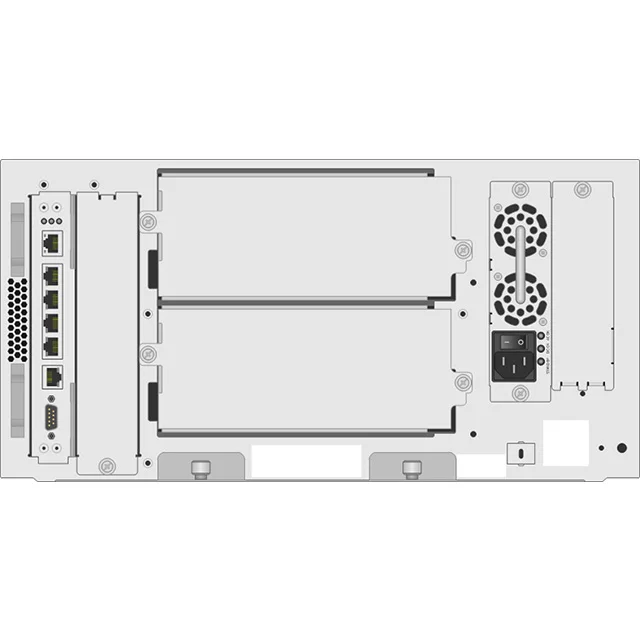

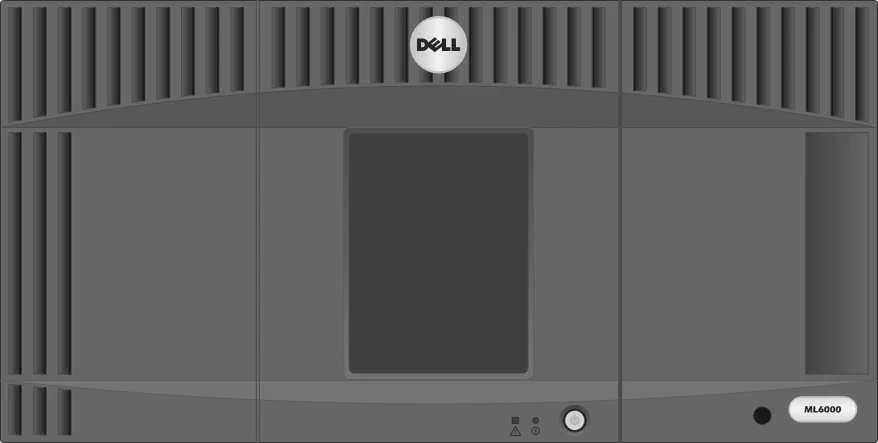

Brand New Sealed Original Dell PowerVault ML6010 CM (5U) Storage

MODEL

ML6010

Control Module

Features

Rack Height

5U

Dimensions (HxWxD)

8.6” x 17.4” x 31.4”

(21.9cm x 44.2cm

x 79.8cm)

I/E Station Slots

6

Maximum Storage Slots

36 (with I/E Station)

Drive Types

LTO-3 SCSI, LTO-3 FC, LTO-4 SAS, LTO-4 FC

Drives

1, 2

Interconnect Type

SCSI, Native Fibre Channel, or SAS

Weight

66lbs (30Kgs)

Reliability

Mean Cycles Between

Failure (MCBF)

>2,000,000

Mean Time to Repair

(MTTR)

30 minutes

Environmental

Electrical

100-240 VAC, 50-60Hz

Temperature

10º to 40ºC operating

Humidity

20-80% non-condensing operating

Frequency

50-60Hz

Operating Altitude

30,000ft (9,144m)

Power

Requirements

350W with optional redundant power supply and line cord

Drives & Performance

Support Media

LTO-1 (read-only in LTO-3 drives), LTO-2 (read/write in LTO-3 drives), LTO-3, LTO-3 WORM, LTO-4, LTO-4 WORM

Library Management

Operator panel touch screen: web client, SNMP protocol, SMI-S protocol

Library Managed

Encryption

Optional

Library Robot Control

LUN

Maximum Library

Capacity

28.8TB

Native Cartridge

Capacity (LTO-4)

800GB

Native Drive Throughput

(min.) (LTO-4)

120MB/s

Data Buffer (LTO-4)

256MB

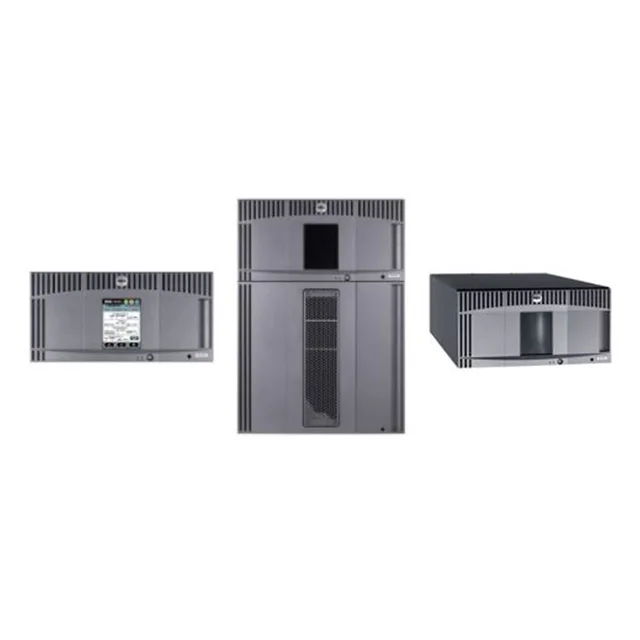

PowerVault ML6010 CM (5U)

PowerVault ML6020 CM (14U)

PowerVault ML6030 CM (23U)

PowerVault ML6000 EM (9U)

ML6000 - 32U Config

ML6000 - 41U Config
