2024 Good quality Natural Gas and LPG Infrared Brooder Lamp THD2606 for Chicken,safe gas working

Product Overview

Description

Natural Gas and LPG Infrared Brooder Lamp for Chickens



Notice:

1.When you buy this brooder,please remark the working gas type(natural gas,LPG,propane or etc).

2.Each gas matches special nozzle(jet), don't change it by yourself.
3.If LPG, pressure reducing valve &pressure gauge are necessory.
4.Connect all the parts required, check gas leakage or not.

5.Working gas pressure for different gas as followed:

Gas Type	Natural Gas	LNG	LPG	Propane	Biogas
Gas pressure (Pascal)	3000 to 4000	3000 to 4000	3000 to 5000	3000 to 5000	at least 8000



Gas brooder information:

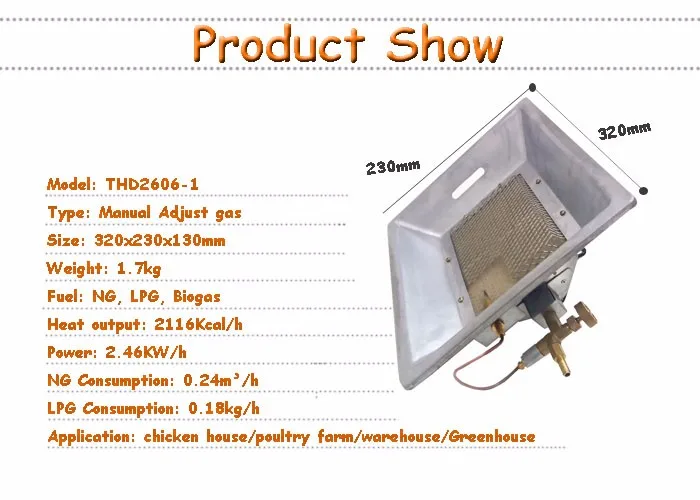

Model	Net Weight	Dimension	Gas Consumption		Heat Output
	kg	mm	NG	LPG	kw/hour	kcal/hour
THD2606-1	1.7	Reflector 320*270*130 Ceramic 188*135	0.24 m3/hour	0.18 kg/hour	2.46	2116



Why choose us?

1.Energy Efficient  above 20%.

2.Smokelss and Flameless,good for animal.

3.Flameout protection.

4.One gas brooder can warm above 600 chicks.

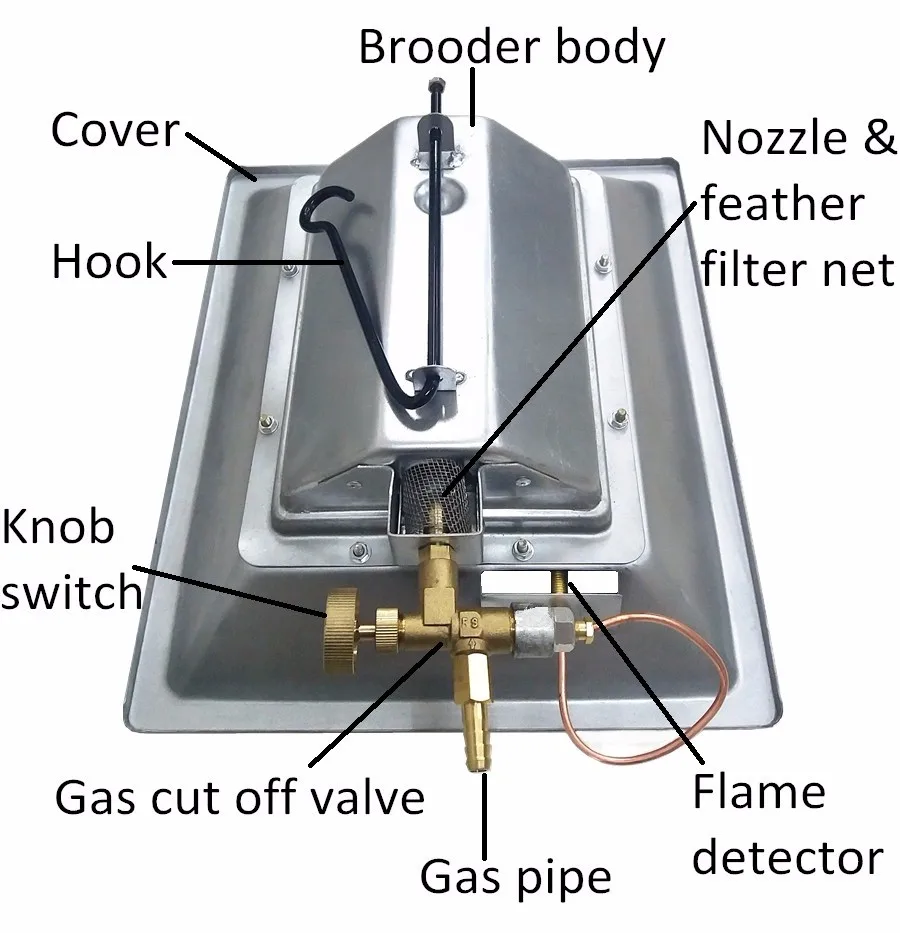

Gas brooder detail pictures as followed:



How to use this infrared gas brooder?





Notice & FAQ
1. Pls keep the gas inlet pipe side downward sloping when installation the brooder(as shown above) to prevent overheating.

2. It’s normal phenomenon there is blue flame at beginning, after several minutes will disappear.

3. If the blue flame always stay on ceramic plate, pls check whether the pressure too low; If yes, pls adjust the booster pump.

4. If there is a big red flame, the reason maybe is:
a. the pressure is too high. Pls adjust the pressure reducing valve to required pressure.
b. oxygen lack. Pls keep room air circulation when brooder working.
c. ceramic plate is broken; Pls change the broken ceramic plate.



5. The heat area doesn't equal, pls check whether the feather block at filter net.

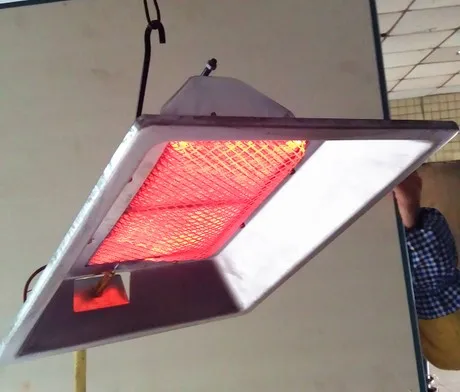

6. This product is flameless, only see the red heating surface no flame in normal working.

7. Pls check up and clean the complete system parts termly.
