China Steel Wire Nail Making Machine/Automatic Wire Nail Making Production Line
- Category: Nail Making Machines >>>
- Supplier: Wuxi Shenda Nail Machinery Factory
Share on (60733543246):
Product Overview
Description
Product Overview
China Steel Wire Nail Making Machine/Automatic Wire Nail Making Production Line
Wuxi Shenda Nail Machinery Factory Has 26 Years Experience and 14 years-Alibaba.
Our adventure machines include:Nail Making Machine Production Line,
Wire Drawing Machine Production Line,
High-speed Screw Rolling Machine,
High-speed Coil Nail Machine.
Our adventure machines include:Nail Making Machine Production Line,
Wire Drawing Machine Production Line,
High-speed Screw Rolling Machine,
High-speed Coil Nail Machine.

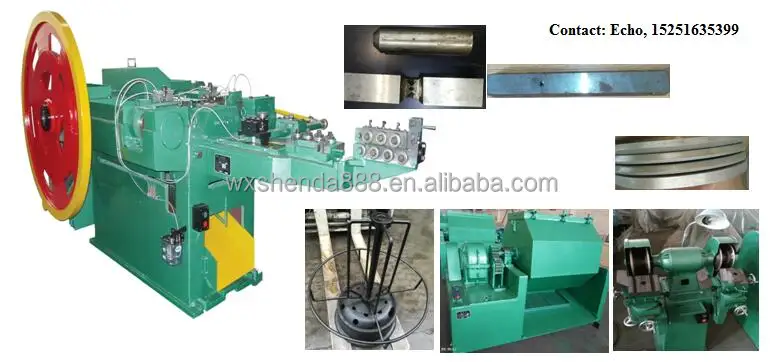

Main nail making process
1. Make nails by nail making machines
2. Polish nails by nail polishing machines
3. Pack the final nails
3. Pack the final nails
FEATURES AT A GLANCE

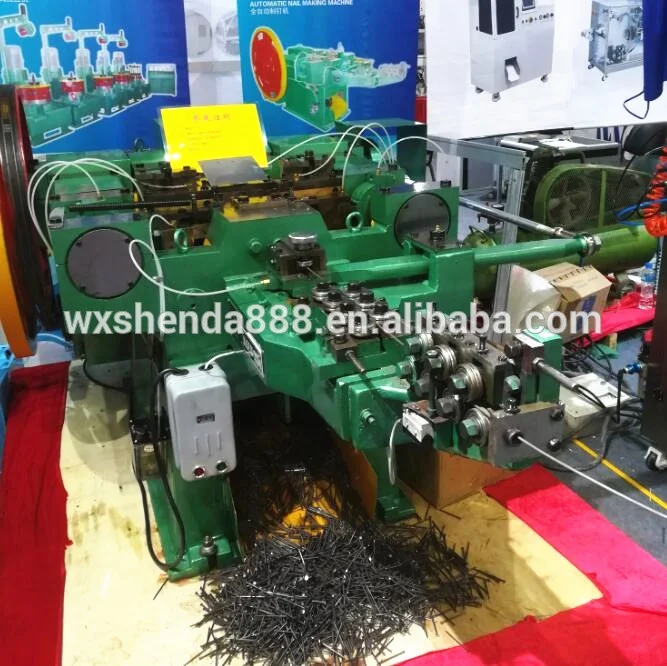

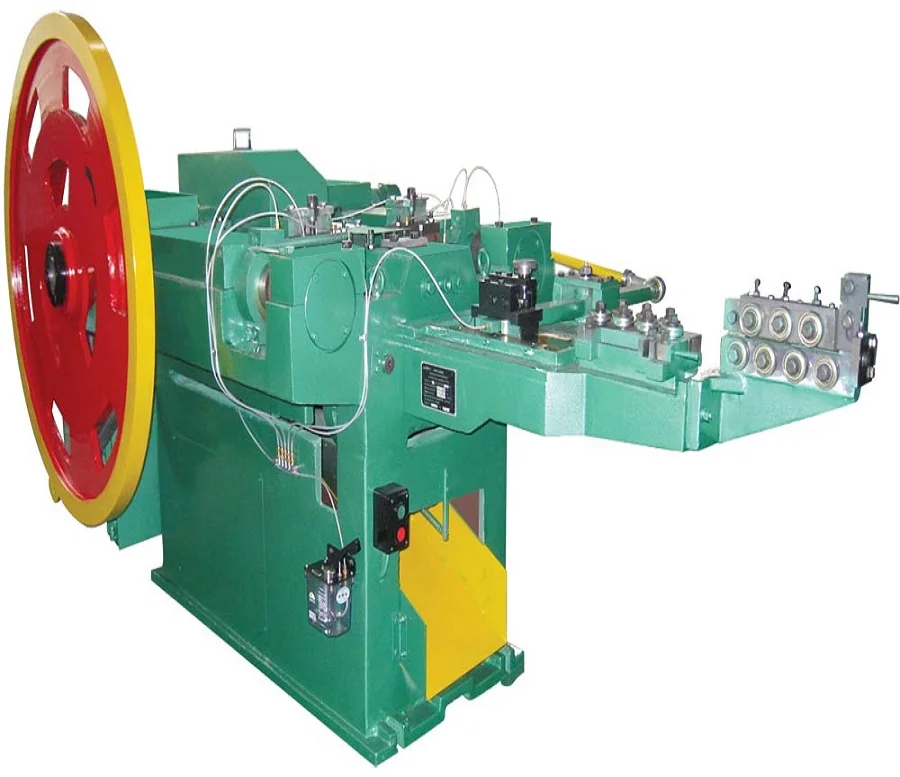

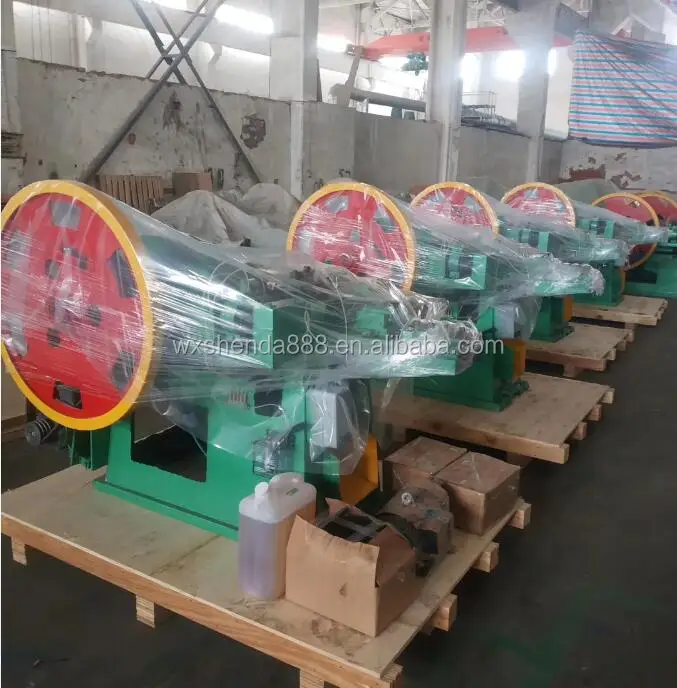

1. Nail Making Machines
This nail making machine is mainly used to produce common steel nail, like: concrete nail, steel nail, shoes nail, etc various
nails.
This nail making machine is mainly used to produce common steel nail, like: concrete nail, steel nail, shoes nail, etc various
nails.
Right elevation
Front elevation
Right elevation
PRODUCT SPECIFICATIONS
Model | Z94-2C | Z94-3C | Z94-4C | Z94-5.5C | Z94-6.5C |
1. Nail Dia | 1.2-2.5mm | 1.8-3.4mm | 2.8-4.5mm | 3.7-5.5mm | 4.5-6.5mm |
2. Nail Length | 16-50mm | 1.8-3.4mm | 50-100mm | 80-150mm | 100-200mm |
3. Motor Power | 32.2kw | 2.2kw | 4kw | 5.5kw | 11kw |
4. Nail Speed | 350pcs/min | 320pcs/min | 280pcs/min | 200pcs/min | 160pcs/min |
5. Mesure Size | 1.6*1.1*1.3m | 1.8*1.26*1.46m | 2.2*1.54*1.59m | 2.4*1.6*1.6m | 3.2*2.2*2.2m |
6. Weight | 1200Kg | 1400Kg | 2000Kg | 2500Kg | 5000Kg |

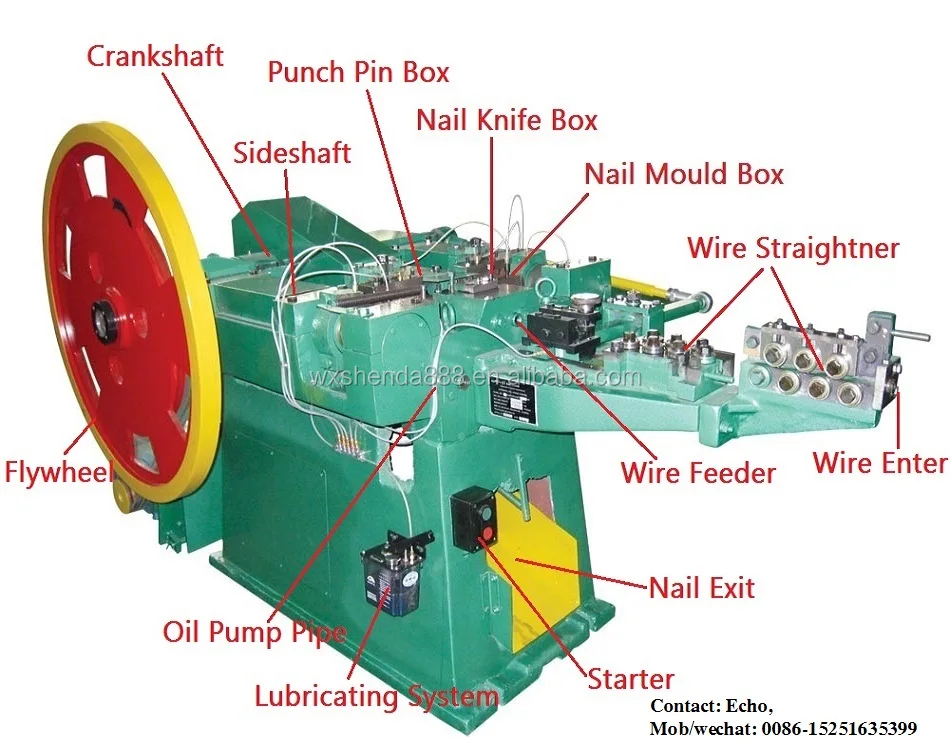

PRODUCT CONFIGURATION
High Quality Gear
Compact Machine Structure
Nail Punching System

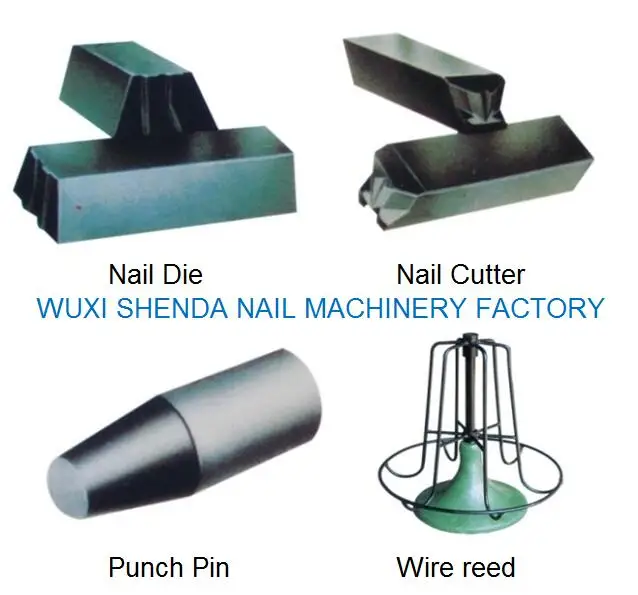

Nail spare parts
Nail mould: Clamp the wire,
Nail knife: Cut the wire to make nail top,
Punch pin: Make nail head
Wire drawing dies
It is used for wire drawing production line
Nail cutter grinding wheel
It is to grind the nail cutter

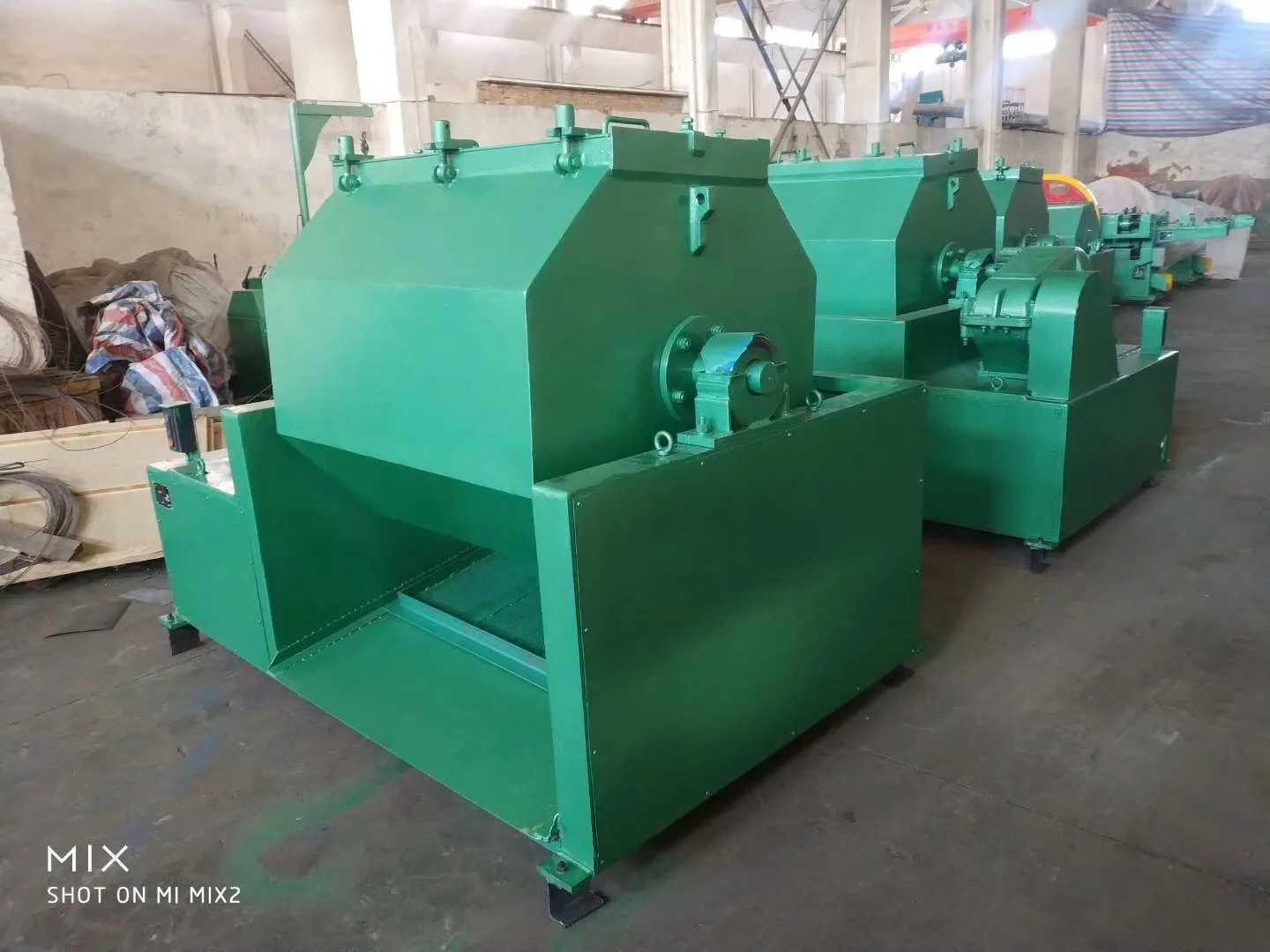

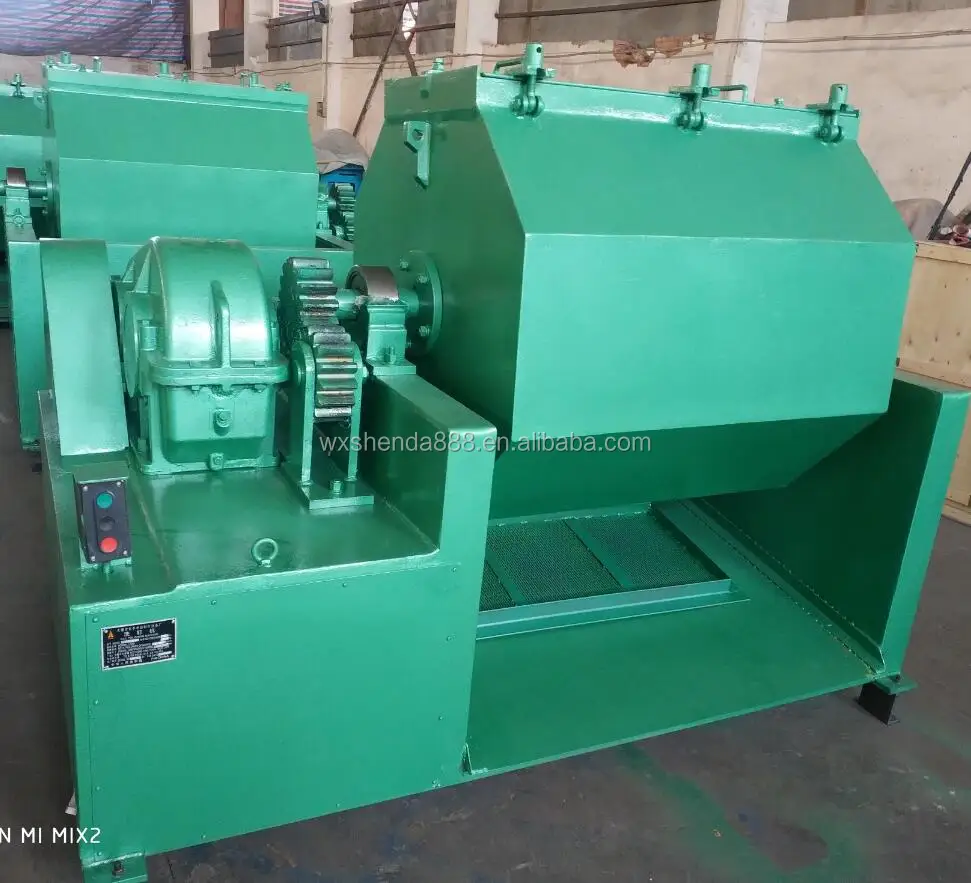

2. Nail Polishing Machine
It is used to polish nail after making nail by nail making machine
It can make nails clean and bright
It can make nails clean and bright

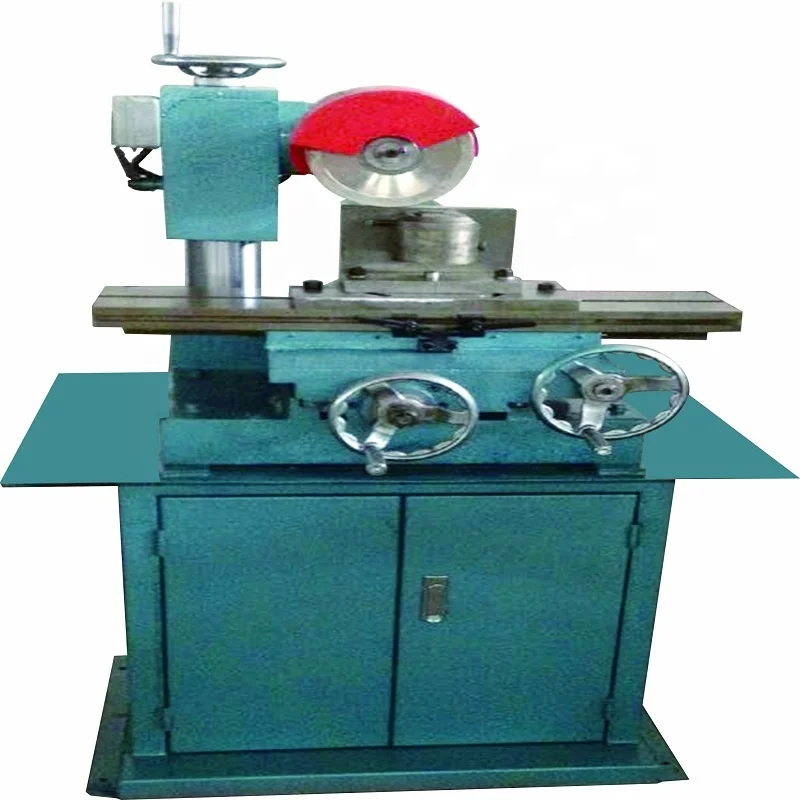

Nail cutter grinder machine
Re-sharpe the nail knife after nail knife is pointless.
It is used sometimes.

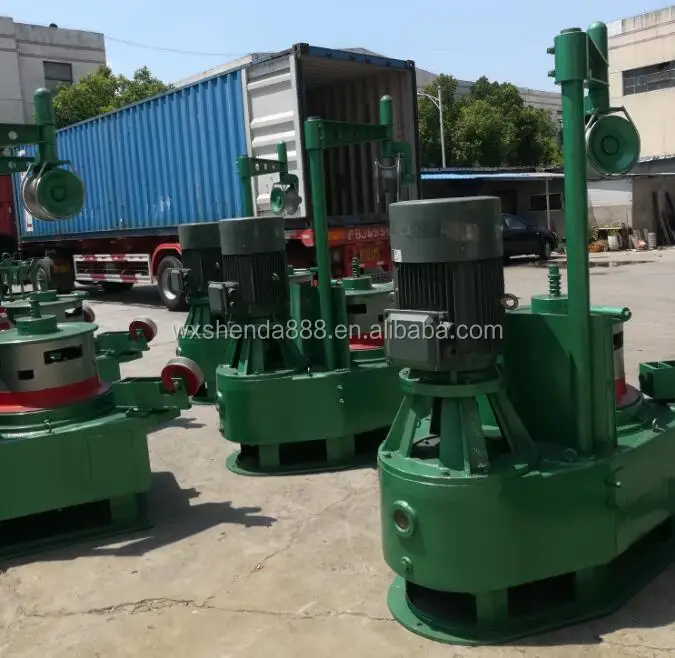

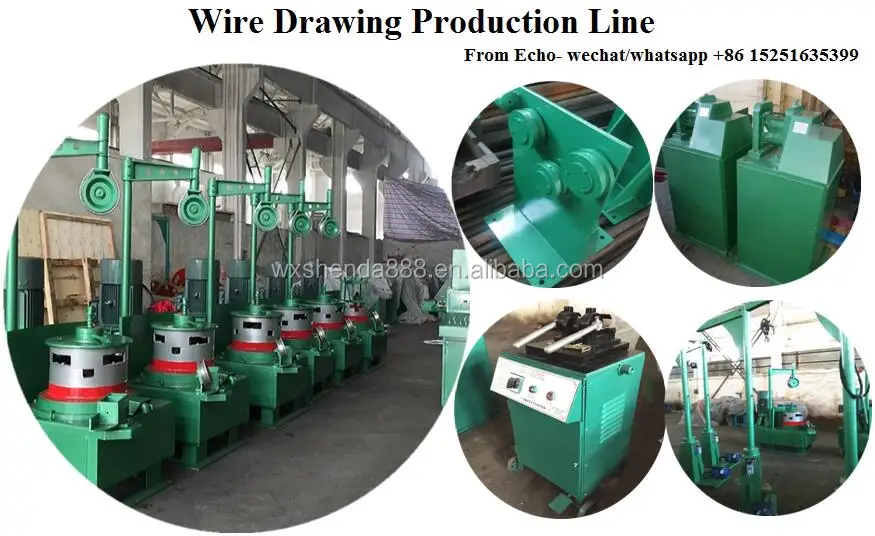

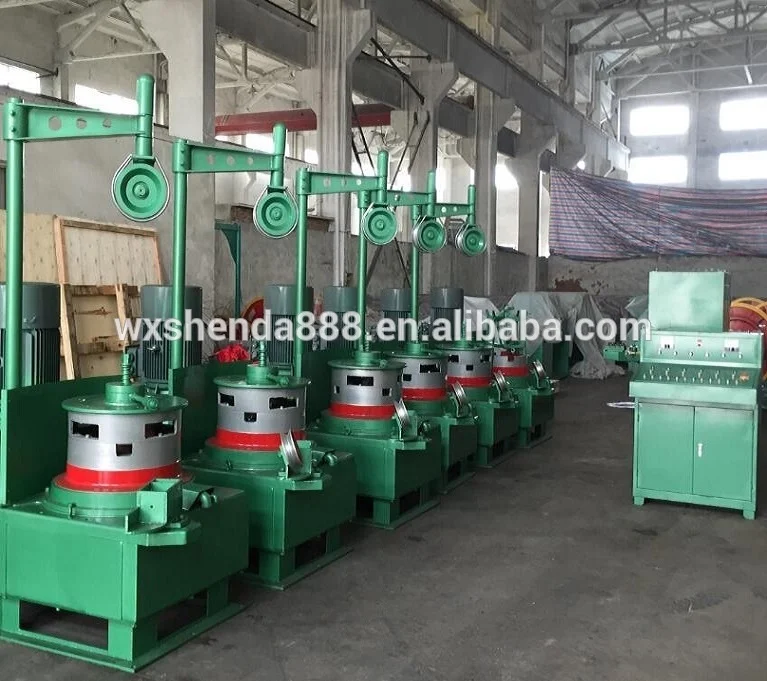

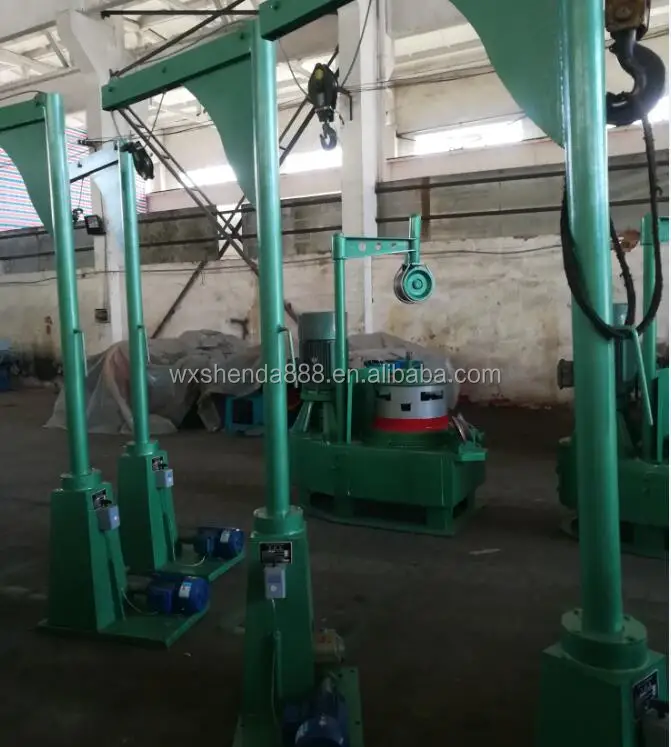

Wire drawing production line
Our wire drawing machine is to change the diameter of raw material wire: to make diameter smaller.
It includes following machines:
1. wire drawing machines
2. shucking machine
3. Sharpening machine

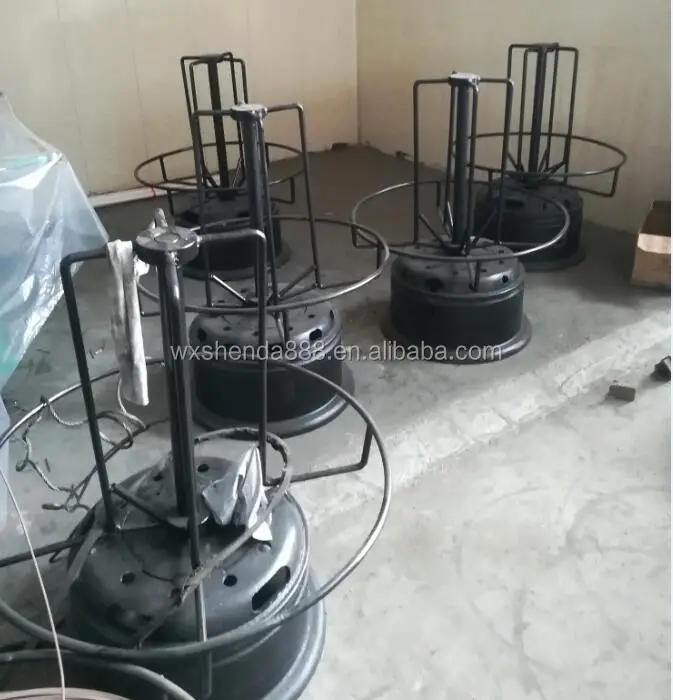

4. butt welding machine
5. discharge machine

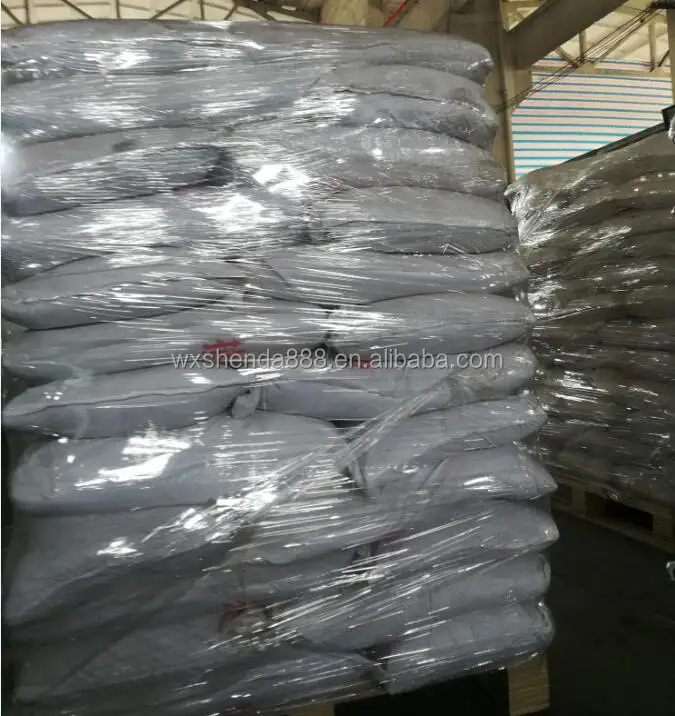

6. powder
Model | LW- 560 | LW-450 | LW-350 |
Max. dia. of wire rod | 6.5mm | 3.4mm | 2.5mm |
Min. dia. of wire wire | 2.5mm | 1mm | 0.75mm |
Max. speed of block | 245 m/min | 346.9 m/min | 200 m/min |
Total power | 18.5kw | 11kw | 11kw |
Weight | 2000kg | 1500kg | 1000kg |
Overall dimensions(LxWxH) | 170x115x175cm | 152x81x170cm | 140x80x150cm |
Successful Project
Project in Kenya
Project in Mexico
Project in Thailand
SIMILAR PRODUCTS
FAQ
* Q1:How long is the machine delivery time?
A1:Usually 14 days for normal machine.
* Q2:Why can choose us for establishing further business relations?
A2:Diversified products,high-quality equipments and rich-experienced factory with 26 years.
* Q2:Why can choose us for establishing further business relations?
A2:Diversified products,high-quality equipments and rich-experienced factory with 26 years.
