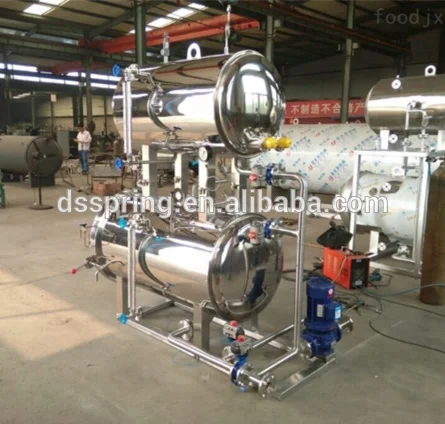

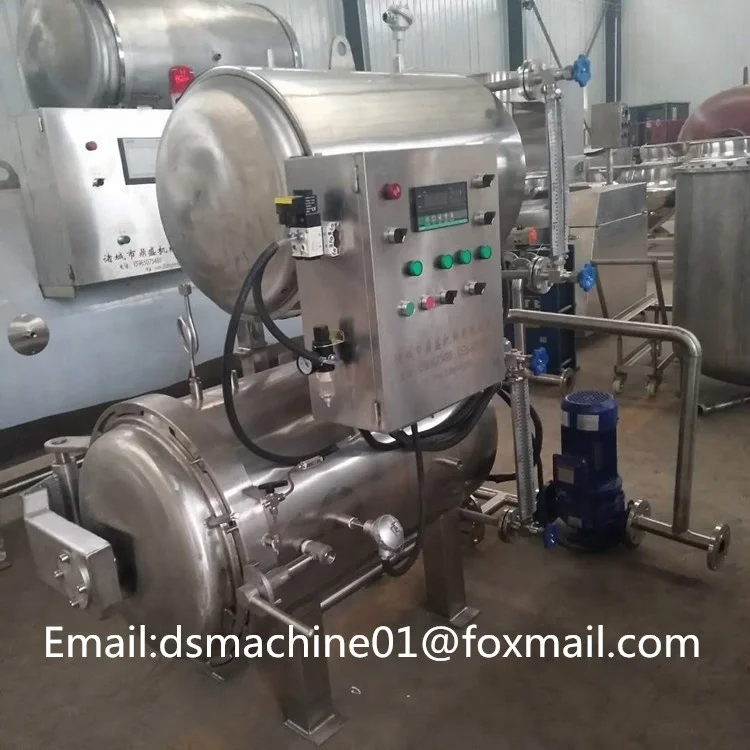

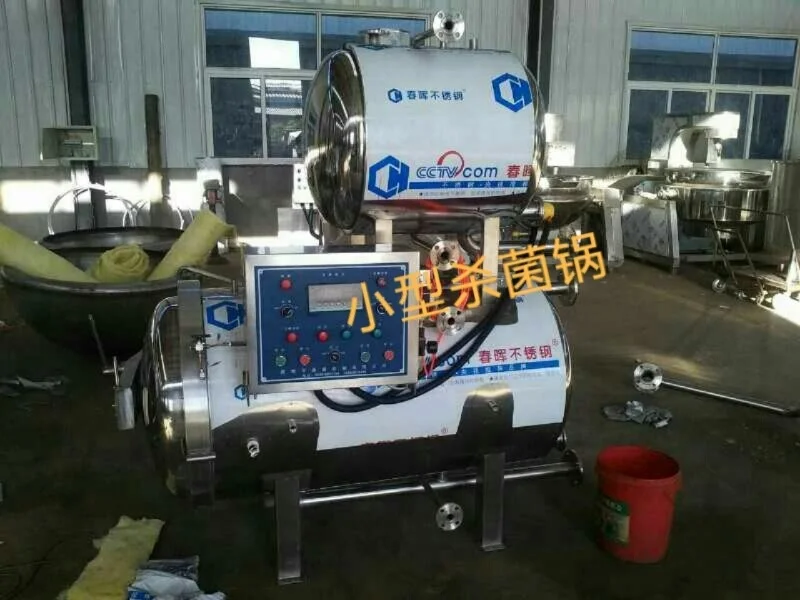

Автоклавный стерилизатор цена маленький ретортный автоклав для консервов
- Category: Food Sterilizer >>>
- Supplier: Zhucheng City Dingsheng Machinery Co. Ltd.
Share on (60733706351):
Product Overview
Description
product description

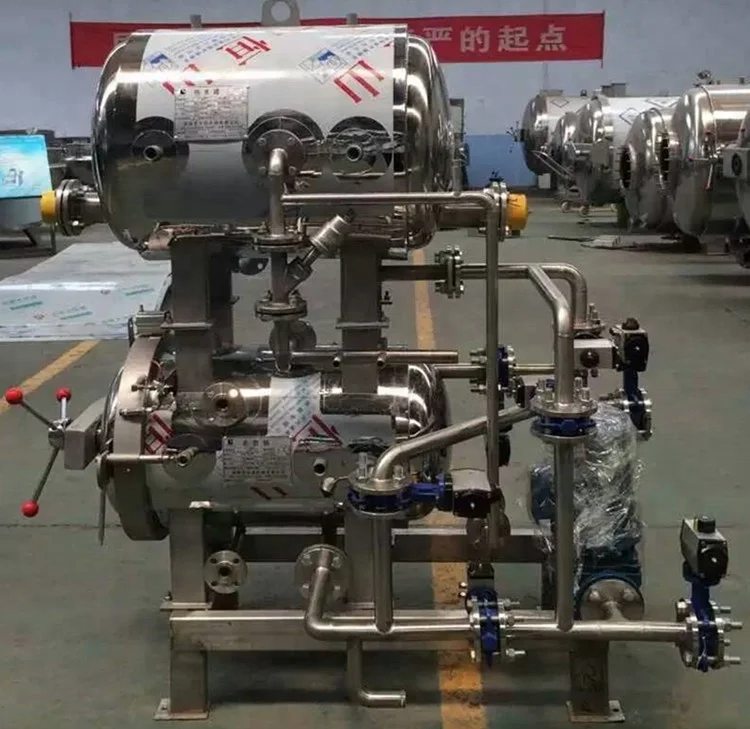

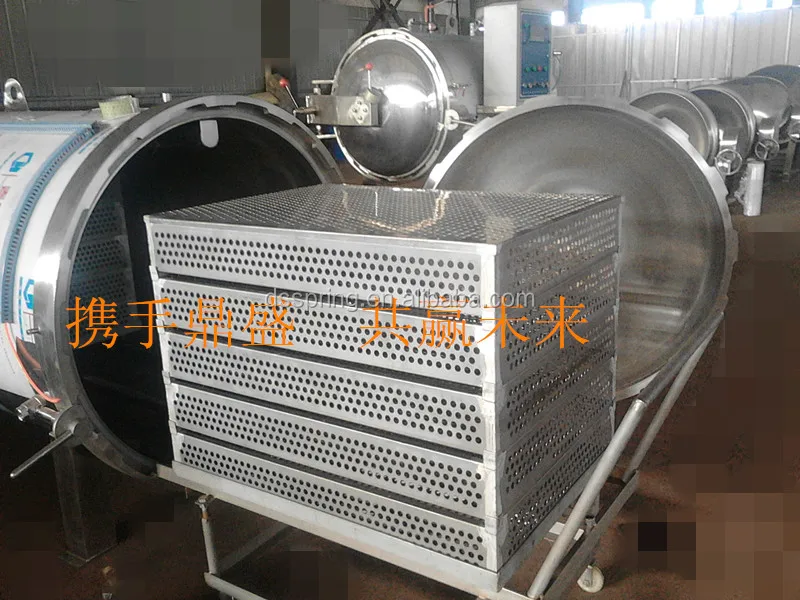

The sterilization pot is composed of a pot body, a pot cover, an opening device, a locking wedge, a safety interlock device, a track, a sterilization basket, a steam nozzle and a number of pipe orifice.The pot cover is sealed by inflatable silicone rubber heat-resistant sealing ring, which is reliable and has long service life.
The steam with a certain pressure as the heat source has the characteristics of large heating area, high thermal efficiency,
uniform heating, short boiling time of liquid material and easy control of heating temperature.The inner layer of the pot body(inner pot) made of 304 stainless steel, equipped with a pressure gauge and safety valve, beautiful appearance, easy installation,convenient operation, safe and reliable.
The steam with a certain pressure as the heat source has the characteristics of large heating area, high thermal efficiency,
uniform heating, short boiling time of liquid material and easy control of heating temperature.The inner layer of the pot body(inner pot) made of 304 stainless steel, equipped with a pressure gauge and safety valve, beautiful appearance, easy installation,convenient operation, safe and reliable.
Model No | Inner diameter（mm） | Length （mm） | Capacity（m3） | Thickness of kettle （m） | Max working pressure （Mpa） | Max working temperature （°C） | Weight （Kg） | Operating weight （Kg） |
PLZ09-1.8B4 | 900 | 1800 | 1.00 | 4 | 0.3 | 147 | 560 | 860 |
PLZ12-2B4 | 1200 | 1800 | 2.60 | 5 | 0.3 | 147 | 860 | 1400 |
PLZ10-2B4 | 1000 | 1800 | 1.80 | 4 | 0.3 | 147 | 650 | 1250 |
PLZ12-3B4 | 1200 | 2700 | 3.70 | 5 | 0.3 | 147 | 1200 | 1800 |
PLZ13-4B4 | 1300 | 3600 | 5.70 | 5 | 0.3 | 147 | 150 | 2300 |
PLZ12-4B4 | 1200 | 3600 | 4.80 | 5 | 0.3 | 147 | 1300 | 2100 |

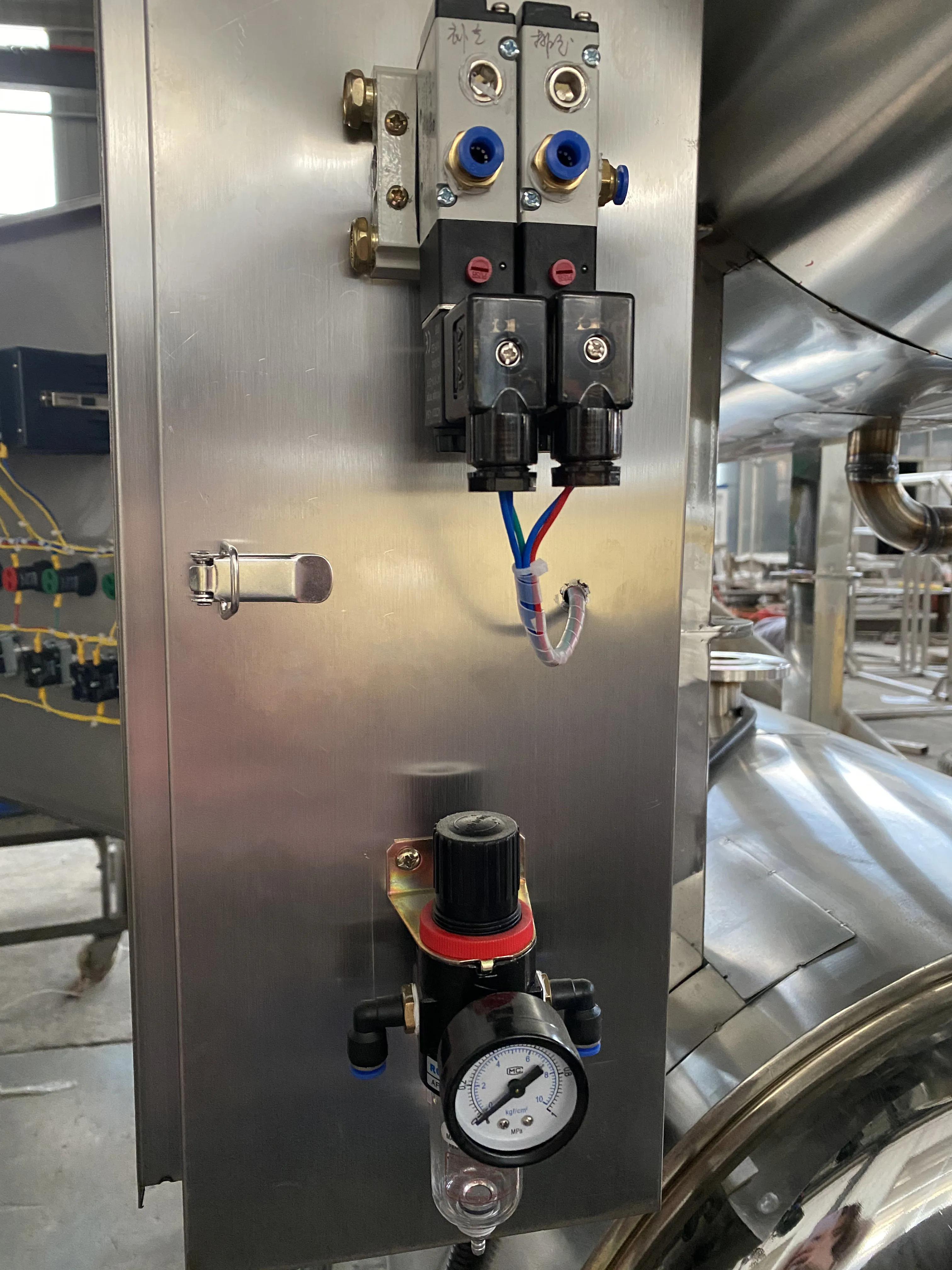

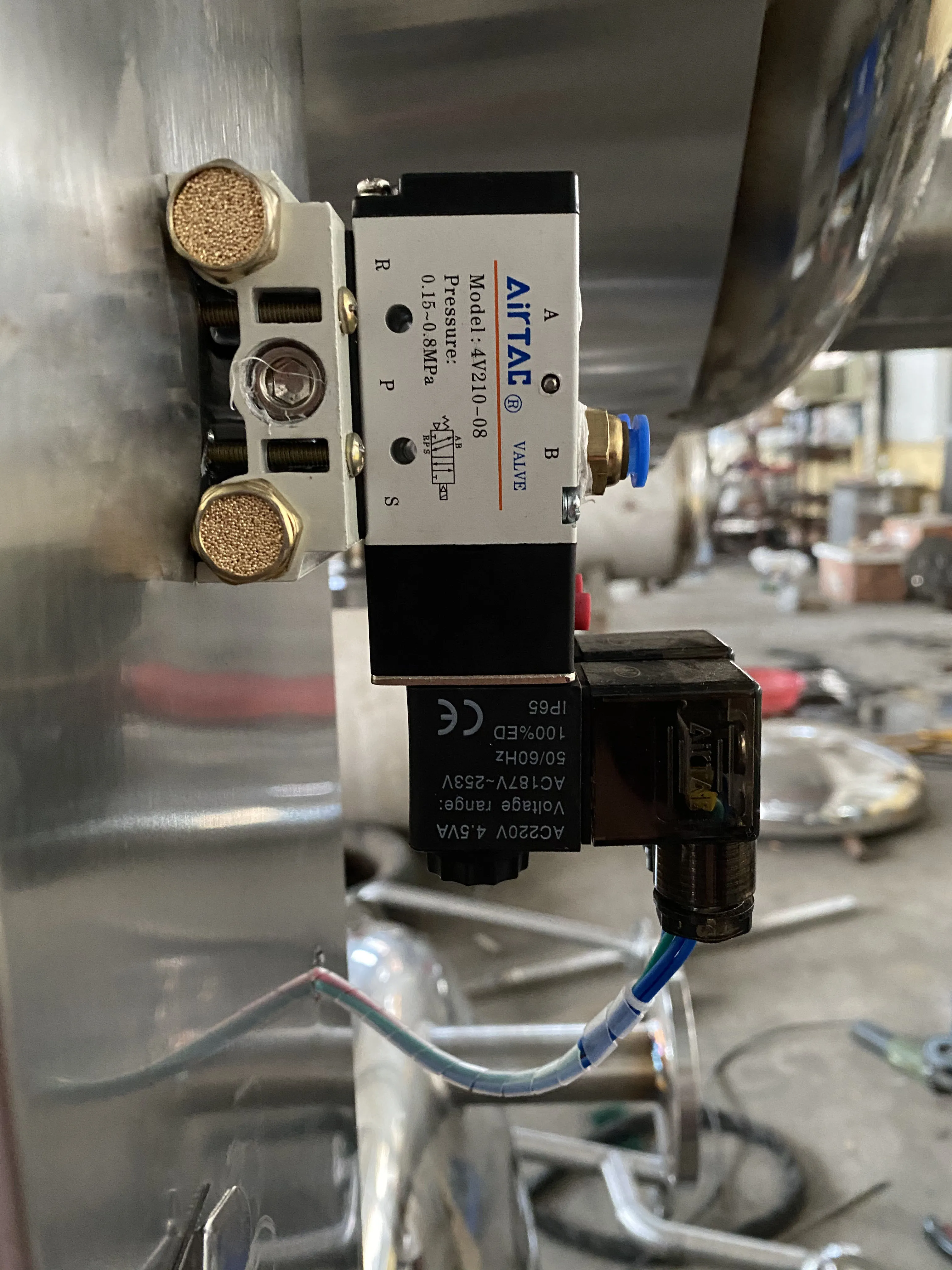

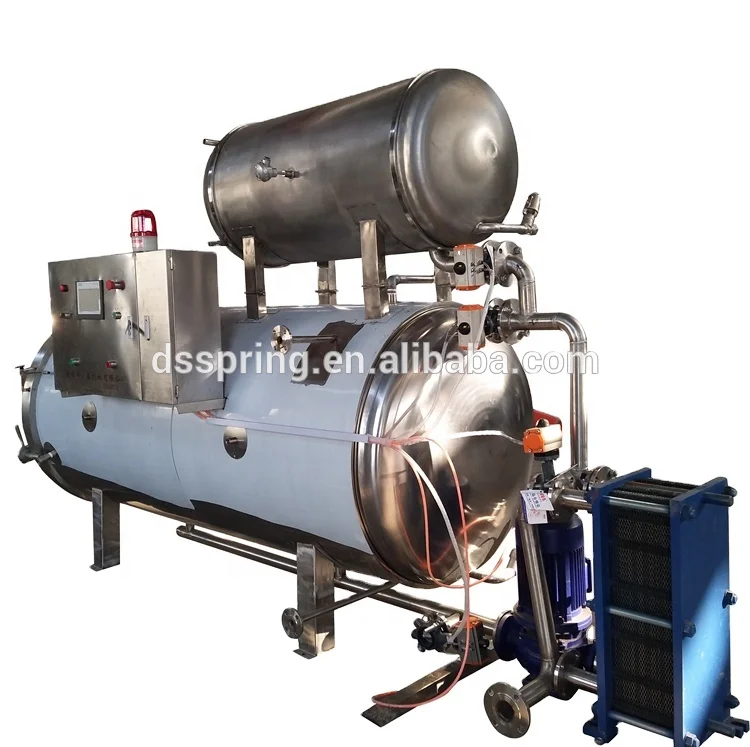

Details Images

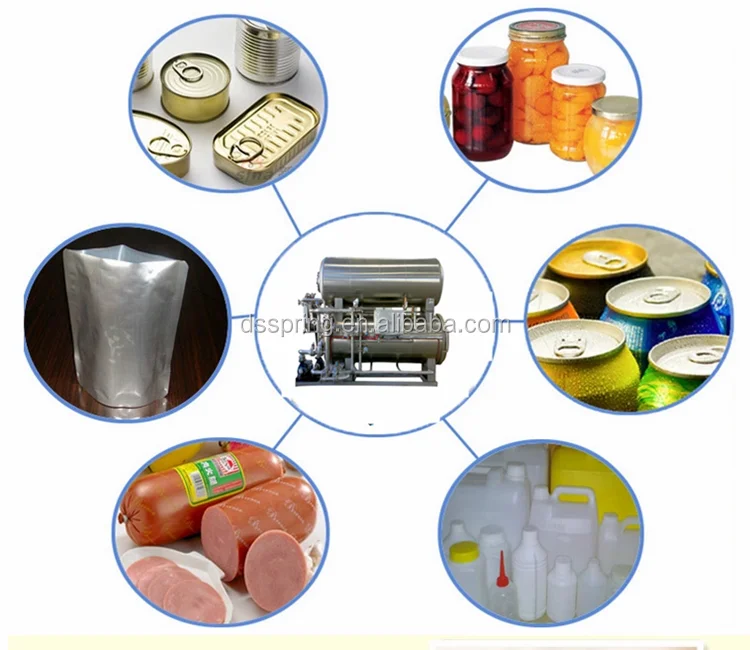

Scope Of Application
Our Advantages
1. With compressed air pipe so as to be convenience for counter-pressure processing by customers. which efficiently guarantee cans food in original shape and keep food in original taste through antipressure of compressed air.
2.Quick open-door structure, safety interlock. Reasonably structured, fine sealing, convenient operation, safety and reliability, stable performance.
3. The bowl shell is with insulation layer, which could reduce the energy consumption

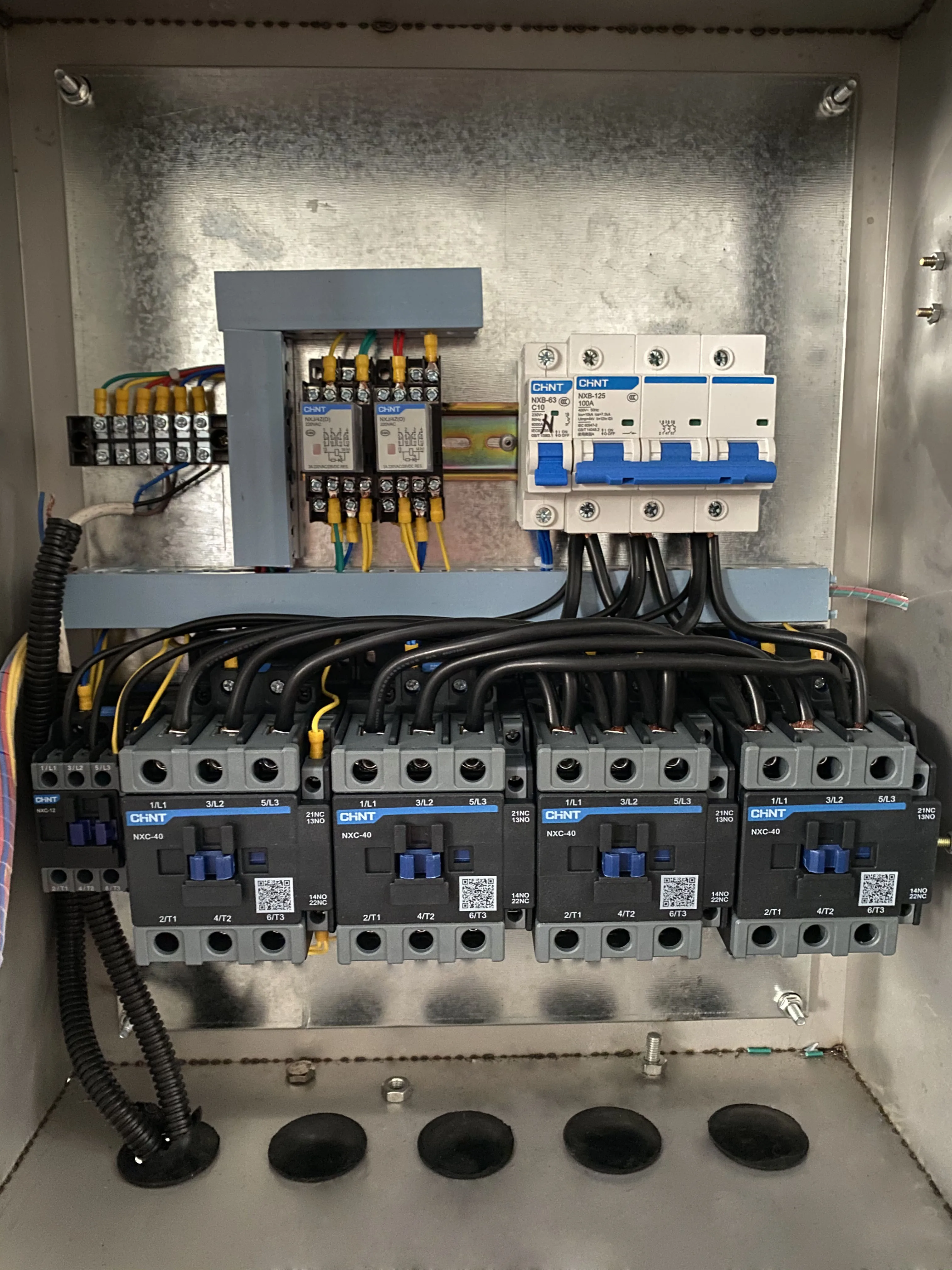

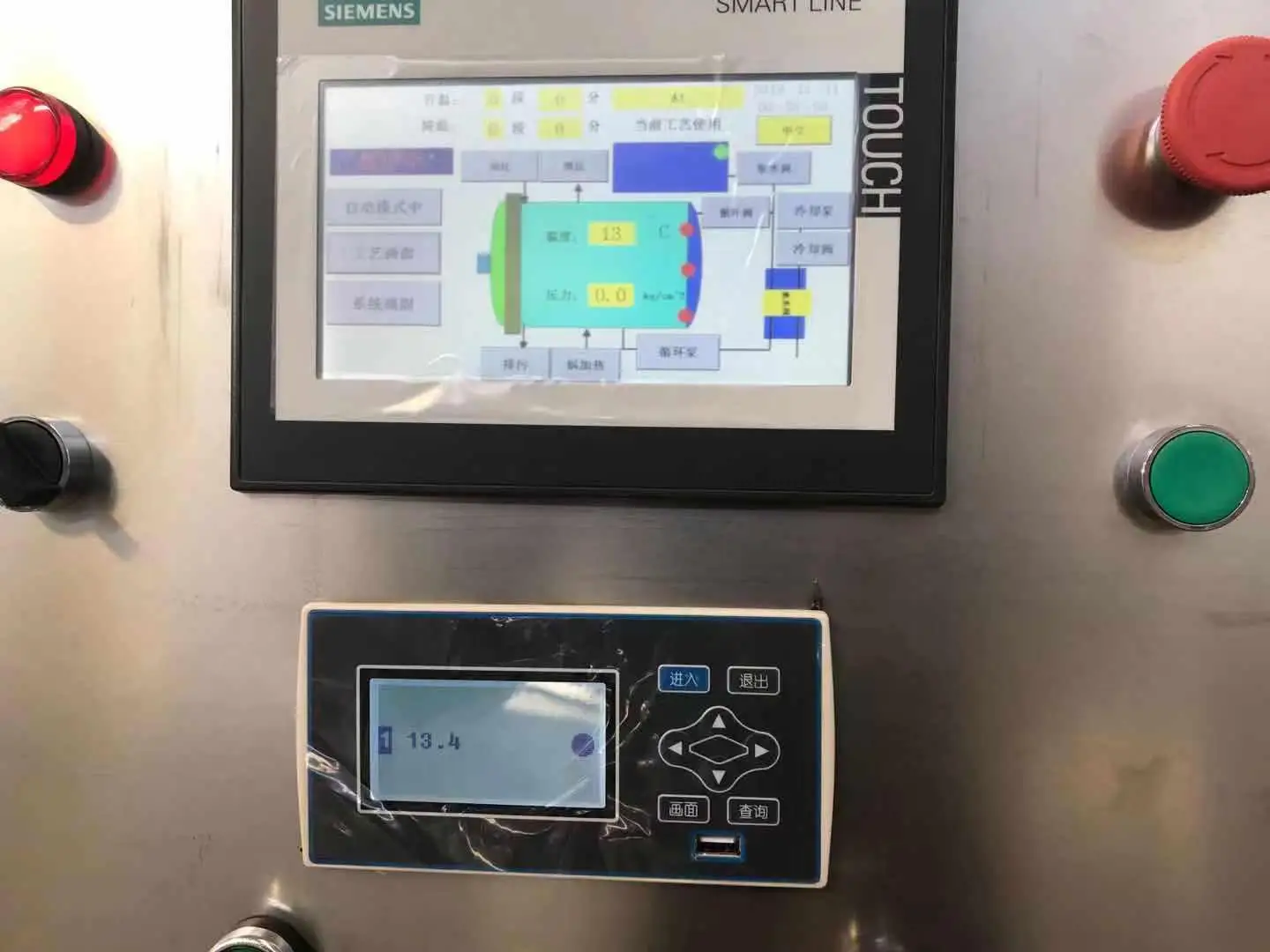

4. Control system---- Touch screen +PLC Touch-screen display to input the related data of sterilizing temperature, reverse pressure, safe pressure, sterilizing time etc.
According to the start-up settings, it automatically fulfill the whole process of exhausting, heating-up, cooling of counter
pressure and drainage. It can set the multi-part temperature control. The Touch-screen display the system analogue picture and data. Curve record the sterilization temperature.
5 sterilization water and cooling water is cycle,save energy
6. best sterilization medium with uniform sterilization effection

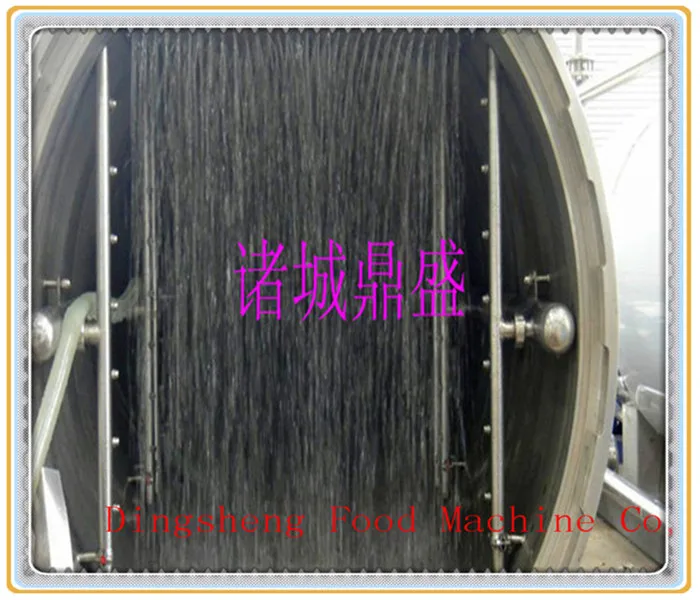

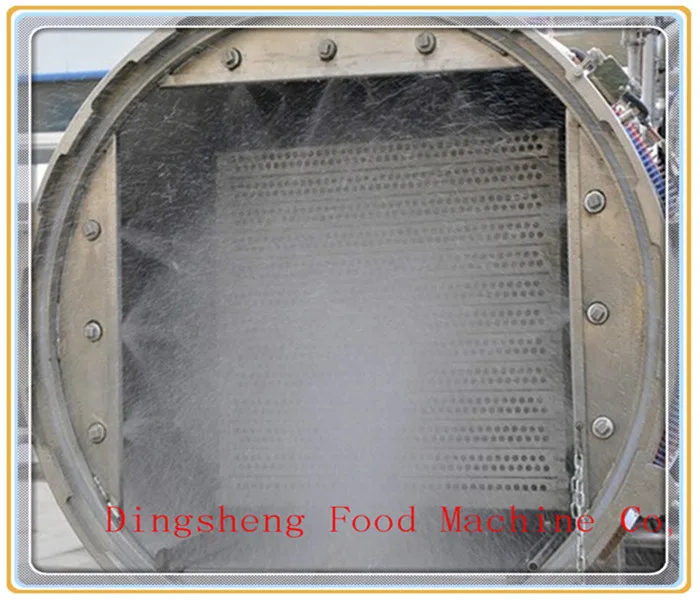

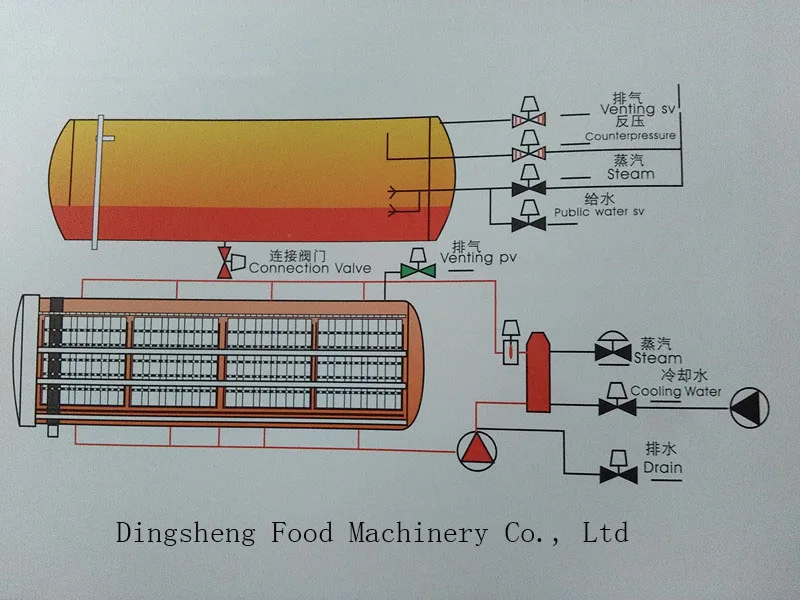

7.reduction of steam consumption, steam and atomized water in the retort sterilization hot mixture directly to improve the speed of cooling temperature.
8. Low noise, creating a quiet, comfortable working environment.

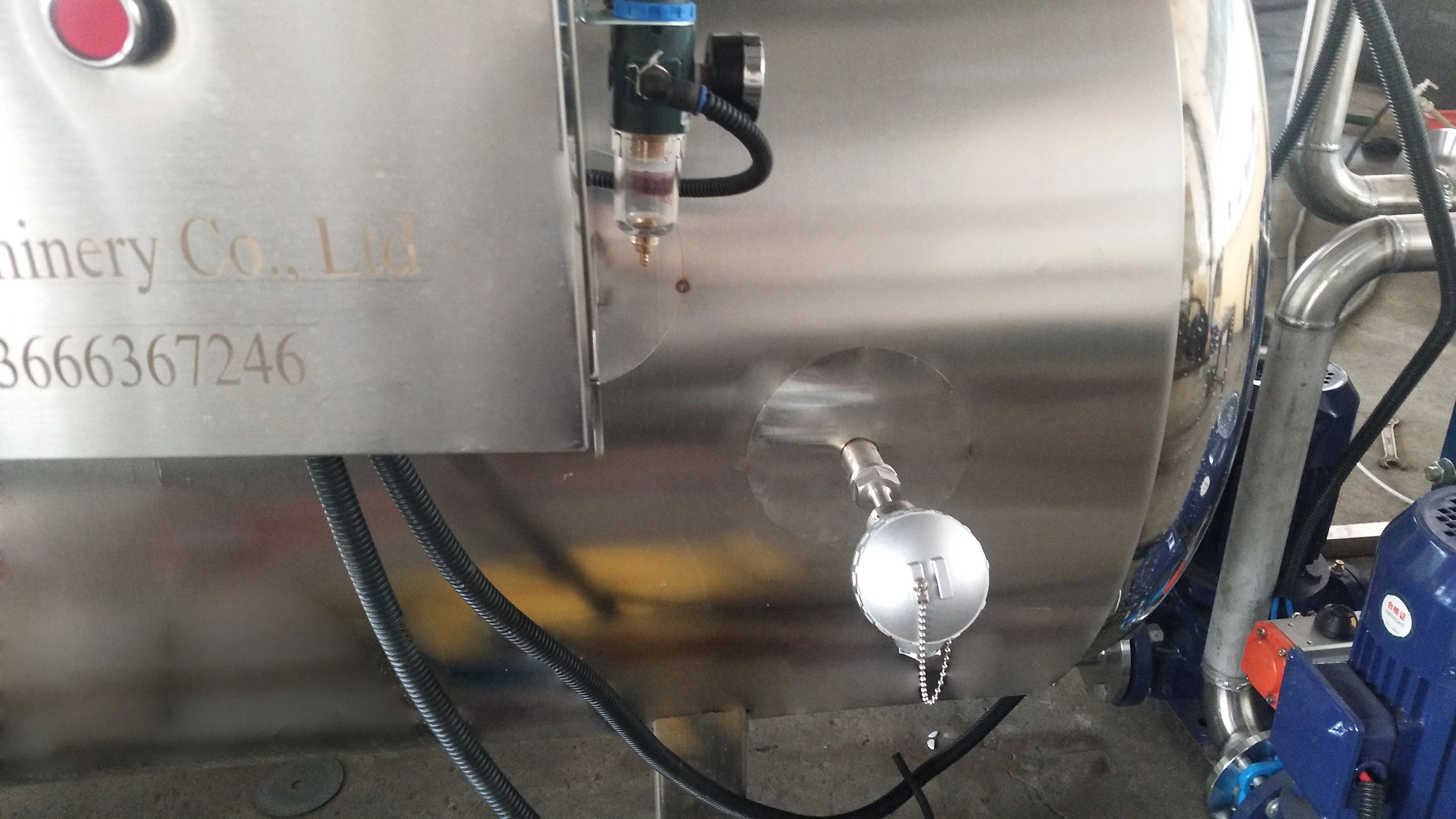

9. reactor equipped with four movable temperature sensing probe can be monitored at any time .
10. the perfect pressure control, the entire production process pressure has been adjusted to accommodate internal pressure changes in product packaging, product packaging to meet the minimum degree of deformation, especially for gas packaging of products.
2.Quick open-door structure, safety interlock. Reasonably structured, fine sealing, convenient operation, safety and reliability, stable performance.
3. The bowl shell is with insulation layer, which could reduce the energy consumption
4. Control system---- Touch screen +PLC Touch-screen display to input the related data of sterilizing temperature, reverse pressure, safe pressure, sterilizing time etc.
According to the start-up settings, it automatically fulfill the whole process of exhausting, heating-up, cooling of counter
pressure and drainage. It can set the multi-part temperature control. The Touch-screen display the system analogue picture and data. Curve record the sterilization temperature.
5 sterilization water and cooling water is cycle,save energy
6. best sterilization medium with uniform sterilization effection
7.reduction of steam consumption, steam and atomized water in the retort sterilization hot mixture directly to improve the speed of cooling temperature.
8. Low noise, creating a quiet, comfortable working environment.
9. reactor equipped with four movable temperature sensing probe can be monitored at any time .
10. the perfect pressure control, the entire production process pressure has been adjusted to accommodate internal pressure changes in product packaging, product packaging to meet the minimum degree of deformation, especially for gas packaging of products.
Company Profile
Pre-sale service
Supply item design,process design.
Match the right machine for you Making the machine according to your requirement.
After Service
Any problems occur while using, professional advice will be given by us.
All kinds of frequently used parts are supplied from us all the year round.
Certifications
Packaging & Shipping
FAQ
1, Are you a manufacturer?
Yes, we are manufacturer with more than 7 years' experience.
2, Can you ship the machine to my address?
Yes, we could use DHL to express the machine.While transport cost will be higher.
Also, it is suitable for the small models. This is suitable of ocean shipment.
Also, it is suitable for the small models. This is suitable of ocean shipment.
3, Where are you? Can we go to China and visit your factory?
Yes, of course. We are in Shandong, China. Welcome to our factory.
4. why should you buy from us not from other suppliers?
we have specialized this industry for many years ,and have many professional technicians to design the perfect project of food machine for you .
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
6. how long is your the delivery time ?
it depends on the product and quantity, as usual it’s 7-45 days after you place the order.
