2018 Xingda Высококачественная Экструзионная линия 20 75 мм для производства труб из полиэтилена высокой плотности
- Category: Plastic Extruders >>>
- Supplier: Zhangjiagang Xingda Machinery Co. Ltd.
Share on (60734482281):
Product Overview
Description
Company profile

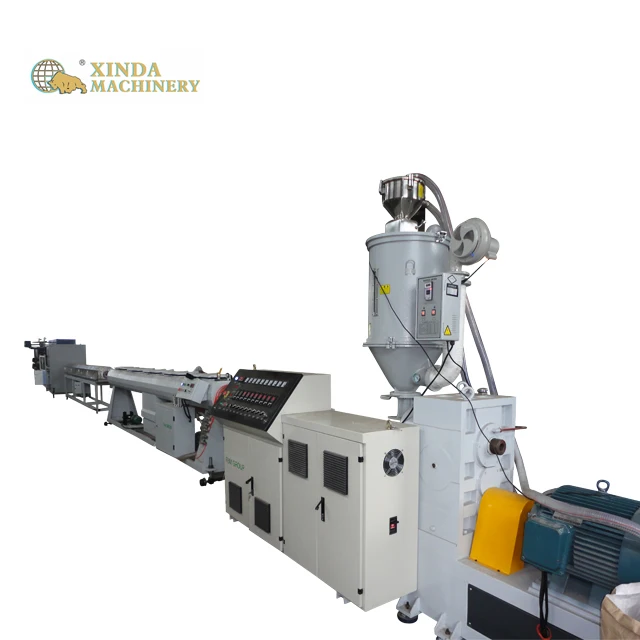

Xingda high quality 20-75mm hdpe pipe machine extrusion line
20-75 mm hdpe pipe extrusion line
| HDPE pipe extrusion line | ||||||||
| Model | PE-16/63 | PE-20/110 | PE-50/160 | PE-75/250 | PE-110/315 | PE-200/450 | PE-315/630 | PE-400/800 |
| Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 400-800mm |
| Max output | 150kg/h | 200kg/h | 300kg/h | 350kg/h | 400kg/h | 500kg/h | 850kg/h | 850kg/h |
| Extrusion speed | 1-15m/min | 1.2-12m/min | 0.6-8m/min | 0.5-4m/min | 0.4-3.7m/min | 0.3-3m/min | 0.2-2m/min | 0.1-1 m/min |
| Extruder model | SJ-65/30 | SJ-65/33 | SJ-75/33 | SJ-75/33 | SJ-75/33 | SJ-90/33 | SJ-120/33 | SJ-120/33 |
| Installed power | 85kw | 110kw | 125kw | 180kw | 260kw | 325kw | 480kw | 600kw |
| Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1300mm |
| Line length | 35m | 38m | 38m | 40m | 42m | 52 m | 60m | 68m |
Contact information
Company Information
Production Process
Packaging & Shipping
FAQ
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the diameter of pipe(inch or mm); thickness of pipe wall(mm)?
4) What is the electrical device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
