Product Overview

Description





Short Description


Straight run: Single Hinge 820 Series
.Mainly used for all kinds of food industry,such as beverage ,bottle ,can and other conveyors.


Product Name

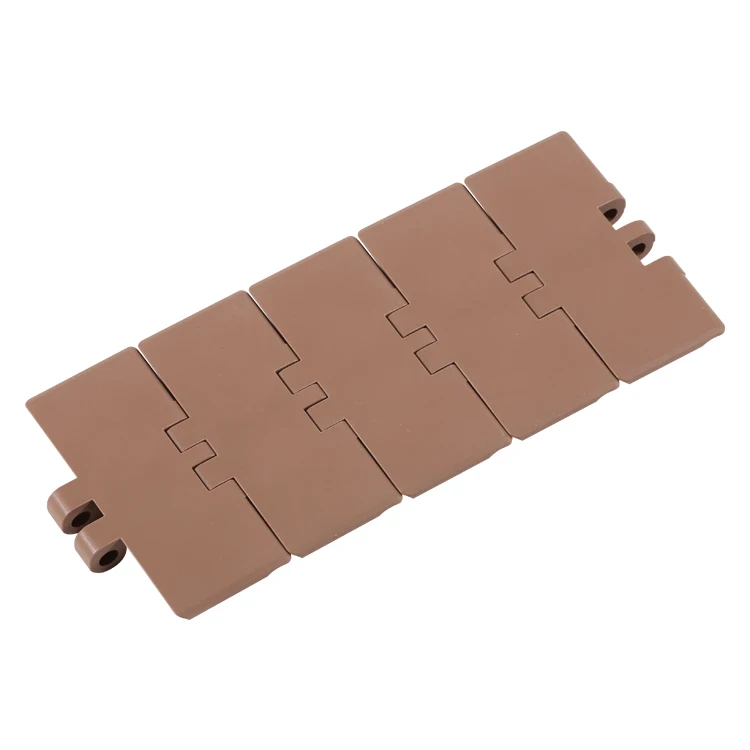

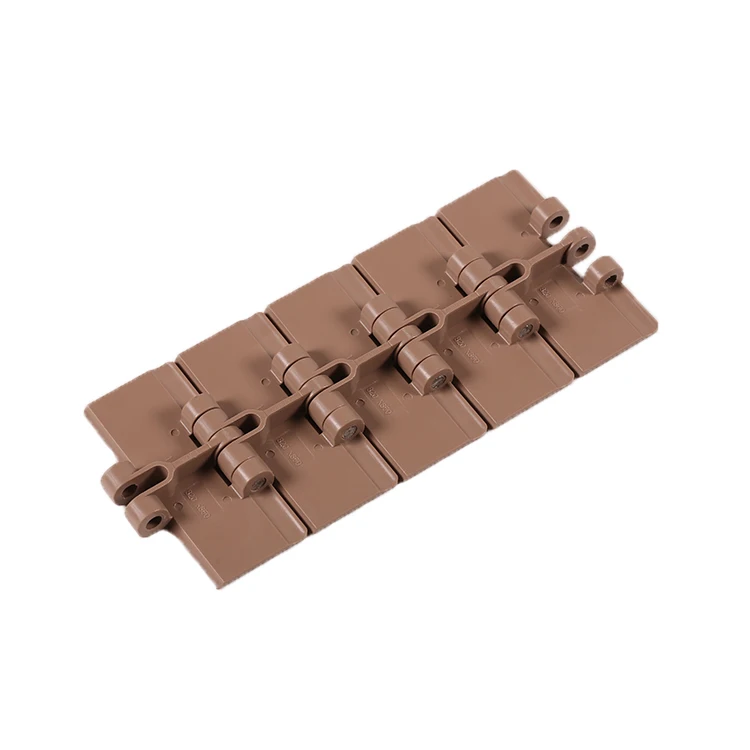

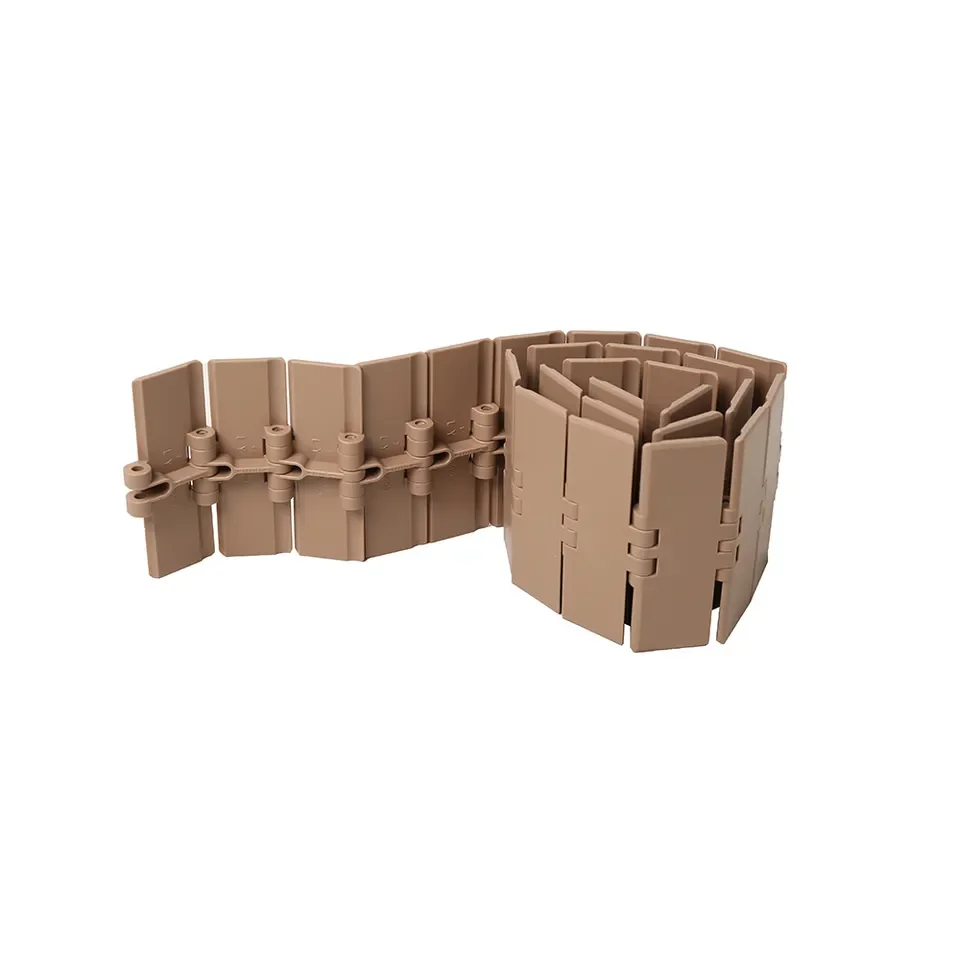

820 Series plastic conveyor tabletop chains
Color
Coffee
Pitch
38.1mm
Plate Material
POM
Plate Width
63.5mm/82.6mm/88.9mm/101.6mm/114.3mm/152.4mm/190.5mm
Pin Material
Stainless steel
Working Load
1230N
Usage
Application for vertical conveying of cans,glass bottles,etc..

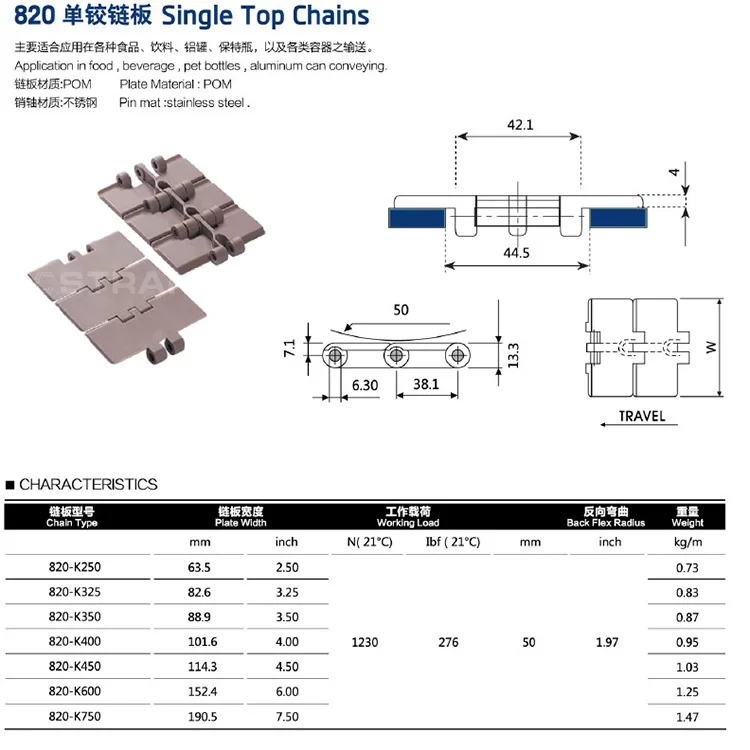

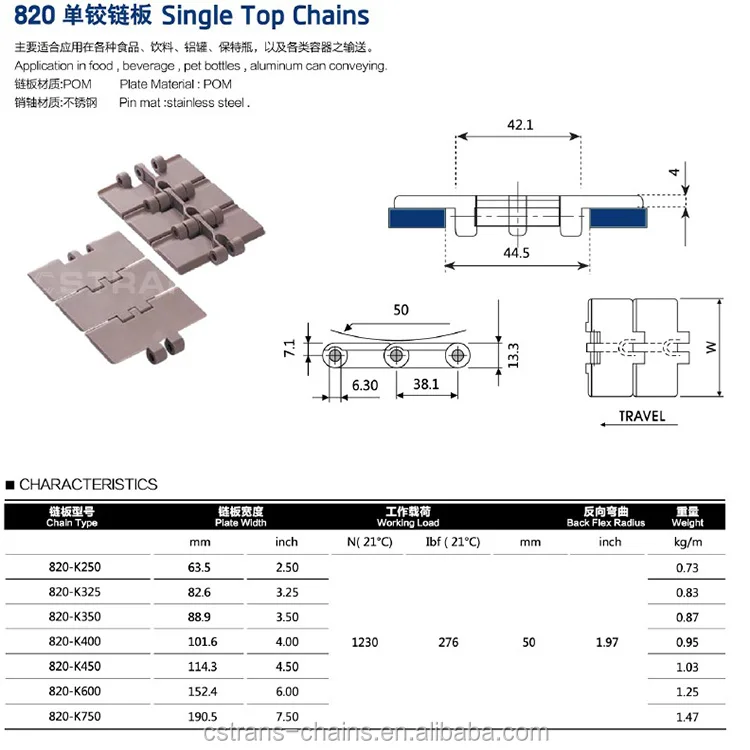

Product Parameters




Chain Type
Plate Width
Working Load
Back Flex Radius(min)
Weight
mm
inch
N(21℃)
Ibf(21℃)
mm
inch
Kg/m

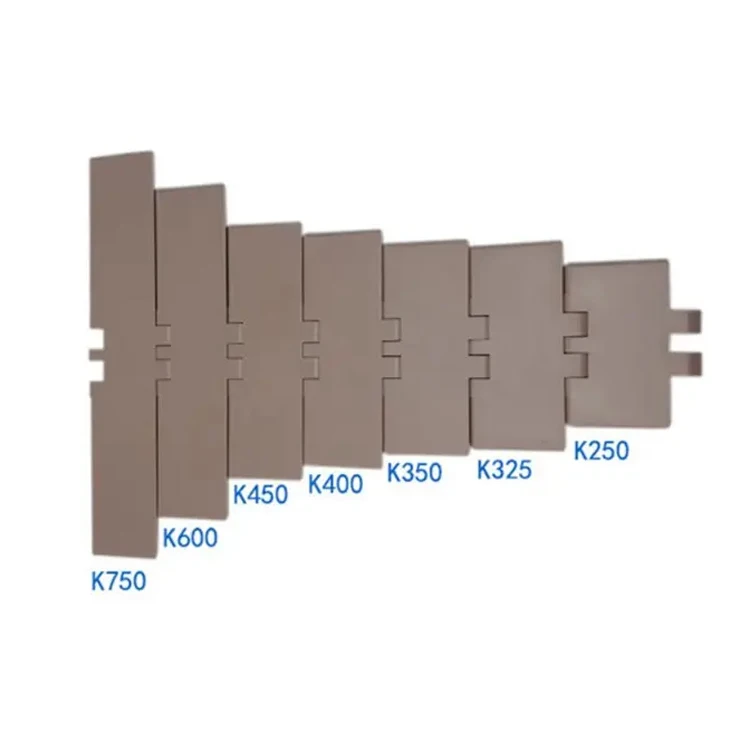

820-K250
63.5
2.50
1230
276
50
1.97
0.73
820-K325
82.6
3.25
0.83
820-K350
88.9
3.50
0.87
820-K400
101.6
4.00
0.95
820-K450
114.3
4.50
1.03
820-K600
152.4
6.00
1.25
820-K750
190.5
7.50
1.47

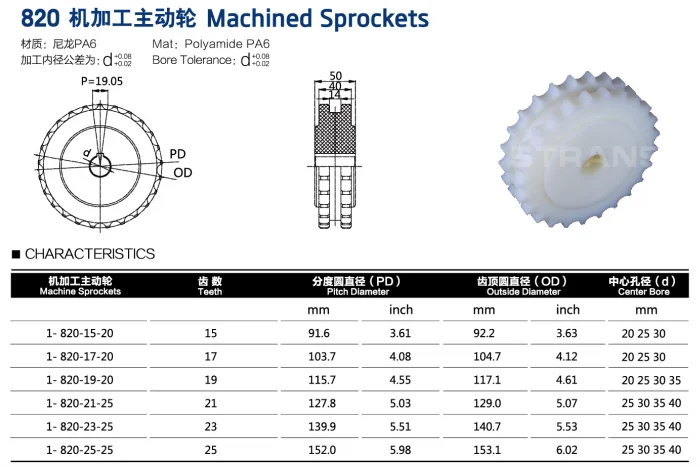

Machined Sprockets




Machined Sprockets
Teeth
PD(mm)
OD(mm)
D(mm)
1-820-15-20
15
91.6
92.2
20 25 30
1-820-17-20
17
103.7
104.7
20 25 30
1-820-19-20
19
115.7
117.1
20 25 30 35
1-820-21-25
21
127.8
129.0
25 30 35 40
1-820-23-25
23
139.9
140.7
25 30 35 40
1-820-25-25
25
152.0
153.1
25 30 35 40


Advantage

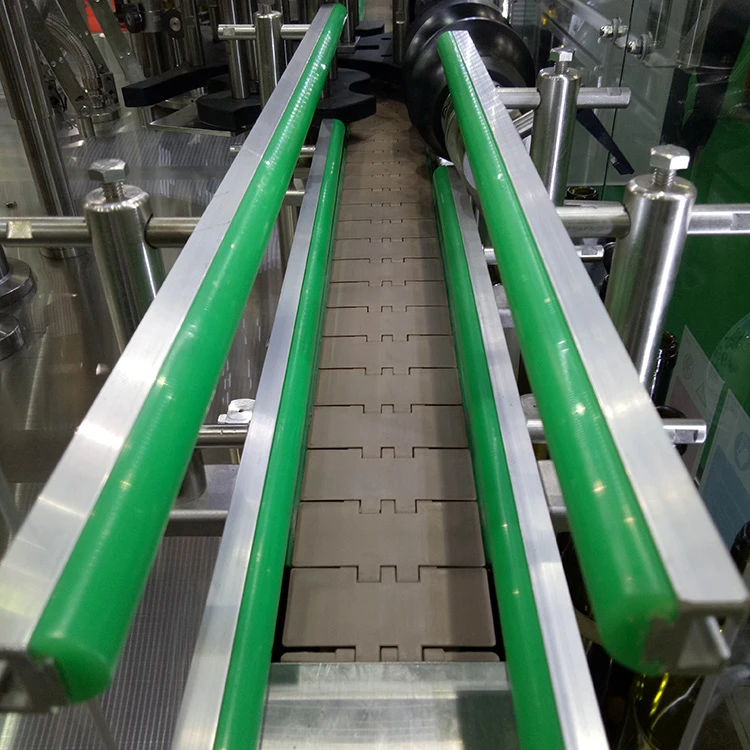

It is suitable for single channel or multi-channel straight transportation of bottles, cans and other products.
The conveying line is easy to clean and install conveniently Hinged pin shaft connection, can increase or decrease the chain joint.












Physical and chemical properties


Polyoxymethylene (POM), also known as acetal polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform. POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.


ABOUT US


What we do
With 17 years of production and R&D experience in the conveyor industry, We have 10 R&D teams and nearly 500 existing molds set.
We serve more than 40,000 customers around the world. Our company has 15 sets of equipment injection molding machines, holds more than 20 patents and is applying for more 5 processing centers, 10 mature sales teams and 8 after-sales services.
Our mission is to create value for all of our customers around the world. To achieve a win-win outcome through high quality products and customer service attitude.
We seek to provide winning solutions to our customers' requirements and challenges. We are honest in our dealings with customers, We continuously improve our practices and processes, providing solutions to increase efficiency for the customer.





History of the company




exhibition




Cooperative enterprise




FAQ


Q: Are you trading company or manufacturer ?

A: We are manufacturer.

Q: How long is your delivery time?

A: Generally it is 2-3 days according to quantity and size.

Q: Can you design according to our requirement?

A: Yes, We can manufacture according to your technical drawing. Or we can
design according to your requirement.

Q:What is the payment terms of your company?

A: T/T, Western Union, Money Gram, PayPal, Union Pay.
