Полезная нагрузка 5 кг, Длина стрелки 924 мм, 6 осей, совместный робот по производству

Product Overview

Description

5kg payload - 924mm arm length - 6 axis - Industrial Collaborative Robot

What is the difference between traditional robots and collaborative robots?



Traditional industrial robots are fast, intensive, and highly accurate, and are not safe enough to be used in fences. Collaborative robot is a kind of robot that improves the safety of traditional industrial robots so that they can work together with people and be relatively safe, the safety level is IP 54.



Introduction of MR5 cobot

Collaborative robot MR-5 can replace the heavy labor of people to realize the mechanization and automation of production, and can operate in harmful environment to protect personal safety. Therefore, it is widely used in machinery manufacturing, metallurgy, Departments of electronics, light industry and atomic energy.





Collaborative robotics MR-5 has small size and light weight, it is dedicated to arc welding robot, can realize the stable welding, obtain high precision welding path, shorten the welding cycle, extend the life of the pipe and cable at the same time SA series welding robot can flexible welding operations within the narrow space, can easily choose the ground installation mount inversion





Advantage of MR5 co-robot





Technial parameters of COBOT MR5

Tef collaborative robot

Model		MR-5
Payload		5 KG
Arm Length		924 mm
Number of Axis		6
Max speed	Axis1	150 °/S
	Axis2	150 °/S
	Axis3	150 °/S
	Axis4	180 °/S
	Axis5	180 °/S
	Axis6	180 °/S
Max Operation Area	Axis1	±175°
	Axis2	±175°
	Axis3	±175°
	Axis4	±175°
	Axis5	±175°
	Axis6	±175°
Weight		24kg
Liner speed		2.8 m/s
Power consumption		200 W
Input voltate		DC 48 V
IP Classification of Robot		IP54
Position Repeatability		0.02 mm
Working temperature		0-45 ℃

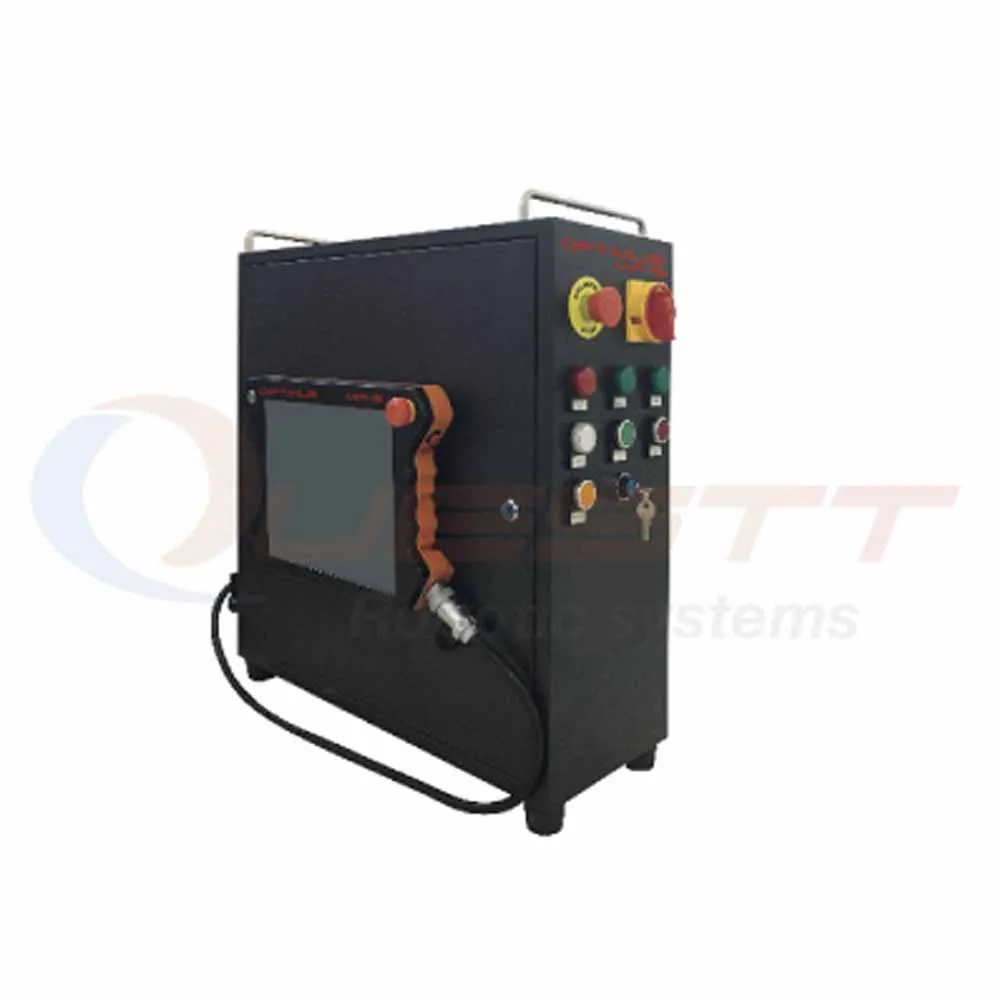

Robot Arm-MR5 controller of 6 axis cobot

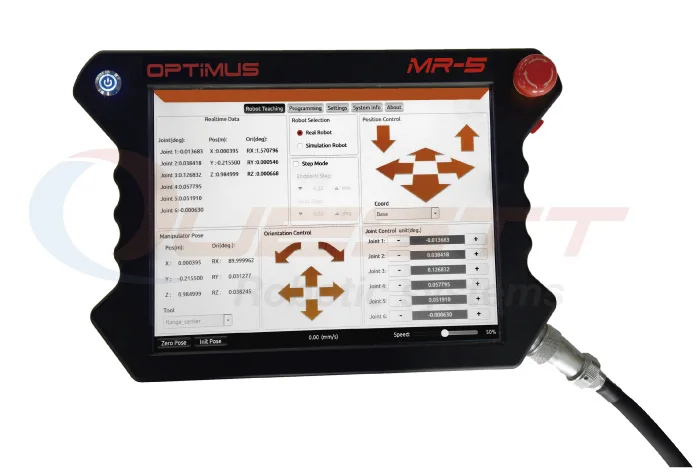

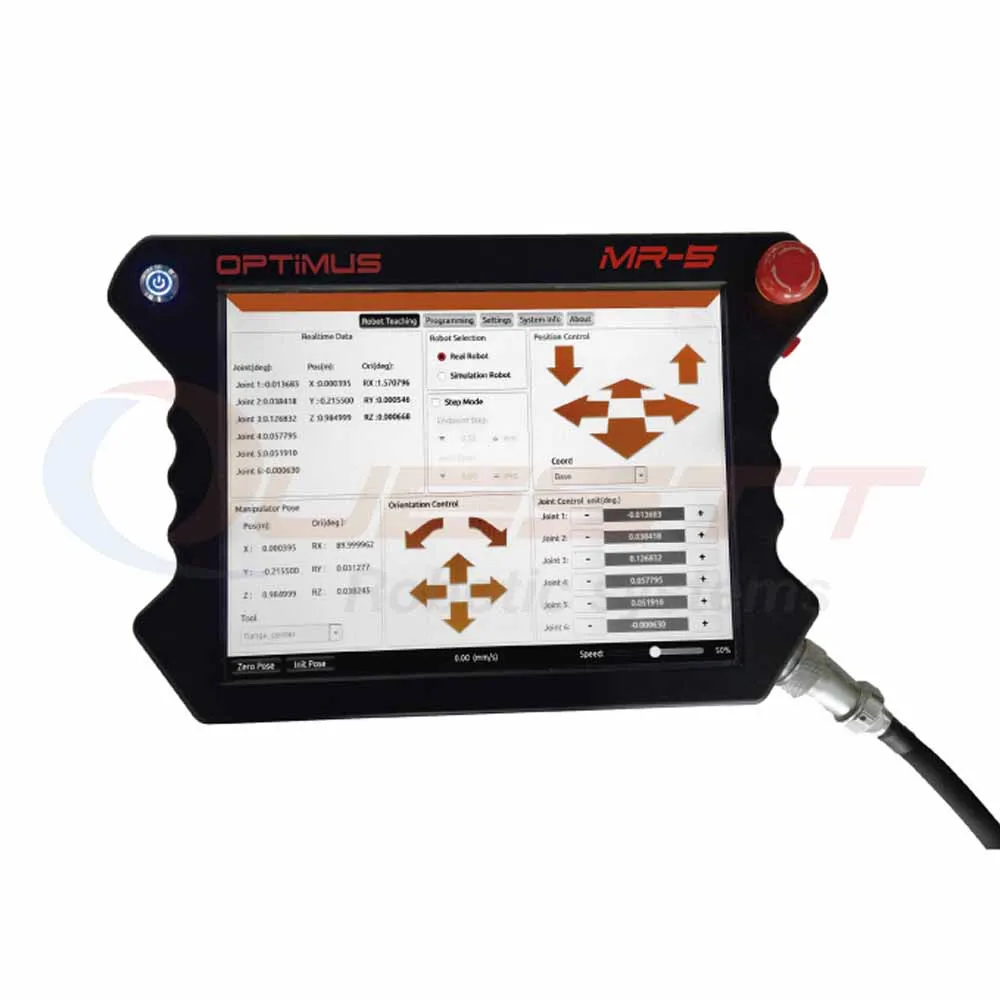

Teach pendant-collaborative robot

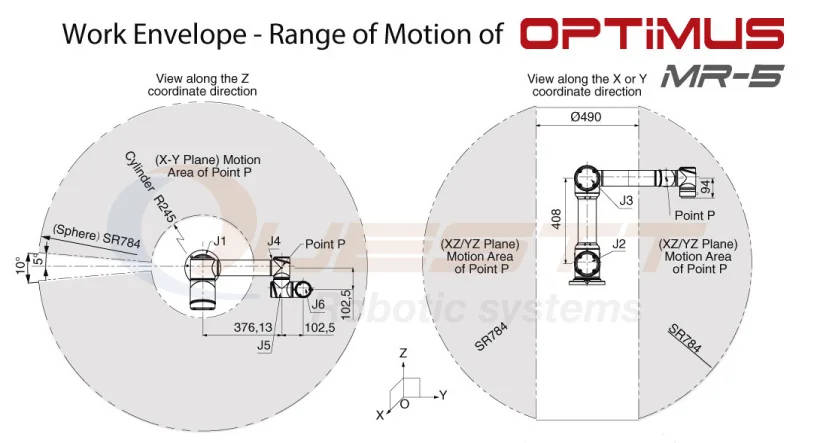

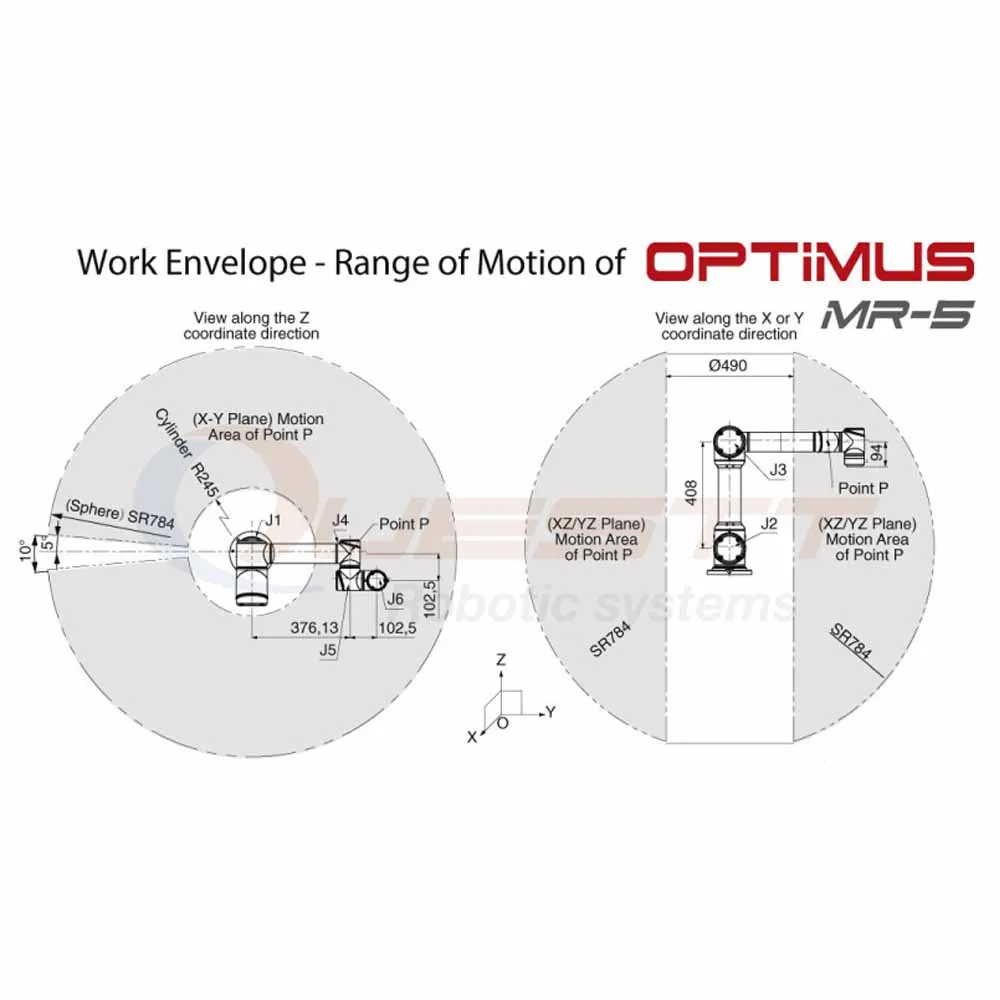

Work Envelope for co-robot





Applications of 6 axis industrial co-robot

MR-5 robots is ideal for small parts assembly , dispensing , lab automation , medical device assembly , machine tending , material handling , packaging, electronics and many other applications.

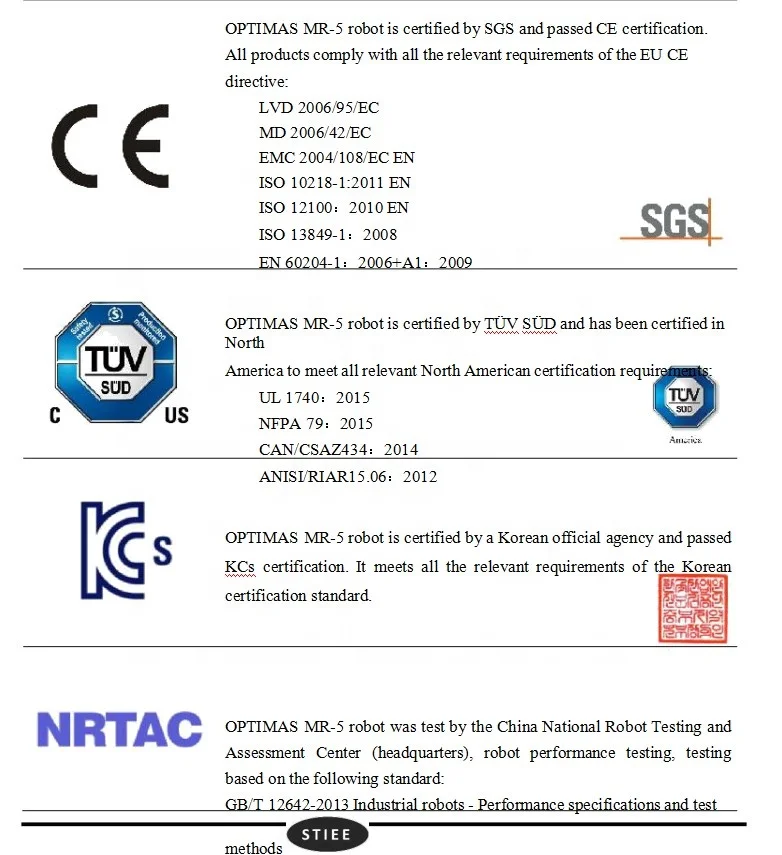

Certificates for MR5



1.Q:What is the warranty of the collaborative robot?

   A:Questt Lasers have a warranty for 1-2 years.

2.Q:Are you a factory or trading company?

   A:Quesstt Lasers is a factory for 22 years.Got import and export License.

3.Q:How about the quality?

   A:Quesstt Lasers Technology is from Germany.High quality best price.

4.Q:What is your after-sale service?

   A:If needed,Questt Lasers offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!

5.Q:How do i get technical support after purchasing?

   A:Questt Lasers offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.

 6.Q:How can i get assurance of my Payment?

 A:Alibaba have Trade Assurance,you can pay throught Alibaba first.
