arff fire fighting truck from renult branches
US $70000-$100000

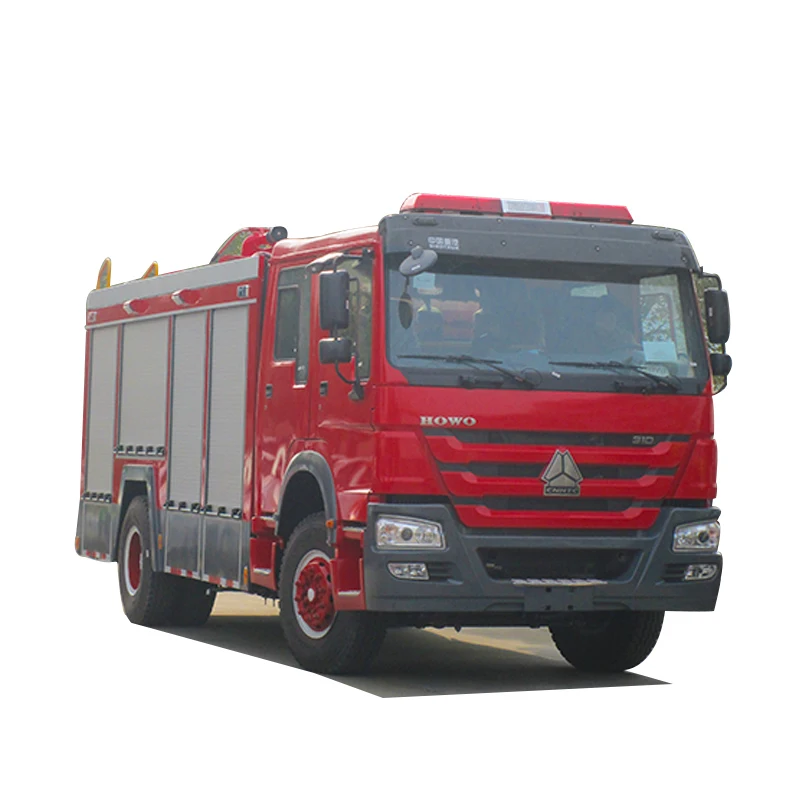

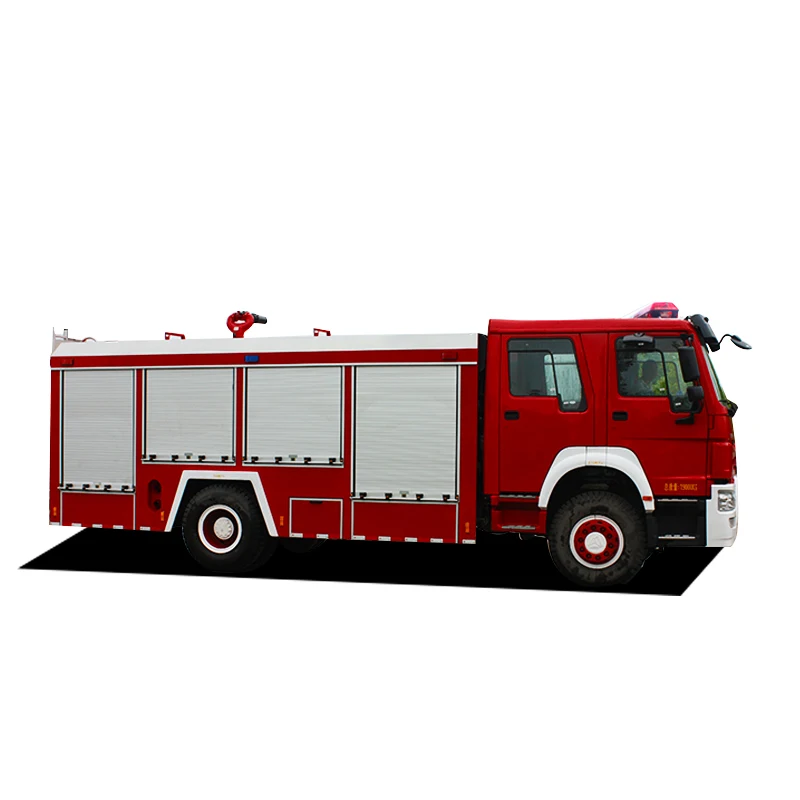

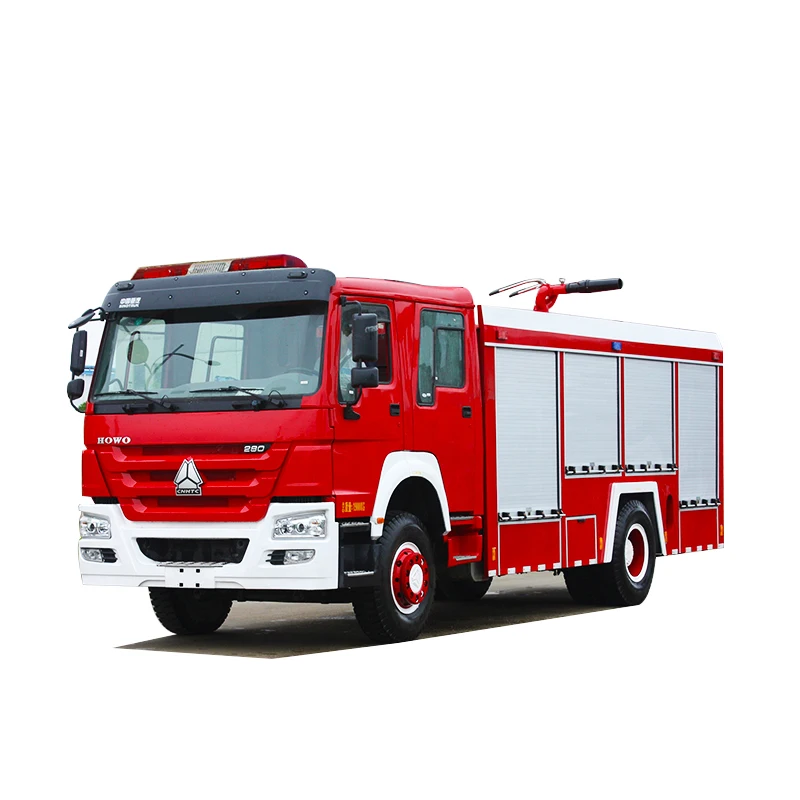

HOWO standard fire truck dimensions 8cbm fire fighting equipment
- Category: Fire Trucks >>>
- Supplier: Hubei Xindongri Special Vehicle Co. Ltd.
Share on (60734704505):
Product Overview
Description
Product Description
| Parameter of 8000L HOWO Fire Fighting Truck | |||
| Item | Specification | Item | Specification |
| General | |||
| Truck name | Fire Fighting Truck 4600 | Overall Dimension (mm) | 8785*2490*3350 |
| Truck Model | YZR5200GXFSG80 | Wheel base (mm) | 4600 |
Traction system | 4*2 | Gross Weight (kg) | 19000 |
| Cab Capacity | 1+1+4 | Curb Weight (kg) | 11350 |
| Transmission | mannual | Front Track (mm) | 2022 |
| Chassis Brand | HOWO Sinotruk | Rear Track (mm) | 1830 |
| Tyre Model | 12.00-20 | Approach Angle (°) | 16 |
| Quantity of Tyre | 6 | Departure Angle (°) | 10 |
| Quantity of Axles | 2 | Front Overhang (mm) | 1500 |
| Max Speed (km/h) | 100 | Rear Overhang (mm) | 2580 |
| Chassis | |||
| Chassis Model | ZZ1167M4617C | Leaf Spring | 10/9+6 |
| Engine (Motor) | |||
| Brand | HOWO Sinotruk | Type | Diesel |
| Model | D10.28-40 | Displacement (L) | 9.726 |
| Power (kw) | 206 | Emission standard | Euro 4 |
| Equipments | |||
| Tanker Capacity (L) | 8000 | Nozzle Pressure (MPa) | 1.0 |
| Tank Material | carbon / stainless steel | Water Flow Speed (L/s) | 60 |
| Low Pressure Pump | CB10/60 | Covering Range (m) | water≥60m, foam≥55m |
| REMARKS: The cab is in general complete steel frame welding structure. The tank is made of qualitative carbon steel material (Q235A), thickness 4mm, preservative treatment, durable in use. Aluminum alloy roller shutter door can be easily operated with small noise. The fire fighting truck is equipped with PTO indicator light, 100w alerter, LED alarm lamp, identification lamp, clearance lamp and rear lamp. Besides, the fire fighting truck spare parts such as suction pipe, water filler, fire hose, hose adapter, pickax, spade etc. are available. | |||
| NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance. | |||
