Wholesale 4GE CATV WIFI XPON ONU Dual Band 2.4G 5G Router with 4 Antennas
- Category: Telecommunications >>>
- Supplier: Hangzhou Softel Optic Co. Ltd.
Share on (60735116924):
Product Overview
Description
Specification
Brief Overview

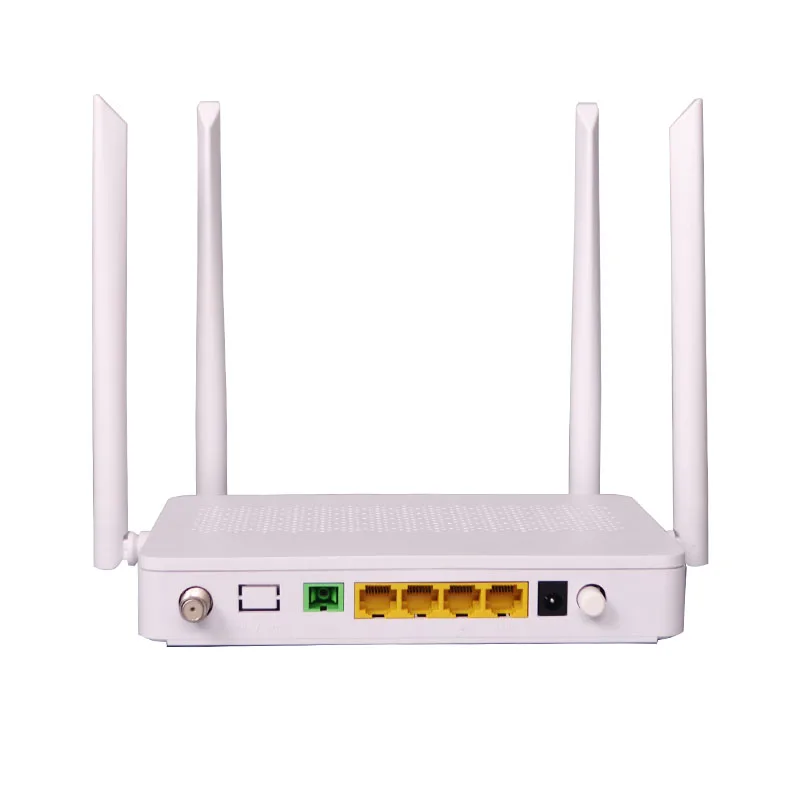

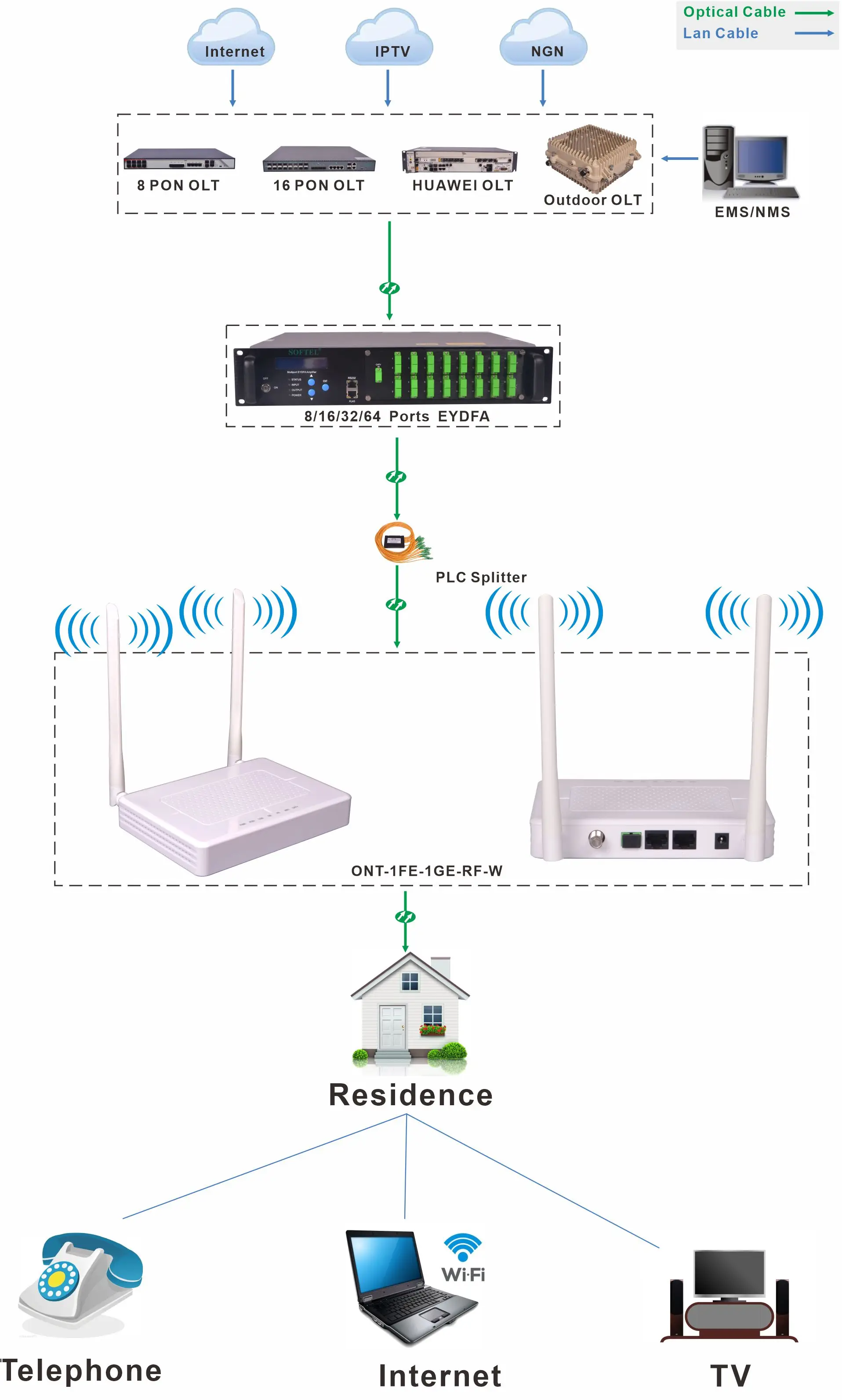

ONT-4GE-RFDW dual-band CATV type ONU is one of the GPON optical network unit design to meet the requirement of the broadband access network. It applies in FTTH/FTTO to provide the data, video service based on the GPON network.
GPON is the latest generation of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive video communications traffic. GPON networks provide the reliability and performance expected for business services and provide an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting in accelerated growth worldwide.
ONT-4GE-RFDWhave high reliability and provide a quality of service guarantee, easy management, flexible expansion, and networking. It fully meets the ITU-T technical standards and has good compatibility with third-party manufacturers OLT.
GPON is the latest generation of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive video communications traffic. GPON networks provide the reliability and performance expected for business services and provide an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting in accelerated growth worldwide.
ONT-4GE-RFDWhave high reliability and provide a quality of service guarantee, easy management, flexible expansion, and networking. It fully meets the ITU-T technical standards and has good compatibility with third-party manufacturers OLT.
Functional Features
-Single-fiber access, provides internet, CATV, WIFI multiple services
-In compliant with ITU - T G. 984 Standard
-Support ONU auto-discovery/Link detection/remote upgrade of software
-Wi-Fi series meet 802.11 a/b/g/n/ac technical standards
-Support VLAN transparent, tag configuration
-Support multicast function
-Support DHCP/Static/PPPOE internet mode
-Support port-binding
-Support OMCI+TR069 remote management
-Support data encryption and decryption function
-Support Dynamic Bandwidth Allocation (DBA)
-Support MAC filter and URL access control
-Support remote CATV port management
-Support power-off alarm function, easy for link problem detection
-Specialized design for system breakdown prevention to maintain a stable system
-EMS network management based on SNMP,convenient for maintenance
-In compliant with ITU - T G. 984 Standard
-Support ONU auto-discovery/Link detection/remote upgrade of software
-Wi-Fi series meet 802.11 a/b/g/n/ac technical standards
-Support VLAN transparent, tag configuration
-Support multicast function
-Support DHCP/Static/PPPOE internet mode
-Support port-binding
-Support OMCI+TR069 remote management
-Support data encryption and decryption function
-Support Dynamic Bandwidth Allocation (DBA)
-Support MAC filter and URL access control
-Support remote CATV port management
-Support power-off alarm function, easy for link problem detection
-Specialized design for system breakdown prevention to maintain a stable system
-EMS network management based on SNMP,convenient for maintenance
Item | Parameter | ||
Interface | PON Interface | 1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate: 2.488Gbps Upstream Data Rate: 1.244Gbps SC/PC single mode fiber 28dB Link loss and 20KM distance with 1:128 | |
CATV Interface | 1 RF output F-Type Connector | ||
POTS Port | 2*RJ11 Max 1km distance Balanced Ring, 50V RMS | ||
Ethernet Interface | 1*10/100/1000M and 3*10/100M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance | ||
USB interface | 1*USB 2.0 interface Transmission Rate: 480Mbps | ||
Power Interface | 12V DC Power supply | ||
Performance | PON Optical | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0.5～5dBm | |
Parameters | Parameter | Rx Sensitivity: -28dBm Saturation Optical Power: -8dBm Connector Type: SC Optical Fiber: 9/125ɥm single-mode fiber | |
Data Transmission Parameter | PON Throughput: Downstream 2.488Gbit/s; Upstream 1.244Gbit/s Ethernet: 100Mbps or 1000Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms | ||
Network Management | Management Mode | Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management | |
Management Function | Status monitor, Configuration management, Alarm management, Log management | ||
Physical Features | Shell | Plastic casing | |
Power | External 12VDC/1A power supply adapter Power consumption: <9.5W | ||
Dimension and Weight | Item Dimension: 240mm(L) x 240mm(W) x 24mm (H) Item weight: 0.4kg | ||
Environmental Specifications | Operating temperature: 0 to 50ºC Storage temperature: -40 to 85ºC Operating humidity: 10% to 90%(Non-condensing) Storage humidity: 10% to 90%(Non-condensing) | ||
CATV Spec
Item | Parameter |
Wavelength | 1550nm |
Optical return loss | >45dB |
CATV optical port input power | -10dBm～0dBm |
RF frequency | 45MHz~1000MHz |
RF output level | ≥86dBuV |
RF flatness | ≤±2.0 |
CNR | ≥42dB |
CSO | ≤-60dBc |
CTB | ≤-65dBc |
RF output return loss | ≥10dB |
RF output impedance | 75Ω |
WIFI Spec
Item | Parameter | ||
Performance parameters | Operating mode | Router or bridge | |
Technical standard | IEEE802.11b/g/n | ||
Frequency | 2.412 ~ 2.472 GHz | ||
Antenna gain | 5dBi | ||
Support rate | 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps 802.11n: max rate 300Mbps | ||
Channel | 2.4GHz Channel：1,2,3,4,5,6,7,8,9,10,11,12,13 | ||
Modulation mode | 11b：DSSS： DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps) 11g：OFDM:BPSK(6/9Mbps), QPSK(12/18Mbps),16QAM(24/36Mbps) Q64QAM(48/54Mbps) 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM | ||
Receive sensitivity | 11Mbps:≤-90dBm 54 Mbps:≤-76dBm HT20 MCS7:≤-73dBm HT40 MCS7:≤-70dBm | ||
Transmit power | 802.11n: 17dBm | ||
Encryption mode | AES, TKIP, WPA, WPA2, WPA-PSK/WPA2-PSK | ||
Production Process
Company Profile
FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
