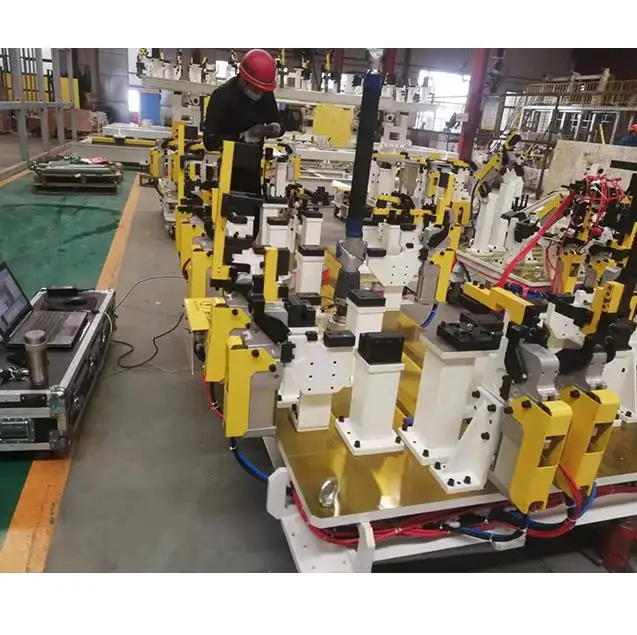

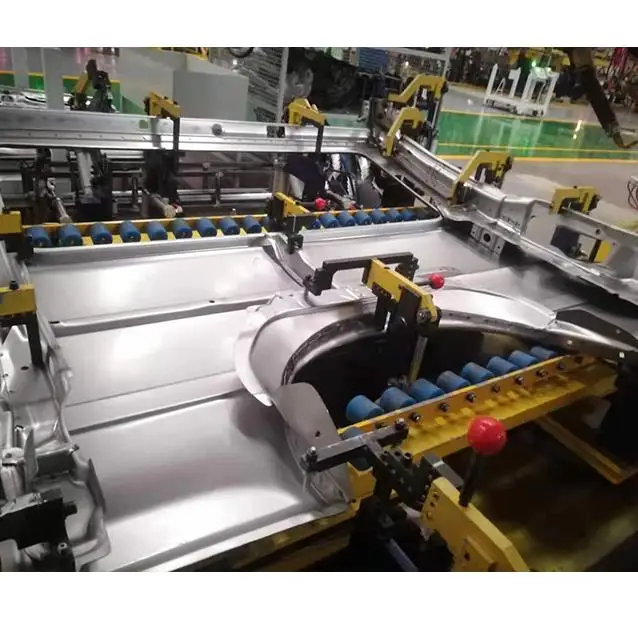

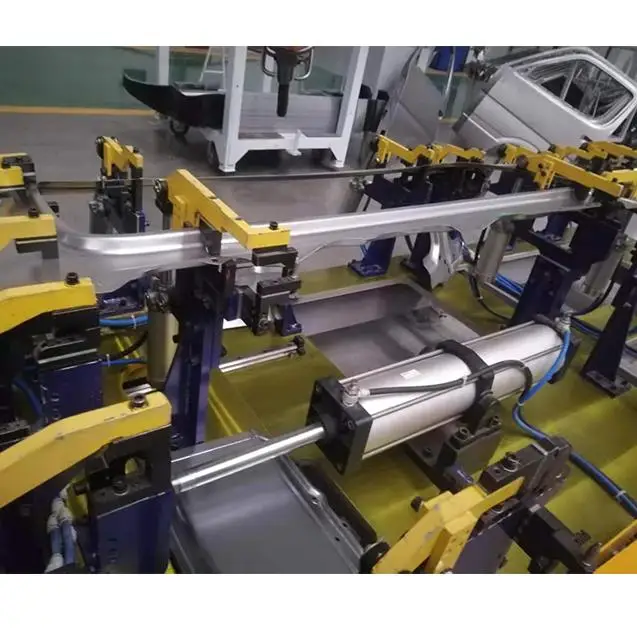

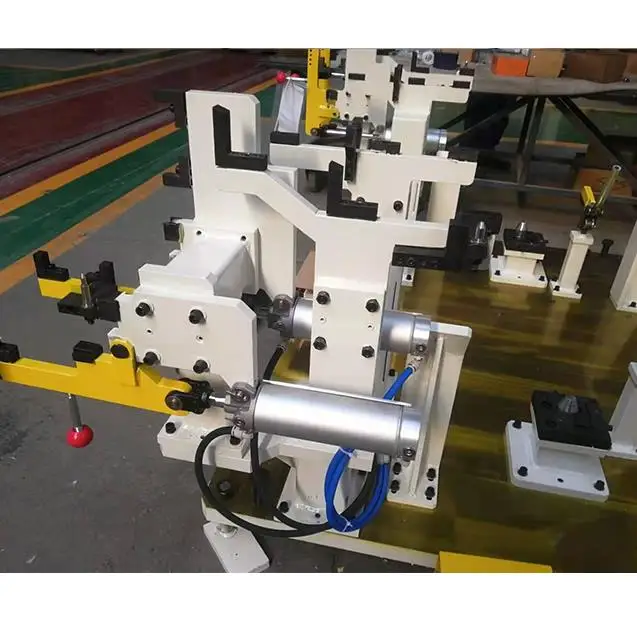

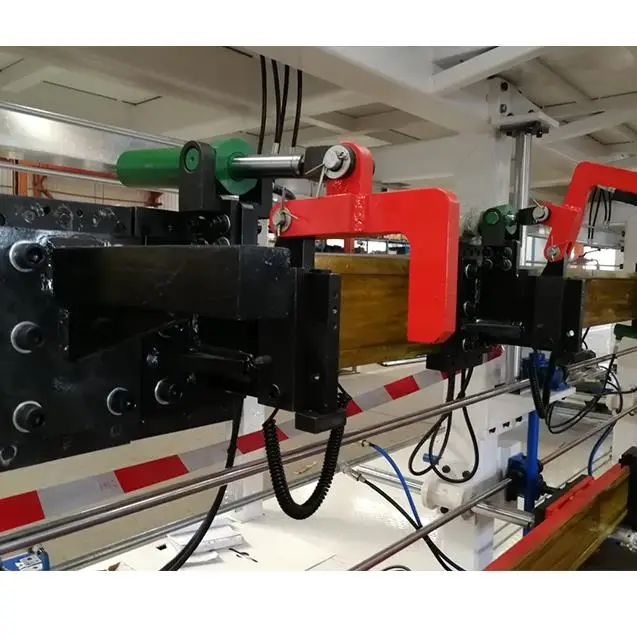

Customizable ckd automobile welding robot clamps design

When you want to saw a board apart, you use a clamp to keep the wood in place. Welders need more advanced welding tools than simple clamps in order to make certain that a welding project turns out as intended without flaws or damage. One of these tools—and one of the most practical tools in a welder’s arsenal—is a jig.

A jig is a large brace that keeps a welding project stable in the face of pressure, heat, motion, and force. A quality jig will streamline welding work by keeping parts together in a vice grip. Whether the welding is entirely manual, partially automatic, or fully robotic, a jig moves the workpiece while the tool remains stationary.

Just like you want the frame of a car to be strong enough to handle the motion of the engine, suspension, and tires, you also want welding jigs that can take a lot of force and still keep going. A thorough welding program provides valuable information on what makes a jig a useful accessory for a job.

The jig should be stationary in the face of the welding tool, but should also be able to be moved in order to follow the weld. A decent jig may have several fixtures, making it possible to weld multiple pieces at the same time, or weld different shapes and metals on the same frame. A good jig should be versatile, adaptable, and able to comply with precision requirements of the welder. The degree of precision makes a great deal of difference: jigs need to be able to hold tolerance of only +/- .03 inches to keep metals steady and supportive.

Every welding job involves a number of different tools. It is very common to use welding jigs on a project due to their strength and dependability. Jigs make welding jobs easier, quicker, more accurate, more comfortable, and more cost-efficient.

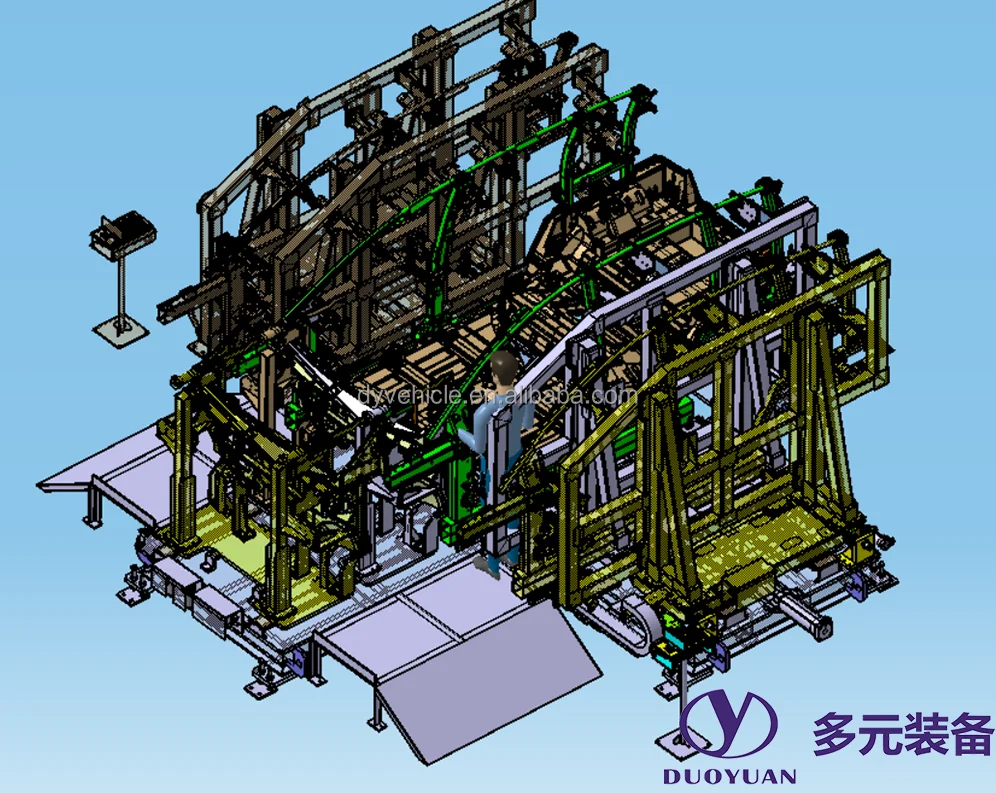

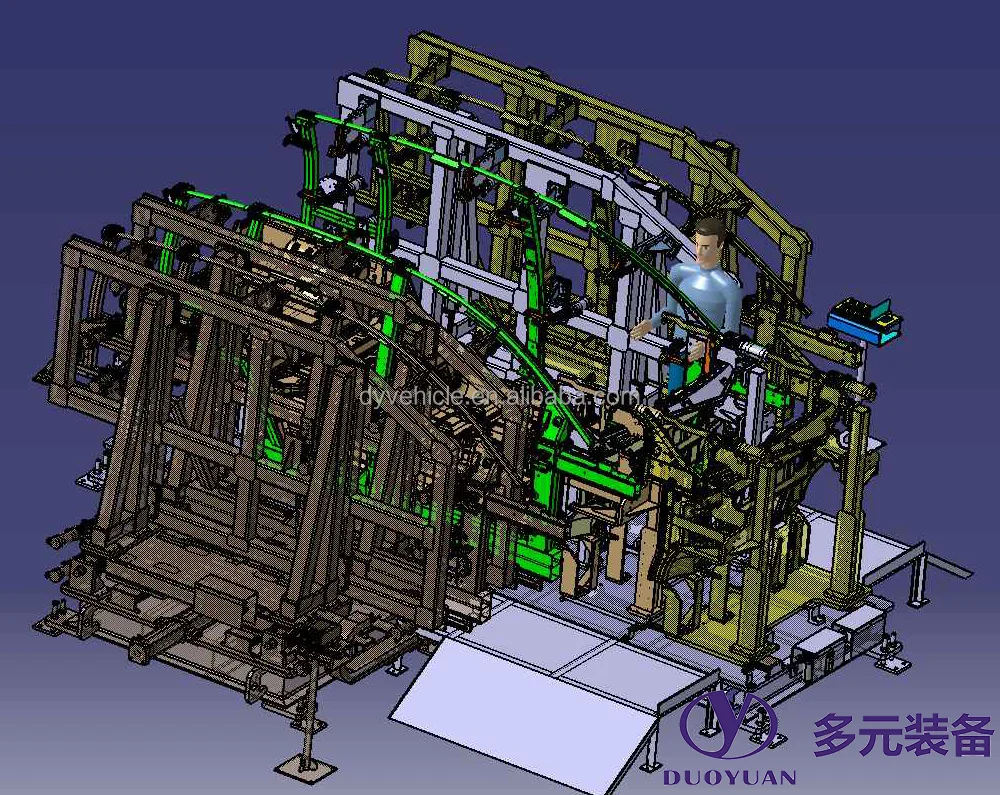

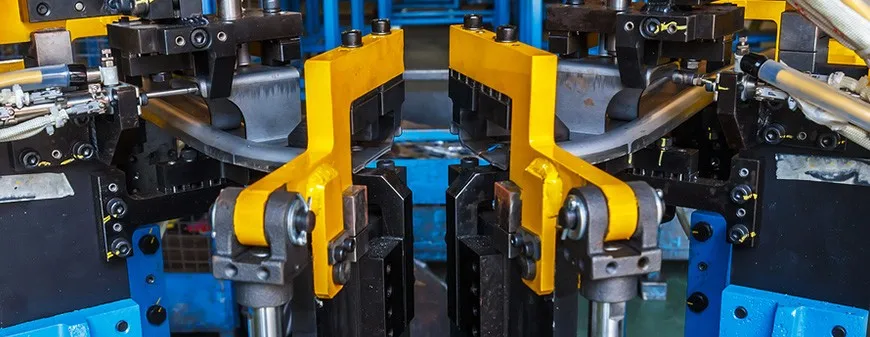

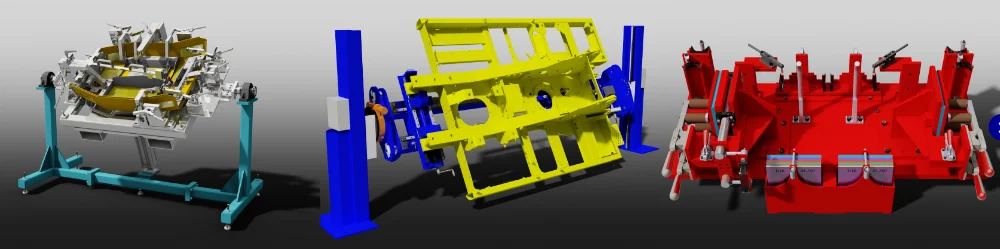

Duoyuan Equipment designs and builds welding fixtures for a wide range of manufacturers. We’ve provided tooling for customers producing hundreds of assemblies per shift, and we’ve built fixtures for parts that weigh hundreds and even thousands of pounds. Our experience ranges from multi-step robotic applications to manual fit and tack stations. Our engineers have worked in manufacturing plants welding parts so they understand the challenges of this business and are ready to assist you.

We know that welding fixtures must be accurate, repeatable, and very very durable, because there’s nothing tougher than a welding environment.

Pre-Sales Service

* Technical and demand communication.

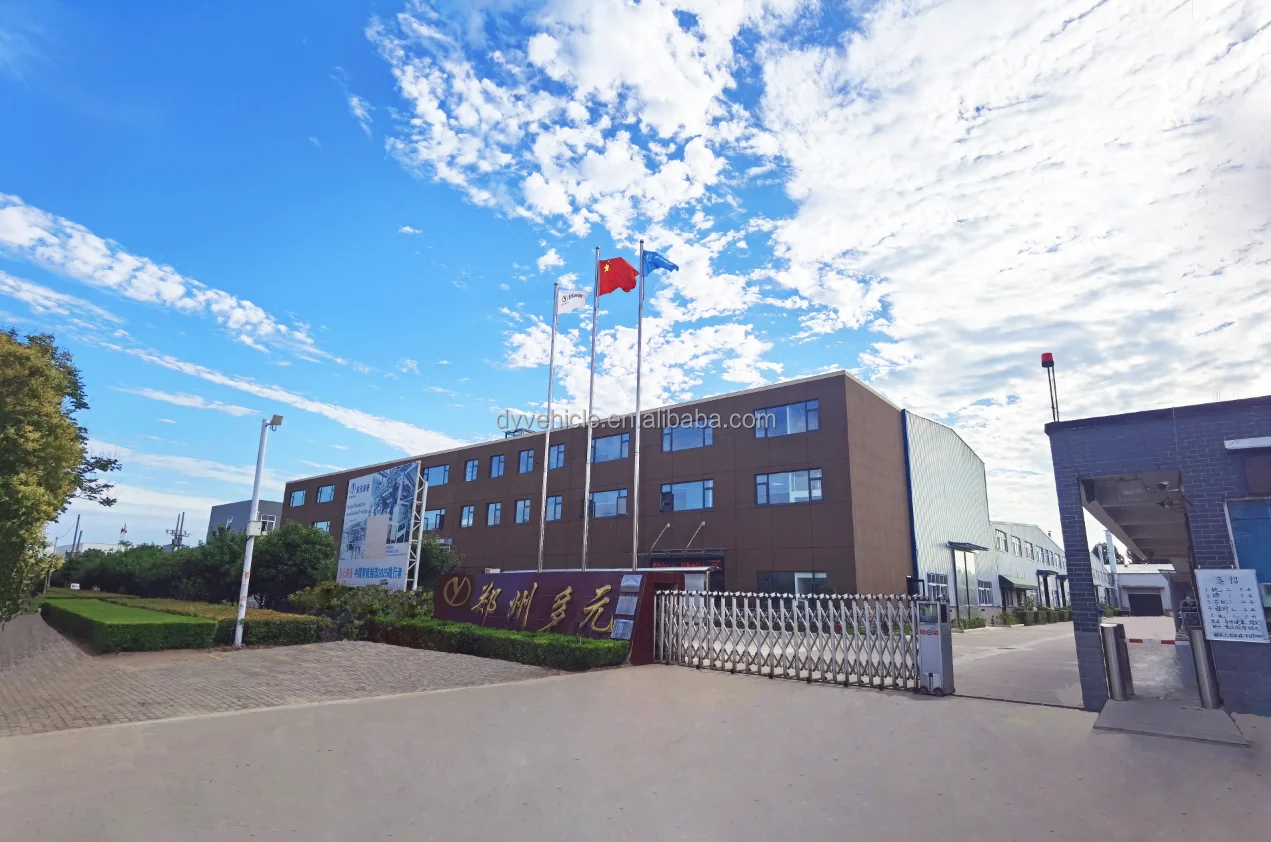

* View our Factory and case project.

* Negotiation about contract details.

After-Sales Service

* on-the-spot training and installation can be met if required.

* Provide technical support and production line upgrade.

* 7*24 available to service machinery overseas.

Name: Lu Mi

Tel: +86 15618403175            Website: www.zzdy.cn

Email: lu_mi_uofm @163.com      LinkedIn : Lu Mi duoyuan
