Two shot Die Spotting Press, Plastic Injection Die Spotting Machine

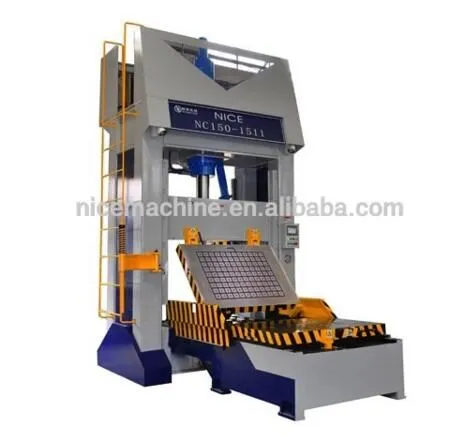

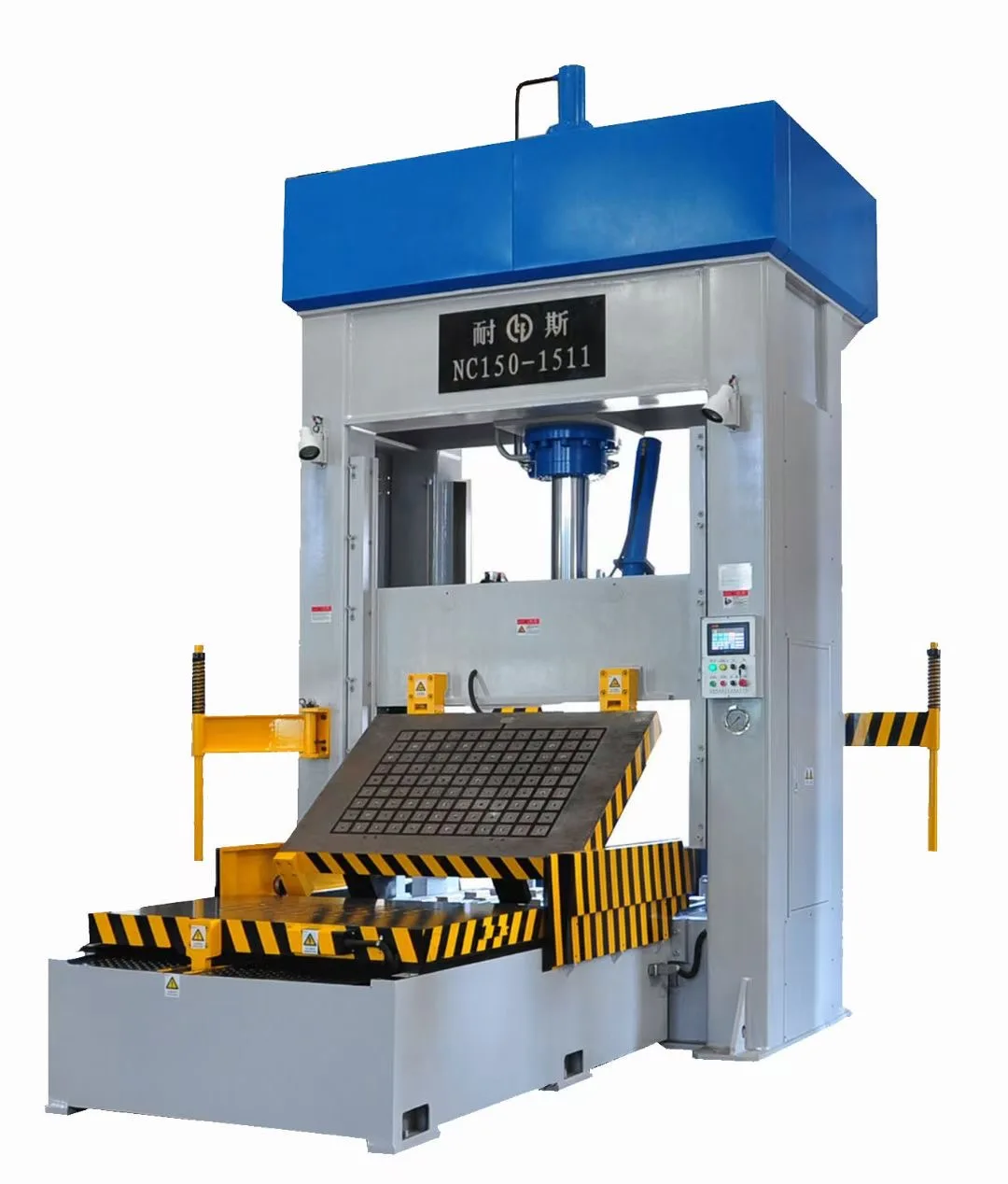

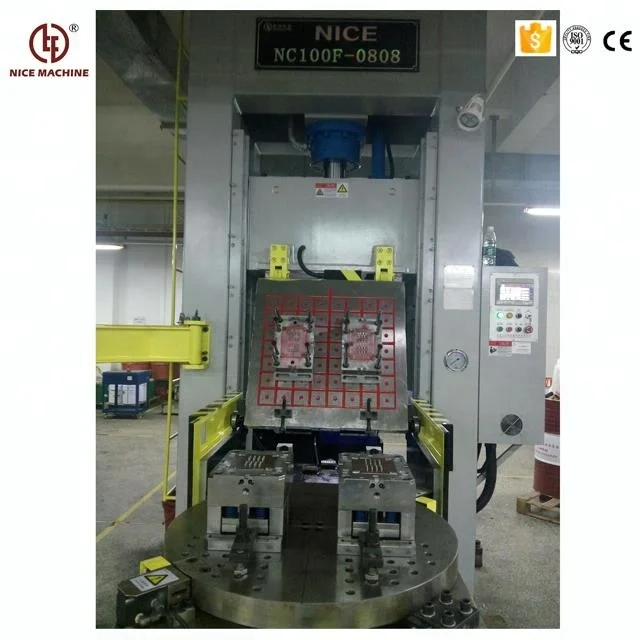

Nice Two shot Injection Mold Spotting Machine

Nice two shot injection mold spotting machine(bicolor die spotting machine) is a special type of die spotting machine developed by NICE, this kind die spotting machine is developed for two shot plastics mold fitting, repairing and maintenance. NICE die spotting machine is a main facility for mold manufacturing, repairing and maintenance of various plastic die, hardware casting die and sheet metal tensile forming die. It boasting convenient, fast and automatic operations, substitutes traditional simple fitting of knocking by copper bar, and greatly promotes efficiency and precision of fitting. NC series vertical type die spotting machine adopts PLC control, human-machine interface operations, proportion pressure adjustment and chooses different pressures according to working requirements.

1. Small-tonnage type (below 200T) frame adopts welding type frame structure, while large-tonnage type (above 300T) frame adopts welding type and separated frame. Separated parts are connected through Green columns and screws. Frame and sliding table are processed through tempering treatment, to eliminate inner stress and slightly deformation, achieve high rigidity.
2. Upper and lower working benches and guide rails of pressure-plate die spotting machine are made from nodular cast iron and adopt manual scraping for surface processing, with advantages of sound flatness, high precision and small deformation.
3. Magnetic disk type die spotting machine adopts electric control permanent magnet disk, it's easy to magnetizing and demagnetizing. After completion of magnetizing, the magnetic forces will not be reduced without demagnetizing, with merit of strong magnetic forces, safety and no need to supply power during in use.
4. Complete safety facilities, safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities.
5. Hydraulic system adopts vibration-absorption facilities, to reduce hydraulic impact and ensure precision of facilities.
6. Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion.
7. The system can realize impact produced through high speed die spotting, to obtain sound die pressing printing effects of red lead.
.

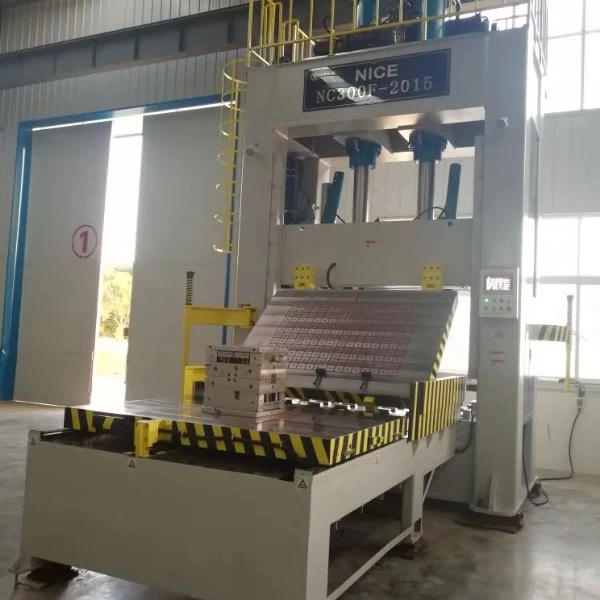

Standard Parameter of NC300F bicolor die spotting machine

Model: NC300F-1818 Bicolor Die Spotting Machine
Max. spotting force: 300 T
Max. lifting force: 60 T

Max. rolling angle: 180^o
Die opening space: 1800 mm
Size of working bench: 1800X1800 mm
Bearing capacity of upper working bench: 8 T
Bearing capacity of lower working bench: 20 T

Fast up/down speed: 70/70 mm/s
Slow up/down speed: <25 mm/s
Diameter of rotary work bench: 1800 mm
Out stroke of lower working bench: 3800 mm
Motor power: 22 KW
Machine size: 6000x4200x6420 mm

Machine weight: 39 Ton

Main Characteristics

1. The standard available press capacity: 30T/50T/70T/100T/120T/150T/200T/250T/300T/400T/500T, 500T+ press capacities can be customized as per customers' requirements.

2. Press typed and magnetoelectric typed opitional.

3. The moulds can be turned by 0-180 degree.

4. PLC control, human-machine interface operations.

5. Complete safety facilities, safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities.
6. Hydraulic system adopts vibration-absorption facilities, to reduce hydraulic impact and ensure precision of facilities.
7. Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion.
8.The system can realize impact produced through high-speed die spotting, to obtain extremely sound impression effects of red lead.

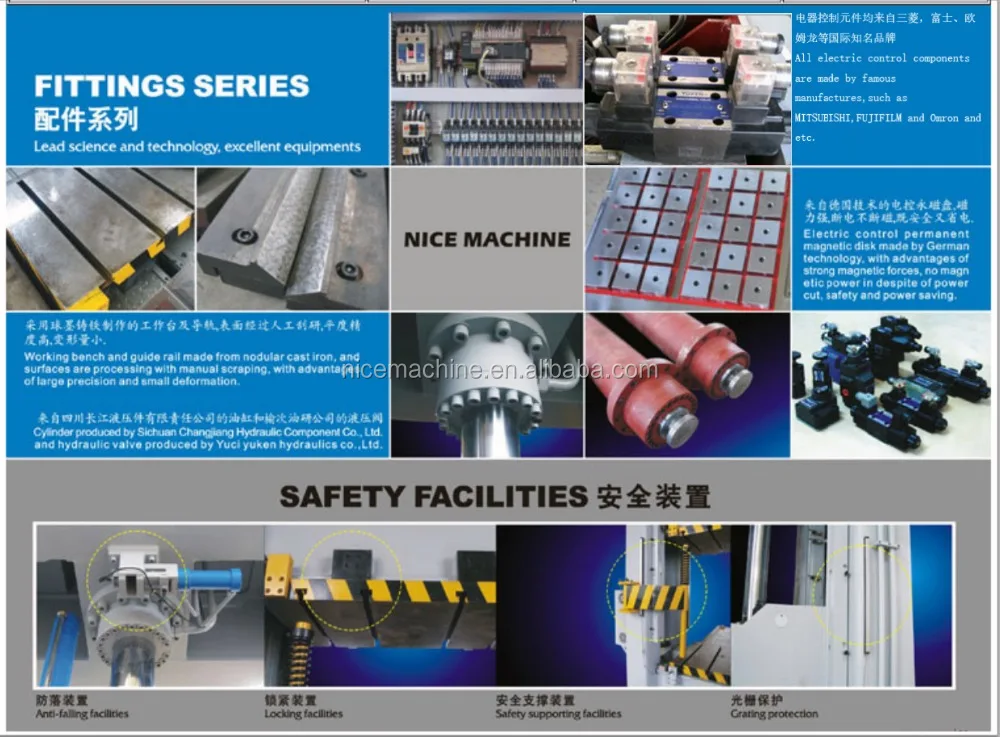

Illustration of bi-color die spotting press machine

Name: Anti-falling facilities

Name: Locking

Name: Safety supporting facilities

Name: Grating protection
