West Tune WTCH 2006 7L Thermostat Recirculating Water Chiller Low Temp Recirculating Cooling Chiller
- Category: Industrial Chiller >>>
- Supplier: Hangzhou West Tune Trading Co. Ltd.
Share on (60736972340):
Product Overview
Description
Products Description

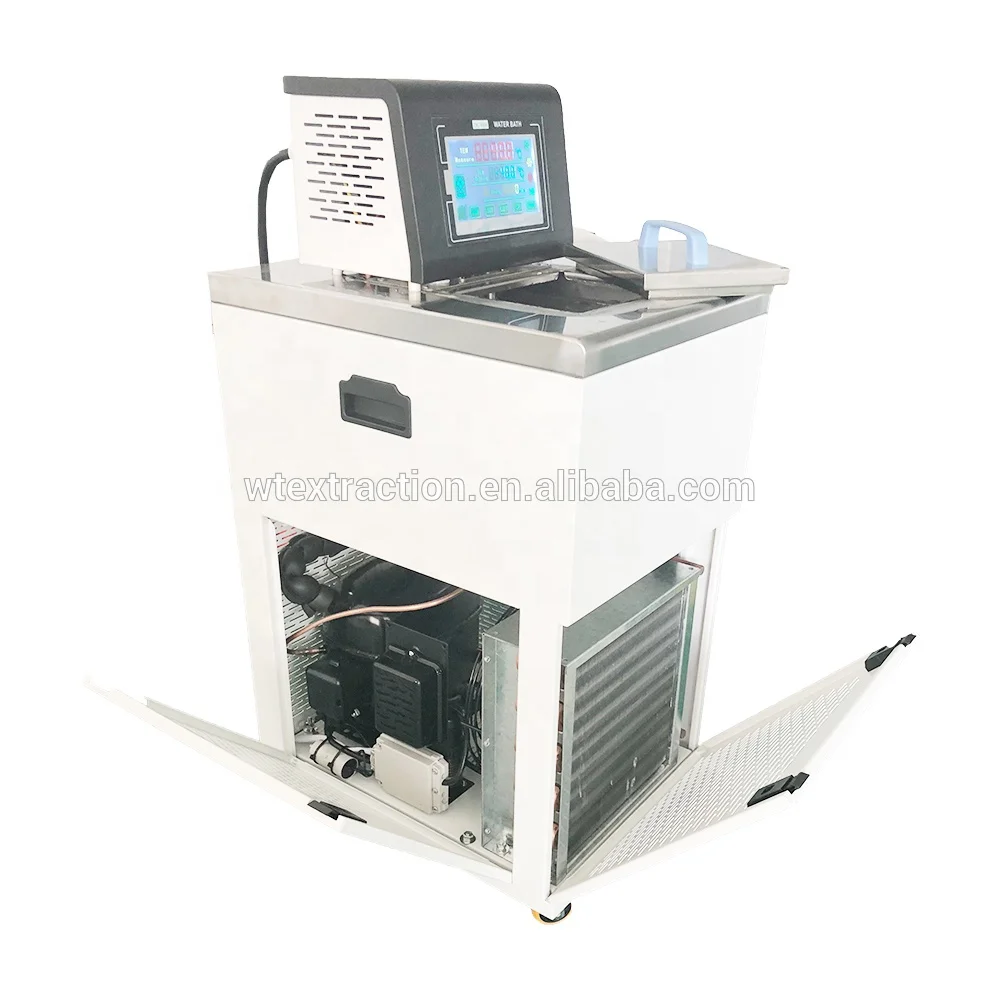

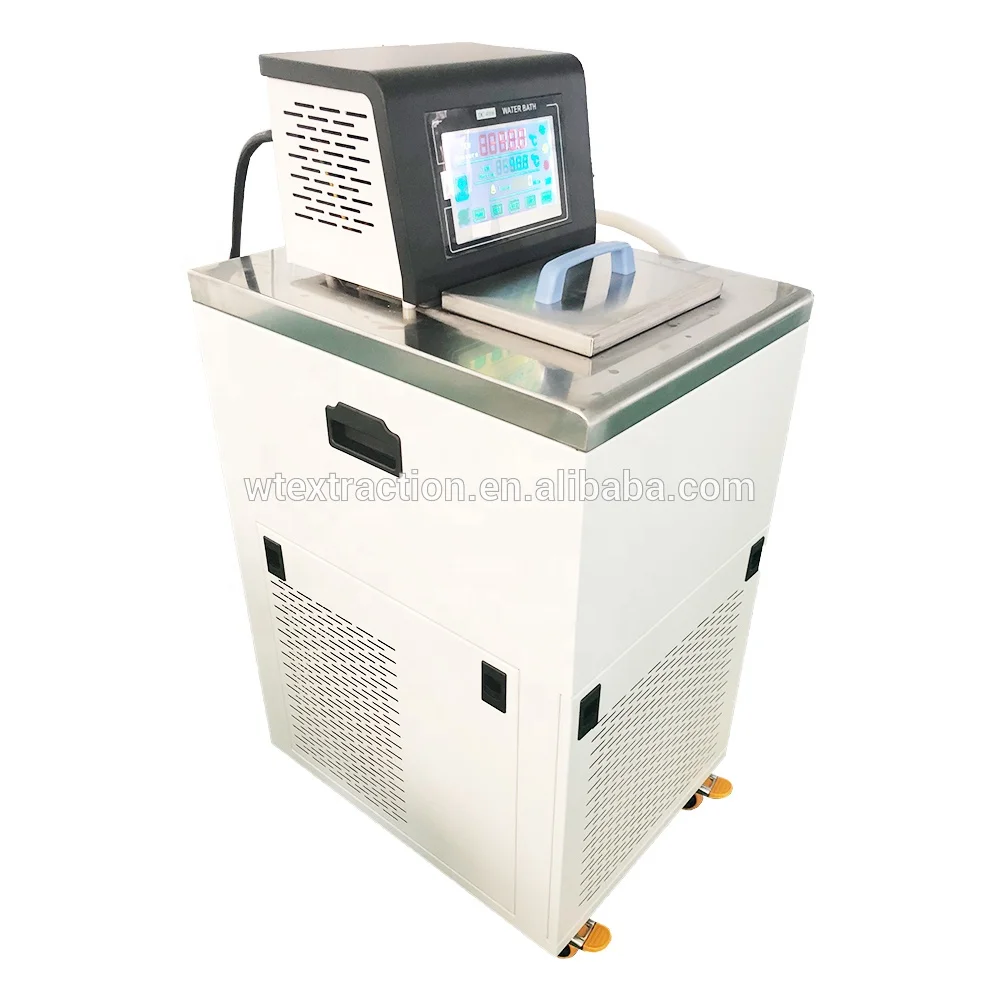

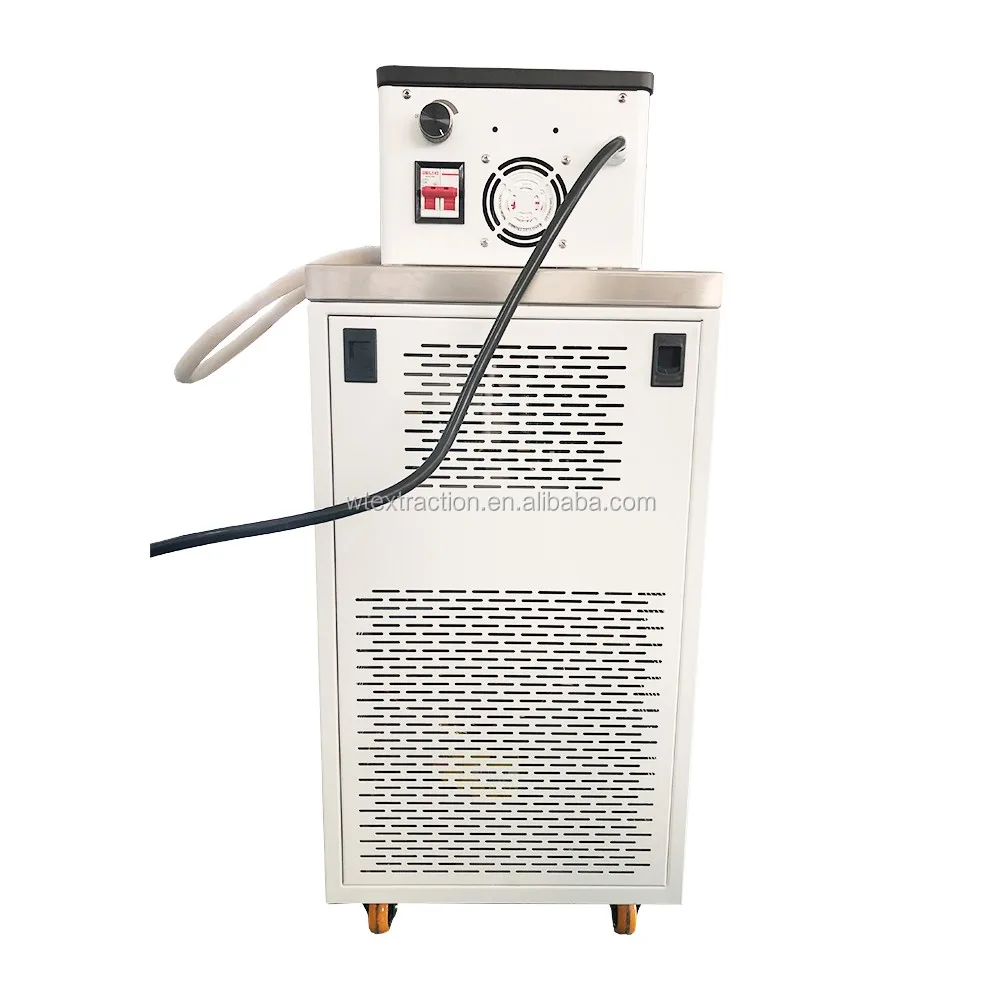

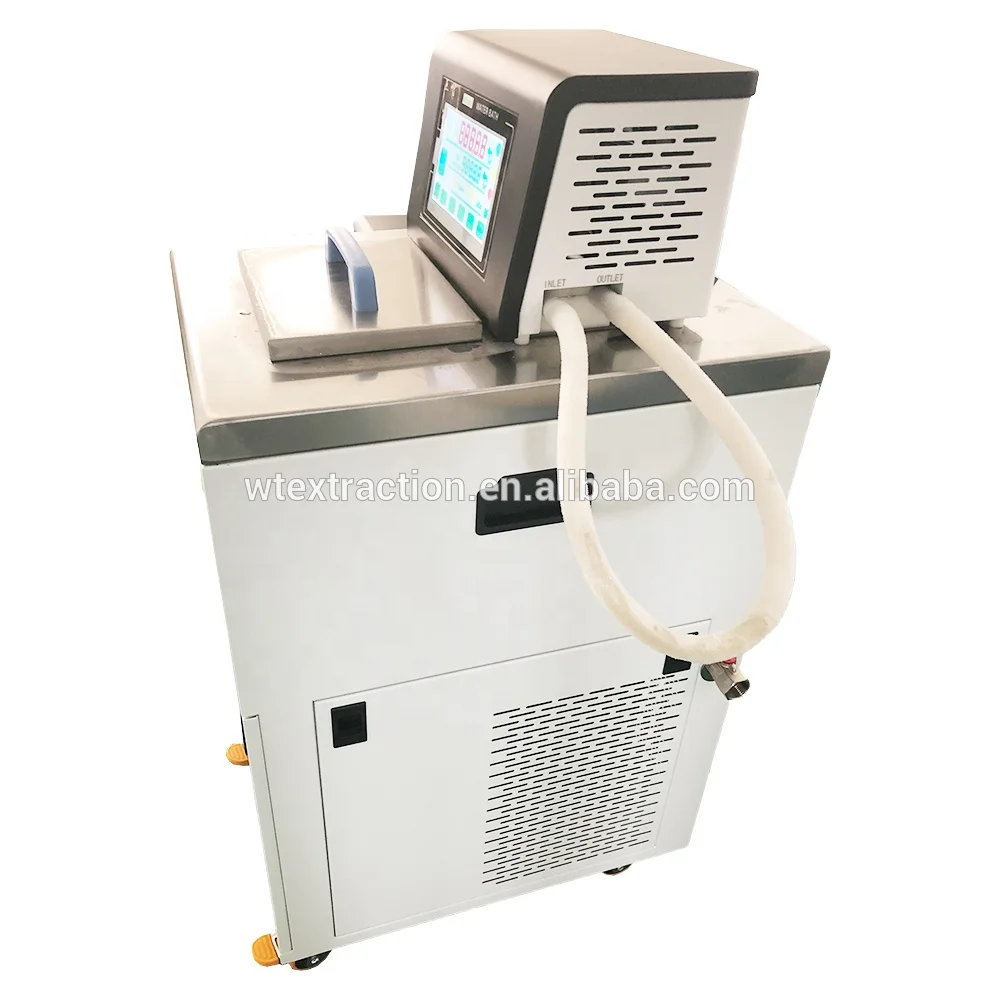

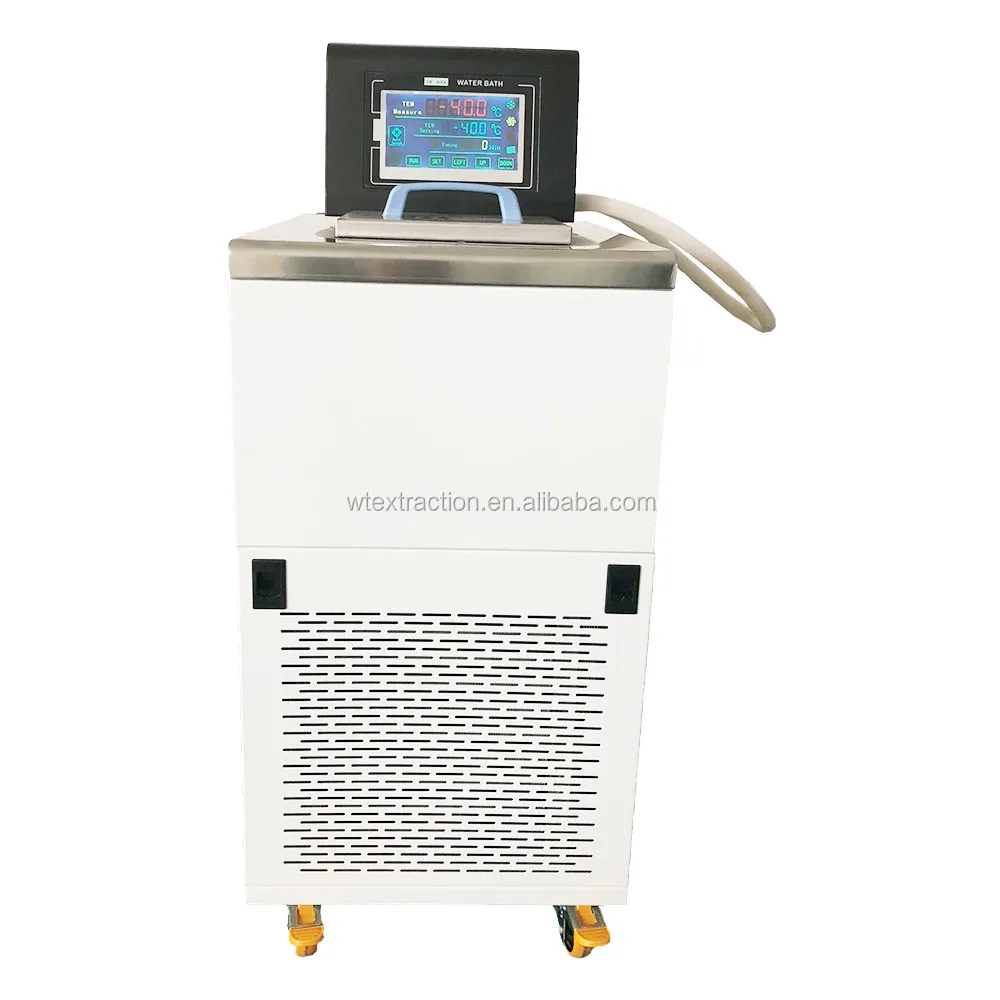

West Tune WTCH-2006 7L Recirculating Chiller
West Tune WTCH-2006 recirculating chiller is an ideal model for applications such as cooling rotary evaporators, analytical
instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
West Tune WTCH-2006 recirculating chiller is an ideal model for applications such as cooling rotary evaporators, analytical
instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Features:
1.Powerful cooling capacity 550w at -20°C
2.Pump flow max. 20 liters/min

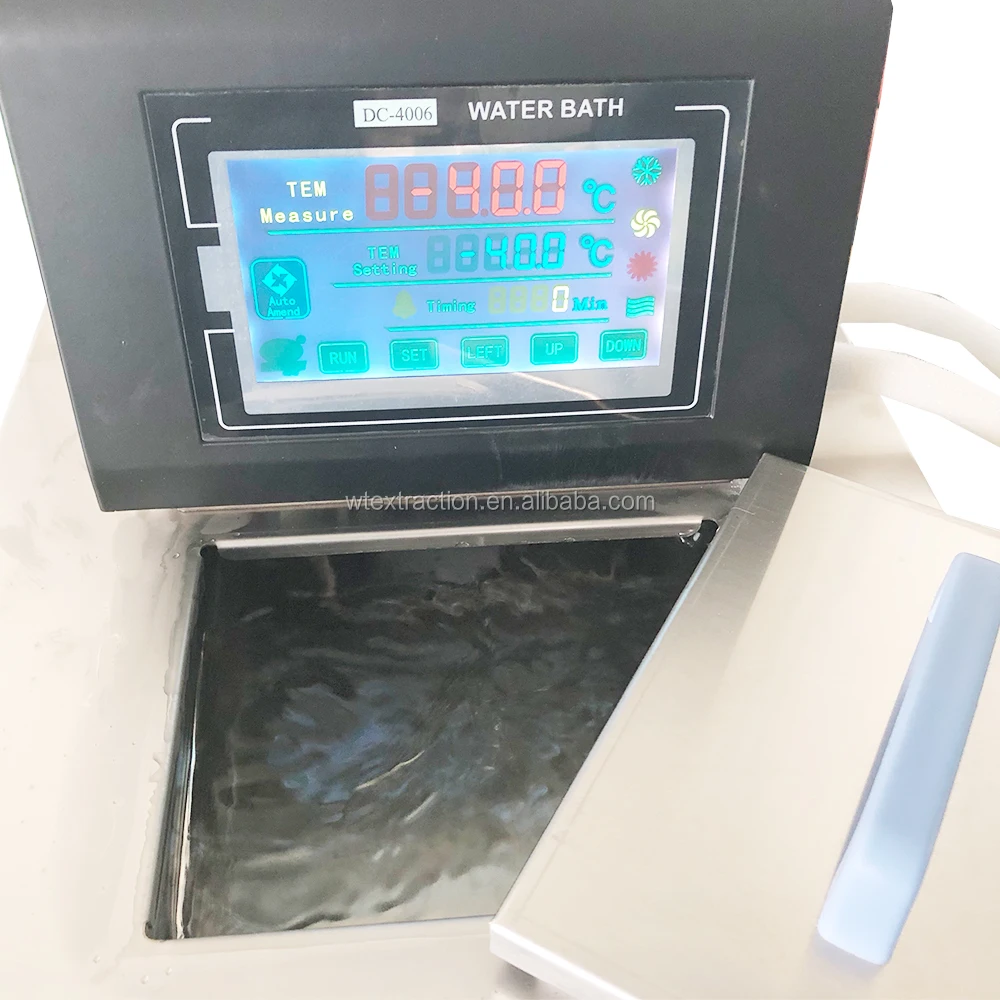

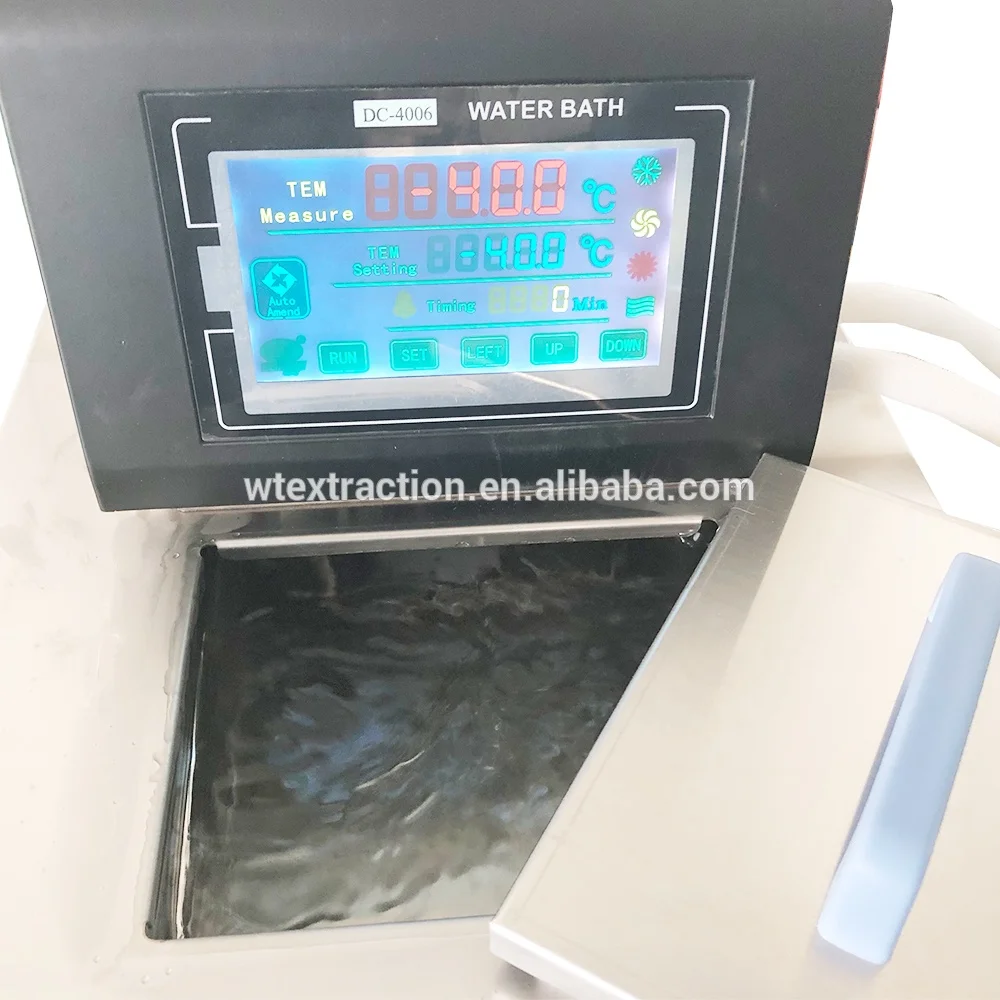

3.7" TFT touch screen controller
4.No dry ice or liquid nitrogen needed
5.ANSI standard all stainless steel reservoir
6.All steel construction for durability
7.Plug and play, no assembly required
1.Powerful cooling capacity 550w at -20°C
2.Pump flow max. 20 liters/min
3.7" TFT touch screen controller
4.No dry ice or liquid nitrogen needed
5.ANSI standard all stainless steel reservoir
6.All steel construction for durability
7.Plug and play, no assembly required
Specifications
Voltage | 110V 60Hz Single Phase |
Compressor | Danfoss (made in Germany) |
Refrigerant | R404A (190g) |
Cooling capacity | 1100w at 0°C |
Heating capacity | 1100 watts |
Circulating pump | 20 liters per minute, adjustable |
Lift | 5meters |
Chamber Dimensions (LxWxH) | 8 x 10 x 5.5" |
Chamber Material | 304 stainless steel, polished |

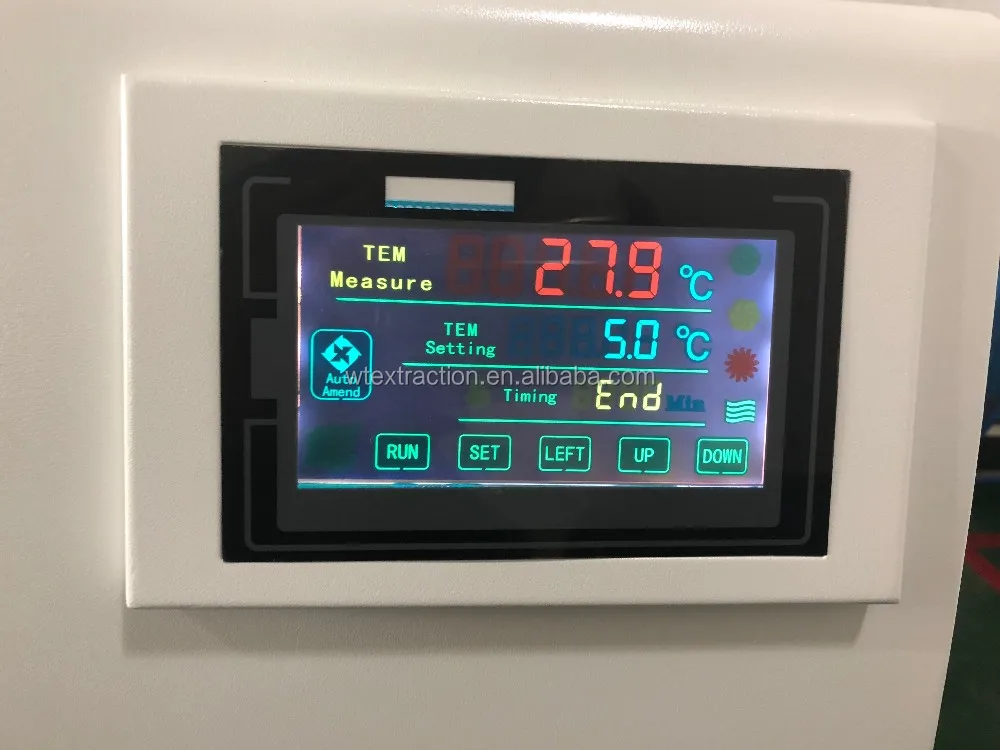

Controller | PID controller with LCD 7" TFT touch screen |
Temperature range | -20 °C to 100 °C |
Temperature accuracy | ±2 °C |
Working condition | -15°C ~ 25°C |
Inlet port | 3/8" hose barb |
Drain port | 3/8" hose barb with on / off valve |
Dimensions (LxWxH) | 12 x 15.5 x 26" |
Weight | 65 Lbs |
