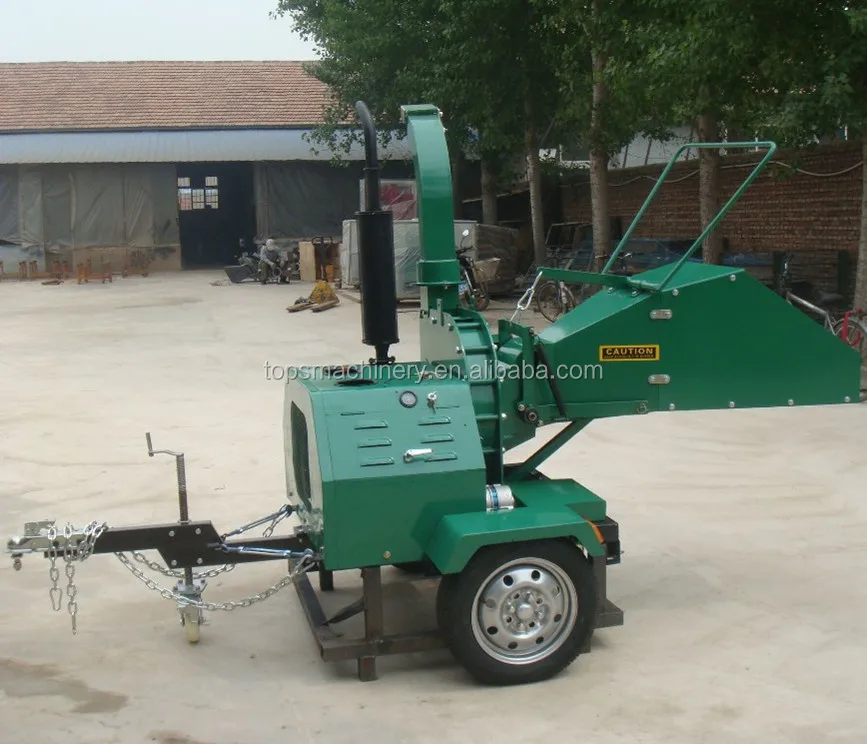

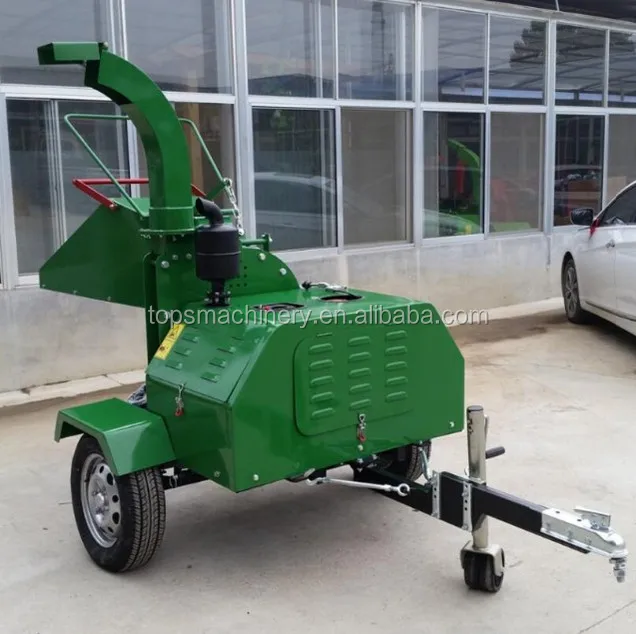

CE approved 22hp diesel wood chipper
CE approved 22hp diesel wood chipper
CE approved 22hp diesel wood chipper
CE approved 22hp diesel wood chipper
CE approved 22hp diesel wood chipper
CE approved 22hp diesel wood chipper
CE approved 22hp diesel wood chipper

CE approved 22hp diesel wood chipper

Share on (60737440894):


Price:$2,500.00 - $2,700.00

Quantity:


Product Overview

Description


Product Description

Product Application

Wood chipper can crush wood branches which diameter up to 180mm or 7 inches. The final chips size is about 20-50mm so that you can't make pellets or briquette directly. Now, you have to use hammer mill, then make pellets or briquette. And the wood chipper just can crush the hard material, can't crush corn stalk, grass, maize etc.

Specifications of the diesel wood chipper:

\t
Item
\t
TOPS18M
\t
TOPS18H
\t
TOPS22M
\t
TOPD22H
\t
TOPS40H
\t
Power
\t
18hp, 1 cylinder, 2000rpm
\t
22hp, 1 cylinder, 2000rpm
\t
40hp, 4 cylinder, 2200rpm
\t
Chip Max. wood
\t
18cm/7”
\t
18cm/7”
\t
18cm/7”
\t

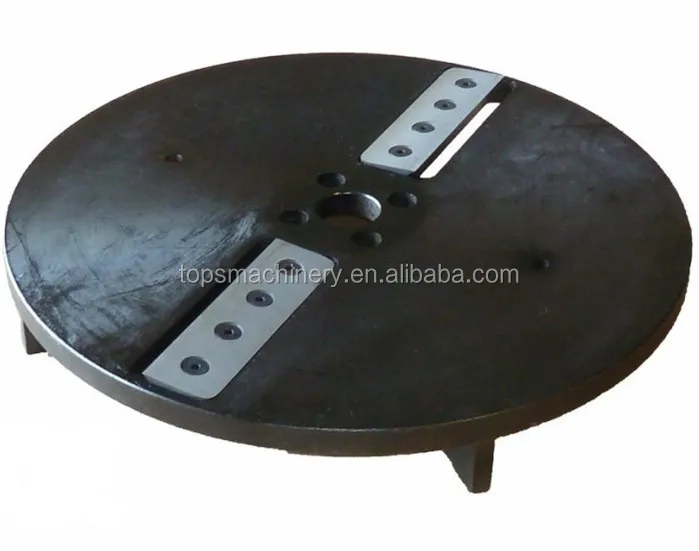

Flywheel dia.
\t
600mm
\t
600mm
\t
600mm
\t
Flywheel speed
\t
1025rpm
\t
1025rpm
\t
1025rpm
\t
Feeding system
\t
Manual
\t
Hydraulic
\t
Manual
\t
Hydraulic
\t
Hydraulic
\t
Blade quantity
\t
2pcs
\t
2pcs
\t
2pcs
\t
Chips size
\t
2-5cm
\t
2-5cm
\t
2-5cm
\t
Outlet rotate angle
\t
360°
\t
360°
\t
360°
\t
Weight
\t
660kg
\t
680kg
\t
780kg
\t
Capacity
\t
6-7m3/h
\t
7-8m3/h
\t
8-9m3/h
\t
Volume of oil tank
\t
18L
\t
18L
\t
18L
\t
Packing size
\t
150*150*135cm
\t
150*150*135cm
\t
180*150*135cm
Certifications
Detailed Images

Machine Parts

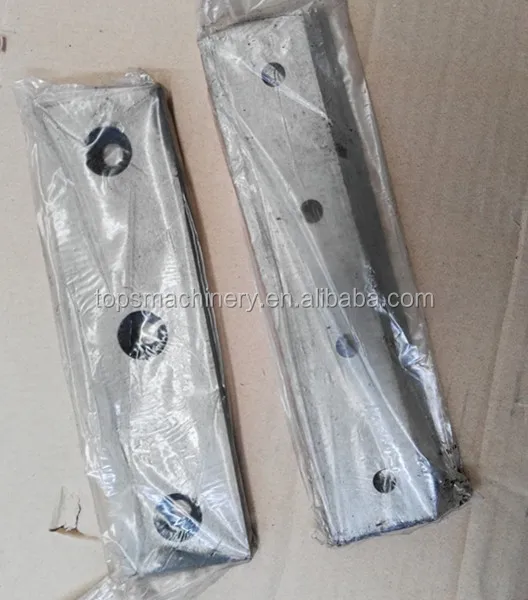

Name: Blades

Brand: TOPS

Original: Shandong, China

There are 2pcs fixed blade. You can buy a set as spare.

Our Service

1. 1 year guaranteed time with 24 hours service.
2. Free training, Guidance Installation and Debugging. If needed, engineers can be sent to your factory for installation and commissioning, training.
3. English manual and video for installation & operation.
4. Any problem in operation or others about the machine, you can contact with me and we will give solution in 24-48 hours.

Packing & Delivery
\t
Packaging
\t
Size
\t
150 (L) * 150 (W) * 135 (D)
\t
Weight
\t
680kg
\t



Packaging Details
\t
The normal package is iron sheet. This package can export directly to every country.
