Weco Elevator Light Curtain Passenger Elevator Door Sensor
Product Description
Specification:
Model
Number of Diodes
Number of Beams
Dimension
Voltage
OS33-917A1
17
94
2000*24*11mm
AC220V/ AC110V/ DC24V
OS33-917A2
32
128
2000*24*11mm
OS33-917B1
17
94
2000*38*10mm
OS33-917B2
32
128
2000*38*10mm
OS33-917C1
17
94
2000*28*16mm
OS33-917C2
32
128
2000*28*16mm
OS33-917E2
32
128
2000*55*20mm
OS33-917F2
32
128
2000*70*25mm
OS33-917G2
32
128
2000*55*25.5mm
OS33-917K1
17
94
2000*28*10mm
OS33-917K2
32
128
2000*28*10mm
OS33-917P2
32
128
2000*29.5*16.5mm
OS33-917Q1
17
94
2000*27.5*11mm
OS33-917Q2
32
128
2000*27.5*11mm
OS33-917T2
32
128
2000*17*19mm
Re:

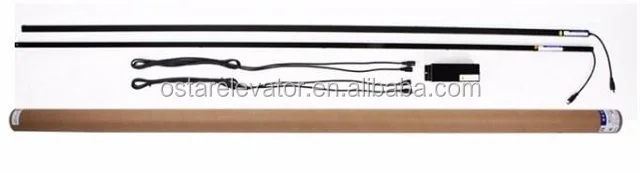

Complete safety light curtain includes as below:
Item
Quantity
1

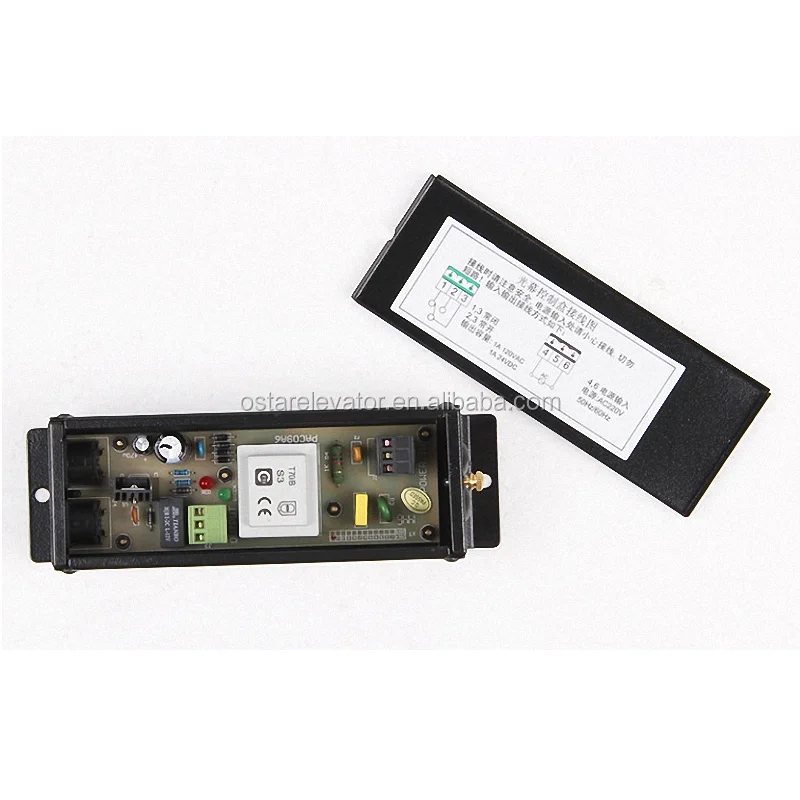

Power Supply Control Box
1 pc
2

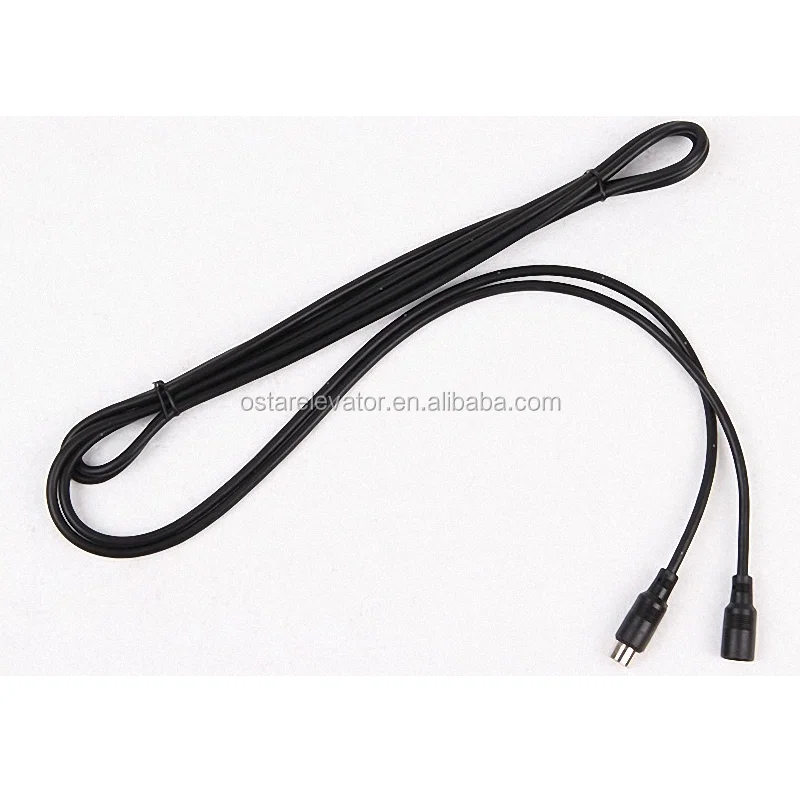

Druable Flexiable Cable 3.5m
2 pcs
3
Transmitter
1 pc
4
Receiver
1 pc
5
User Manual
1 copy
6
Mounting Accessories
1 set
Packaging & Shipping
Company Information
OSTAR Elevator is one-stop elevator parts supplier, and following parts can be provided by us. Shaft Components includes Machined/ Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Bracket etc. Elevator Cabin includes Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block, Guide Shoes, Rope Attachment etc. Door System includes Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts, Safety Light Curtain/Photocell etc. Safety Components includes Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc. Traction System includes Geared/ Gearless Traction Machine, Pulley Sheave, Anti-vibration Pad, Steel Wire Rope etc. Electrical Components includes Integrated and Separated Controlling Cabinet, Yaskawa L1000A Inverter, Elevator Display, COP & LOP & HOP, Elevator Push Button, Flat Travelling Cable etc.
FAQ
Q1: What is the lead time of light curtain?
Within 10 days upon receipt of payment.
Q2: What is the guarantee for this product?
Our guarantee period is 3 months; but not includes damage caused by the human reason or force majeure.
Q3: Do you have any certificate for your products?
Yes, we have ISO and CE certificate for spare parts.
