3d деревообрабатывающий станок с ЧПУ stepmores, 4*8 футов, деревообрабатывающий станок, мебель для шкафа, 1325 atc деревообрабатывающий станок
- Category: Wood Router >>>
- Supplier: Jinan Chentuo Industry And Trade Co. Ltd.
Share on (60738329055):
Product Overview
Description
100% product quality protection
100% on-time shipment protection
100% payment protection
100% on-time shipment protection
100% payment protection
Product Description
European quality 1325 1530 2030 woodworking cabinet furniture sculpture atc cnc router machine

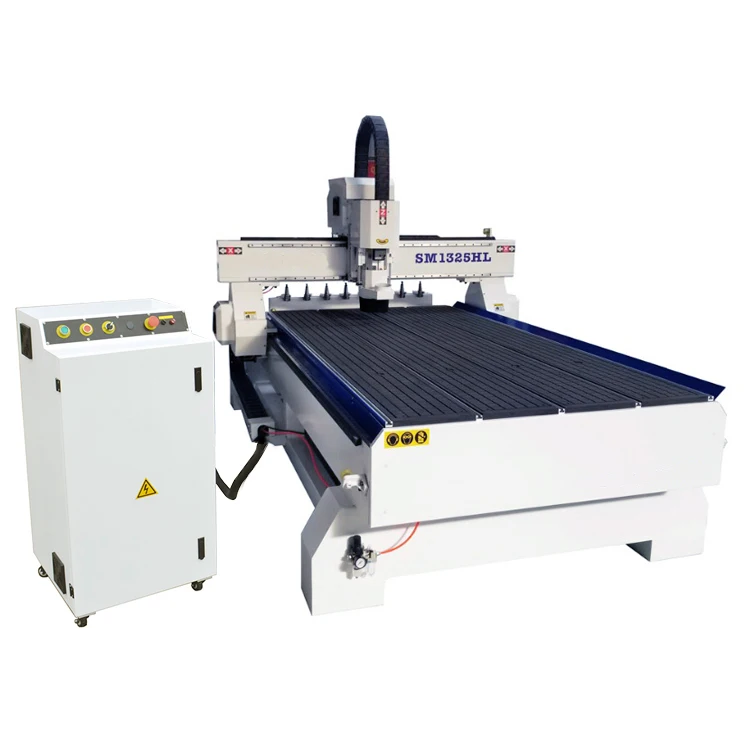

Main features of SM1325HL atc cnc router
1. Thick steel tube heavy duty frame and gantry, avoid vibration and ensure the machine working performance.
2. Taiwan square linear guide rail, longer working life.
3. China top brand 9kw atc spindle, powerful and quality guaranteed.
4. Auto tool changing, save much time to change tools and reach high working efficiency.
5. Schneider electrical parts, including switch button, contactor, relay, etc, confirm the machine steady and safe.
2. Taiwan square linear guide rail, longer working life.
3. China top brand 9kw atc spindle, powerful and quality guaranteed.
4. Auto tool changing, save much time to change tools and reach high working efficiency.
5. Schneider electrical parts, including switch button, contactor, relay, etc, confirm the machine steady and safe.
Machine model | SM1325HL atc cnc router |
X Y Z travel distance | 1300*2500*200 mm |
Feeding height | 200mm |
Spindle | 9kw air cooled atc spindle |
ATC tool type | 8pcs linear type (on back side of machine) |
Working table | vacuum absorption table with vacuum pump |
Guide rail | Taiwan square linear guide rails |
Transmission | X & Y axis - gear rack, Z axis - TBI ball screw |
Drive motor | easy servo (hybrid) motor driver |
Dust collector | included, with auto up-down dust boot |
Lubrication system | included |
Control system | Mach3 with MPG |
Working voltage | AC380V, 50/60Hz (AC220V for optional) |
NcStudio or Syntec controller | |
pure servo motor driver | |
water cooled atc spindle | |
Italian atc spindle | |
4th axis | |
Customization supported according to your requirements. |
Detailed Images
Our stepmores machines use high quality parts, make sure long lifetime of the whole cnc router machine

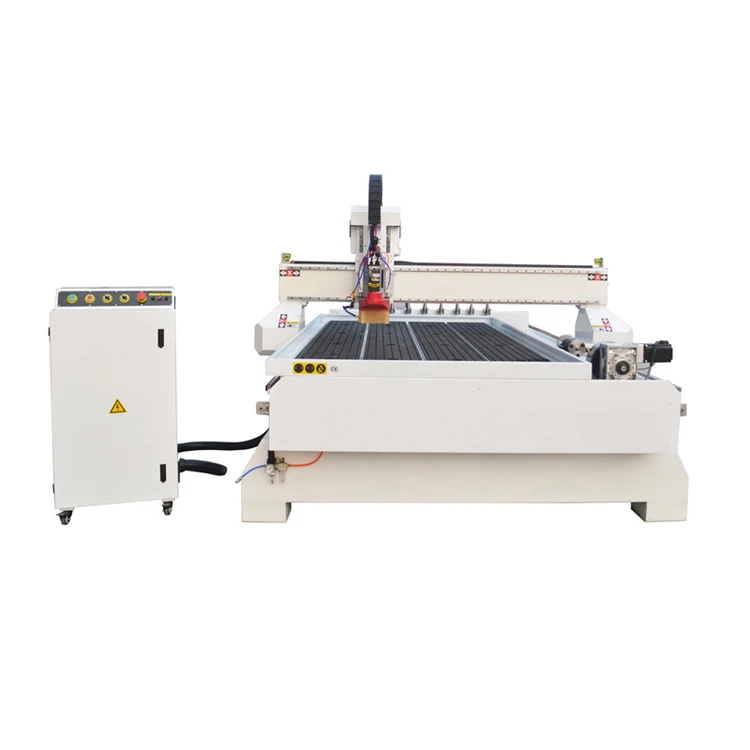

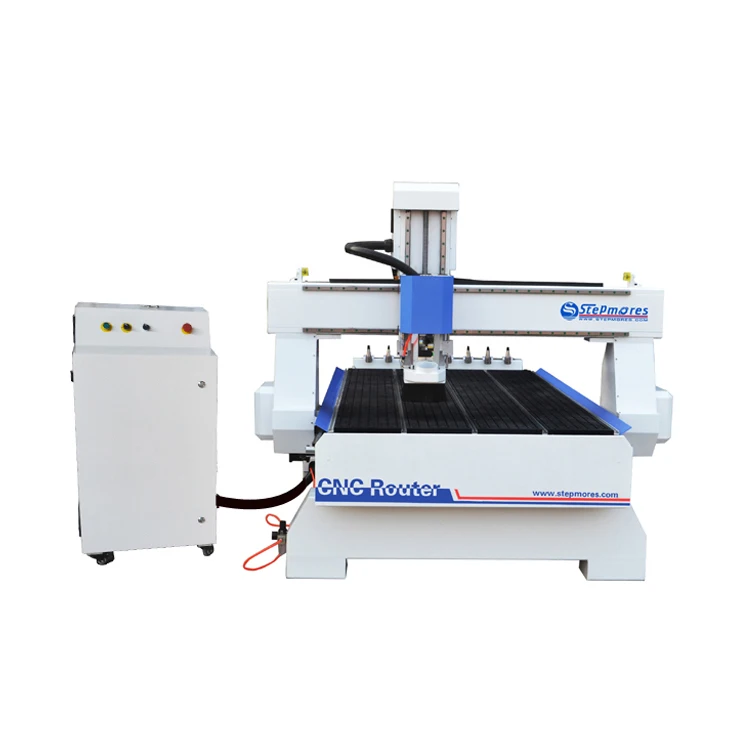

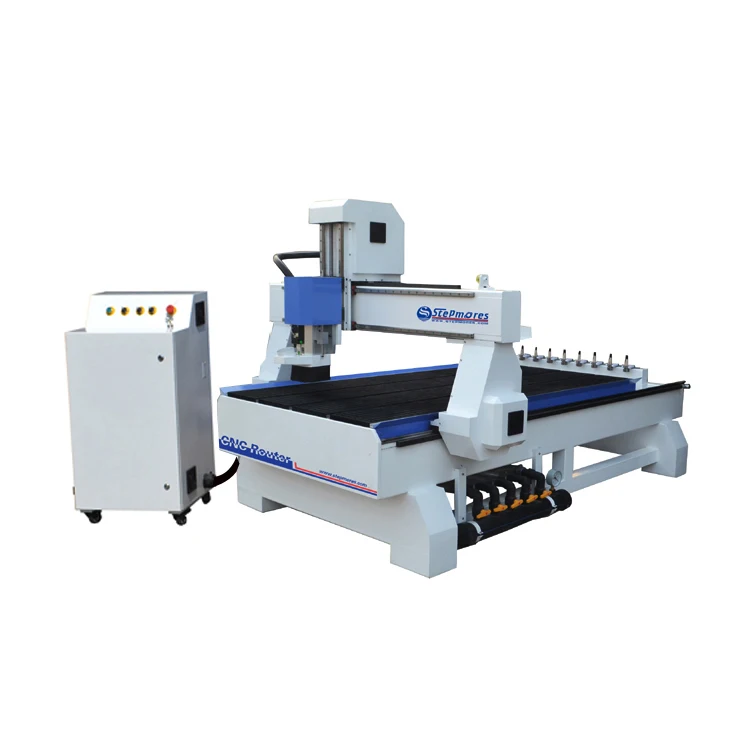

Here is the details of SM1325HL ATC CNC Router
9kw air cooled atc spindle, change tools automatically. ISO30 tool holders.
11kw Fuling brand inverter, over current load protection and alarm controller.
8pcs linear tool changers can meet most kind of work. More tools can add.
Tool sensor get each tools length offset. 0.001mm tolerance precision.
Closed loop motor has same encoder at back to communicate with driver.
Motor driver
Multi-zones allow to easily switch from full sheet to smaller part processing.
Central lubrication is easier to lubricate the guide units by pulling it gently.
Schneider electrial parts wo confirm the machine safe and steady.
Application
SM1325 atc cnc router is mainly used to engrave and cut on wood, MDF, acrylic, sheet aluminum, etc.
1. Furniture industry: solidwood doors, composite doors, cabinet doors, interior doors, sofa legs, headboards, antique furniture and superficial flower-shaped engraving of various plate-type furniture and disposable finishing of process.
2. Decorated industry: variety of decorations engraving process such as decorative murals, screens, decorative patterns,
three-dimensional wave boards, sound-absorbing panels and so on.
3. Advertising industry: engraving and making for acrylic cutting and engraving, acrylic plastic model making, badges and a variety of logo signs.
4. Arts & crafts industry: sculpture making of arts & crafts such as process relief, shadow carving, craft ornaments, car
accessories and so on.
5. Musical instrument industry: headstock processing ,guitar semi-finished products processing, surface sculpture and
three-dimensional curved surface making of various musical instruments' decorative patterns.
1. Furniture industry: solidwood doors, composite doors, cabinet doors, interior doors, sofa legs, headboards, antique furniture and superficial flower-shaped engraving of various plate-type furniture and disposable finishing of process.
2. Decorated industry: variety of decorations engraving process such as decorative murals, screens, decorative patterns,
three-dimensional wave boards, sound-absorbing panels and so on.
3. Advertising industry: engraving and making for acrylic cutting and engraving, acrylic plastic model making, badges and a variety of logo signs.
4. Arts & crafts industry: sculpture making of arts & crafts such as process relief, shadow carving, craft ornaments, car
accessories and so on.
5. Musical instrument industry: headstock processing ,guitar semi-finished products processing, surface sculpture and
three-dimensional curved surface making of various musical instruments' decorative patterns.
Packing & Delivery
Package | We use stretch film inside and plywood case outside with steel tube under the plywood case to protect the package and facilitate the loading / unloading. |
Delivery | It usually takes 15~20 days to finish the production and test. |
Package size | LxWxH around 3.37*2.2*1.86m |
Gross weight | Around 1500kgs |

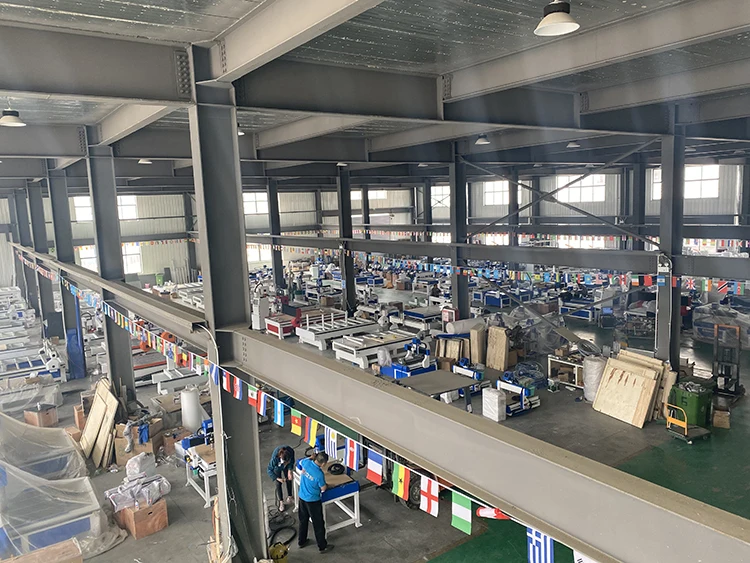

Company Introduction
Jinan chentuo industry and trade co., Ltd was established in 2011. We are well known for our superior quality and service in the field of engeering and manufacturing of CNC equipment that includes atc cnc router, wood cnc router, 4axis cnc router, 5axis cnc router, cnc laser machine, cnc plasma cutting machine, which have passed CE certificate.
Our company has sold machines to a lot of countries such as US, EU, Argentina, Morocco, UK, Australia, Russia, Romania, France, Esthonia, and so on.
Our company has sold machines to a lot of countries such as US, EU, Argentina, Morocco, UK, Australia, Russia, Romania, France, Esthonia, and so on.
Our services
1. service before sales: our salesman will try to know your requirement about our cnc router specificaiton and what kind of work you will do. then we will offer our best solution for your requirement. then it can confirm each customer can get their real needed machine.
2. service during production: we will send photos of machines during making. so customers can know more details about the procession of making their machines. and give their suggestions.
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will check when the machine arrive your sea port and estimated date of arrival. so customers can know when it will arrive and make enough preparation.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some customers have question about it. we will have professional technician to help them to install and teach how to use through skype ,calling, vedio or mail.
7. service of warranty: we offer 12 month warranty for whole machine and 6 month warranty for spindle. if any parts of our machine is broken. we will replace it for free.
8. service in longterm: we hope every customer can use our machine easliy and have a fun of it. if customers have any problems of machine in 3 or more years, they can contact us. we will always here waiting for you.
2. service during production: we will send photos of machines during making. so customers can know more details about the procession of making their machines. and give their suggestions.
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will check when the machine arrive your sea port and estimated date of arrival. so customers can know when it will arrive and make enough preparation.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some customers have question about it. we will have professional technician to help them to install and teach how to use through skype ,calling, vedio or mail.
7. service of warranty: we offer 12 month warranty for whole machine and 6 month warranty for spindle. if any parts of our machine is broken. we will replace it for free.
8. service in longterm: we hope every customer can use our machine easliy and have a fun of it. if customers have any problems of machine in 3 or more years, they can contact us. we will always here waiting for you.
