Product Overview

Description


Sales Promotion


Best price ever in 2018

Big FREE consumable Gift

FREE Training of machine operation

Product Description

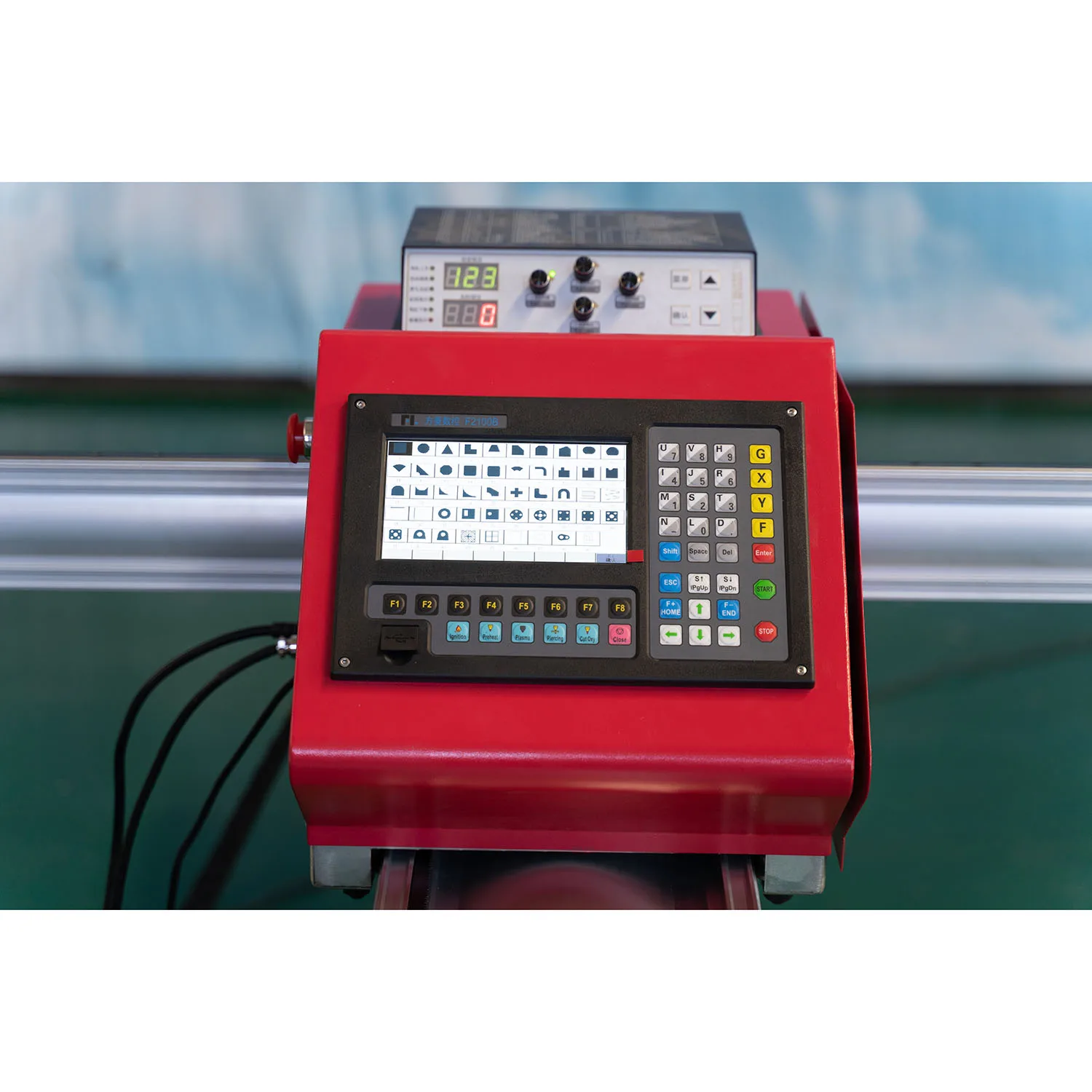

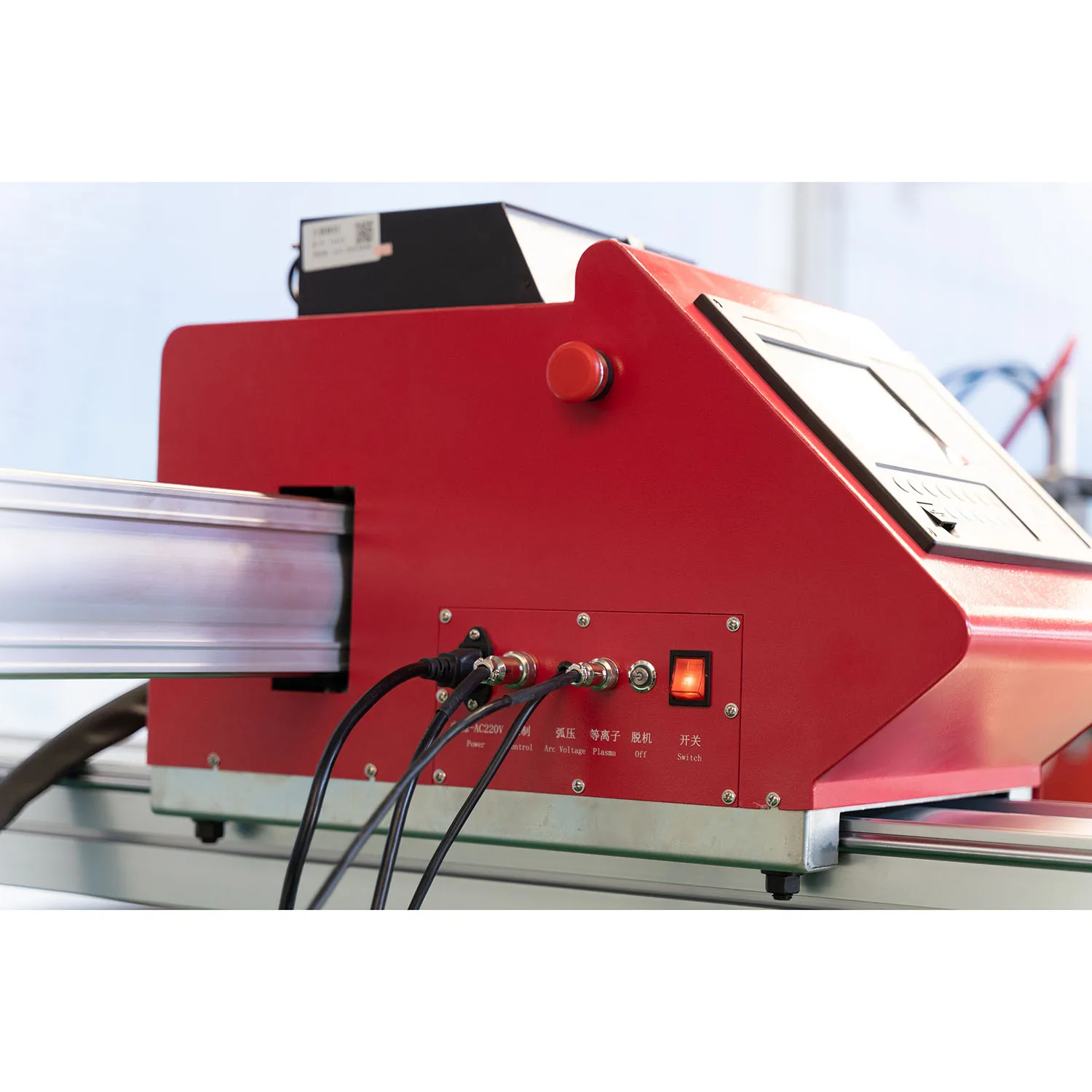

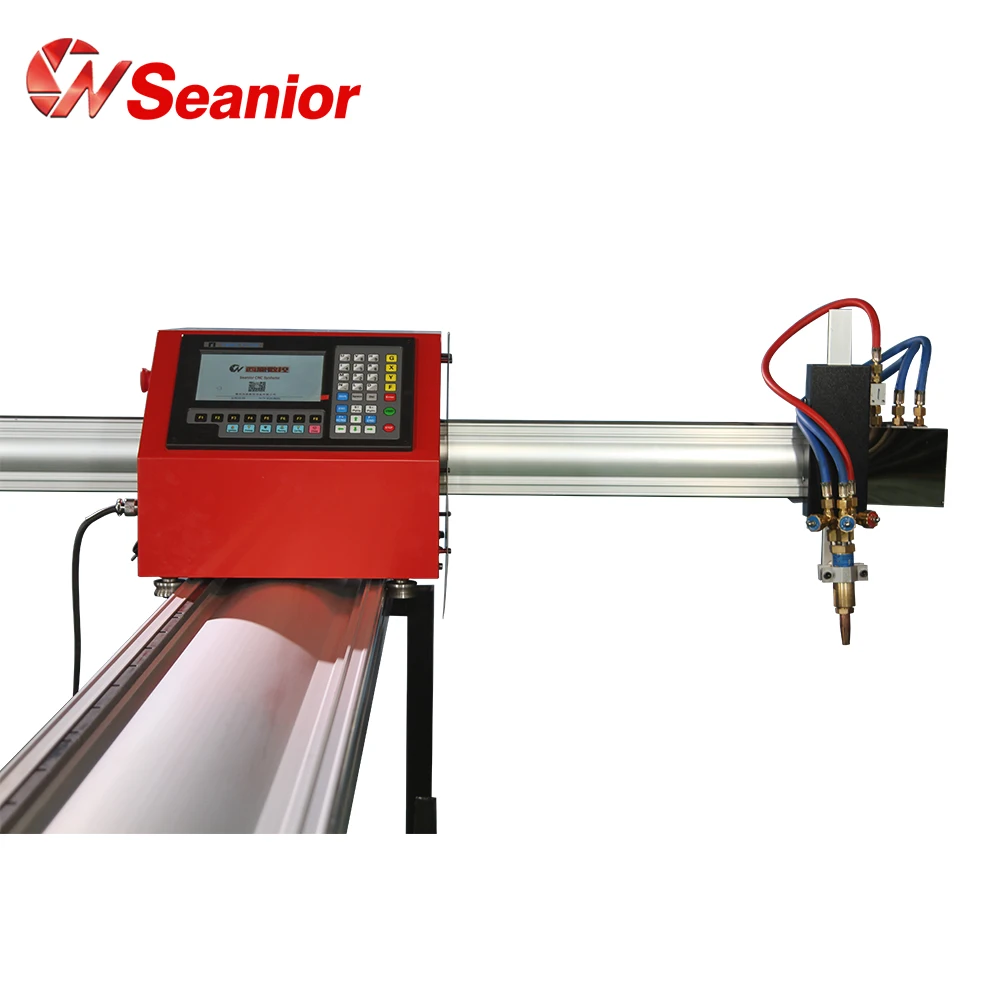

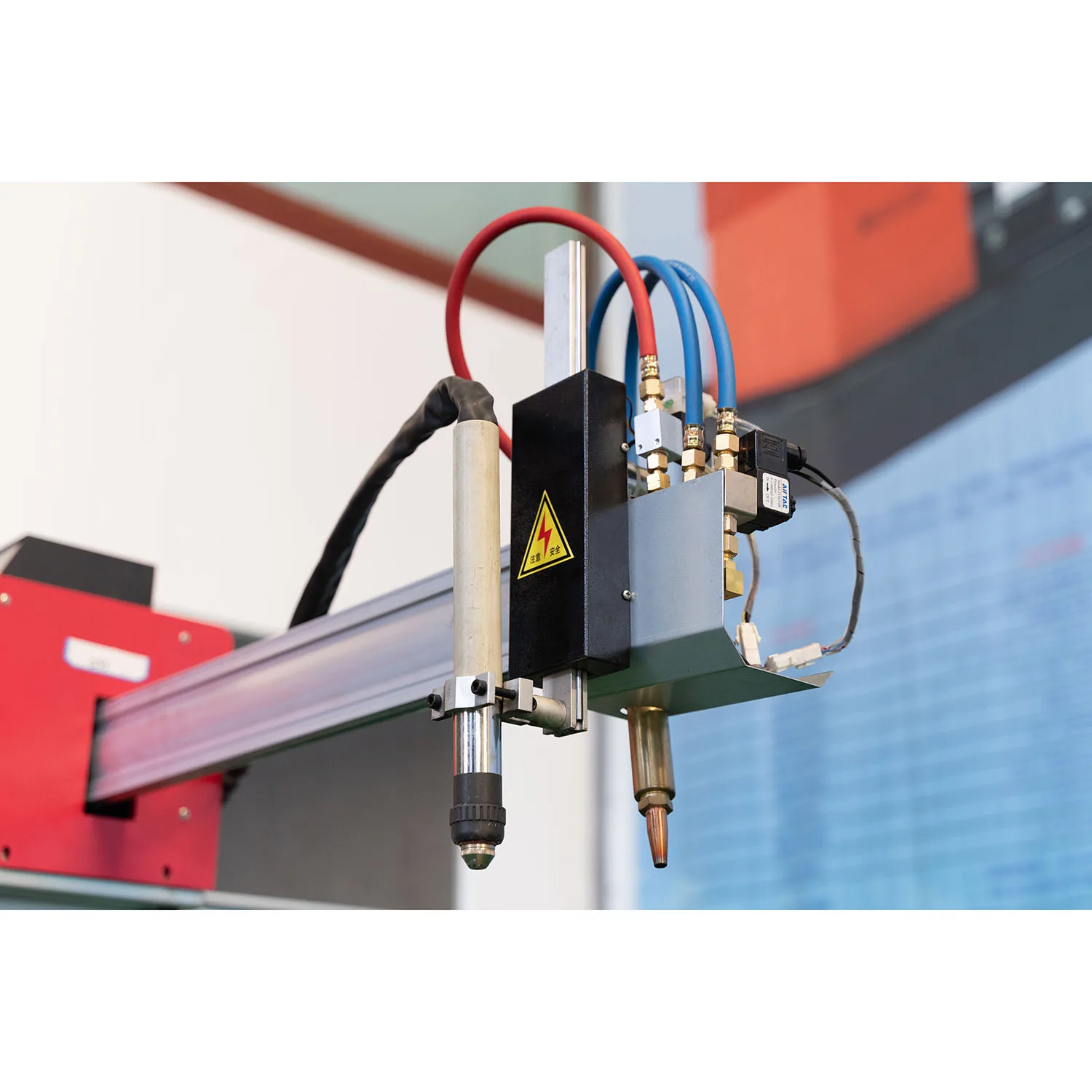

 CNC Portable Cutting Machine Plasma Flame Cutter


(Plasma Cutting Machine      Model: Handyman1530)
HIGH PRECISION,

LOW COST portable mini CNC cutting machine.

Simple and Easy-to-use
                                                                                                                                                                    View More>>>

Small size, Great capability, High precision, Low price

Do you want to cut something great and improve your efficiency with CNC cutting machine?
Are you looking for the high quality plasma/flame cutting machine to cut your metal sheet or pipe and tube at best price?
Are you finding German or American suppliers' offer SO HIGH?
How about a person helps you to solve all the problems and leave you to sit back and relax?


Product Feature


CNC Portable Cutting Machine Plasma Flame Cutter


(Plasma Cutting Machine       Model: Handyman1530)


So our machine can be a good choice, WHY?

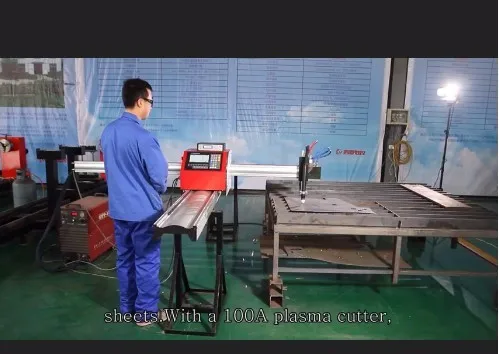

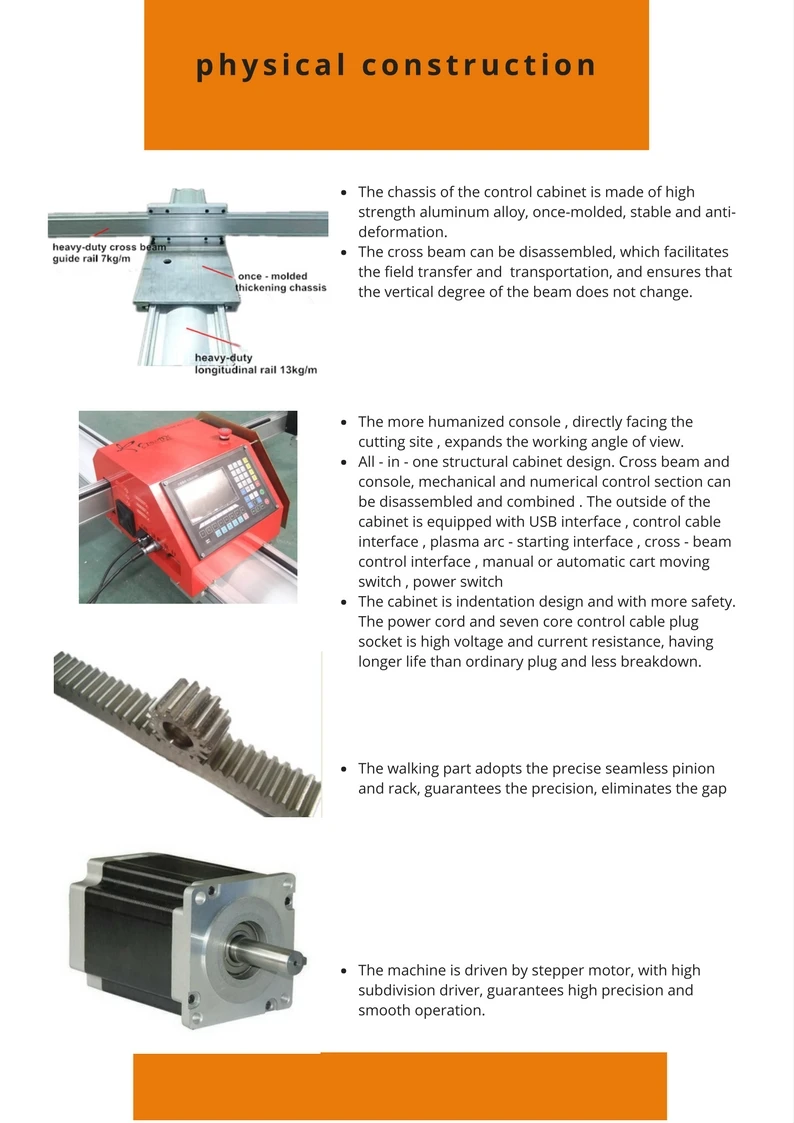

Portable cnc plasma cutting machine:


Handyman is a single drive portable CNC cutting machine, which can cut any graphics you need with wide track structure design.

Plasma cutting is a kind of processing method that makes use of the heat of high temperature plasma arc to melt (and vaporize) the metal at the cut of workpiece and eliminate the molten metal by the momentum of high speed plasma to form the notch. Flame cutting is used to cut carbon steel by the high temperature generated during the combustion of iron oxide , and the flame cutting torch is designed to provide sufficient oxygen to the combustion iron oxide to ensure a good cutting effect .  View More>>>

Product Parameters

\t
Model
\t
Seanior-Handyman
\t
Power source
\t
machine:AC220V/50hz / palasma cutter: AC380V/50hz
\t
Effective cutting width
\t
1500mm
\t
Effective cutting length
\t
3000mm /6000mm ( accept tailor-made length)
\t
Cutting process
\t
plasma/ flame
\t
Cutting thickness(flame)
\t
6.0-150mm (oxygen+acetylene or propane)
\t
Cutting thickness(plasma)
\t

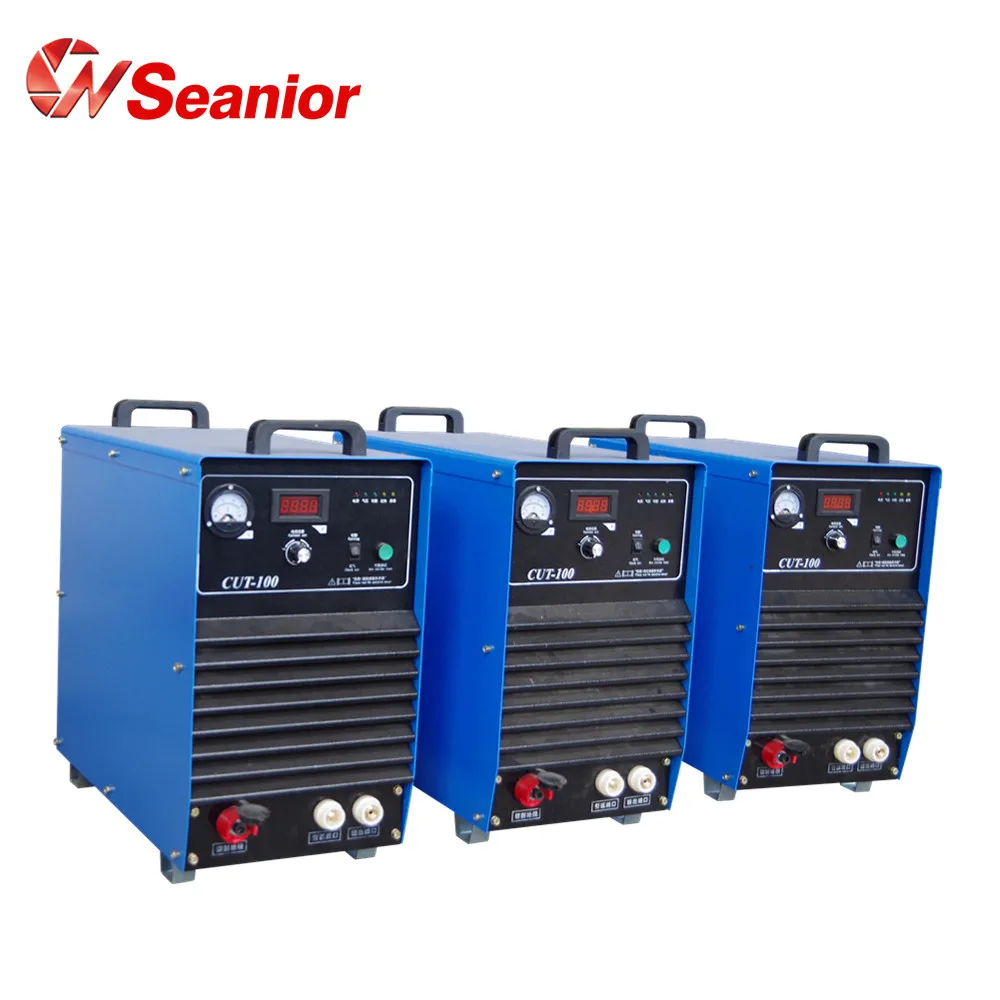

0.5-40mm Depending on the customer's plasma power supply
\t
Cutting speed
\t
20-3500mm/min (max.4000mm/min)
\t
Cutting accuracy
\t
±0.5m
\t
Torch lifting distance
\t
≤80mm
\t
Gas pressure
\t
Max 0.1Mpa
\t
Oxygen pressure
\t
Max 0.7Mpa
\t
Applicable gas type
\t
Oxygen and propane or acetylene
\t
Working interface
\t
Chinese and English (other languages can becustomized)
\t
Duty cycle
\t
24hours
\t
CAD drawing conversion
\t
nesting cut code
\t
Processing Materials
\t
carbon steel, stainless steel, aluminum sheets, galvanized sheets, Titanium plates


Product advantage

The plasma cutting speed is high, especially during common carbon steel sheet cutting, the plasma cutting speed is 5-6 times that of flame cutting.
Low price,you still need to expect best service,Cut mild steel with flame process.Cut high carbon steel, stainless steel, and other non-ferrous metal with Plasma process
Small size, great capability.High precision, low price.
You buy not because it's cheap, you buy because it fits.    View More>>>

Applicable Industry

Plasma cutting machine are wide used in automobiles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, and other industries.

Applied Materials

Suitable for low carbon steel, copper plate, iron plate, aluminum plate, galvanized plate, titanium plate and other metal plates.

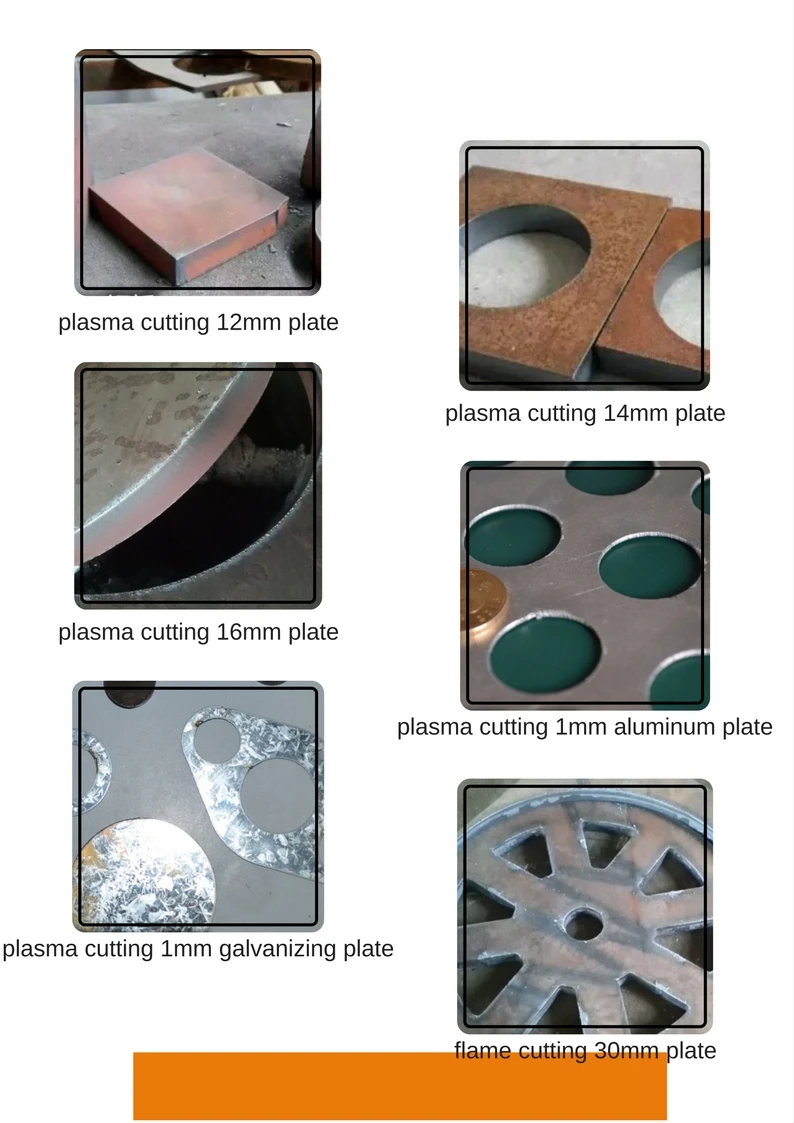

Cutting Samples

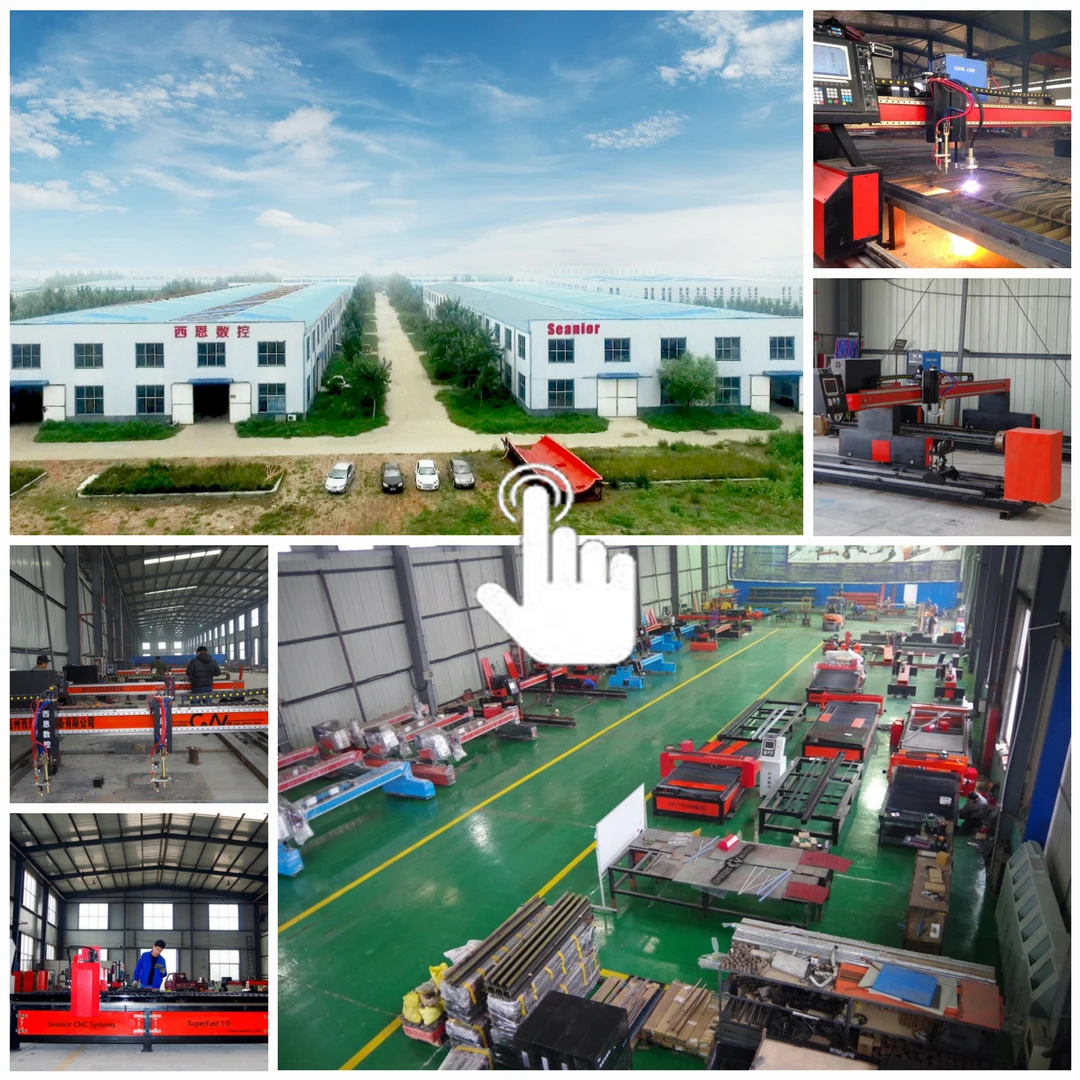

Seanior CNC Systems


Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.

Why you Choose Seanior CNC Systems?

Our technical team is your excellent cutting performance guarantee and our perfect service plan solve all your problems.

1. 12 months warranty for the whole machine.
2. Technical support by phone, email 24/7
3. English version manual and operation tutorial video
4. Engineer available to service machinery overseas.

Trade Show

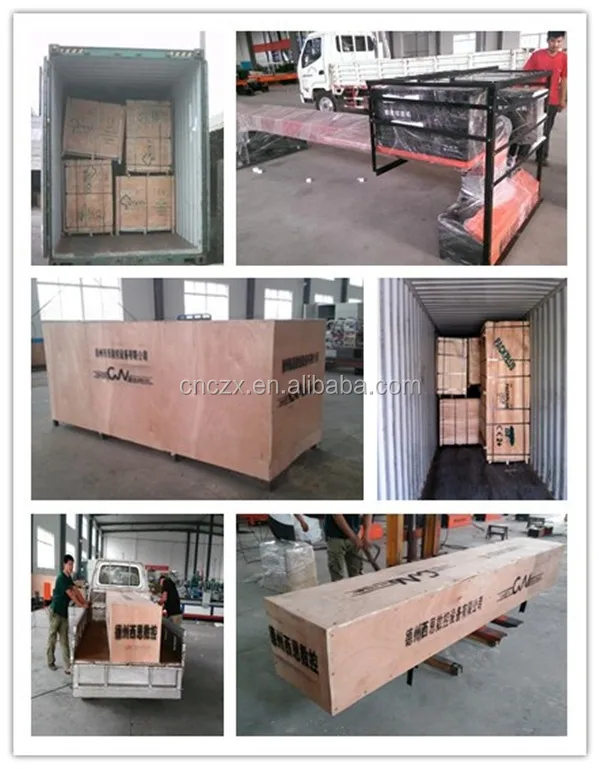

Packing & Delivery


Customer Photo
