ZP 11B роторный пресс для соли

Product Overview

Description

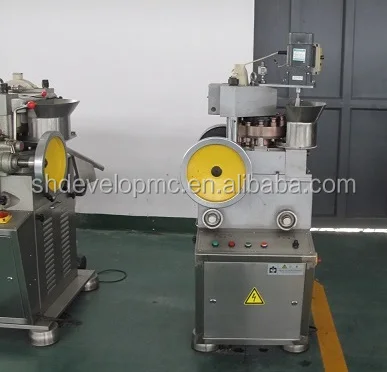

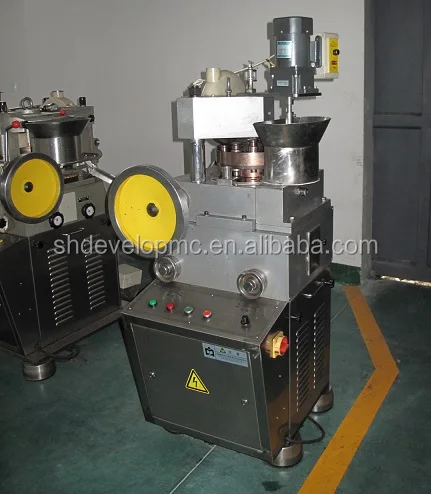

ZP-11B Rotary Salt Tablet Press



Descriptions:

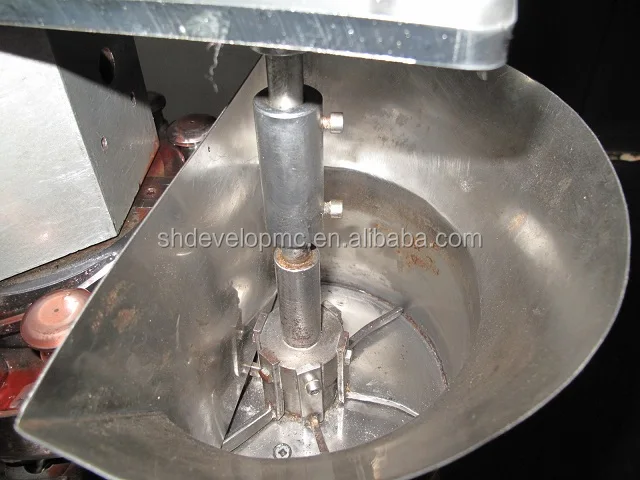

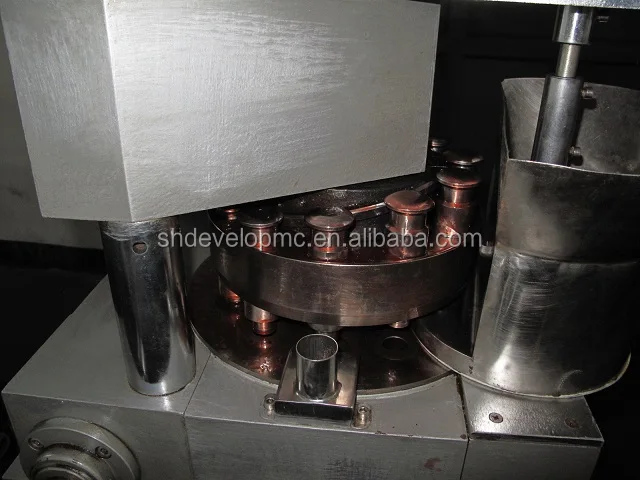

This machine is suitable for pressing round tablets form various kinds of granular materials, but also different geometrical shape tablet ,specially for small-scale batch production .During operation ,the speed of turret rotation .the depth of filling material and the thickness of the tablets can be adjusted .The pre-pressure unit and over-load protection unit is included in the system ,The mechanical buffer unit will prevent punches and apparatus from overload damage ,A power suction unit is attached to take the residual power during operation ,so that the blockage by the residual power can be eliminated and collected power material can be reused.



Technical Parameters:



Punching dies	11 sets(substandard)
max working pressure	80 KN
Max. Dia. of tablet	25mm (can large to 40mm with extra charge)
max. thickness of tablet if powder press ratio is 2.5	6mm (can be enlarge to 12mm with extra charge )
Max filling depth of tablet	15mm, can be customed to 25 mm with extra charge
Max .working dia	430-530mm
speed of rotary table	6-16 r/min
production capacity	10560 pc/h
Motor Power	2.2KW
Overall size	760×650×1400 mm
Net weight	750 kg
Voltage	380V/220v, 50HZ/60hz, 3phase
