Экономичные электромеханические барьерные ворота Max 6m
- Category: Traffic Barrier >>>
- Supplier: Xiamen Dashou Technology Ltd.
Share on (60739035926):
Product Overview
Description
Product Description
Cost Effective Max. 6m Boom Electromechanical Barrier Gate
This Electromechanical Barrier Gate provides a economic, secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, it is the right super economic choice for your parking of both industrial and residential. It is durable, accurate, flexible and safe, and of course, you can afford it thanks to its super economic design.
Descriptions
1) Aluminum boom with rubber profile and red & while strip
2) Max. 6m straight boom(Telescopic arm is optional)
Max. 6m crank boom
Max. 4.5m fence boom (see details in below table)
3) Inclusive of arm ×1, boom supporter×1 (not for fence boom), push button ×1, remoter ×2
4) Exclusive of anti-collision & LED arrow display on housing: need to buy additionally
5) Housing color optional: yellow+ silver (default), red+ silver, dark+ silver
6) Arm bidirectional: leftward / rightward can be changed by users very easily
Model No. | Open/Close Time | Max. Boom Length | Boom Type |
PAB-E-HSN | 1.5s | 3m | Straight Boom |
PAB-E-NSN | 4s | 4.5m | Straight Boom |
PAB-E-NSN | 6s | 6m | Straight Boom |

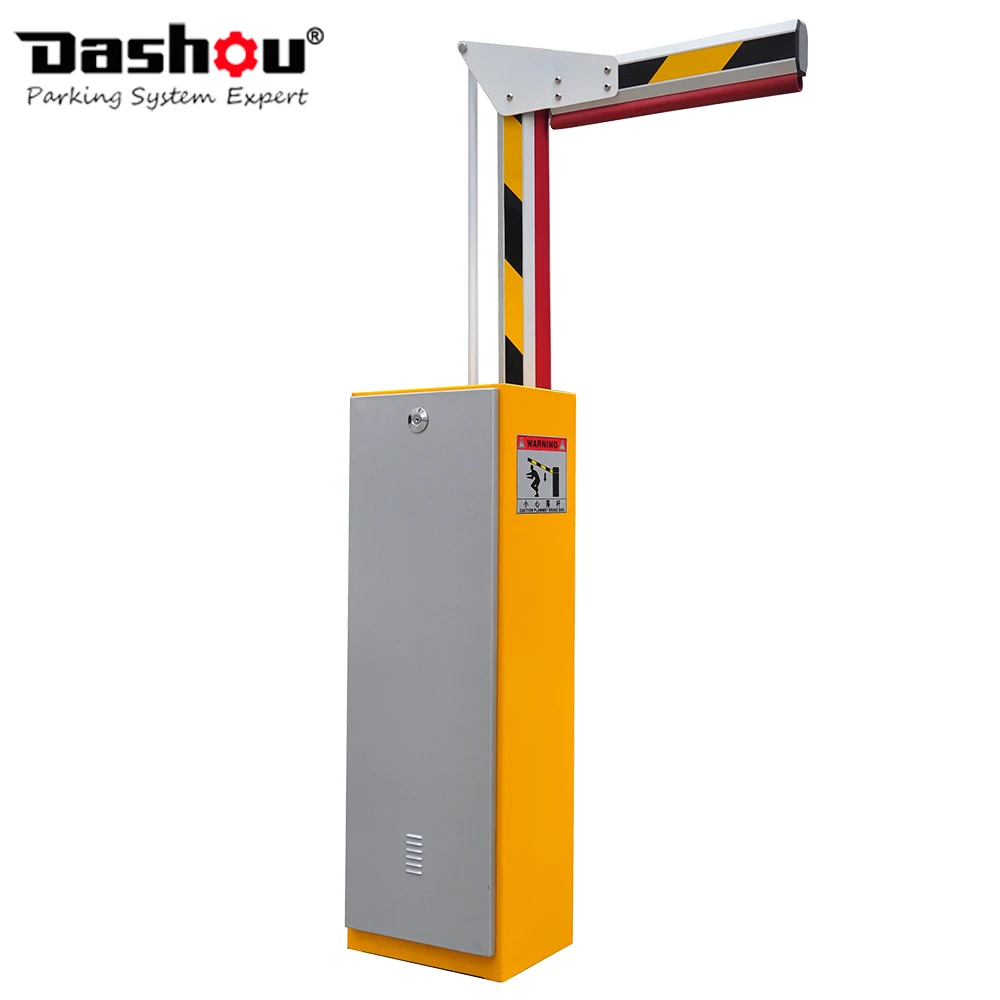

PAB-E-NCN | 4s | 4.5m | Crank Boom |
PAB-E-NCN | 6s | 6m | Crank Boom |

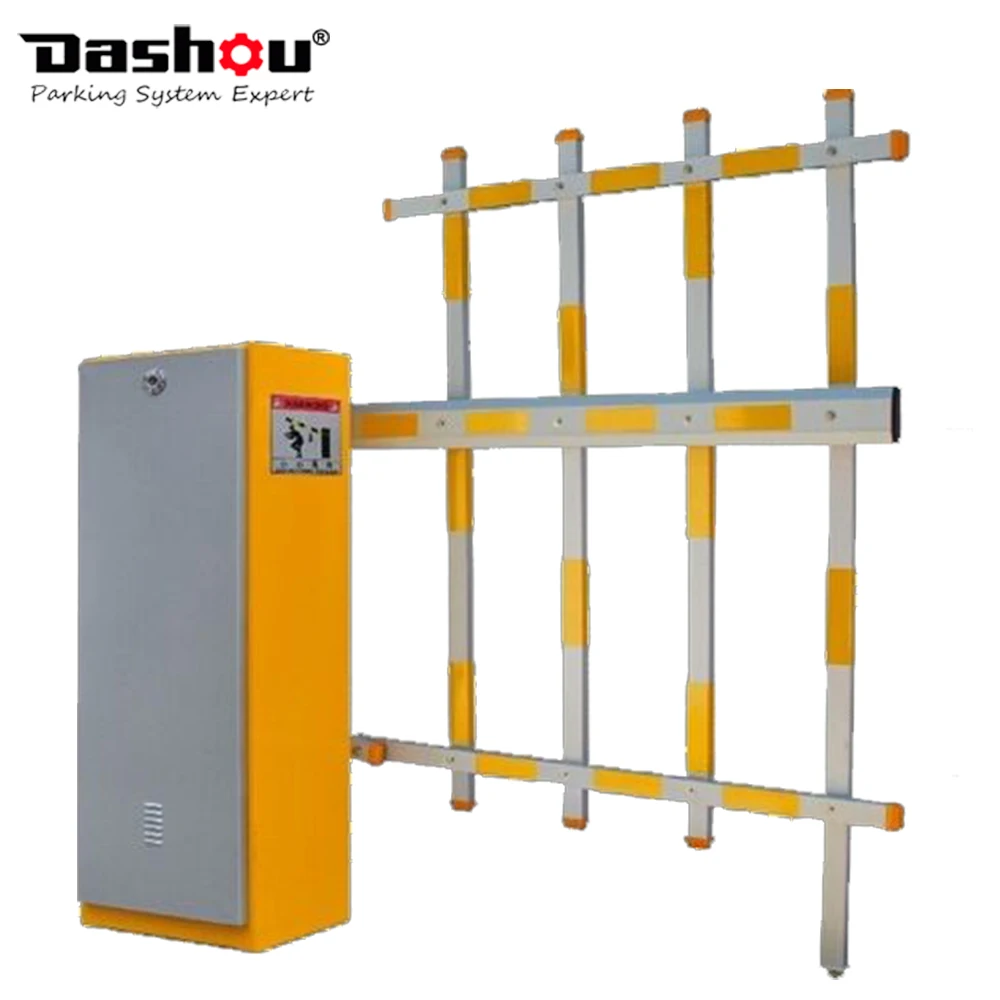

PAB-E-NFN | 6s | 4.5m | Single-Fence Boom |
PAB-E-NFN2 | 6s | 4m | Double-Fence Boom |
Specification | ||
Power Supply | AC 220±10% (AC110V optional),50/60HZ | |
Motor | 70W/AC220V Turbine Vortex Pole Motor | |
Motor rotation | 1800r/min | |
Balance Spring | 1~2 pcs. | |
Input interface | Photo cell, loop detector, parking system | |
Output interface | Motor, traffic lights | |
Wireless Remote distance | Less than 50m | |
RS485 chip | Optional, need to pay externally | |
Arm | 86×44mm Aluminum alloy octagonal | |
Housing Material | 1.8mm cold-roller sheet with power coating | |
Housing Dimension: | 340×232×1035mm | |
Package dimension: | 392×310×1090mm | |
G.W | 45 KG | |
Operating Temperature: | -25℃ -75℃; | |
Humidity | 10%-95% | |
Features
· Steady, low noise, long life motor
. IP54 case with 1.8 mm cold-rolled steel plate with power coating
. Manual operation by releasing a knob
. Safety of Vehicle--- Boom Auto-reversing on Obstacle (Optional)
. Safety of Vehicle--- Anti-hit by Loop Detector (Optional)
. Safety of Vehicle--- Anti-hit by IR photocell (Optional)
. Boom swing-off protects boom and vehicle (optional)
· Plastic covers on Control Board for safety
Contact us for Catalogue and pricelist of PAB-E Economic barrier covers all models with different boom shape(straight/crank/fence), boom length( Max.6m) and open/close time (1.5/4/6 sec.). PAB-B Beyond barrier also be your choice for high traffic flow parking lots.
Recommended Hot Sale Models
Company Profile
Xiamen Dashou Technology Ltd.
A leading manufacturer and solution provider for Vehicle Access Control System including Parking Management System, Parking Guidance System, Barrier Gate and Parking Lock with 16 years history.
The 2,000 sqm factory and office is equipped well with modern facilities and 100 skilled employees. We have passed the ISO9001:2008 quality management system. With strong R&D, new products are launched every quarter, and customization is available in a short time.
Worldwide Projects
Certifications
Exhibition & Clients
Terms & Conditions
1. Warranty: 1 year
2. Certificates: CE
3. MOQ: 1 set
4. OEM: Available
5. Lead time : 3~7 working days against payment
