Heavy Gantry CNC Plasma/Flame Cutting Machine SNR-LM





Features

This cutter adopts box-weld structure, its cross beam have many specifications, both of them adopt dual drive and lineal guide. Torch quantity is optional according to users’ demands, also can be configured as abnormity cutting and strip cutting.



Application

It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.



Tech Data

Cross Beam Length(X axis)	4m (can be lengthened according to user's demand)
Longitudinal Rail Length(Y axis)	8m (Rail can be lengthened according to user's demand)
Effective Cutting Width (X axis)	3.2m
Effective Cutting Length (Y axis)	6m
Cutting Mode	Flame only; Plasma only; Flame and Plasma
Drive Mode	Bilateral-side
Drive Method	Rack and pinion drive for X and Y axes
Flame Cutting Thickness	5-150mm
Plasma Cutting Thickness	3-40mm (according to the specification of plasma power source)
Cutting Speed	0-3500mm / min
Moving Precision	0.01mm per step
Power Source  (option)	220V 50Hz   500-1000W
Nesting Software	FASTCAM
Cutting Gas	Acetylene, Propane
Plasma Gas	Pressed air, Oxygen, N2
Automatic Torch Height Controller(option)	HYD	Capacitive height controller for flame cutting
	HYD	Arc voltage height controller for plasma cutting

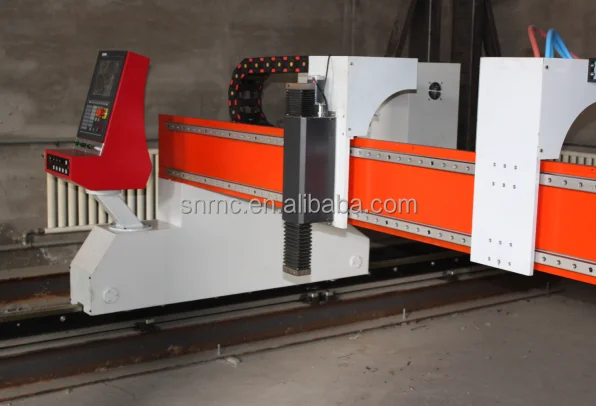

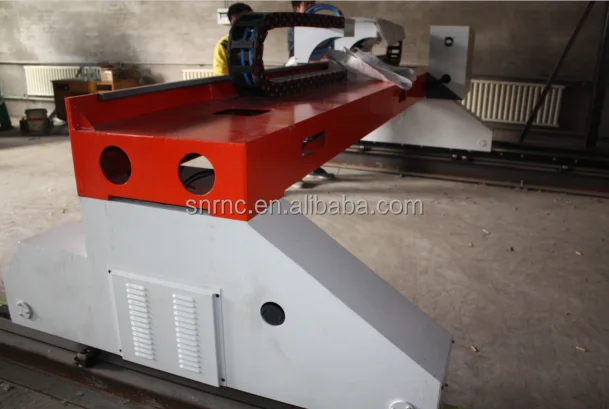

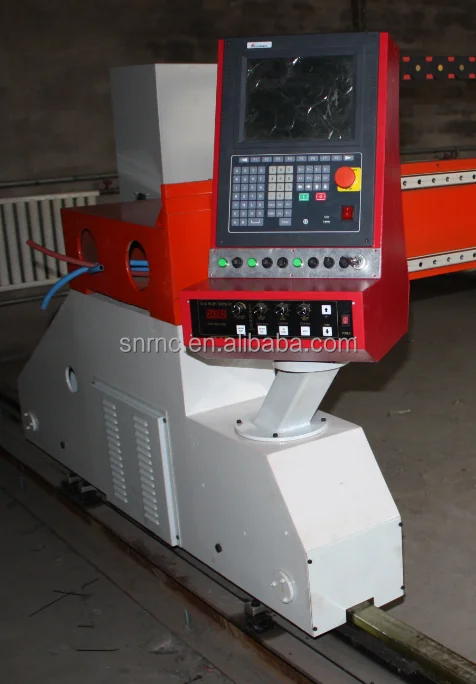

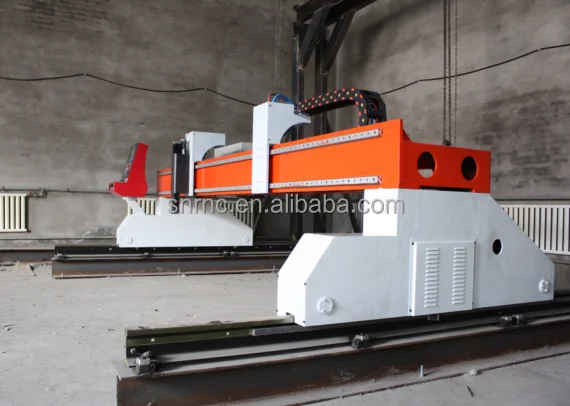

Machine Photos



Why choose SNR heavy gantry machine?



1.The whole gantry frame is made by annealing treatment, not deformed.
2.New type THC, Build-in TBI high precision imported Ball Screw.
3.The structure of motor install adjust seat is the same with that of Messer.
4.Use 38 KGS steel rail.
5.Add guide rail brush, extended service life.
6.Before install the rails and racks, we firstly milled the slots by milling machine, not install directly, thus the accuracy would be highly improved.





After-sale service and pledge

1. According to user equipment use environment ,effective cutting range, cutting parameters such as material and thickness ,to provide users with the most economical and practical solution for CNC cutting technology

2. Warranty: for one year

3. Provide lifetime free technical support by email or phone.



Cutting samples





If you have any interest in it, for offering you the suitable model and best price, please kindly confirm with us the below questions:

1.What material do you cut?

2.The material thickness?

3.The plate size (effective cutting range)?

4.How many torch holder you need? (one plasma ? one flame? OR one plasma +one flame?)



Once get your reply, we will provide you with the best solutions!
