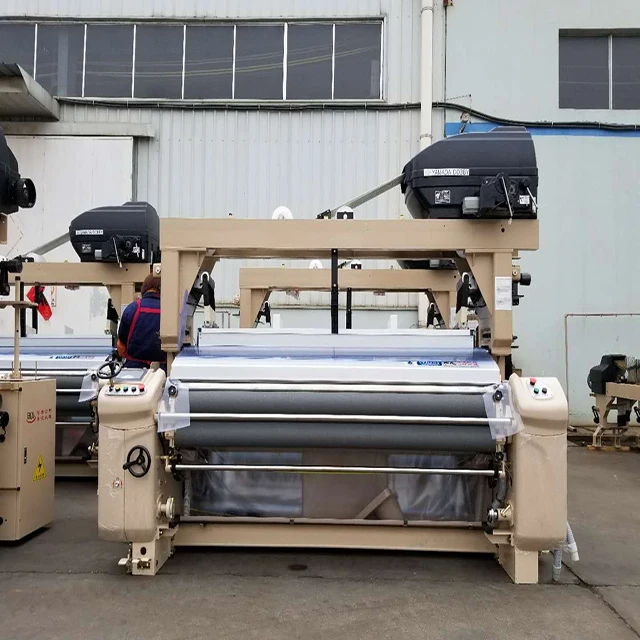

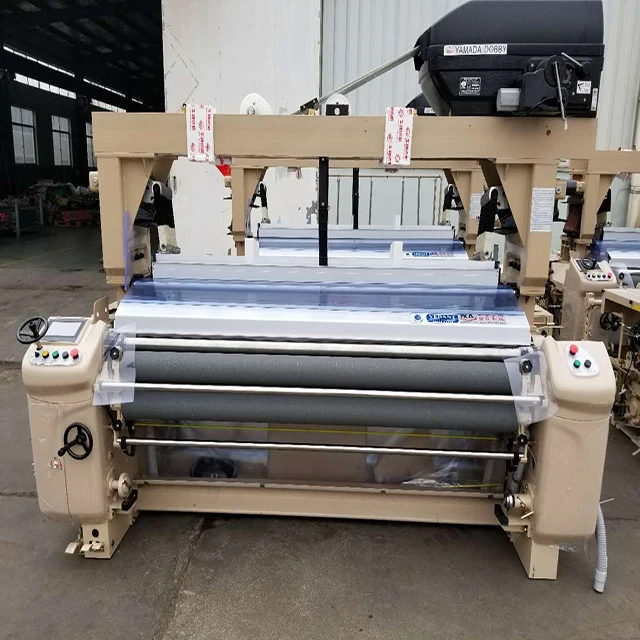

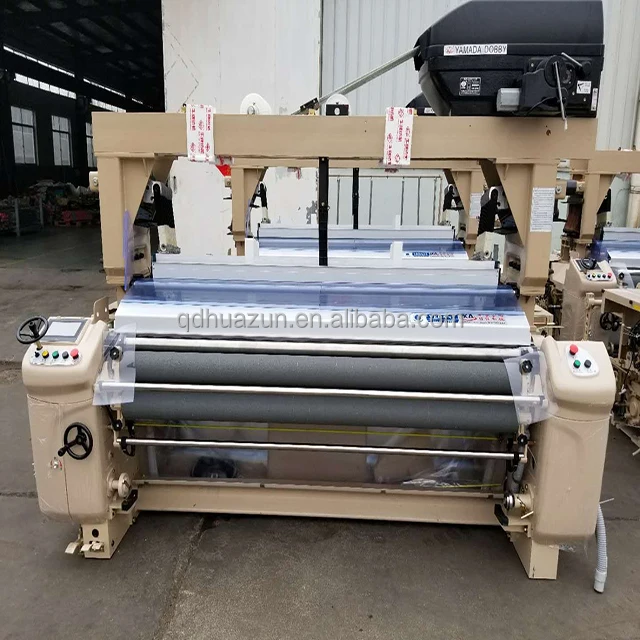

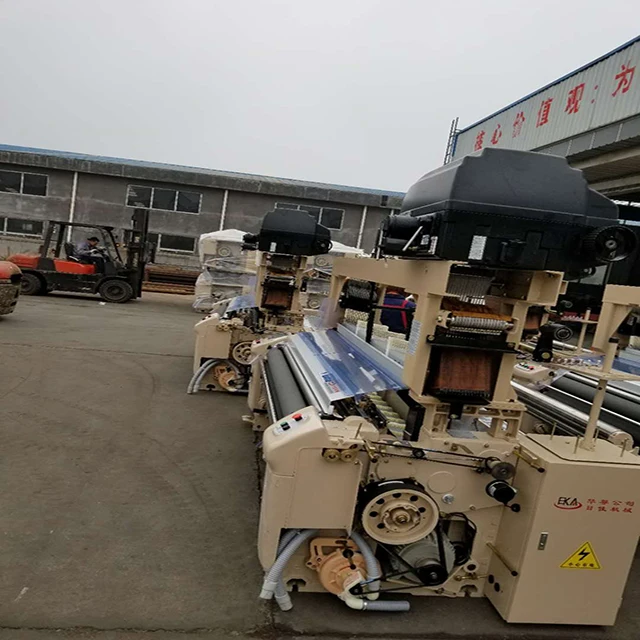

190cm water jet loom with mechanical dobby GD50



For yarn type :
1 nylon filament
2 nylon with wire-free pulp
3 multi- resin raw silk
4 multiple lipid retractable wire
5multiple lipid rayon
6 multi-resin hard twist yarn
7multiple lipid extension wire
8multiple lipid- free pulp with silk
9 elastic fiber yarn
10 imitation silk cotton



Plunger ceramic,Shutai brand
Pump spring AWA, Japan
Nozzle MADE IN KOREA
One way valve AWA, Japan
Flat beltmade in china
Oil nozzle&oil sealmade in Taiwan;TTO
Zero-maxShimpo, made in Japan









Reed Space(CM)135,150,170,190,210,230,260,280,300,320,340,350,360
Max.speed

1100 RPM(According to actual weft yarn specifications and

fabric weave)

Useful reed space(CM)Norminal R/S minus 2cm to 50cm
FrameBox frame type Driving section is in oil bath
DrivingBrakeDirect stop mechanism by an electromagnetic brake
ControllerPush and touch button(Arrange,stop,forward,brake,reverse)
MotorRush start motor
Motor power1.5kw,1.8kw,2.2kw,2.7kw,3.2kw,3.7kw,4.5kw,5.4kw
BeatingCrank beating
Let offsystem

Automatic mechanical and continuous let-off;Or

electronic let-off,One or vertical two roll

warp beamΦ800mm flange,Φ178mm barrel
Take upsystemMechanical or electronic continuous take-up
Pick densityNormal:5-60picks/cm;Special:4-100picks/cm
Cloth wind-up diameterΦ420mm,Φ520mm,Φ600mm
SheddingPlain sheddingcrank shedding(heald frame 2 to 8);1/1 fabric
Cam sheddingCam shedding(heald frame 2 to 14);Plain,twill,satin babric
Dobby shedding

Positive/negative(heald frame 16 max.);Electronic and

mechanical reading system;Plain,twill,sation or complex design

Jaquard1408,2688,5120 lifting hooks;electronic jacquard device
Weft insertionMeasuring & storage

300#RDP type mechanical measuring turbo blower(single nozzle)

Or electronic weft feeder(1-6nozzles)

PumpM,L,H type, Single or Double
Plunger

Ceramic plunger;Φ32/Φ17,Φ32/Φ18,Φ32/Φ20,Φ36/Φ22,

Φ36/Φ24,Φ36/Φ26,Φ39/Φ26,Φ39/Φ28,Φ39/Φ30,Φ50/Φ35

Nozzle needleST20/10;ST30/10;ST45/20,SD75/40
Weft filling1/2/3/4/6 nozzle
Filling feederElectronic,optical,and self-control

Selvage/

Leno system

Twisting by star,planetary gears
Electrical partMadeinchina/import

Main control board,AC contactor,transformer,

NC interface,Selvagebrake system,Waste yarn brake system,

overheating and overload protection

Electronic meter

count and display,rotational speed,total yield,team yield,

total efficiency,team efficiency,cloth length auto control,

stopping analysis and display
