C to Z Quick-Change Purlin Machine for C100-300/Z140-300 Profile



1.Main features of quickly change C to Z purlin roll forming machine



    The advantages of C to Z purlin machine AUTOMATIC size-change type are as follows:

    1.Produce different purlin size without changing rollers or spacers.

    2.No need changing cutter for different size.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of purlin web side and flange side



2.Detailed Images of C to Z shaped steel forming machine



    Machine Parts

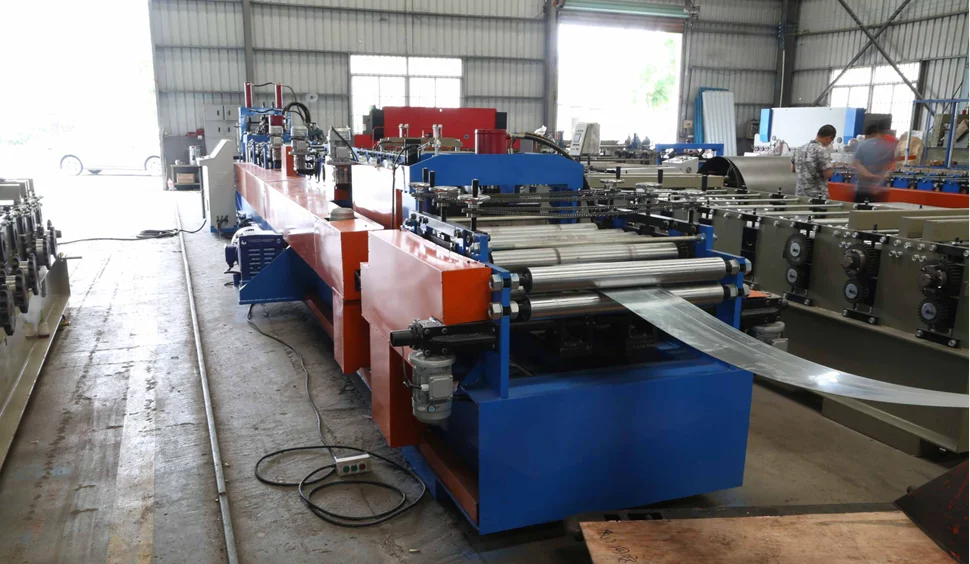

        1) CZ purlin machine leveling device

        Brand: BMS    Original: China







        2) CZ purlin machine hydraulic pre-cutter

        Brand: BMS    Original: China

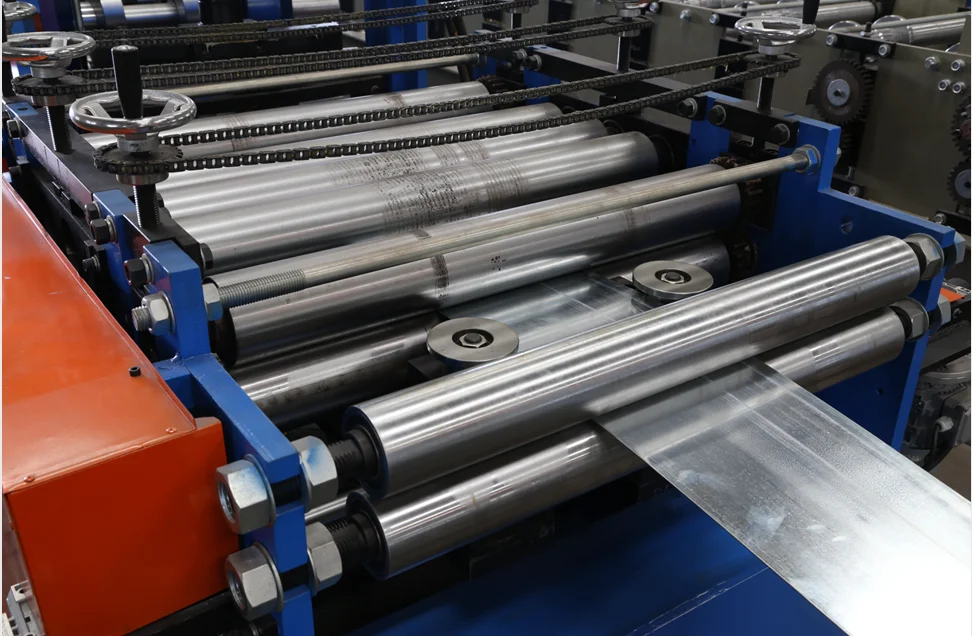

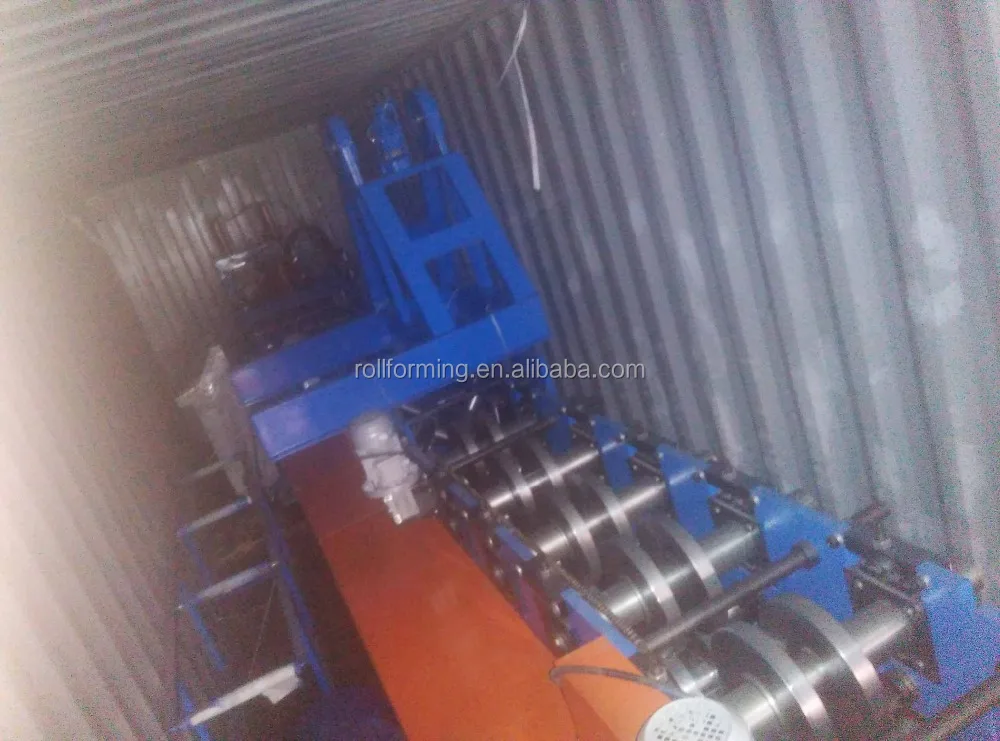

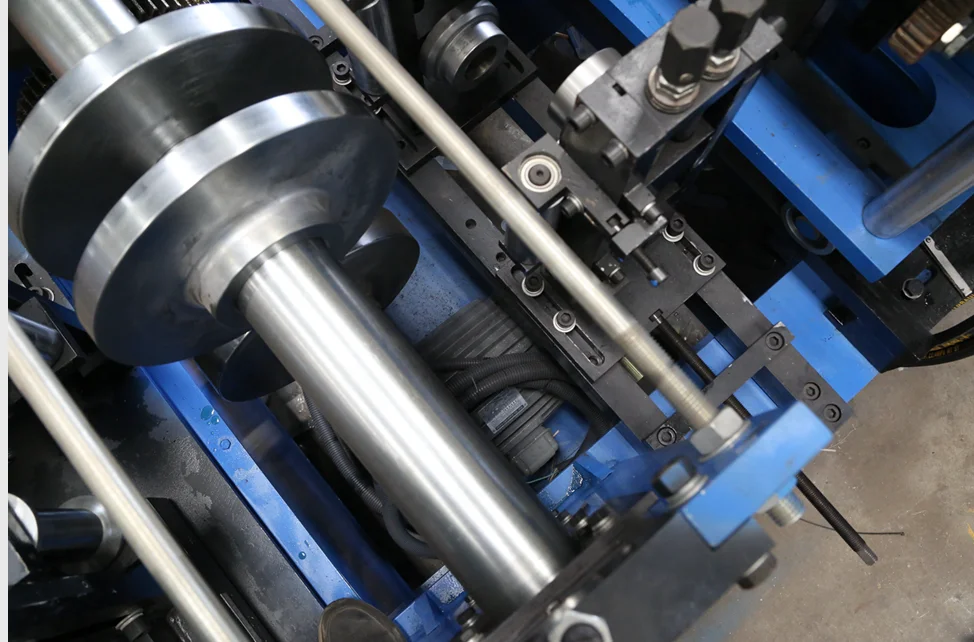

        3)   CZ purlin machine rollers

        Brand: BMS    Original: China

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding

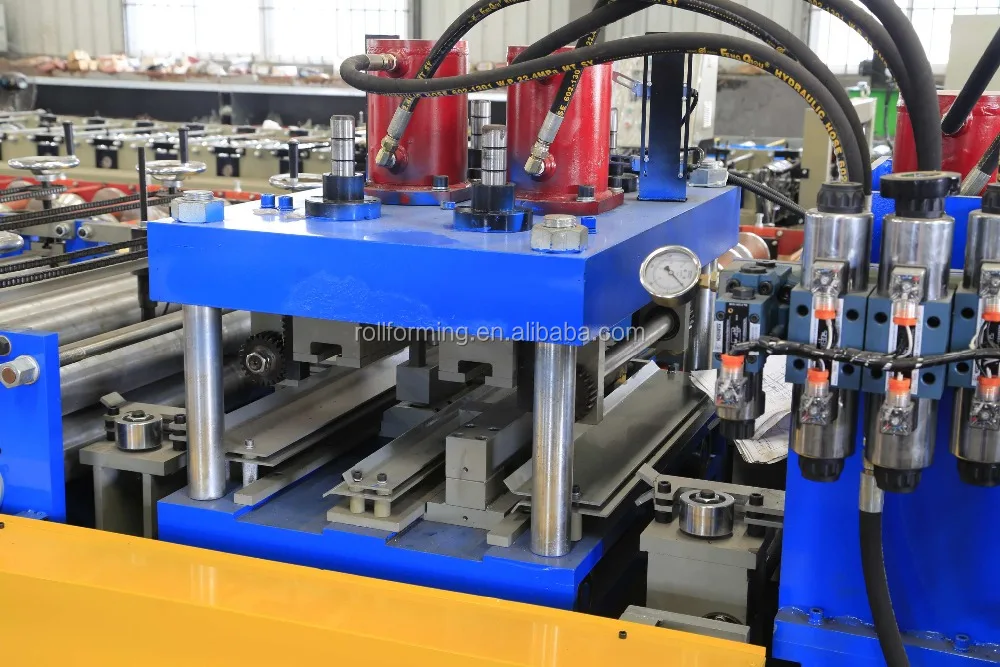

        4) CZ purlin machine punching system

        Brand: BMS    Original: China

        with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.

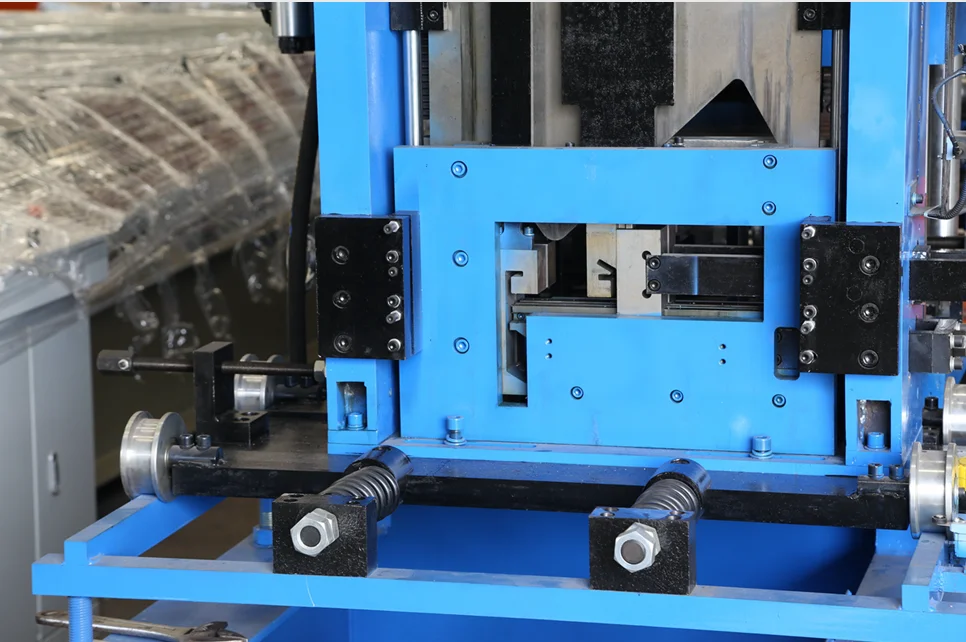

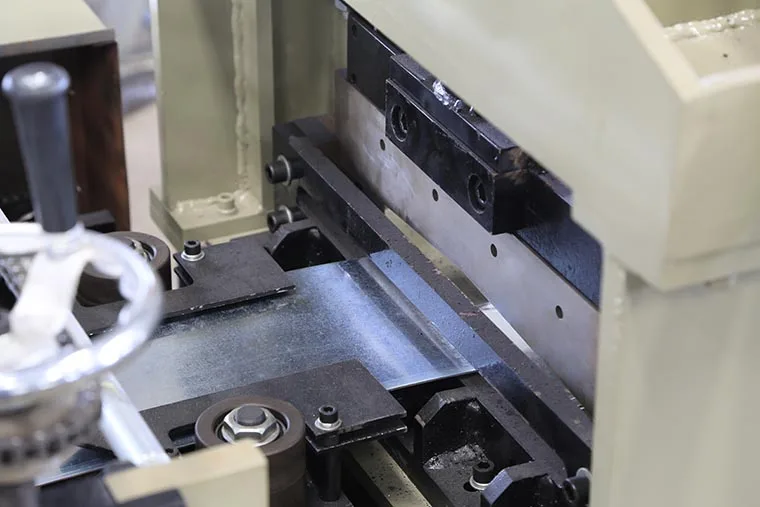

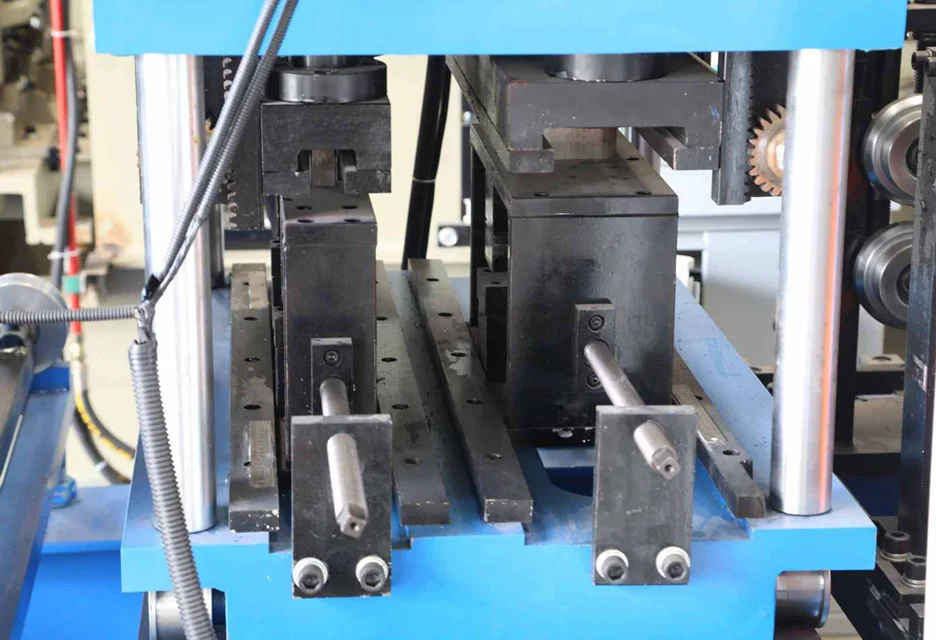

        5) CZ purlin machine post cutter

        Brand: BMS    Original: China

        No need to change cutter for different size,

        made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding
        Pre-punching & Pre-cutting, stop to punch, stop to cut
        hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa





        6) CZ purlin exit rack

        Brand: BMS    Original: China

        Un-powered,two units

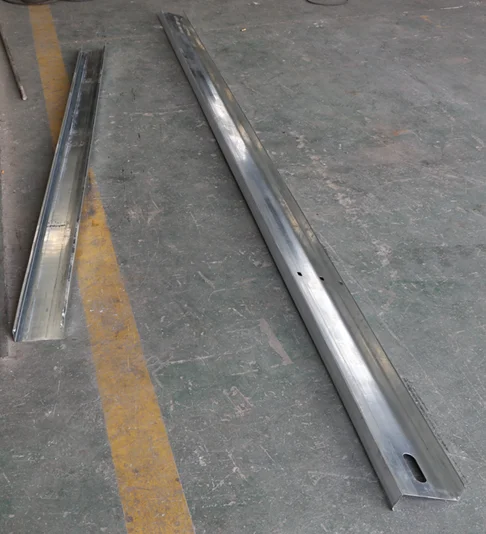

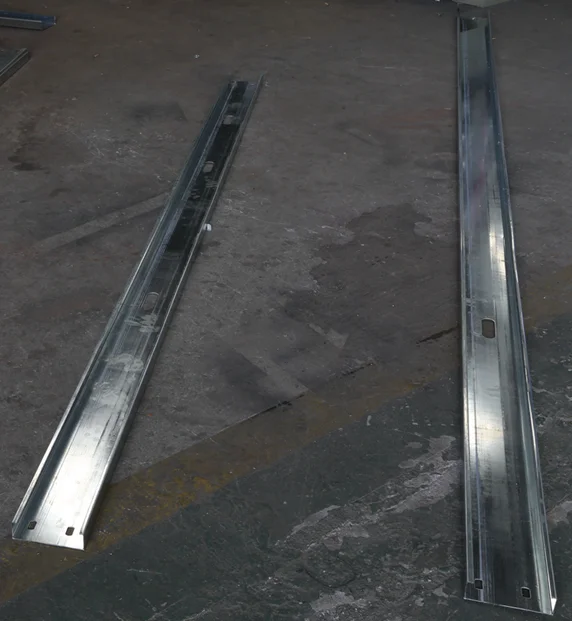

        7) C purlin machine product show

        Brand: BMS    Original: China

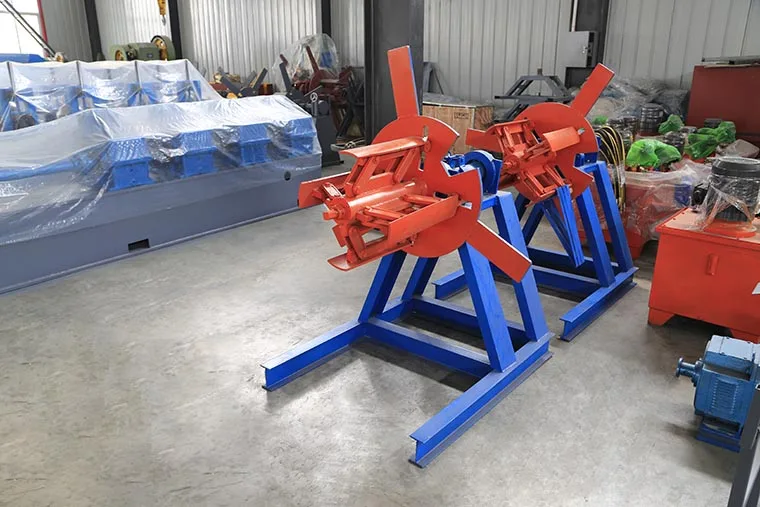

        8) CZ purlin machine decoiler

        Brand: BMS    Original: China

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton









        With 3 tons hydraulic decoiler for option







Other detailes of CZ purlin roll forming machine



Suitable for material with thickness 1.5-3.0mm

Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined

Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling

Main motor=18.5KW , Frequency speed control. Forming speed approx.18m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Just adjust required WEB,HEIGHT and LIP by hand wheel with the help of

position clock(with digit display for easy operation) on it,

and then input the required production data on the touch screen.

It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters

like traditional old style machine  (which takes over 45 minutes for each production size changing).



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of purlin roll forming machine C100-300/Z140-300



1. The warranty of purlin roll forming machine C100-300/Z140-300

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
