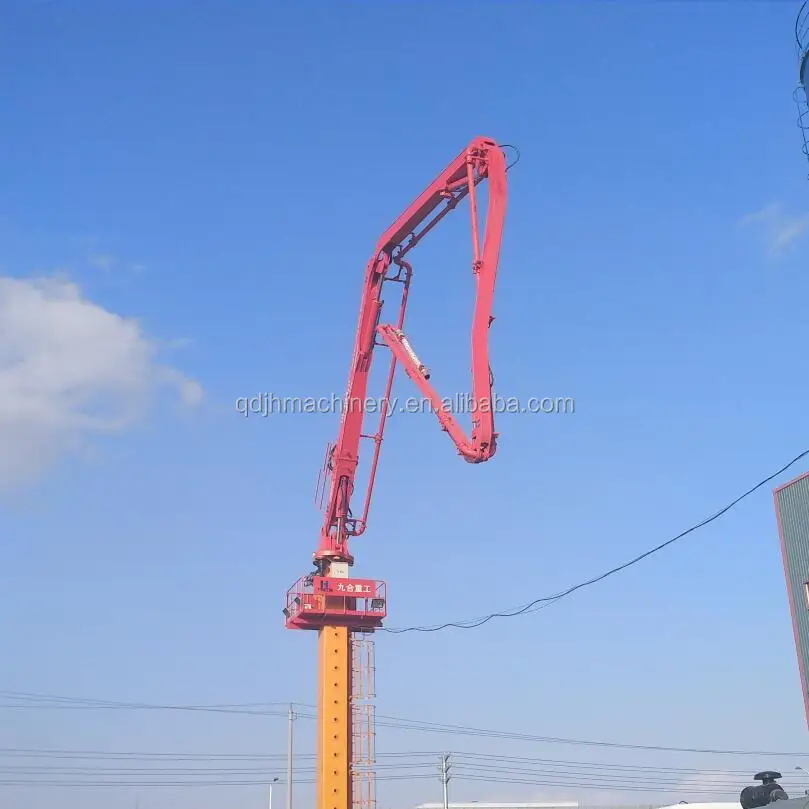

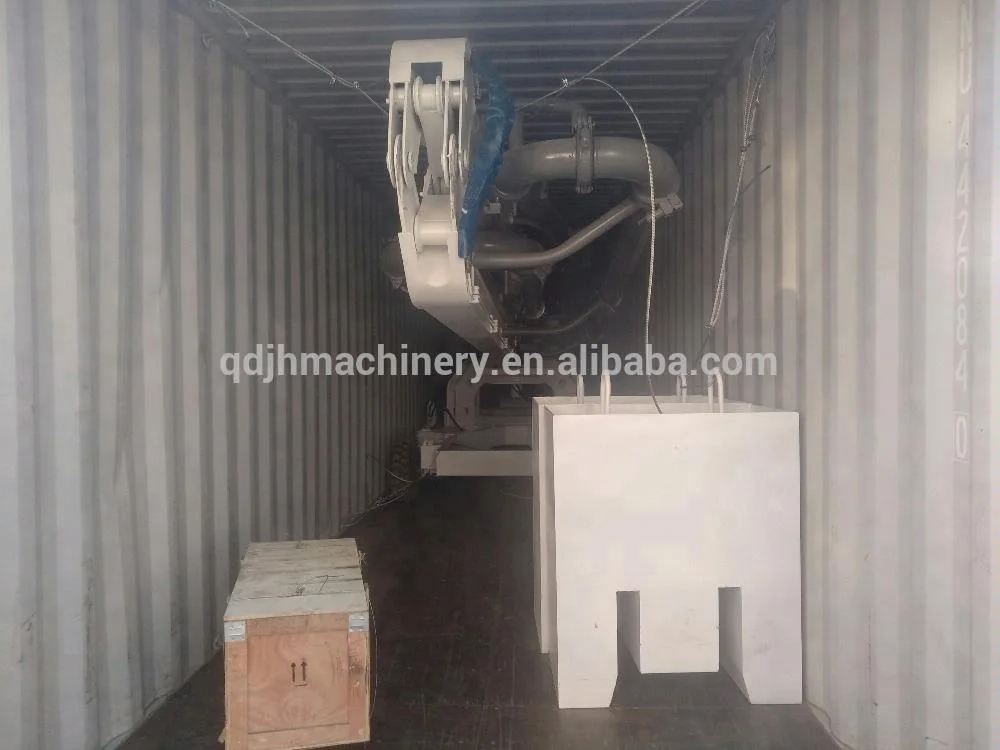

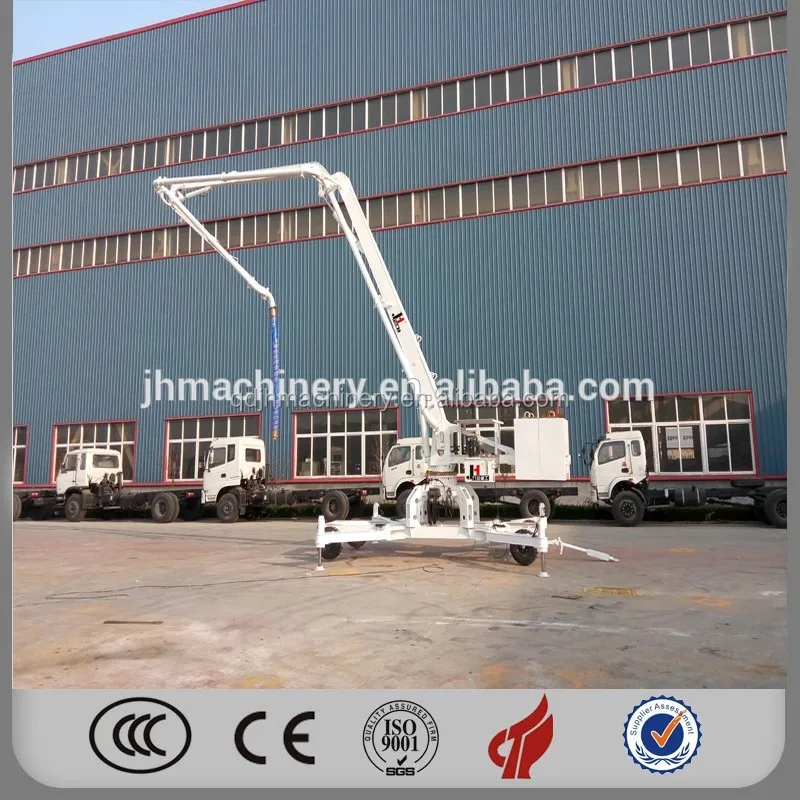

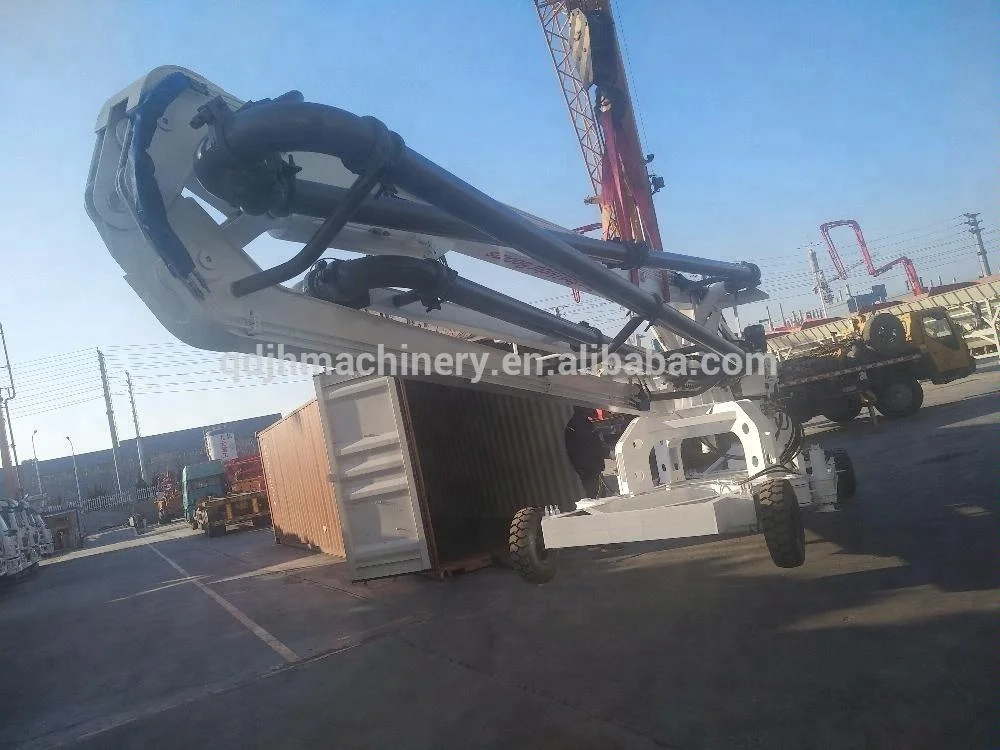

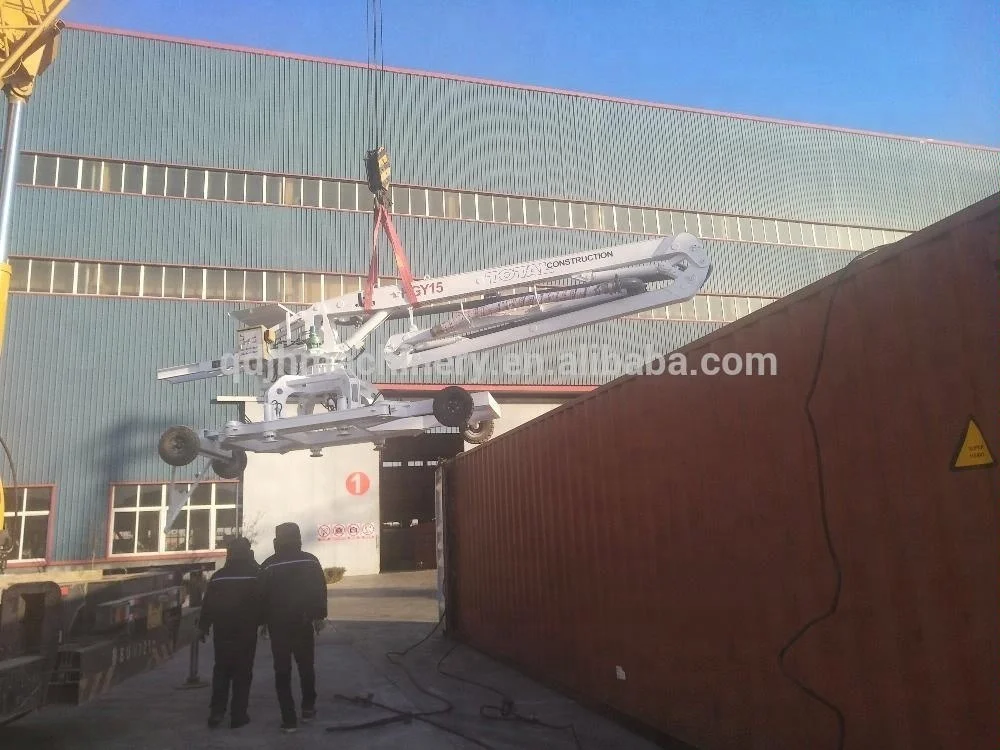

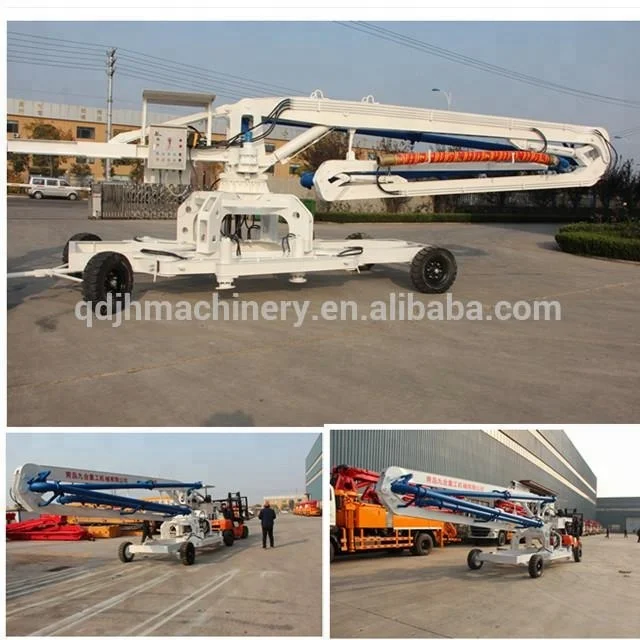

15m concrete pump placing boom from factory directly with best price CE certification

Item

HGY15

Max. placing radius(m)

15

Big arm length(m)

6

Big arm elevation(°)

0~70

Medium arm length(m)

5

Medium arm elevation(°)

0~180

Small arm length(m)

4

Small arm elevation(°)

0~180

Hose length(m)

3

Concrete delivery pipe (mm)

ø 125×6

Tail Rotary radius(m)

2.81

Total Power(Kw)

4

 System Pressure(MPa)

24

Rotary speed(r/min)

0.3—0.8

Rotary range(°)

0~360

Supporting legs span (m)

4.3×4.3

Overall height(m)

2.6

Wheel base

4.185

Outline Dimension

9.8*2.64*2.2

Bare machine weight(kg)

4300

Balance weight(kg)

2×1100

Control mode

Panel/ Wireless remote control
