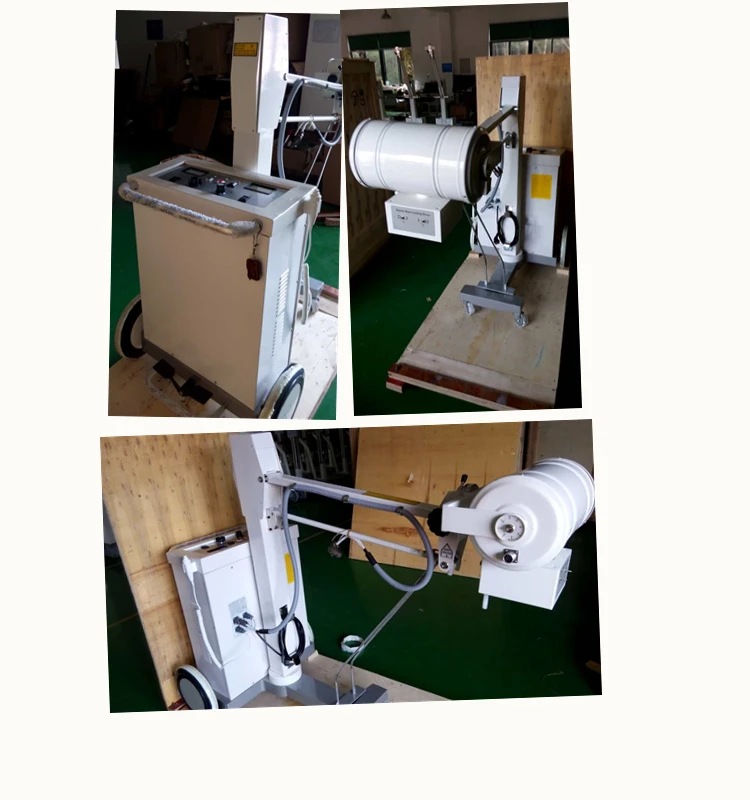

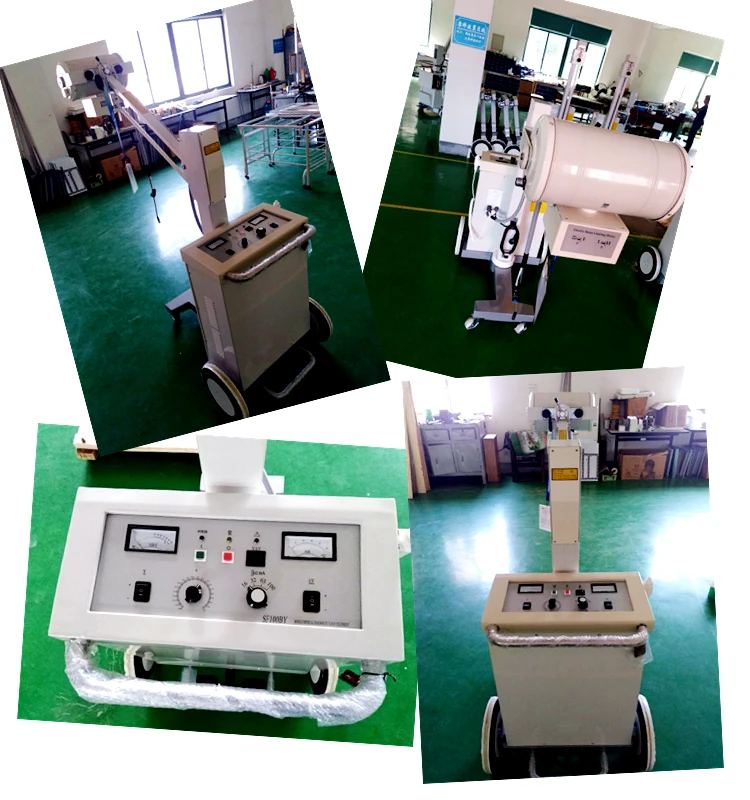

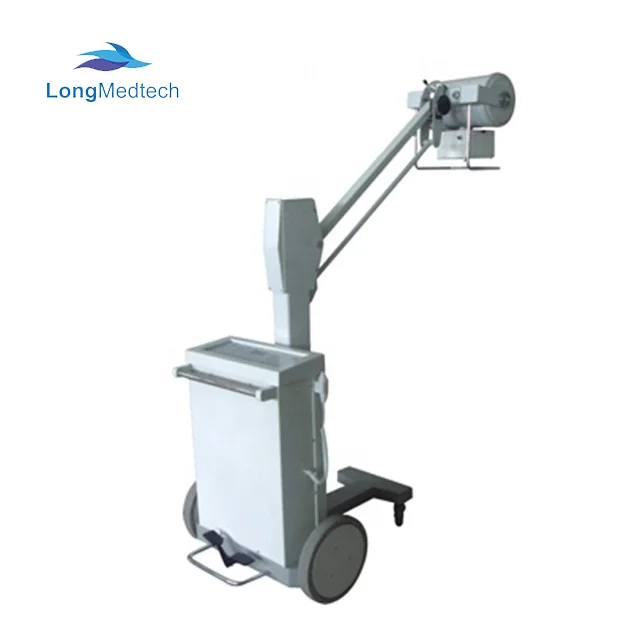

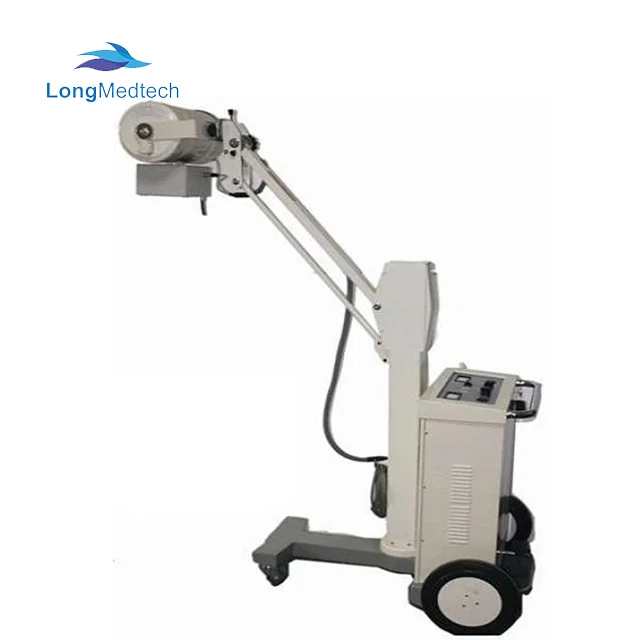

High Frequency portable diagnostic radiography Equipment  Mobile Normal 100mA X-ray Machine Prices

Main technical data:

1.Power supply

Voltage: 180-240 V

Frequency: 50HZ

Internal resistivity <1.0Ω

Current 35A instant

Rating ≥8k VA

2.Photography:

Voltage: 50-90 kV

Current 16mA 32mA 63mA 100mA

Time 0.08s ~6.3s

X-ray tube focus 4.3mm  4.3mm

3. Maximum remote control distance: 7m

4. Maximum height of focal spot from floor>1775 mm

Minimum height of focal spot from floor <480 mm

5. Columns turning angle: ±45°

6. Collimator: maximum film size at 650mm focal distance: 350 mm  350 mm

7. Net weight: 150kg   Gross Weight: 250kg

8. Shipping volume (LWH): 150cm 77cm 145cm

Mobile type Normal Frequency 100ma x-ray machine for hospital clinic ICU orthopedic veterinary surgical

Main features:
1. Single focus, full-wave rectifier, combined X-ray generator
2. SCM control (easy to maintain and repair)
3. High visual and operational console with LCD monitor
4. Prestore 8 kinds of photography parameters and select, modify, store the parameters under the condition of choice
5. Power voltage (V), photograph kilovolt (KV) infinitely variable control
6. Premier high voltage with high power SCR zero control circuit
7. Function of load chains, exposure time control, auto alarm, preheat filament, subassemblies temperature control, and so on
8. Cantilever structure makes the small volume and easily moving

Main technical indexes:
1. Power supply
Voltage: 180-240 V
Frequency: 50HZ
Internal resistivity <1.0Ω
Current 35A instant
Rating ≥7k VA
2.Photography:
Voltage: 50-100 kV
current 16ma. 32ma 63ma 100ma
time 0.08s ~6.3s
X-ray tube focus 4.3mm X4.3mm
3.Maximum remote control distance: 7m
4.Maximum height of focal spot from floor>1880 mm
Minimum height of focal spot from floor <520 mm
5.Columns turning angle:±45
6.Collimator: maximum film size at 650mm focal distance: 350 mm X 350 mm
7.The net weight of the unit: 150kg gross Weight: 240kg
8.Shipping volume: 150cm X 100cm X 150cm
