Гомогенизатор для вакуума, гомогенизатор для косметики

Product Overview

Description

DSZL-CQ 5-5000L  production line  for lotion cream ointment  skin care products



1.Application:

Daily chemical and cosmetics industry:

(1) baby cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream, face cleanser, moisture cream, detergent, shampoo etc

Pharmacy industry:

 (2)Emulsion, emulsifier, ointment, syrup etc

Food industry:

(3)sauce, cheese, oral syrup, nutrient solution, infant food, chocolate, saccharine etc

Chemical industry:

(4)latex, saponification, paint, resin, adhesives, lubricating agent etc





2.ZL The machine is made up of pretreatment boiler (oil boiler, water boiler), vacuum emulsification blending boiler, vacuum pump , pouringout system, electric control system or steam heating system and workable .



3. The function of the machine including mixing, homogenizing, heating, emulsifier etc.

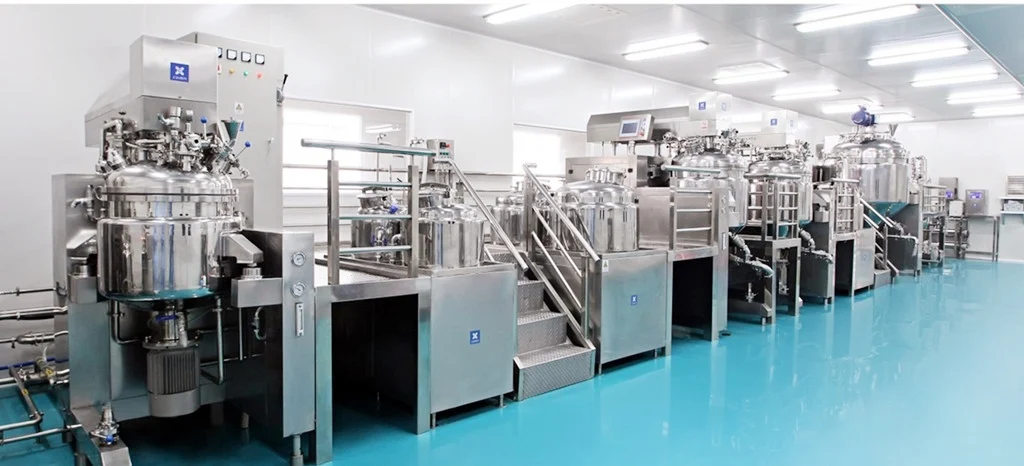

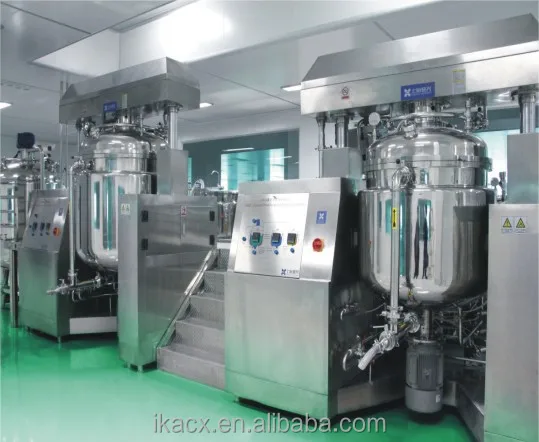

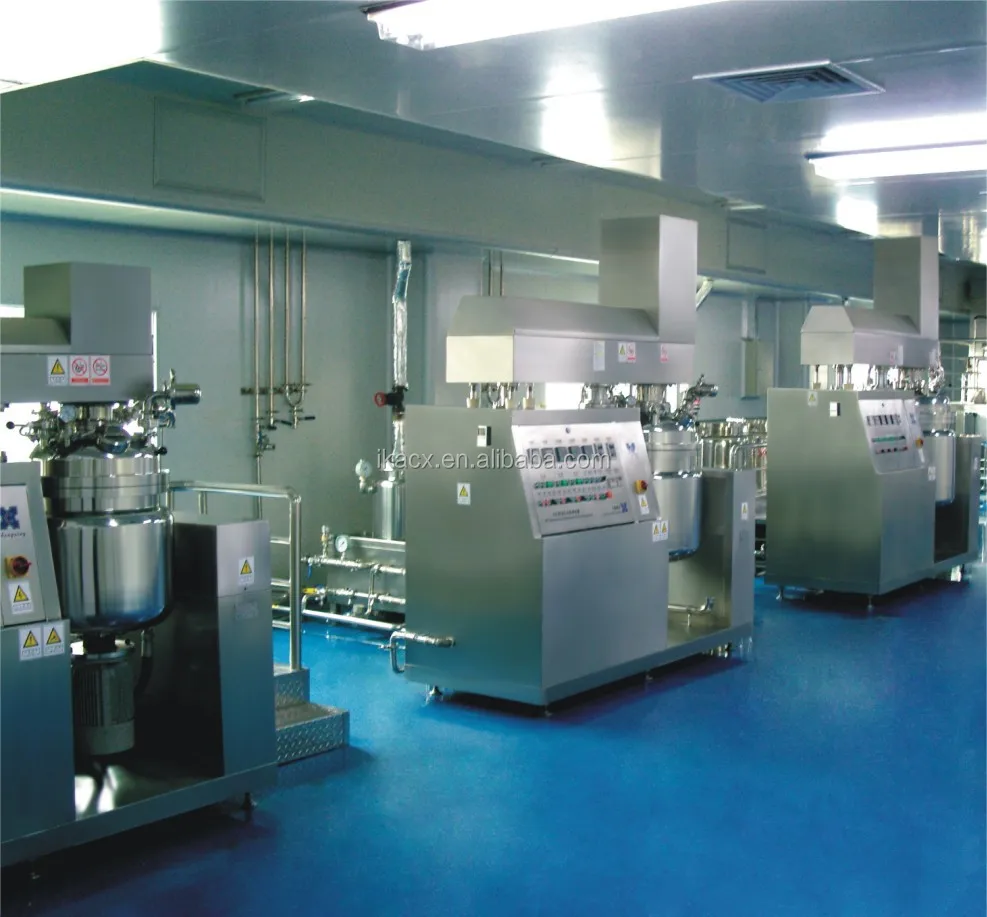

Vacuum emulsifying machines in our clents facotry as following:









Technical parameter



Model	Main pot				Water pot		Oil pot		Hydraulic lifting
	Working volume	Homogenizer Power	Slow mixer power	Vacuum pump power	Working volume	Mixer power	Working volume	Mixer power
ZL-10	10L	1.1kw	0.8kw	0.75kw	8L	0.18kw	5L	0.18kw	0.75kw
ZL-50	50L	4-5.5kw	0.75kw	0.75kw	40L	0.2kw	25L	0.2kw	0.75kw
ZL-100	100L	5.5-7.5kw	1.5kw	1.5kw	80L	1.1kw	50L	1.1kw	1.5kw
ZL-200	200L	7.5-11kw	2.2kw	2.2kw	160L	1.5kw	100L	1.5kw	1.5kw
ZL-300	300L	11-15kw	3kw	2.2kw	240L	1.5-2.2kw	150L	1.5-2.2kw	1.5kw
ZL-500	500L	15-18.5kw	5.5kw	2.2kw	400L	3-4kw	250L	3-4kw	2.2kw
ZL-1000	1000L	18.5kw	7.5kw	3-4kw	800L	4-5.5kw	500L	4-5.5kw	2.2kw



That is  very important choose us (Chasing machine)

No.	Name	brand	Remark
1	CPU	SIEMENS	Main control box
2	HMI	SIEMENS	Operation control box
3	Extension module	SIEMENS	main contorl box
4	Analog Modules Digital modules	SIEMENS	main control box
5	CPU power modules	SIEMENS	main control box
6	Electrical components	France Schneider	control box
7	inveter	Panasonic and Siemens	main tank and oil/water phase boiler  mixer ,homogenizer
8	motor	Germany's Siemens	homogenizer ,oil /water phase boiler motor
9	master switch	French Snyder	control box
10	24V power switch	Taiwan MEAN WELL	control box
11	Head Plate	Hokkai	main tank
12	Gear reducer	Shanghai matt	Main pot slow stirring
13	machinery seal	Germany's BGM	main tank and oil water phase mixer and homogenizer
14	Bearing	Japan NSK	stirring mechanism
15	oil seal	Japan NOK	stirring mechanism
16	vacuum pump	SIEMENS(Nash-eimo)	vacuum system
17	temperature sensor	German nine mau	inside the main tank ,oil phase boiler ,water phase boiler
18	electriomagnetic valve	Japan SMC	all pneumatic valves
19	Pneumatic Angle seat valve	USA Tektronix	heating ,cooling , Sewage
20	pneumatic butterfly	Shanghai YuanAn	oil water boiler discharge products
21	Traps	UK  SpiraxSarco	steam heating







Reliability on top of above mentioned because the use of TRULY ORIGINAL REKNOWN BRANDS COMPONENTS is the guarantee of long lasting service life, no production rushes due to sudden unexpected downtime for a broken machine at the most needed moment.



Basic Functions: homogenize, mix, emulsify, heat and cool







Optional device:  i. Tank bottom installed  homogenizer or inline homogenizer







                ii. Mixing paddle type could be customized.







                iii. Steam heating/ electric heating







                iv. Manual valve/ automatic valve control







                v. button control/ PLC control







                vi. With rotor pump or not







                vii. automatic load cell system or not

                viii. CIP automatic clean



Our team power





Aplication





 Our clients
