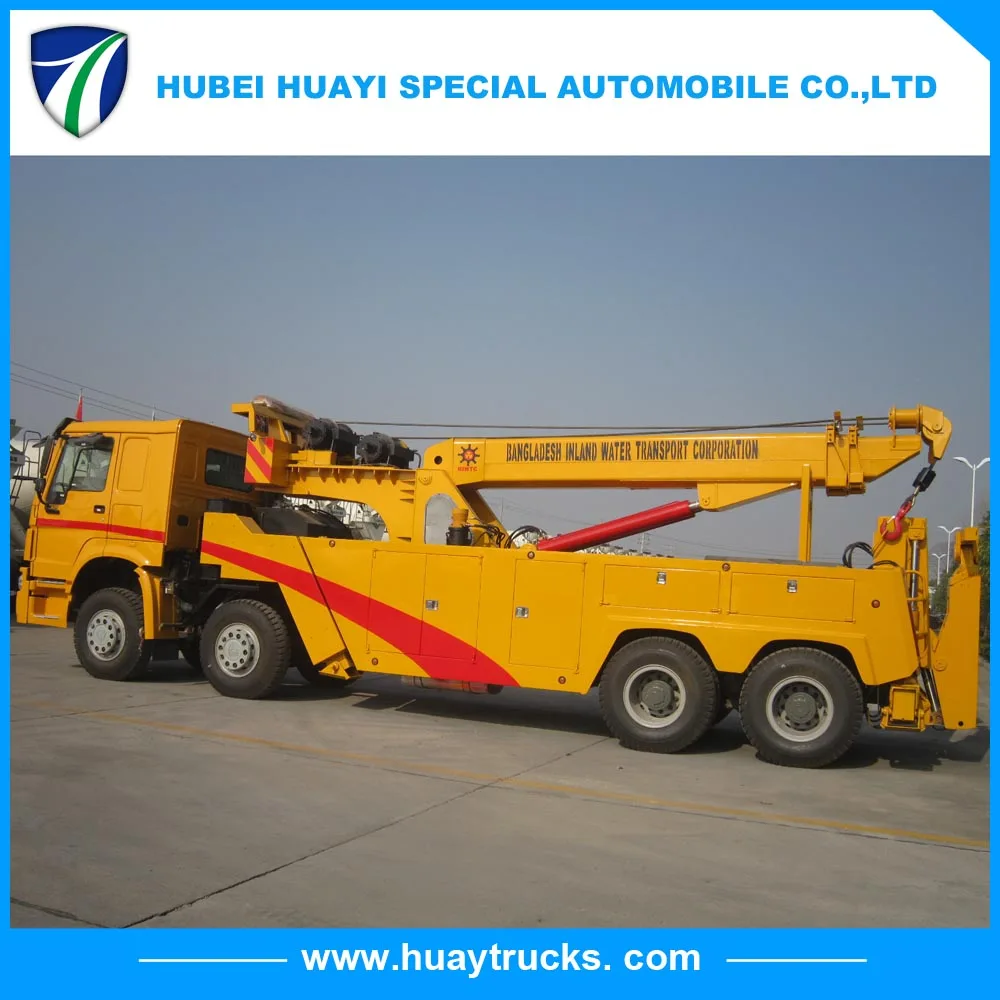

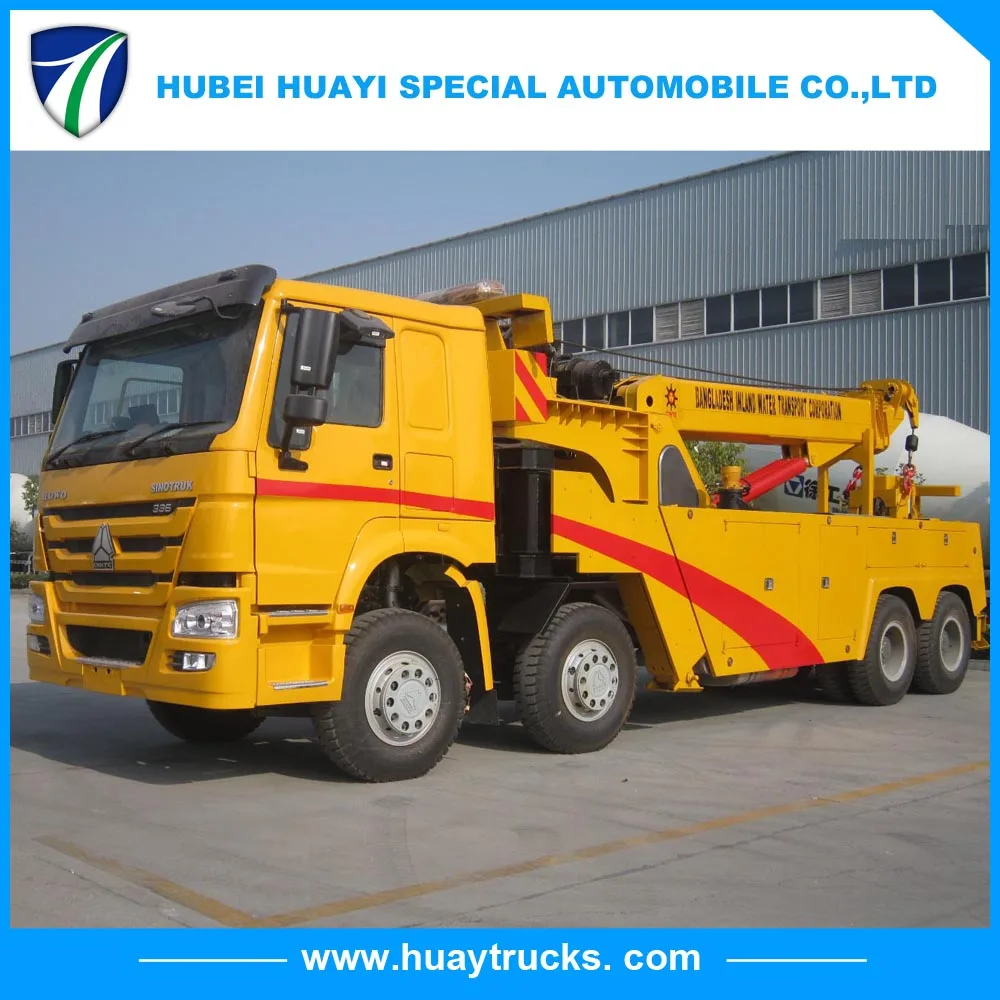

SINOTRUK HOWO 40 тонн тяжелый поворотный эвакуатор тягач буксировочный грузовик для продажи, эвакуатор тягача, эвакуатор грузовика

Chassis parameters

Chassis model

ZZ1317N4667W

Chassis brand

SINOTRUK

Overall dimensions

11700X2496X3025mm

Wheel base

1800+4600+1350mm

Front/rear wheel track

2022/2041, 1830/1830mm

Front/rear suspension

1500, 2425mm

Approach/departure angle

16/19°

Maximum speed

90km/h

Chassis Manufacturer

China National Heavy Duty Truck Group Co.,Ltd

Cab

Configuration

HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers

Color

White, other color is optional

Engine

Model

WD615.69

Emission

Euro 2

Type

6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine

Rated power

336hp, rated power speed 2200rpm

Displacement

9726ml

Max.torque

1350N.m

Bore x stroke

126x130mm

Manufacturer

China National Heavy Duty Truck Group Co.,Ltd

Tire

Size

295/80R22.5 tubeless tire

Number

12+1 nos

Clutch

φ430 diaphragm clutch

Fuel tank

400L iron oil tank

Front axle

HF 9 tons

Rear axle

HC 16 tons

Drive form

8X4

Suspension

Multi leaf springs

Rated voltage

24V, DC

Transmissions

gearbox HW19710 , 10 speed forward 2 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

If there is a slight change in the chassis parameters above, please take the actual product as the standard

Wrecker structure parameters

Boom

Max Lifting Weight

30000 kg

Boom extended length

4500 mm

Max. Lifting Height

12300 mm

Inclination Angle

5°- 60°

Rotating Angle

360°

Number of Stages

3 Stages

Outriggers

Rated Lifting Weight

12500 kg

Rated Lifting Fully Extended Weight

4500 kg

Longitudinal Span between Front Outrigger and Rear Outrigger

7350 mm

Transverse Span of Front Outriggers

5490 mm

Transverse Span of Rear Outriggers

4387 mm

Rated Towing Weight

35000 kg

Length of Cable Wire

25 m

Equipment

High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 15ton , tool case, two outriggers, manual operation device, two floodlight, one alarm lamp and basic accessories
