XK 160 Two roll lab rubber mixing mill / open lab mixing mill

Share on (60742927301):


Price:

Quantity:


Product Overview

Description


      Two-Roll Lab Rubber Mixing Mill / Open Lab Mixing Mill


                       Wechat / Whats app: 0086-13963951313












Product Description


1.Main technical spec.:






















































1. Roller diameter:



160mm



2.Roller working length



320mm



3.Max.gap



4.0mm



4.Capacity per batch



1-2kg



5. linear speed of front roller



12.06m/min



6.friction ratio of front & rear roller



1.35:1



7.AC motor power



7.5KW



8.Cooling type



Water cooling



9.Stock guide



Nylon material



10.Material plate



Stainless steel



11.Overall size



1200*920*1295mm



12.Weight



About 1100kgs








2.Feature:


1) The roll is made of chilled cast iron of vanadium and titanium alloy,So the surface is hard and wearable.The internal processing can make the temperayure of the roll surface well-proportioned.





2) This machine has overload protection devices,and the major comonents cannot be damaged because of over loading.





3) This machine is equipped with emergency braking device.When an emergent accident haens,draw the pull rod,and then the machine will stop at once.It is safe and reliable.





4) The transmission system adopts hardened teeth reducer,which has comact structure,low noise and high efficiengy.





5)The base of the machine is a complete frame, it's very convenient for installation and not vibration.






Packaging & Shipping


Delivery time: within 15 days after receiving order


Shipping: suitable for long-sea transportation and ensure the machines sound


Warranty time: one year








Company Information


Contact Information:


E-mail: Judy at qdtoplit dot com


Wechat/Whats app(mobilephone):0086-13963951313


Skype ID: toplitjudy89

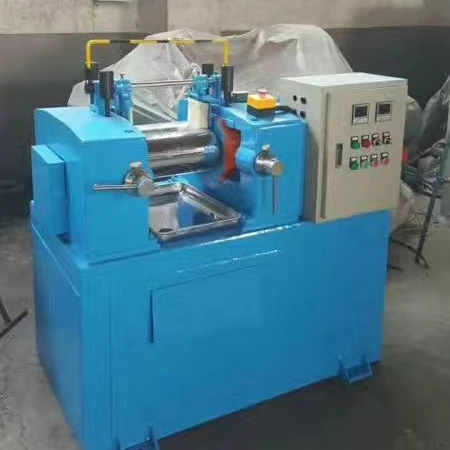

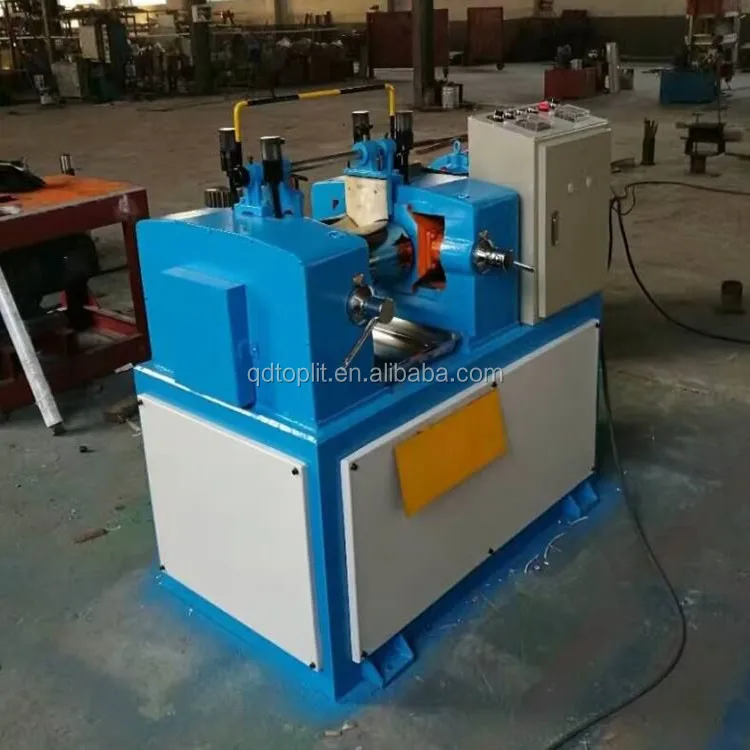

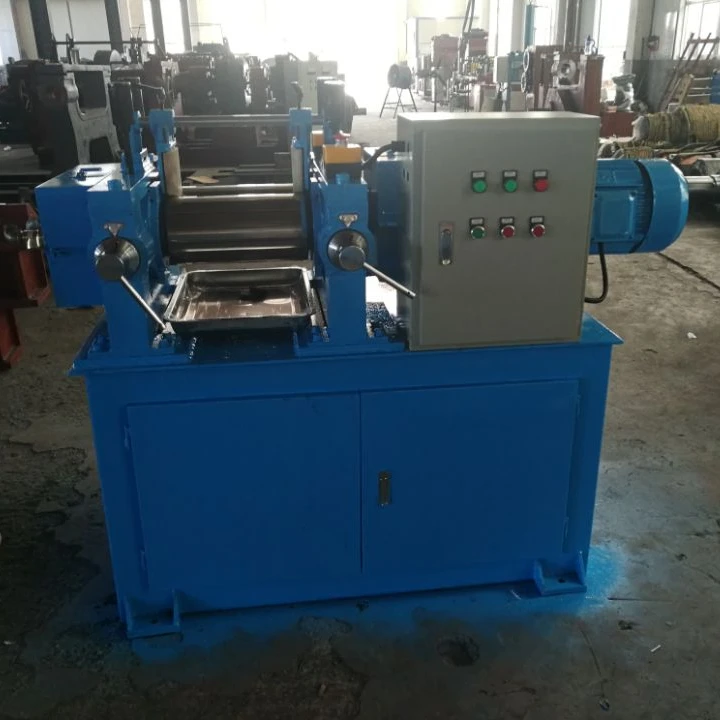

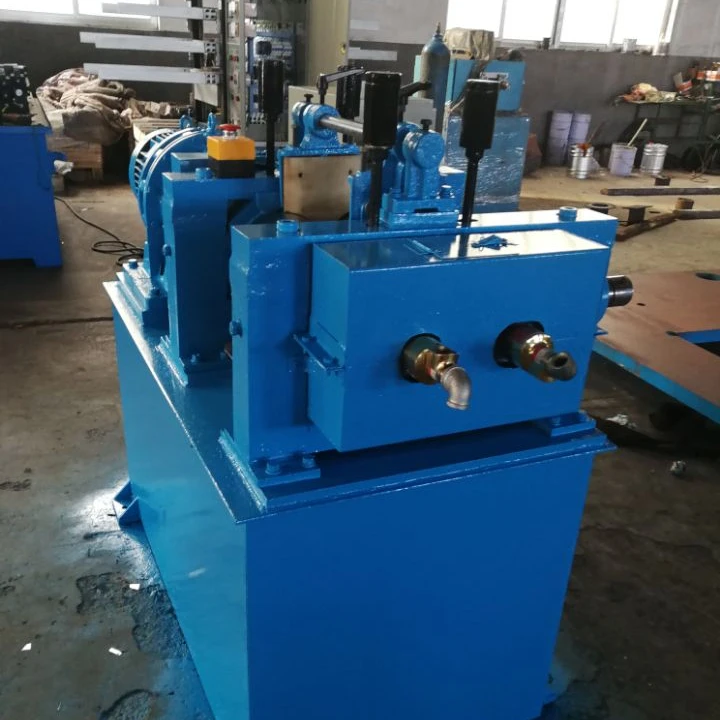

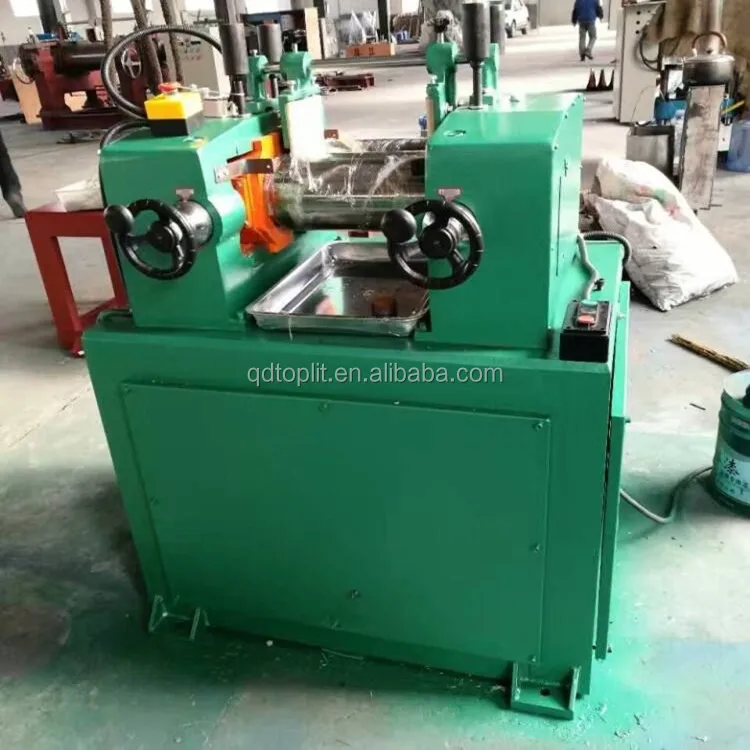

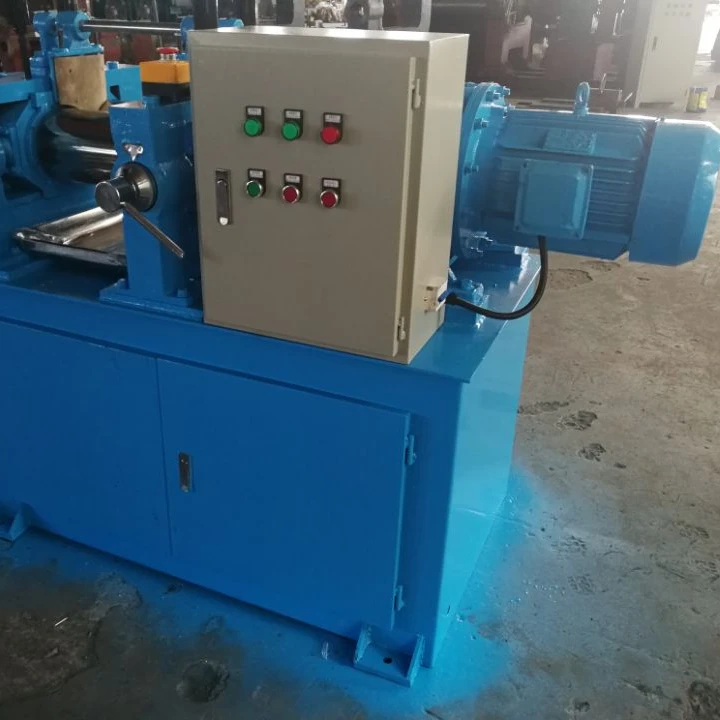

Detailed Images
