Cheaper CZ Purlin Roll Forming Machine Steel Frame and Purlin Making Machines

Share on (60742965863):


Price:$39,500.00 - $40,000.00

Quantity:


Product Overview

Description


Cheaper CZ Purlin Roll Forming Machine Steel Frame and Purlin Making Machines


Cheaper CZ Purlin Roll Forming Machine Steel Frame and Purlin Making Machines





Product Description
















































































1Profile SizeYX 100-300
2Suitable Raw Material 0.3-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request
3Under Frame400 H-beam
4Sidewall 20mm
5Connect Bar25mm, zinc plated
6RollerGcr15, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway
7Shaft80mm, solid, finish turning, cylindrical grinding, with keyway
8Forming Stations 15
9PLC DELTA, TAIWAN
10Main Motor  15kw, Lichao, Shanghai, with reducer
11Hydraulic Pump station 5.5 kw
12Cutting bladeCr12Mov, quenching 58-62°, double oil cylinder
13Oil paintNational standard grey
14Computer screenDELTA, TAIWAN
15Chain double 2inch




Product Show

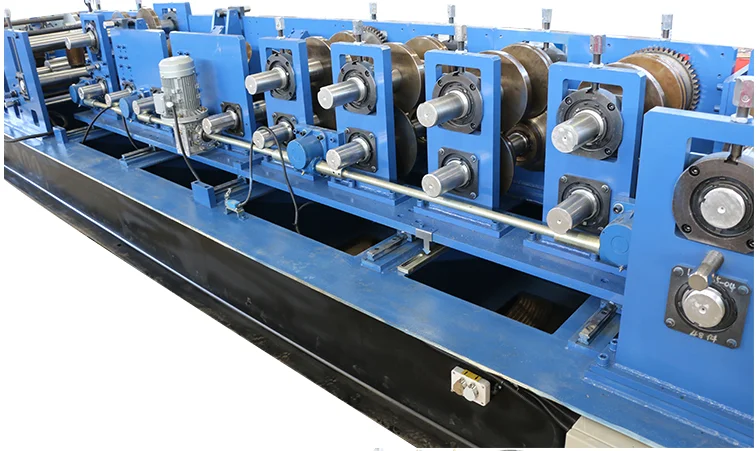

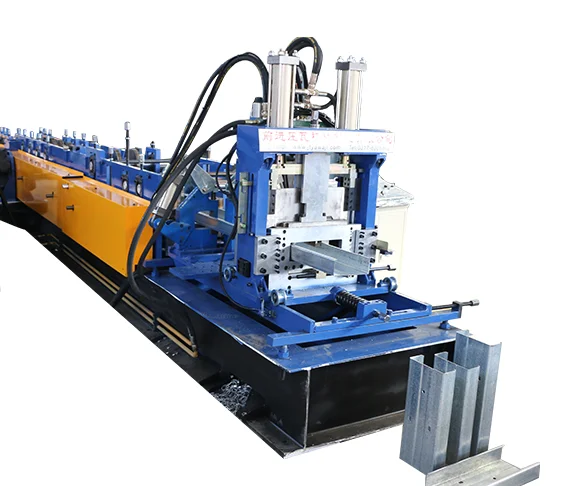

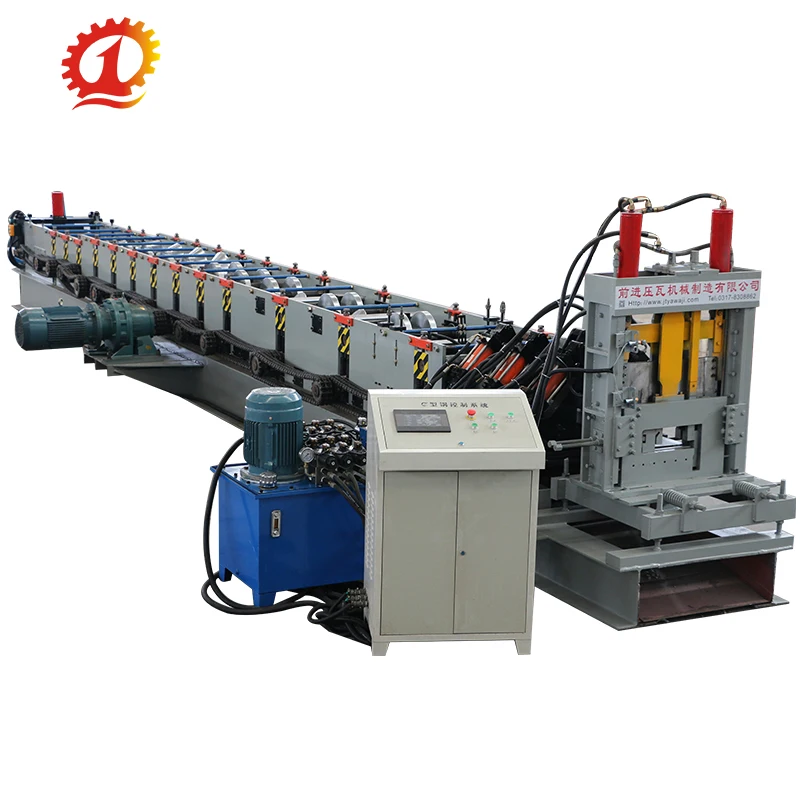

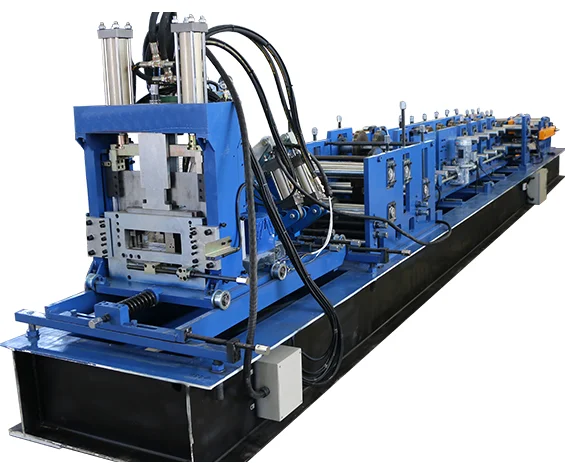

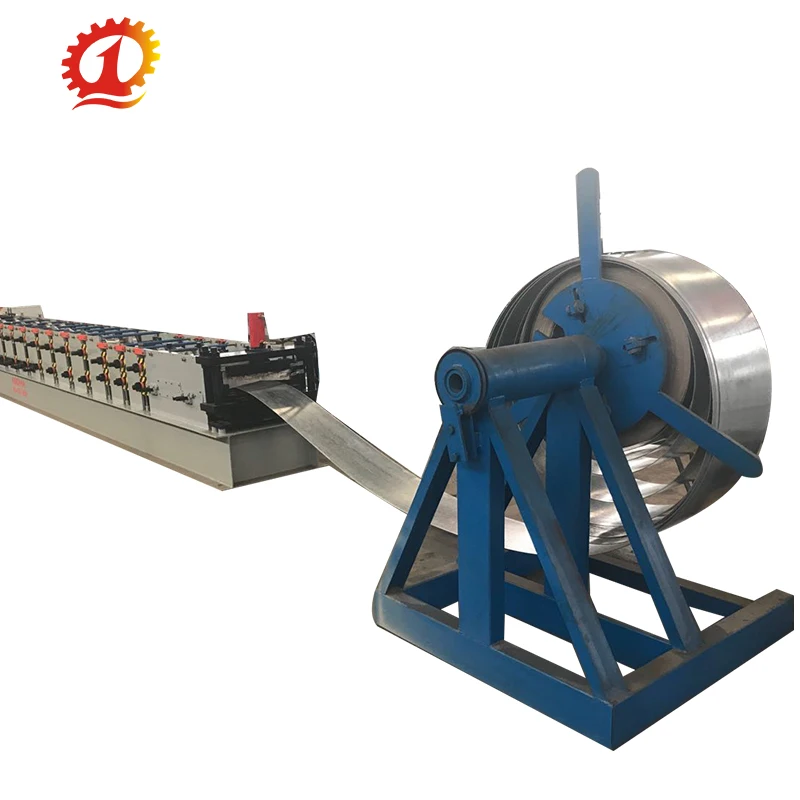

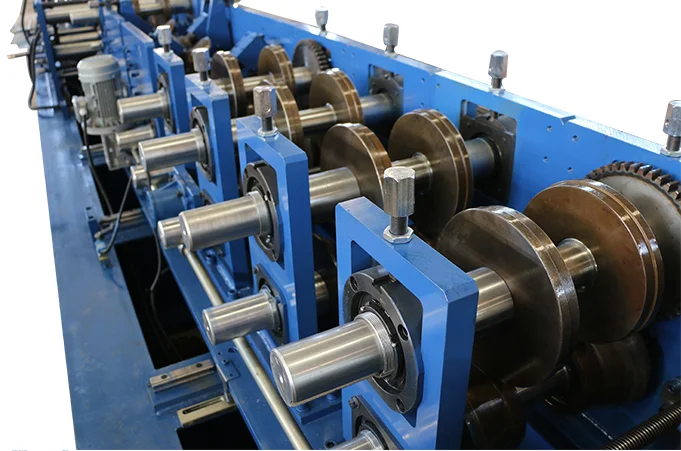

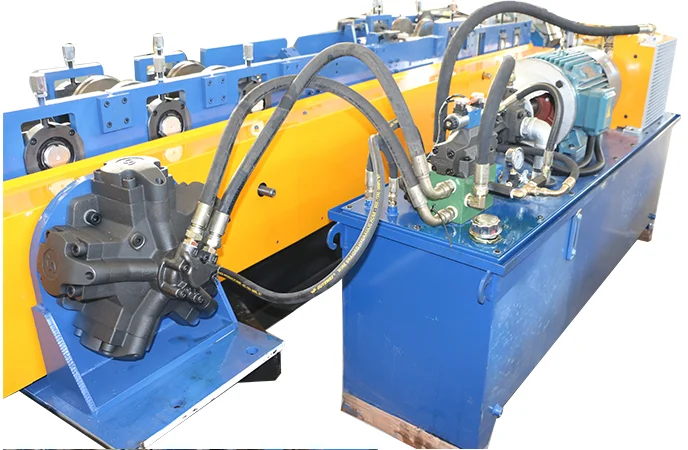

 C purlin machine.pngQQ20180309205046.pngQQ20180309205117.pngQQ20180309205146.pngQQ20180309205204.png1.jpg2.jpg





Flow Sketch






Our Services






Packaging & Shipping






Certifications






FAQ


Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.


After we get down payment, we will arrange production. About 30-45 days for delivery.


Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.


Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts
 replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.


Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.


Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
       2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5       hours), then we can pick up you.
