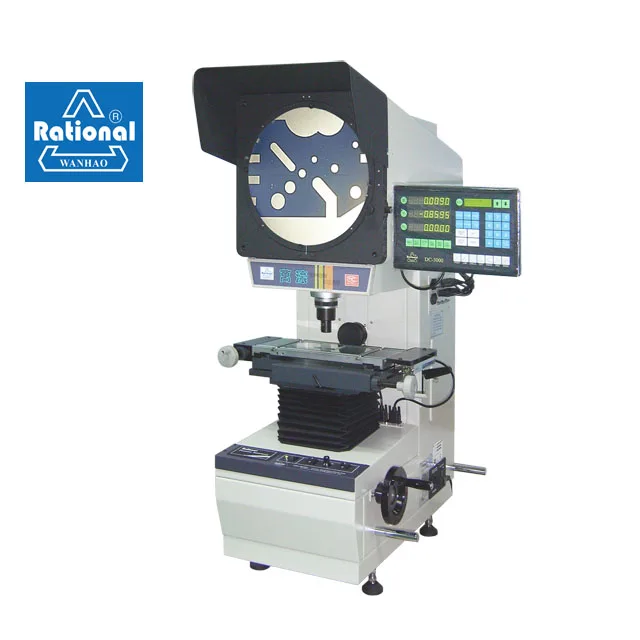

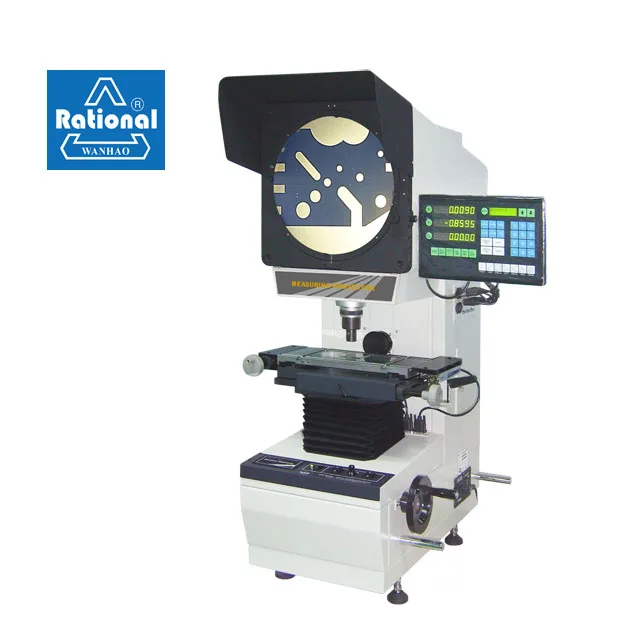

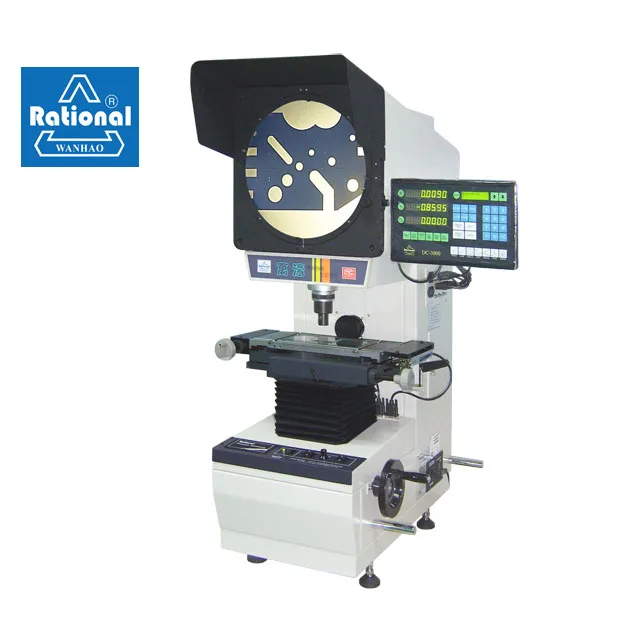

Rational Optical Comparator and profile projector price
- Category: Testing Equipment >>>
- Supplier: Guangdong Rational Precision Instrument Co. Ltd.
Share on (60743063789):
Product Overview
Description
Product Paramenters
Model | Reverse image Erect image | CPJ-3007 CPJ-3007Z | CPJ-3010 CPJ-3010Z | CPJ-3010 CPJ3010Z | |||
Metal table size (mm) | 260*152 | 306*152 | 340*152 | ||||
Glass table size (mm) | 125*100 | 175*100 | 196*96 | ||||
X-axis Travel (mm) | 75 | 100 | 150 | ||||
Y-axis Travel (mm) | 50 | 50 | 50 | ||||
Z-axis Travel (mm) | 90(Focusing) | ||||||
Indication error (mm) | E1XY=(2.5+L/100) | E1XY=(2.5+L/75) | E1XY=(3.0+L/50) | ||||
Resolution (μm) | 0.5μm | ||||||
Dimension (mm) | 770*550*1100 | 770*550*1100 | 770*550*1100 | ||||
Weight (kg) | 120 | 125 | 130 | ||||
Projector screen | Size (mm) | ∅312 Worktable range > ∅300 (crosshairs) | |||||
Rotary range | 0~360° | ||||||
Resolution | 1' or 0.01° | ||||||
objective lens for profile projector 10X,20X,50X or 100X Optional
Magnification | 10× (Optional) | 20× (Optional) | 50×(Optional) | 100× (Optional ) | ||||
Field of view (mm) | ∅30 | ∅15 | ∅6 | ∅3 | ||||
Working distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | ||||
Max. measuring Height (mm) | 80 | 80 | 80 | 80 | ||||
Power supply: AC 100-240V 50/60Hz. Total power: 400W | ||||||||
Products Description
1 | High precision with foot switch and multifunctional data processing meter |
2 | Easy to operate |
3 | Resolution of linear scale: 0.5um |
4 | Powerful Digital Readout to support easy and accurate measurement |
5 | Precise and accurate |
6 | Low maintenance cost |
7 | Optional Proprietary software |
8 | Reliable and cost-effective |
Application
1.CPJ-3000A/AZ series digital profile projector is an ergonomic and reliable measuring instrument with premium quality.This instrument is equipped with foot-switch and multi-functional data processing system, which is convenient to output data and sample, enabling the user to effectively and sufficiently inspect the measured objects. This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc. It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.
Company Profile
Product packaging
Certifications
FAQ
Q: Are your company a trading one or a factory ?
A: We have our own factory and we set up in China by technical guys from Taiwan in 1990s, has now grown to be a dominating supplier for Linear Scales, Video Measuring Systems, Profile Projectors in China, Korea and Vietnam and a main supplier in many other countries in Asia. for more options (in order to make the business more simple) for more than 24 years focusing on test instruments field and 18 years exporting experience. As one of the toppest supplier in Dongguan, OEM/ODM is warmly welcome fromall of you as long as you confirm us with your requirement.
Q: How to choose the most suitable products?
A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the
required specification.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate
to tell us your requirement, we will do our best to meet your needs.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and
debugging-packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out -Customer Receiving - After Service.
Q: How to install and use the product?
A:About the profile projector you get from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
Q: How to choose the most suitable products?
A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the
required specification.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate
to tell us your requirement, we will do our best to meet your needs.
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and
debugging-packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out -Customer Receiving - After Service.
Q: How to install and use the product?
A:About the profile projector you get from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
After-sale service
Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves. If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience. We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us. We devote ourselves to providing continuous technical support and services
including but not limited to the followings:
including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool
Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC,
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool
Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC,
