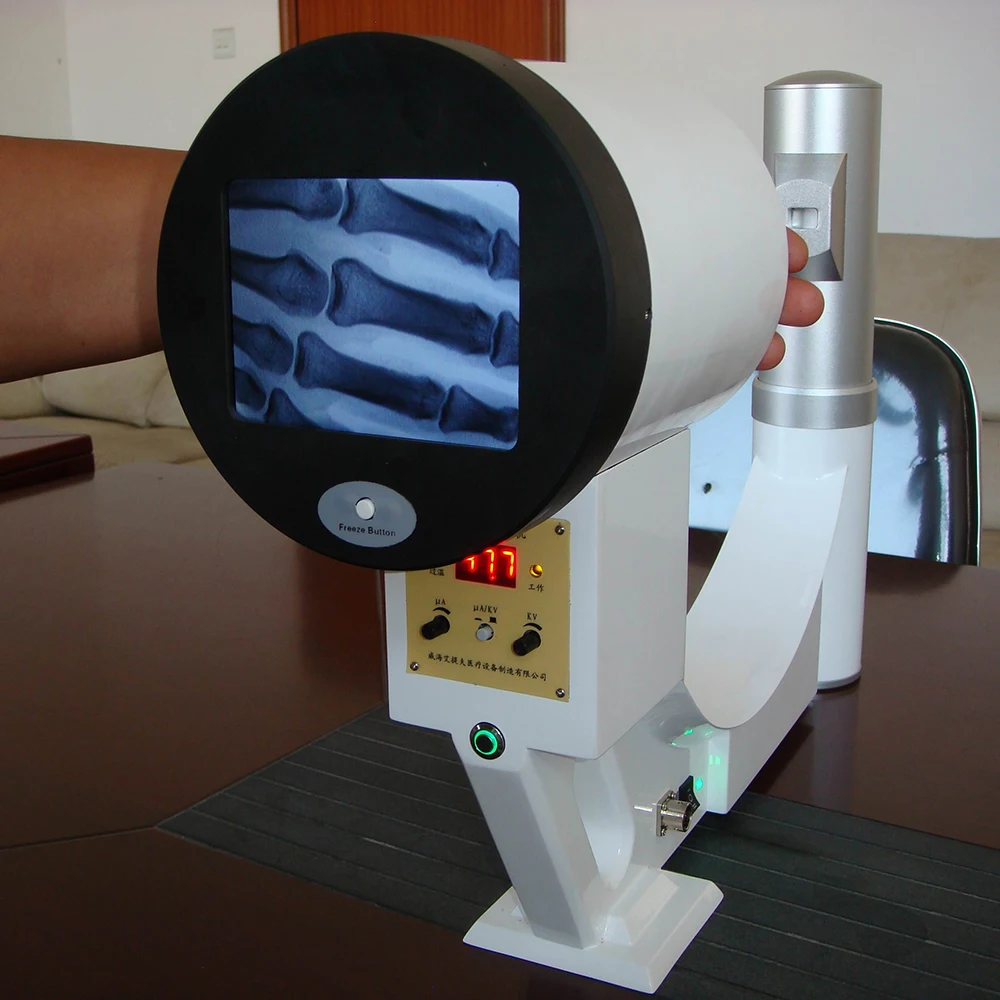

The 100mm LCD Portable X-Ray Unit is a high frequency X-Ray Imaging Scope which is based on CCD sensors imaging princle. Model is a unique device combining radioscopy and radiography functions. It is equipped with small display transmitting images to the computer, which by means of simple software can be recorded to digital media or printed out. The unit is indispensable in traumatology and orthopaedics for emergency diagnostics. 100mm LCD Portable X-Ray Unit is widely used in the radioscopy for knee joint, ankle ,femoral shaft and other thick parts.
Features
1. Stable and reliable High-frequency PWM circuit design High-strength ABS plastic body High-definition imaging design
2. Full Functioning Can be directly connected to the computer, stored or output through the printer, have recorded video function Built-in rechargeable battery, suitable for field operation High-resolution capture card, about 40 million pixels
3. Flexible and practical Streamlined design Light weight, suitable for carrying and use One-click operation
Application
Hospital orthopedics, hand and foot surgery, pediatrics, dental and so on Fracture distal radius closed reduction, needle external fixation treatment Taking Foreign body from muscle Fieldwork, first aid site diagnosis Check contraceptive ring for birth control women
Specification
Output Image size
100 mm
Survey Thinkness
≤300 mm
X-ray tube voltage
45-90KV
Tube current
0.25-0.5mA
Resolution
≥2.51p/mm
Grayscale
≥7 scale
Brightness
≥250lm/cm²
Generator working frequency
20Khz
Stand-Position Protection Area
≤0.33mGy/h
Power Consumption
≤200W
Power Supply
AC220V±10%
Size
160*540*380mm
Weight
4.55Kg
Outline
The product consist of high-voltage generator, X-ray tube, liquid crystal display, beam limiter, rack, power and other components.
Figure 1.Structure diagram of The Portable X-ray machine
We ship goods by UPS/DHL/FEDEX/ TNT express takes 3~ 5 days to arrive , which is door to door ,you no need go out can get this ultrasound scanner.
FAQ
Q1. What is your package for this trolley ultrasound machine A: Strong paper carton or wood carton
Q2. What is your terms of payment? 1.L/C at sight; 2.T/T 3.Alibaba Trade Assurance (mastercard, visa, e-checking)
Q3. What is your terms of delivery? A: EXW, FOB, CIF, DAP, DDU, DDP, etc
Q4. How about your delivery time? A: Generally, it will take 3-5 days working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery for ultrasound scanners and ENT units. For consumable medical materials, we do radom testing.
Q6: How do you make our business long-term and good relationship? 1. We keep good quality and the most competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
