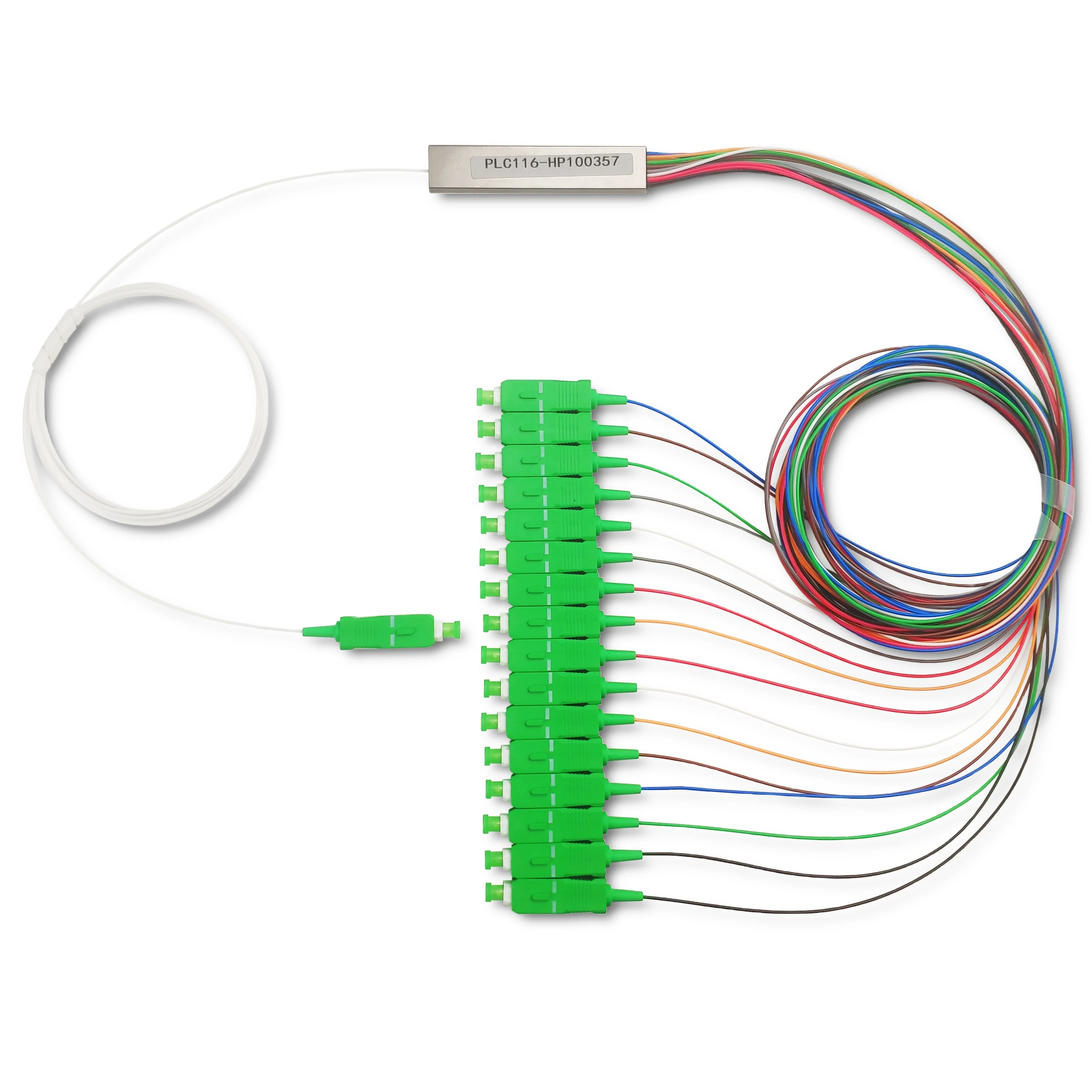

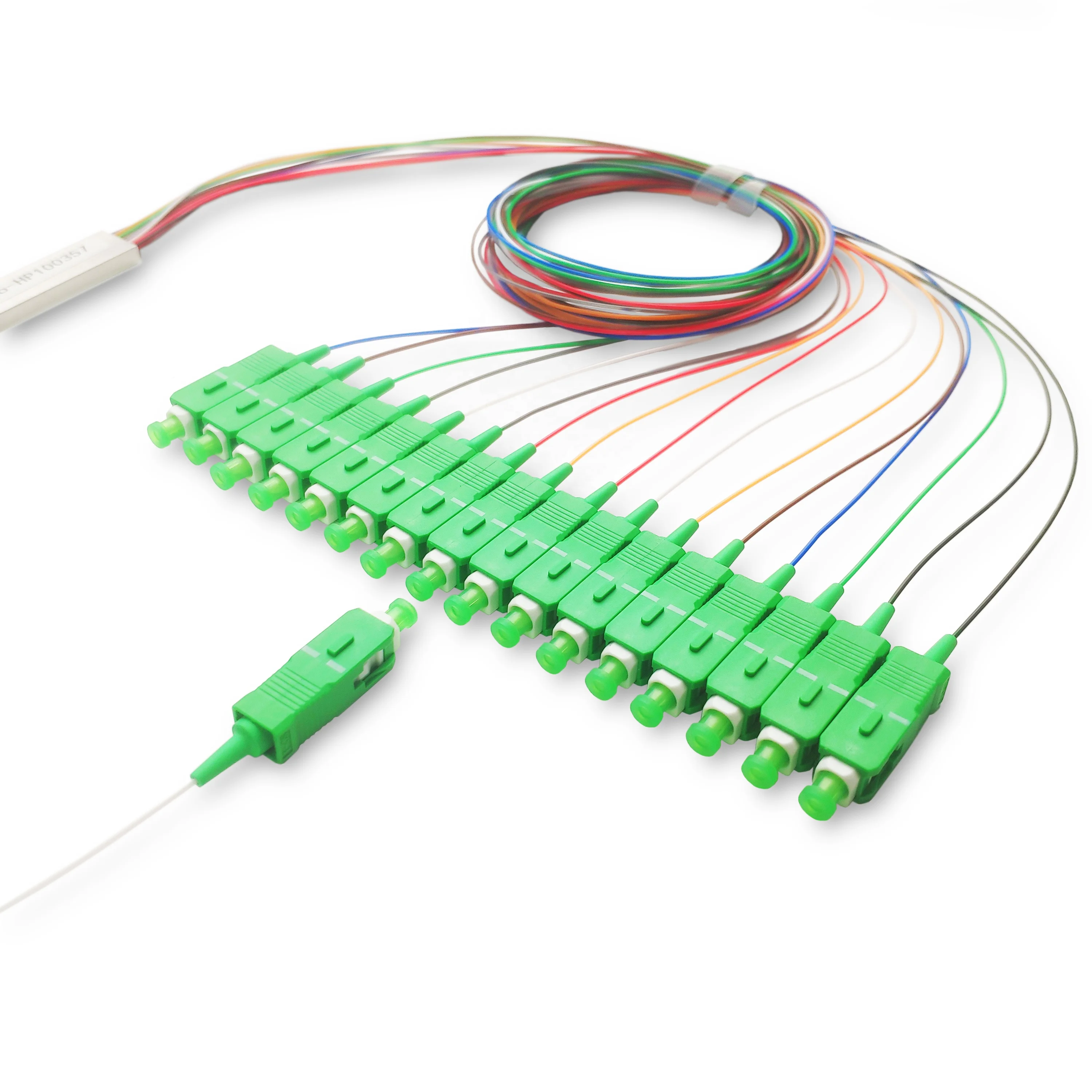

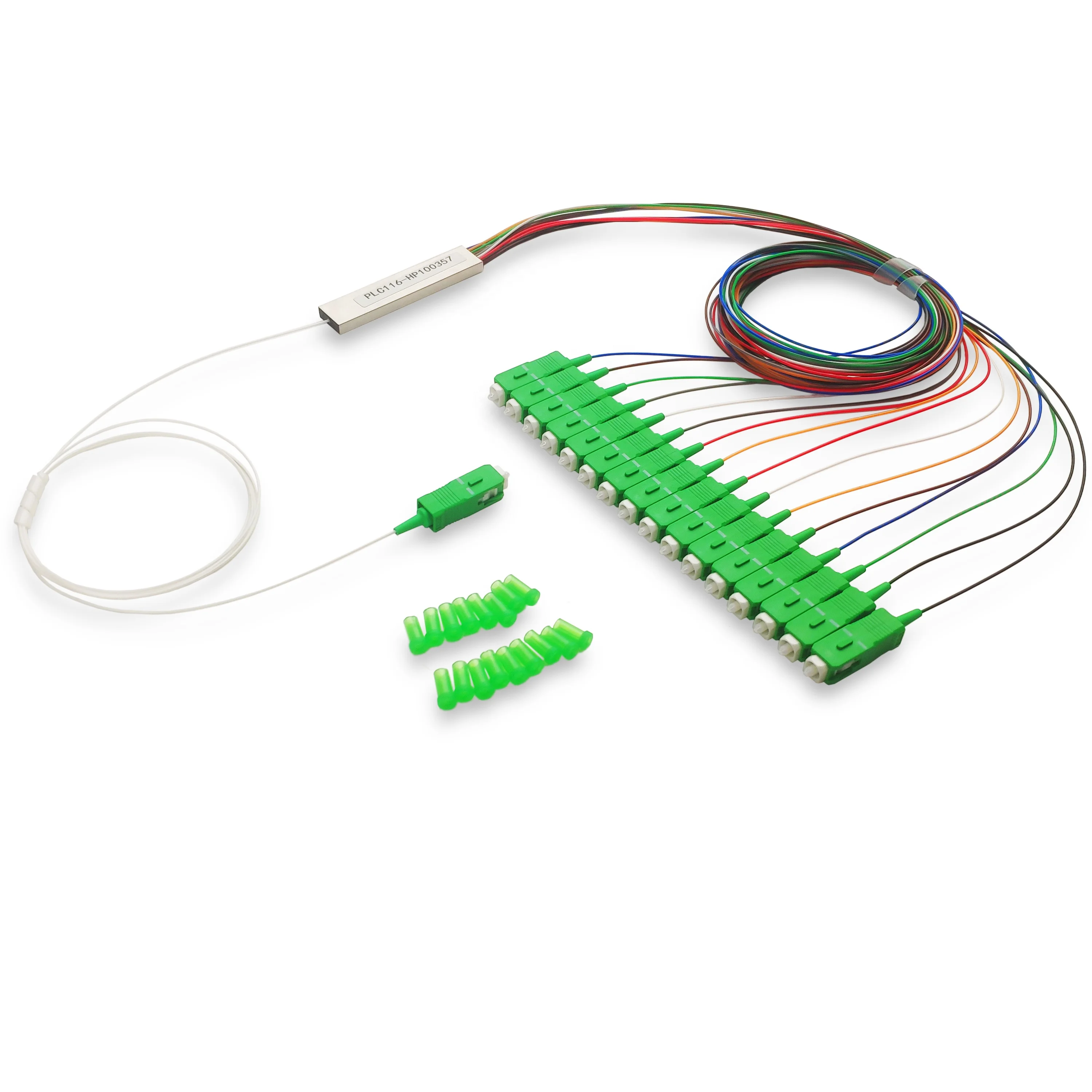

1x4 1x8 1x16 волоконно оптический ПЛК сплиттер 1x8 с коннектором волоконно оптический ПЛК сплиттер
- Category: Telecommunications >>>
- Supplier: Qingdao Applied Photonic Technologies Co. Ltd.
Share on (60743323453):
Product Overview
Description
Product Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
Product application
The PLC (Planar Lightwave Circuit) planar waveguide optical splitter is composed of an optical waveguide chip and optical fiber arrays
coupling at both ends. This product uses semiconductor lithography technology to manufacture the optical splitter chip, with
stable process, good output consistency, loss and optical wavelength Irrelevant, good channel uniformity, compact structure and
small size, widely used in optical fiber communication lines of telecom operators, especially FTTX projects.
coupling at both ends. This product uses semiconductor lithography technology to manufacture the optical splitter chip, with
stable process, good output consistency, loss and optical wavelength Irrelevant, good channel uniformity, compact structure and
small size, widely used in optical fiber communication lines of telecom operators, especially FTTX projects.
Applications
* The product has won the bid of China Mobile, China Unicom, China Telecom, and has been widely adopted by various domestic provinces and cities in the broadcasting system.
* Nearly 20 years of professional production experiences, the products comply with the industry standard of the Ministry of Industry and Information Technology "YD/T 2000.1-2014 ", as well as European and American standards such as Bellcore.
* The PLC optical splitter is a full-band type (1260~1650nm), which is not sensitive to wavelength.
* The PLC type optical splitter is compact in structure and small in size, and can be directly installed in places where space is limited.
* It is applied to FTTX network, CATV network and other networking to connect OLT and ONU and realize optical power distribution.
* Nearly 20 years of professional production experiences, the products comply with the industry standard of the Ministry of Industry and Information Technology "YD/T 2000.1-2014 ", as well as European and American standards such as Bellcore.
* The PLC optical splitter is a full-band type (1260~1650nm), which is not sensitive to wavelength.
* The PLC type optical splitter is compact in structure and small in size, and can be directly installed in places where space is limited.
* It is applied to FTTX network, CATV network and other networking to connect OLT and ONU and realize optical power distribution.
Specification
Item | Unit | Technical Data |
Description | - | PLC-1X32-Steel tude-0.9-SCUPC |
Wavelength | nm | 1260-1650 |
Insertion Loss | nm | ≤17.2 |
Channel Uniformity | dB | ≤1.0 |
Return Loss | dB | ≥50 |
Directionality | dB | ≥55 |
Polarization Dependent Loss | dB | ≤0.2 |
Package Size | mm | 6*20*80 |
Fiber Color | - | Blue Orange Green Brown |
Loose Tube Color | - | White |
Maximum Power | mw | 300 |
Operating Temperature | ℃ | -10~75 |
Storage Temperature | ℃ | -40~85 |
Fiber Type | - | G657A1 |

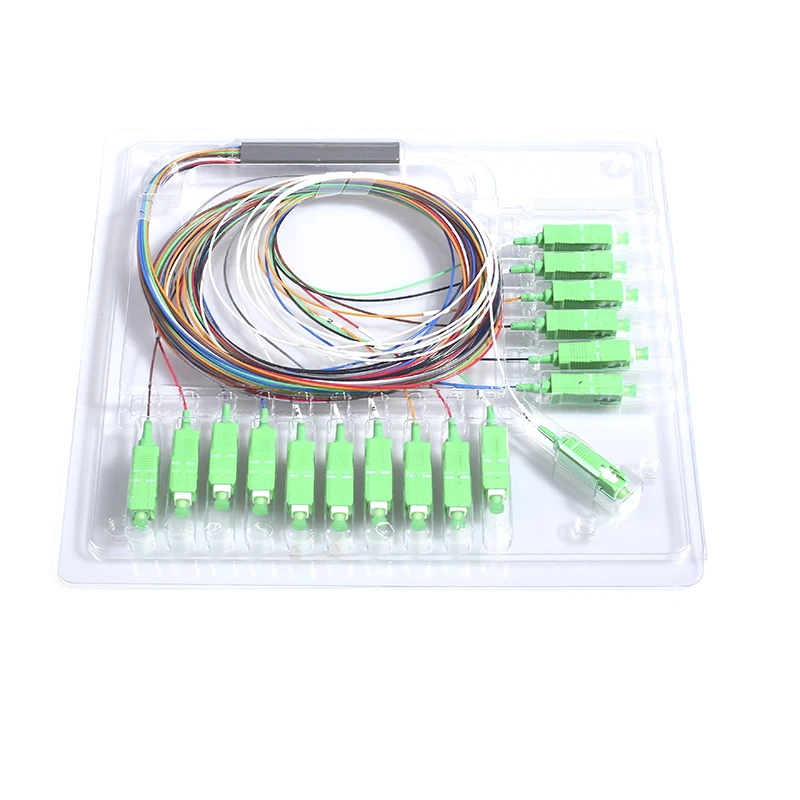

Package Style | - | 1 PC / Blister Box |
Package Information | - | Inner box：10pcs Size：420*270*210mm Weight：2.5kg Outer box：40pcs Size：570*430*460mm Weight：10kg |
Packing & Delivery
Product Size | ||||||||
Model | 1*2/4/8 | 1*16 | 1*32 | 1*64 | ||||
Bare fiber （250umfiber ） | 4*4*40 | 4*7*50 | 4*7*50 | 4*12*60 | ||||
Mini type（0.9mm loose） | 4*7*60 | 4*12*60 | 6*20*80 | 6*40*100 | ||||
ABS Box（2.0mm） | 10*20*90 10*80*100 | 18*80*120 | 18*80*120 | 18*115*141 | ||||
Slot-Box | 130*100*25 | 130*100*50 | 130*100*102 | 130*100*206 | ||||
Rock Mounted（19’Inch） | 483*44.5*200 | 483*44.5*200 | 483*44.5*200 | 483*89*200 | ||||
Company Profile
Qing dao APT Co.,Ltd. is a high-tech enterprise specializing in the production of optical communication products and solution services. Founded in August 2001, the company has become the largest and well-known manufacturer of passive components for optical communication in northern China.
The company is located in Qingdao, a beautiful seaside city known as the "Switzerland of the East" and the brand capital of China, which is the sixth largest port in the world and the Qianwan Port is only 15 minutes away from the company.
The company's investor is Zibo Mining Group, with total assets of more than 12.5 billion yuan and annual sales revenue of more than 8.5 billion yuan. The company has invested more than 50 million RMB in the first phase and covers an area of 20,000 square meters with 6,500 square meters of domestic advanced standard purification workshop.We have established stable industry-university-research collaboration with many universities such as China University of Petroleum and Shandong University of Science.
The company is IS09001: 2015 certified enterprise, and has obtained the quality management system certification from two authoritative agencies, UKAS and the Ministry of Industry and Information Technology of China. In 2002, the company was awarded the title of Qingdao Outstanding Enterprise founded by returned overseas students, and was recognized by the Ministry of Commerce as one of the 500 pilot units of China's foreign trade enterprises with integrity.
The company is ISO14001:2015 and ISO45001:2018 certified enterprise. While pursuing economic benefits, the company attaches more importance to social responsibility and often participates in some social welfare activities and internal fund-raising activities for employees in need, and every employee gets paid annual leave and paternity leave. We have a standard basketball court and a small football field, a standard and clean single staff dormitory and staff canteen, and regularly organise staff training and outings.
The company has formed the core values of "integrity, professionalism, innovation and gratitude". Our main products include optical wavelength division multiplexer series [CWDM, DWDM(C-band,O-band), FWDM, PWDM], PLC optical splitter, FBT optical splitter, fiber optic patch cord/ pigtail, pre-terminated butterfly introduction fiber optic cable patch cord, FTTH BOX, fast connectors, optical switches and other ODN related accessories and products.
The company's products have been continuously selected for China Mobile, China Unicom, China Telecom, and various provincial and municipal broadcasting systems. Dense WDM is the main supplier for 5G construction in Korea, and coarse WDM is an important supplier for 5G construction in China.
The company has focused on the production of passive products for optical communication for more than 20 years, and strives to provide the best cost performance products for customers worldwide. Since 2006, we have started international trade, and now we have more than 30 experienced, positive, professional and responsible sales managers and our products are exported to more than 70 countries and regions in five continents, with an annual international trade volume of more than RMB 200 million.
The company has actively introduced lean production management mode, and made efforts to introduce international advanced technology and production testing equipment, and gathered a group of photoelectric technology and management elites who have decades of professional work experience and have contributed to the world optical fiber communication industry.
The road is as long as iron, and now we are moving forward from the beginning. In the face of the new journey, Qingdao APT will continue to adhere to the "people-oriented,leading technology, quality-oriented, integrity, mutual benefit and win-win" business philosophy, to provide domestic and foreign users with high-quality products and perfect service for the unremitting pursuit, to achieve the domestic optical communications industry as a top supplier for the development of their own responsibility, forge ahead, forge ahead and We will continue to improve and make contributions to the development of optical communication in China and the world.
APT created the fiber optics ,and integrated with the world. Warmly welcome to charming Qingdao.
The company is located in Qingdao, a beautiful seaside city known as the "Switzerland of the East" and the brand capital of China, which is the sixth largest port in the world and the Qianwan Port is only 15 minutes away from the company.
The company's investor is Zibo Mining Group, with total assets of more than 12.5 billion yuan and annual sales revenue of more than 8.5 billion yuan. The company has invested more than 50 million RMB in the first phase and covers an area of 20,000 square meters with 6,500 square meters of domestic advanced standard purification workshop.We have established stable industry-university-research collaboration with many universities such as China University of Petroleum and Shandong University of Science.
The company is IS09001: 2015 certified enterprise, and has obtained the quality management system certification from two authoritative agencies, UKAS and the Ministry of Industry and Information Technology of China. In 2002, the company was awarded the title of Qingdao Outstanding Enterprise founded by returned overseas students, and was recognized by the Ministry of Commerce as one of the 500 pilot units of China's foreign trade enterprises with integrity.
The company is ISO14001:2015 and ISO45001:2018 certified enterprise. While pursuing economic benefits, the company attaches more importance to social responsibility and often participates in some social welfare activities and internal fund-raising activities for employees in need, and every employee gets paid annual leave and paternity leave. We have a standard basketball court and a small football field, a standard and clean single staff dormitory and staff canteen, and regularly organise staff training and outings.
The company has formed the core values of "integrity, professionalism, innovation and gratitude". Our main products include optical wavelength division multiplexer series [CWDM, DWDM(C-band,O-band), FWDM, PWDM], PLC optical splitter, FBT optical splitter, fiber optic patch cord/ pigtail, pre-terminated butterfly introduction fiber optic cable patch cord, FTTH BOX, fast connectors, optical switches and other ODN related accessories and products.
The company's products have been continuously selected for China Mobile, China Unicom, China Telecom, and various provincial and municipal broadcasting systems. Dense WDM is the main supplier for 5G construction in Korea, and coarse WDM is an important supplier for 5G construction in China.
The company has focused on the production of passive products for optical communication for more than 20 years, and strives to provide the best cost performance products for customers worldwide. Since 2006, we have started international trade, and now we have more than 30 experienced, positive, professional and responsible sales managers and our products are exported to more than 70 countries and regions in five continents, with an annual international trade volume of more than RMB 200 million.
The company has actively introduced lean production management mode, and made efforts to introduce international advanced technology and production testing equipment, and gathered a group of photoelectric technology and management elites who have decades of professional work experience and have contributed to the world optical fiber communication industry.
The road is as long as iron, and now we are moving forward from the beginning. In the face of the new journey, Qingdao APT will continue to adhere to the "people-oriented,leading technology, quality-oriented, integrity, mutual benefit and win-win" business philosophy, to provide domestic and foreign users with high-quality products and perfect service for the unremitting pursuit, to achieve the domestic optical communications industry as a top supplier for the development of their own responsibility, forge ahead, forge ahead and We will continue to improve and make contributions to the development of optical communication in China and the world.
APT created the fiber optics ,and integrated with the world. Warmly welcome to charming Qingdao.
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q4: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q4: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.

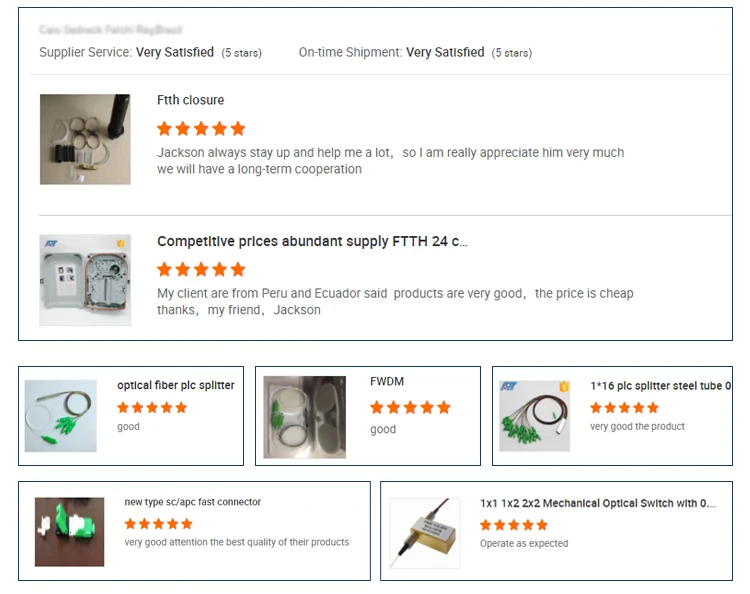

Customer Reviews
