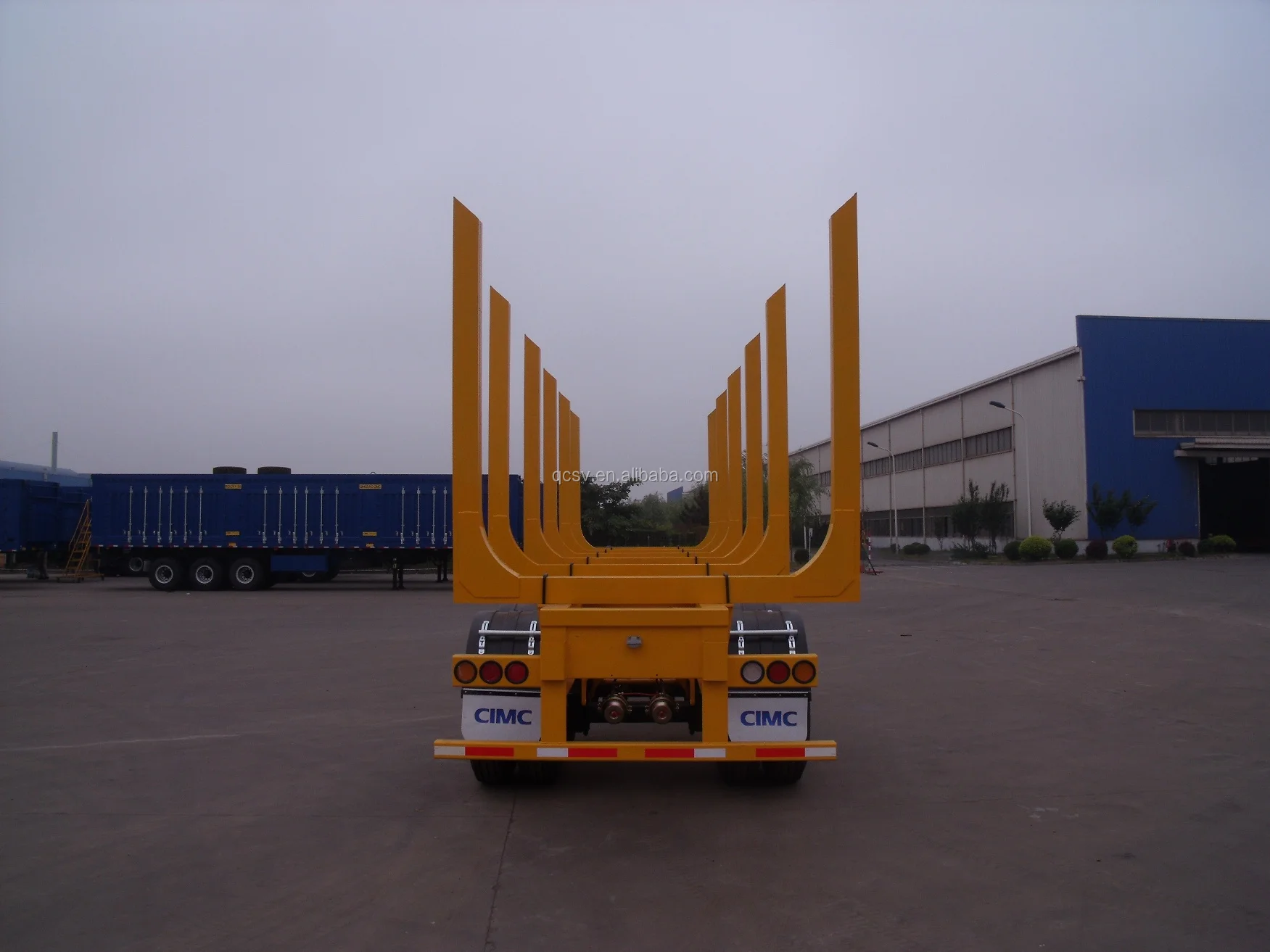

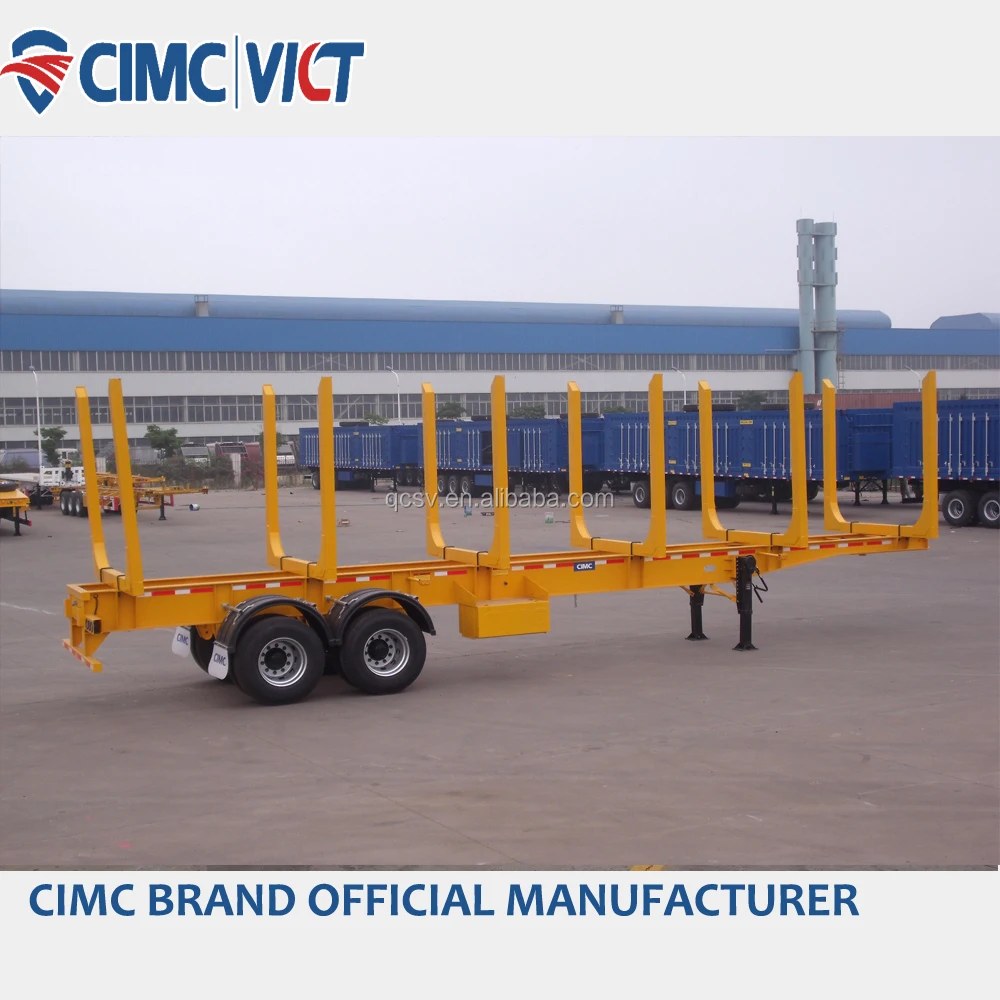

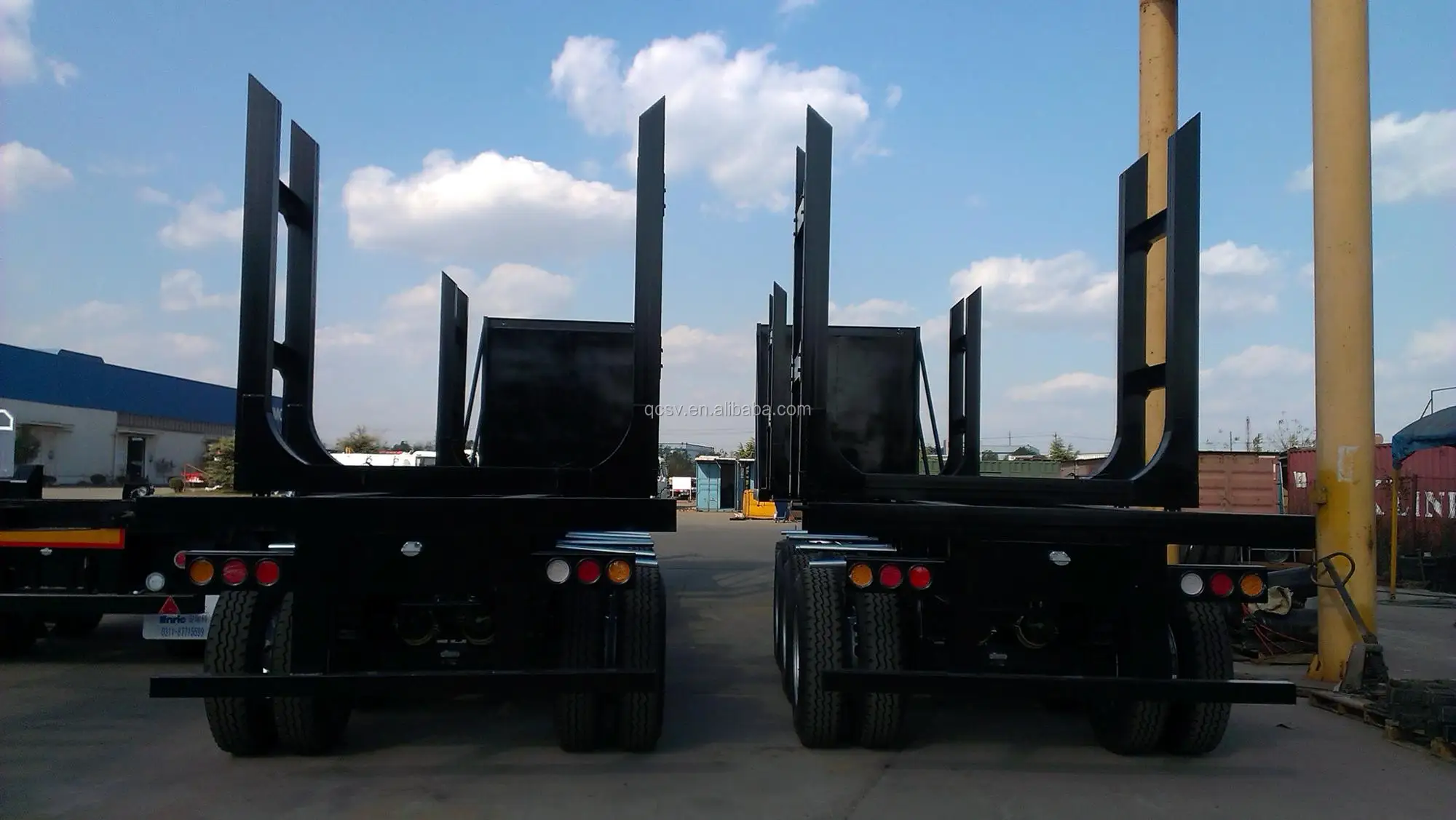

CIMC skeletal Log timber trailer

type

Log trailer with Two axles

Model

ZJV9500LOG

parameter

dimension(mm)

Attached drawing

tare weight(kg)

7,200

payload (kg)

40,000

GVWR(kg)

47,200

OEM

landing gear

None

Draw tube

seamless steel tube

Turn plate

Standard,2 pcs

Drawbar hook

1 pcs

brake system

Brake chamber T30/30 type on each axle, WABCO brake valve

Electricity

None

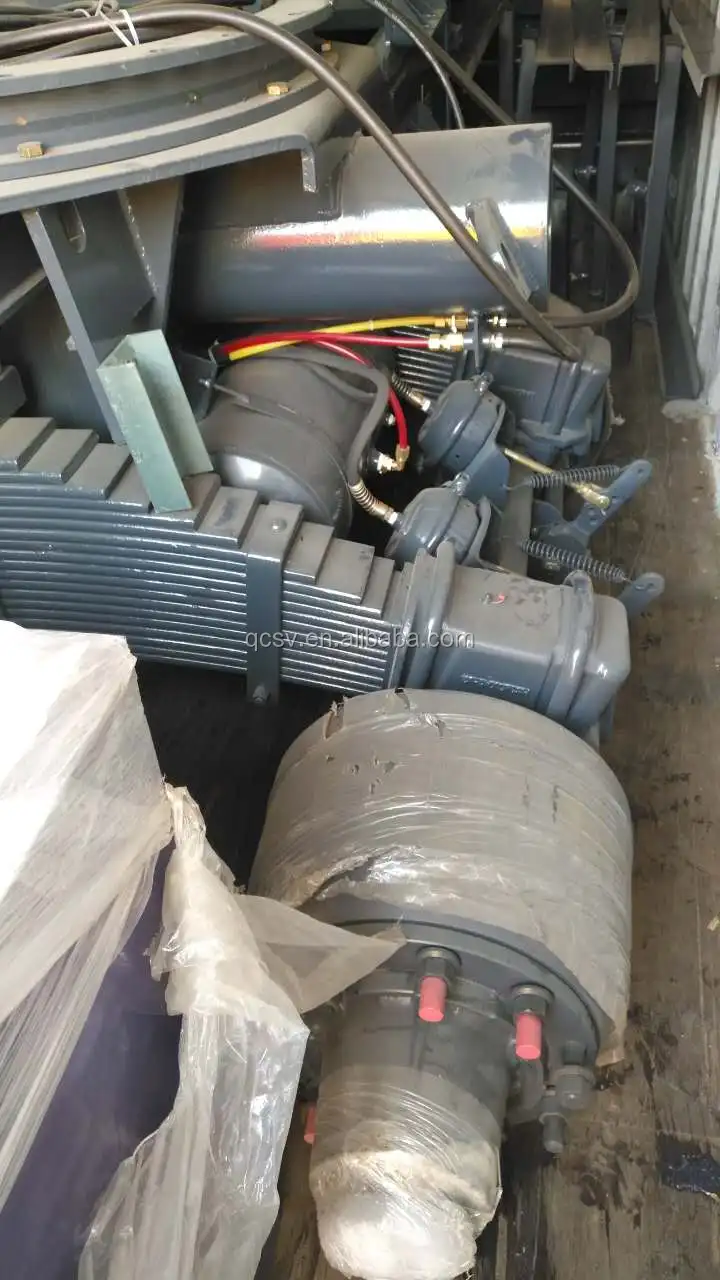

Suspension

32T Bogie suspension.

Axle

16T, ISO10 Holes, two axles

Tire

Linglong Brand, type: 315/80R22.5-18PR , tubeless tyre, equip 8 per chassis

rim

9.0*22.5, ISO10, equip 8 per chassis

spare tire carrier

One set

color

Following customer’s request.

others

l  “LONG VEHICLE” sign on the rear end.

l  LED lights,equip side turn light.

l  Nameplate: English model

l  Side Guard: Standard.

l  Suit for 6X4 truck.

l  Protect for the cab.
