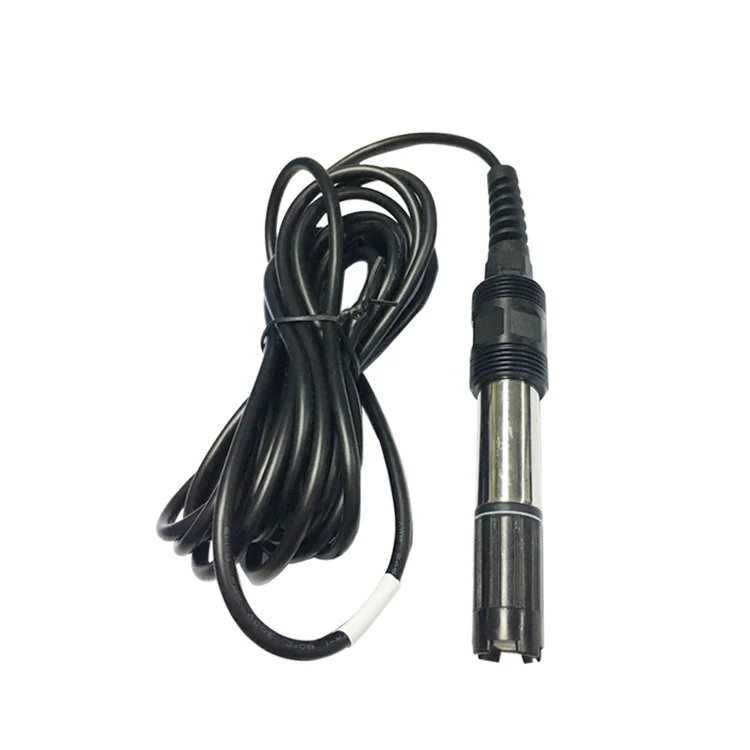

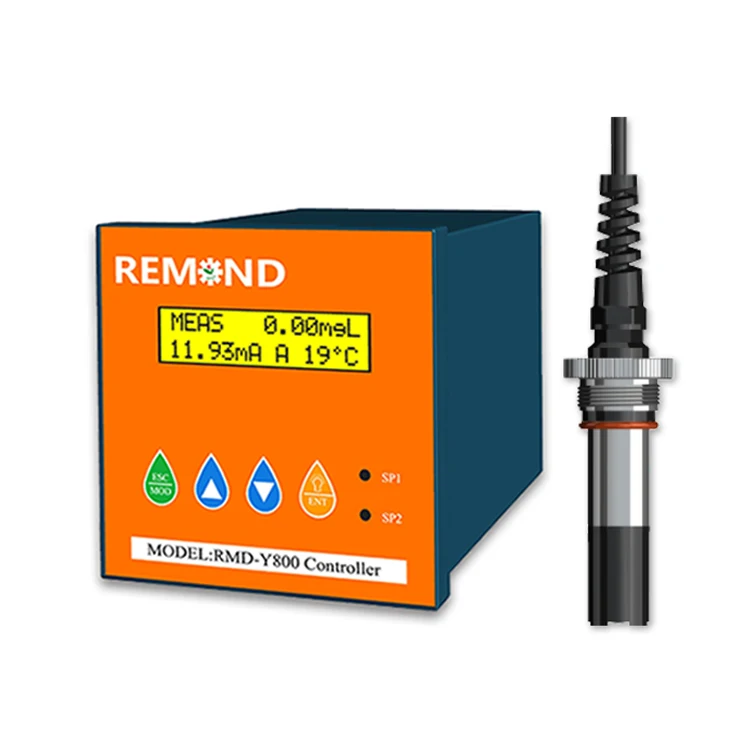

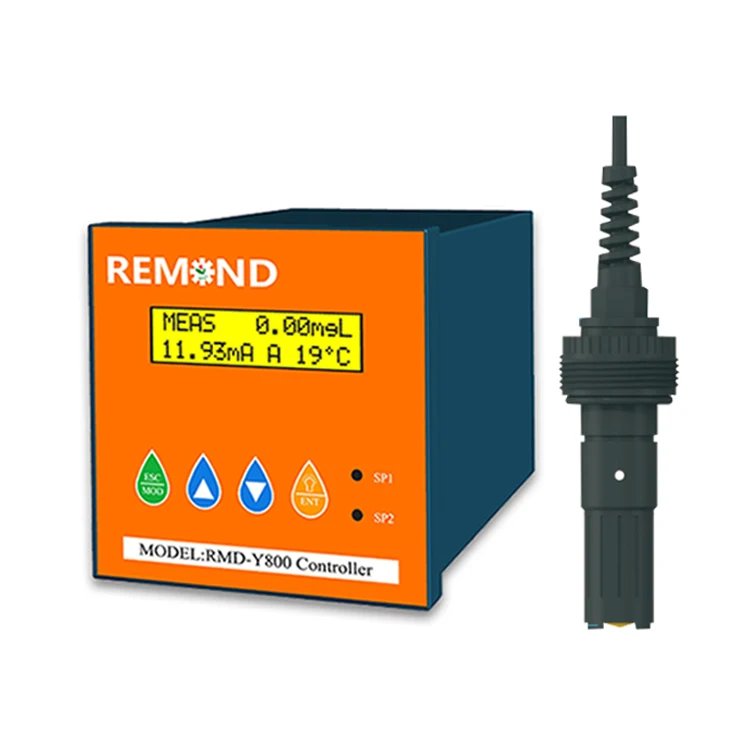

Online residual chlorine controller FCL analyzer free chlorine sensor electrode for swimming pool
- Category: PH Meters >>>
- Supplier: Shanghai Lanchang Automation Technology Co. Ltd.
Share on (60743687055):
Product Overview
Description
Product Description

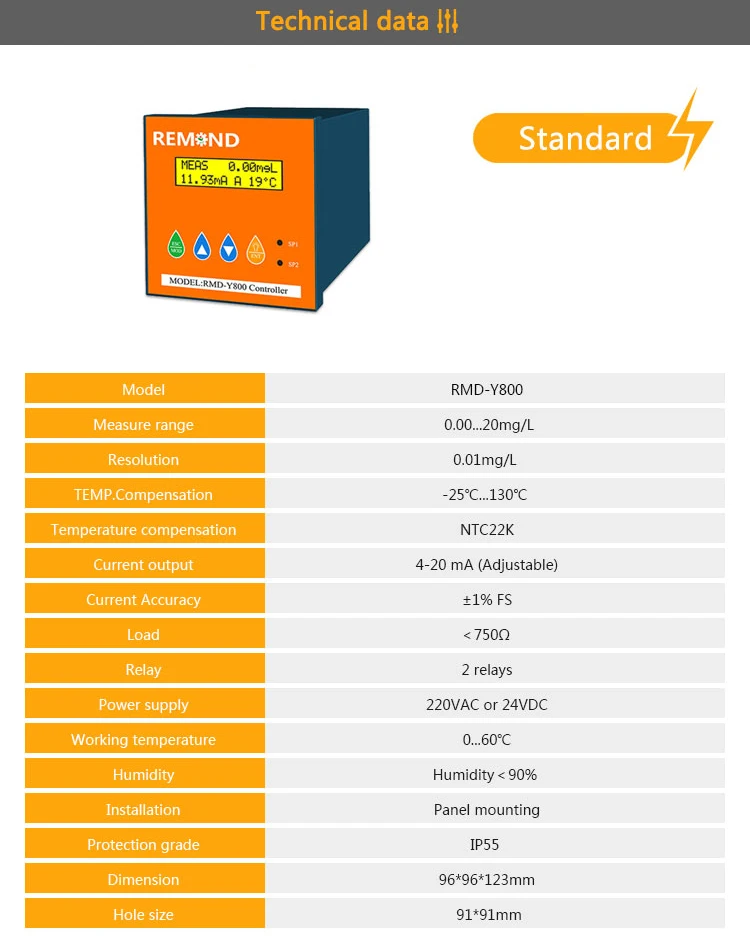

Chlorine meter technical parameter
| Residual chlorine | Measure range | 0.00~20.00mg/L |
| Resolution | 0.01mg/L | |
| Accuracy | 2% or ±10ppb | |
| Temperature | Measure range | -25~130℃ |
| Resolution | 0.1℃ | |
| Accuracy | ±0.3℃ | |
| Temperature Sensor | NTC22K | |
| Temp. Compensation | Automatic/Manual | |
| PH | Compensation range | 4.00~9.00pH |
| Accuracy | 0.01pH | |
| Signal Output | Signal Output | 4-20 mA (Adjustable) |
| Current Accuracy | 1% FS | |
| Load | < 750 Ω | |
| Relay Output | On/Off | 2 SPST Relays |
| Load | 5A 230 VAC/5A 30VDC | |
| Data interface | RS485(Optional) | Compatible with standard MODBUS-RTU |
| Others | Power | 100~240VAC,24VDC |
| Working Temperature | 0~60℃ | |
| Humidity | < 90% | |

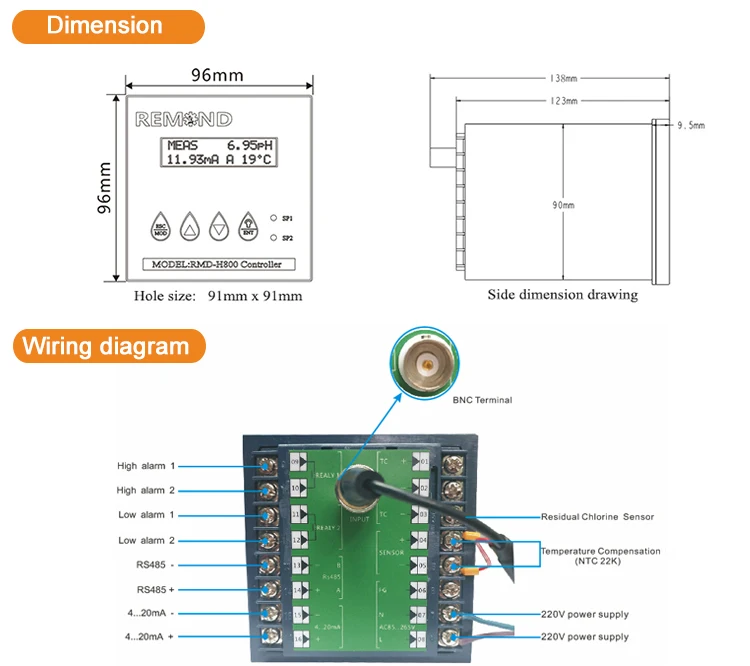

| Dimension | 96*96*138mm(H*W*D) | |
| Hole size | 91*91mm | |
| Weight | 0.5kg |

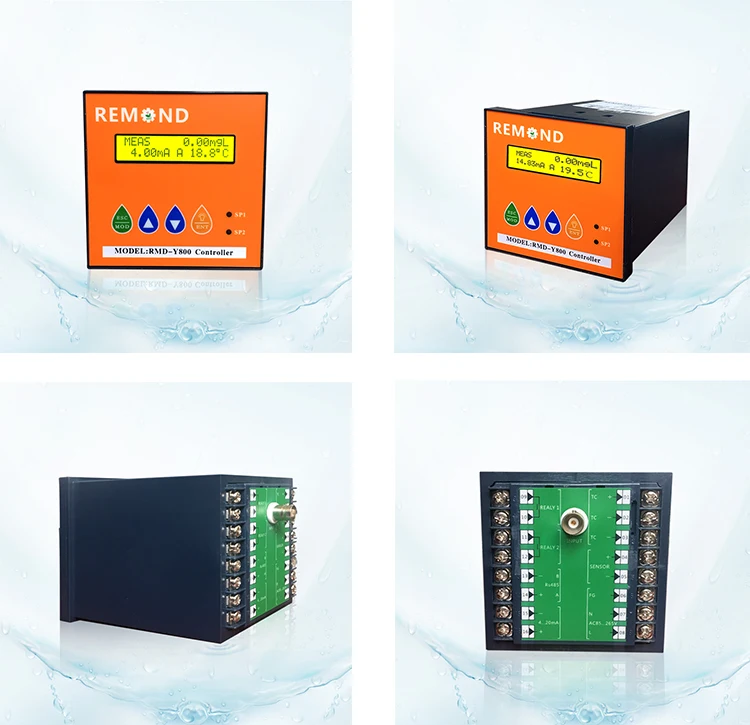

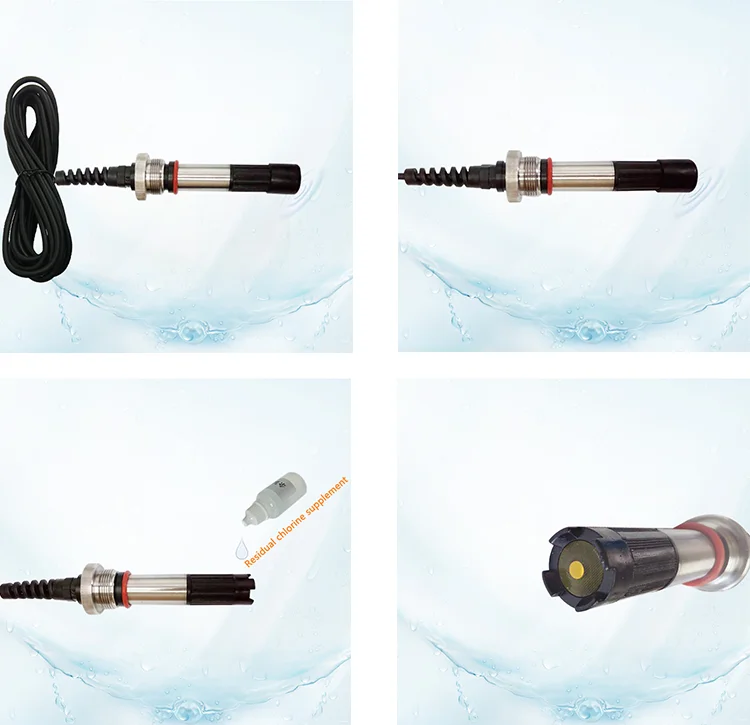

Detailed Images
Related Products
Company Information
Packaging
Standard configuration
Two clips
One residual chlorine controller

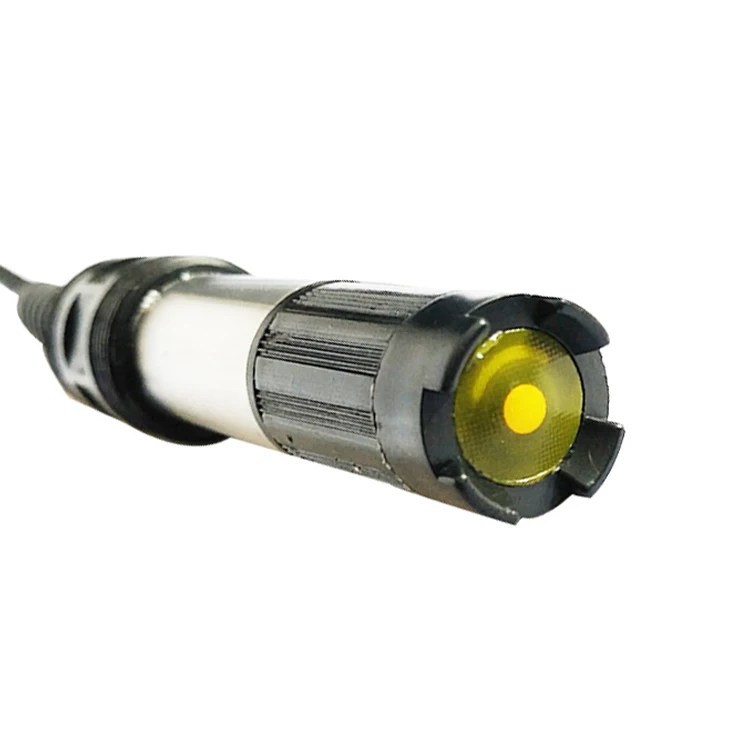

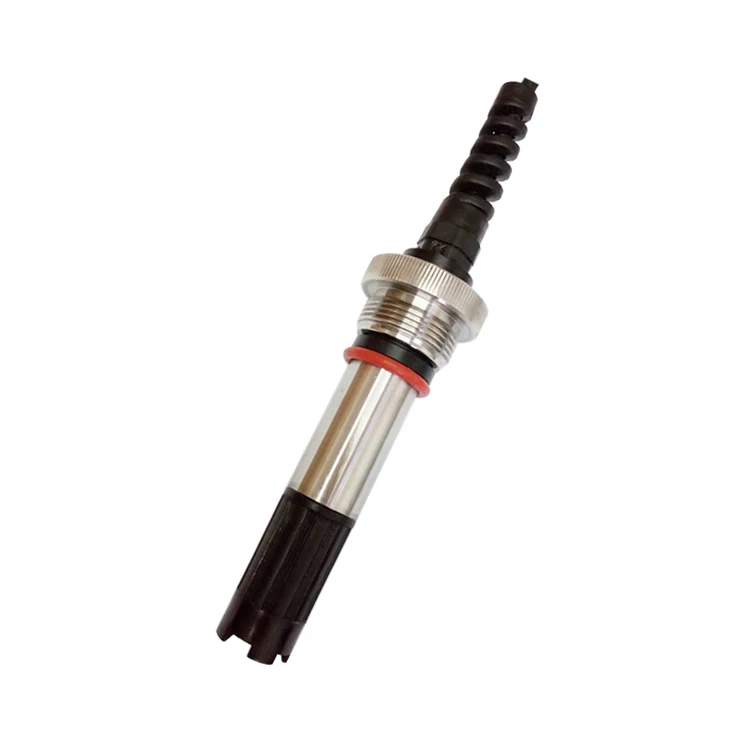

One residual chlorine sensor
One operation manual
Application
Power Plant, Water Plant, Hospital, Drinking Water, Swimming Pool, Sewage Treatment, food Industry, Monitoring of the concentration of hypochlorous acid and residual chlorine in industrial process water disinfection.Detection of residual chlorine in reverse osmosis membrane treatment process.
FAQ
Q: Are you the final manufacturer?
A: Yes, We are manufacturer
Q: Do you offer the OEM order ?
A: Yes, we can offer OEM service and label according to your requirements
Q: How to make payment?
A: We accept T/T , Credit card
Q: Could we visit your factory?
A: Yes, Sincerely invite you to visit our factory
Q:Do you have any discount?
A:Yes, if you buy large quantity, please contact us or send email, we will give you a big discount
Q: What is your delivery time?
A: It is about 5-7 working days since the payment confirmed . If the quantity more than 100pcs , it will need extra 3-5 working days
Q: How long is the warranty of your products ?
A: 1 year warranty
