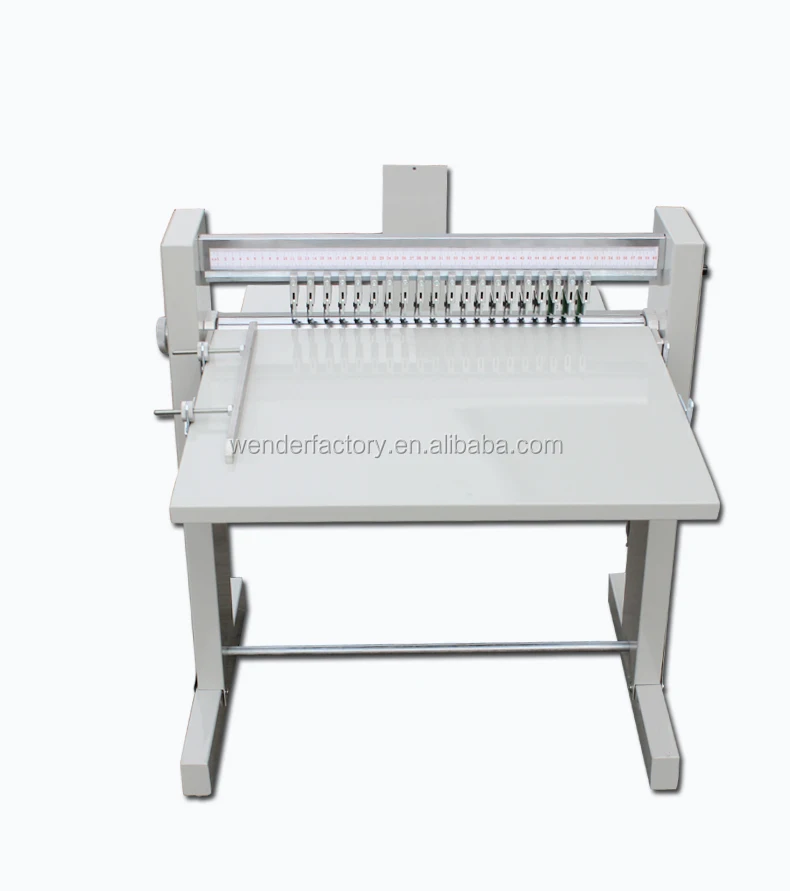

Рулон стикер, разрезая и Перфорационная Машина (WD 600H)
- Category: Paper Production Machinery >>>
- Supplier: Hangzhou Caide Office Equipment Co. Ltd.
Share on (60743776546):
Product Overview
Description
| model No. | WD-H300 | WD-H400 | WD-H500 | WD-H600 |
| power (w) | 90 | 120 | 180 | 180 |
| Max. cutting width (mm) | 300 | 400 | 500 | 600 |
| Min. finish width (mm) | 10 | 10 | 10 | 10 |
| Max. roll blades | 10 | 12 | 15 | 20 |
| speed (times/min.) | 290 | 290 | 290 | 290 |
| blade frame | 10 | 12 | 15 | 20 |
| rolling blades | 6 | 8 | 11 | 16 |
| perforating blades | 1 | 1 | 1 | 1 |
| shaver blades | 1 | 1 | 1 | 1 |
| rubber wheels | 3 | 3 | 3 | 3 |
Rubber roller for guiding the feeding
Half Cut Sticker Label Cutting Machine
Multifunctional:
1.Straight roll cutting for dividing, perforating and creasing paper with different changeable knives.2.The rolling speed can be adjusted from 50 to 290 circles/Min.
Easy operation:
1. Power: 200W. Connect power before operation. The black knob for adjusting rolling speed.
2. Cutting depth adjustment: Feeding the first paper in a half by manual knob in machine side, check the cutting line on the paper. Adjust the cutting depth by turning buckle.
3. Creasing: Add crease knives.
Operation Note:
Operation Note:
1. The knife shafts are equipped on the hexangular slide, do not fix or move the knife shafts too hard.
2. The feeding rubber should go well with knives.
3. The knives should not touch the roller directly.
4. Watch your hand when operation.
5. Regular check the driving belt (see to the user manual).
6. Please connect power with the attached power wire.
