GCD5-100 five torch straight gas cutting machine
US $150.00-$200.00
Economical Portable Gas Cutter with 1800mm Rail
- Category: Gas Cutting Machine >>>
- Supplier: Dalian Fyeboon Technology Co. Ltd.
Share on (60743810702):
Product Overview
Description
Product Info

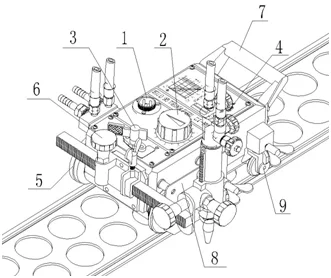

No. | Description | No. | Description |
1 | Electric Outlet: Used for connection of power cable to supply electric power | 6 | Torch Side Handle: This handle adjusts the lateral position of the torch |
2 | Speed Adjuster: Turn the knob clockwise, and the machine will travel faster | 7 | Handle: Hold the handle to carry the machine. As well as for positioning |
3 | Clutch: The lever operation will stop driving | 8 | Heat Shield: The shield protects the machine from the heating flame |
4 | Drive Wheel: Incline the switch in the direction of the arrow to move the machine in that direction | 9 | Idle Wheel |
5 | Drive Wheel: Engage the clutch (ON) to transmit driving power, and the machine will begin to travel |
Main Feature | ||
1 | The main body is made of aluminum of high strength by die-casting | |
2 | Light weight and compact structure to ensure the machine becomes ideal portable machine | |
3 | Speed system adopts mechanical adjustment which can keeps running continuously under high temperature | |
4 | Advanced motor with fan for cooling | |
HK-12 Beetle | ||||||
Straight Rail Length | 1800mm | Torch No. | One flame | |||
Circular Rail Diamater | 900/1000mm | Reduction Gear | Single cone system | |||
Cutting Thickness | 6~100mm | Wheel Distance | 160mm | |||
Dia. of Circle Cutting | 290-540mm | Bevel Angle | I, V (45°) | |||
Cutting Speed | 150-800mm/min | Motor | 1500r/min | |||
Recommend Products
Contact
Exhibition & Feedback
Packing & Delivery
Payment & Service
File Service
Instruction Manual
Installation Video
Video Teaching
Video Teaching
Visual Service
Remotely diagnose problems
Reducing downtime and cost to send a field technician
Reducing downtime and cost to send a field technician
Training
Immense cumulative experience: machine operation, programming, and cutting, CAD/CAM software
Our Company
FAQ
Q1. How can I choose a suitable Portable Gas Cutter?
Just tell us what kind of rail ttype do you need, straight line or circular rail?
Q2. What shall we do if we don't know how to operate the machine after purchase?
We have detailed installation and operating instructions attached. It is very simple and we also have a 24-hour telephone and email support. And our engineers are also available for machinery service overseas but not for free.
Q3. What can we do if the machine has a problem?
24 hours timely response by email and phone calls or engineers overseas service but not for free.
