Economic price 4*4 cnc router 1212 wood carving machine for plastic/acrylic/mdf (60743996010)

Share on:


Price:$2,000.00 - $3,000.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Show




Product Features

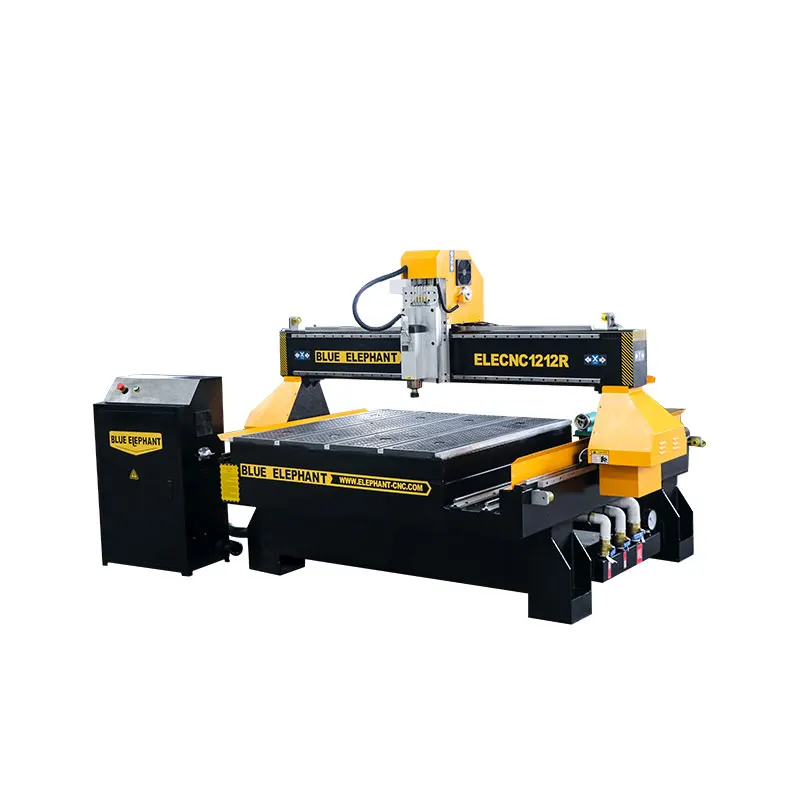

This rotary axis CNC machine is also one of 4 axis CNC router. And the rotary device, as the fourth axis of the CNC router, it can replace the X axis or Y axis for column processing, such as chair frames, stair frames, roman columns, columns, etc.


Product Details






Technical Parameters


Description
Parameter
Lubrication system
Manual Lubrication system
X,Y,Z Working Area
1200*1200*200mm
Structure
New type thicker and bigger heavy duty welded frame and gantry
Working voltage
220V, 3Ph, 60Hz (optional: 380V)
Table Surface
Vacuum and T-slot table
Spindle
3.5KW HQD air cooling spindle
Spindle speed
0-18000rpm
X, Y Structure
Taiwan PMI #20 linear square guide way and helical rack
Z Structure
Taiwan TBI Ball screw and Taiwan PMI #20 linear square guide way
Motor and driver
FL118 stepper motor Leadshine 860H driver
Inverter
3.7 kw Fuling inverter
Control System
Mach 3 control system with USB port
Vacuum pump
5.5kw water circulation vacuum pump
Software Compatibility
Artcam Software
Tool sensor
Manual tool sensor calibration


Applied Industries




Applied Materials







Quality control




Related Video






Service Process




Company Information


Jinan blue elephant is in the manufacture of automated CNC Router machine, CNC laser machine and other CNC equipments. Our main products include: ATC CNC router, 4 axis CNC router, 5 axis CNC, customized furniture production line, CNC nesting machine, metal laser cutting machine, CNC five-sided drilling, six-sided drilling, CNC machining center, automatic drilling machine, foam/eps cnc machine, plasma cutter, laser cnc, stone cnc etc .








Feedback


We are able to provide satisfied service of cnc router machine and laser machine for customers all over the world, with more than 10 years experience in Jinan city, China.
