Product Description

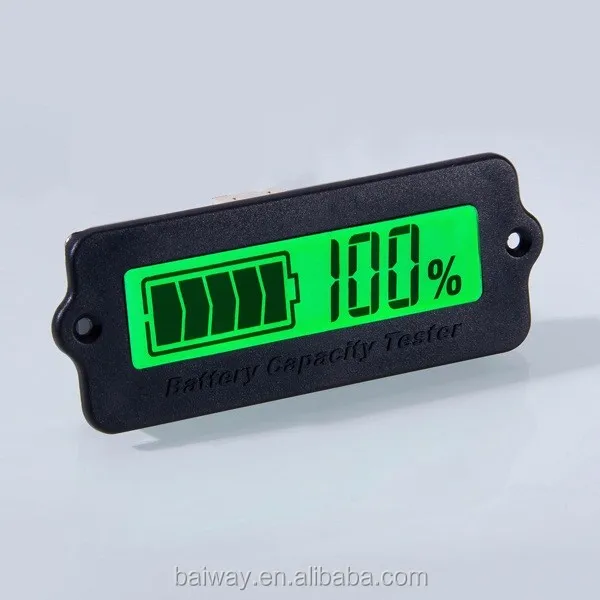

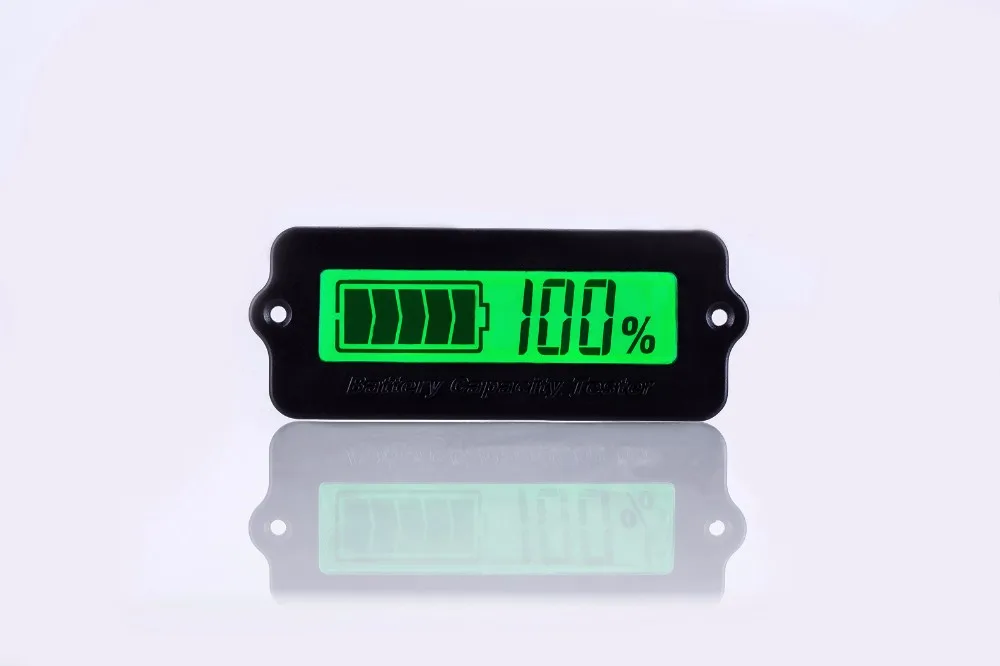

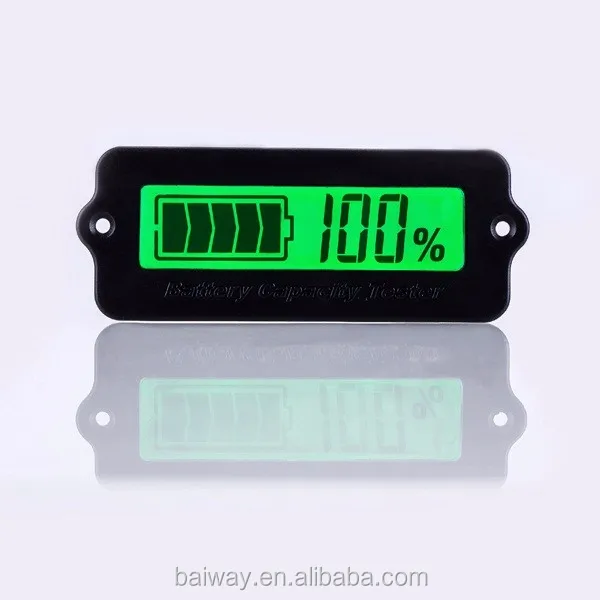

LY6W is a kind of voltage-type battery tester, LY6W can test the capacity of Lead-acid battery and Lithium-ion battery, and display the capacity with intuitive battery symbol and percentage. Users can know the state of battery in time. It is suitable for mobile and portable equipments,electric vehicles,ebike,balance cars,cleaning machines,instruments,measuring equipments and so on.

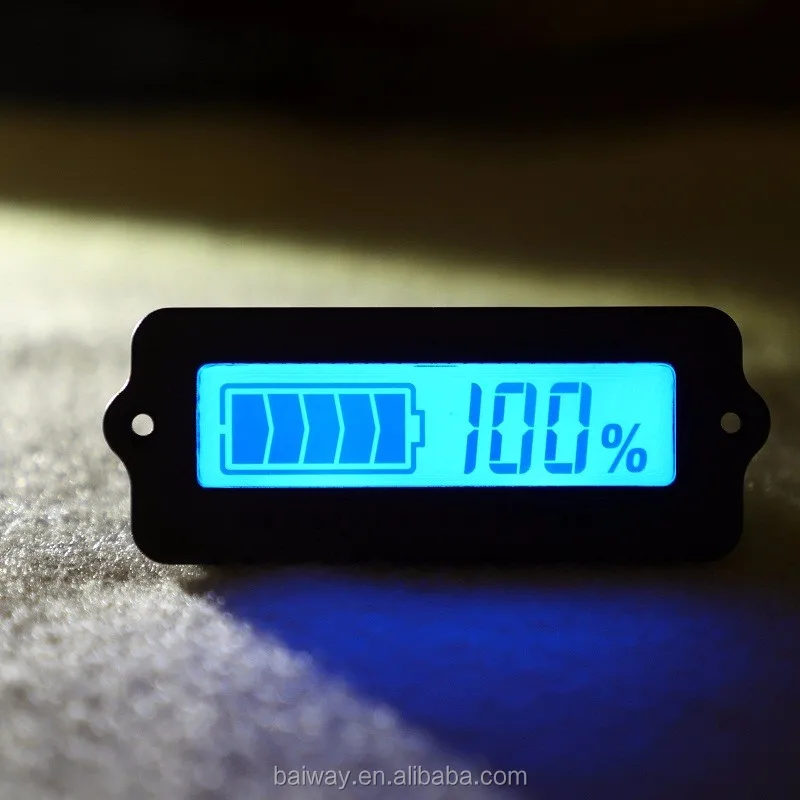

Blue light style  (Conventional, in stock)

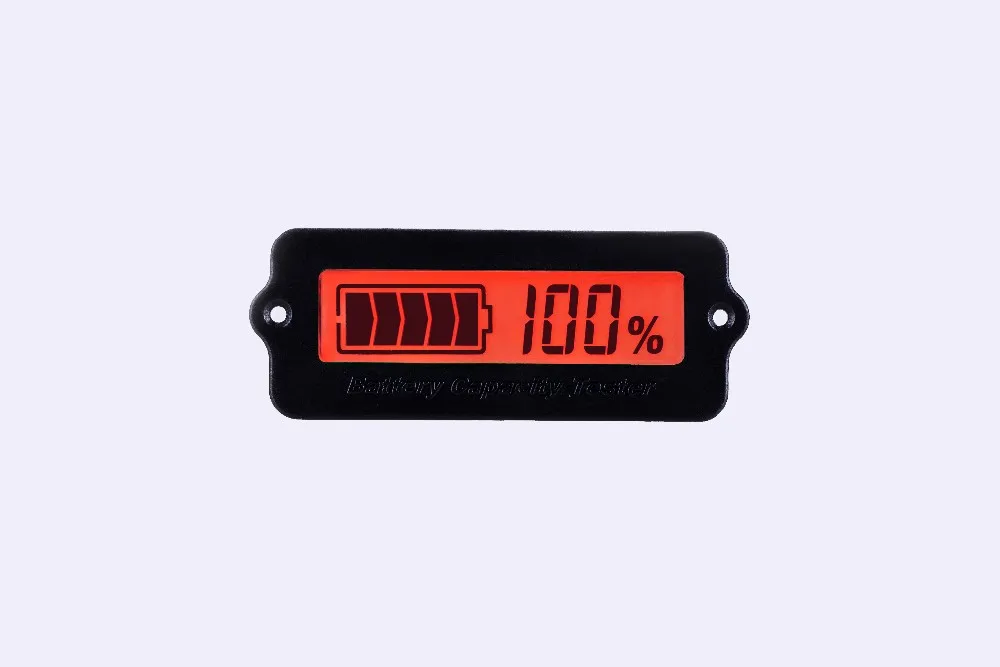

Red light style (no spot, other colors can be customized, there is a production cycle)

Applification

Lead-acid battery:12V, 24V, 36V, 48V
Lithium-ion battery:3Cells~15Cells(Except Lithium iron phosphate battery)
Note: Other specifications (1cell, 2cells and more than 15 cells) should be customized, and the specifications can't be adjusted.

\t
Parameter
\t
Min
\t
Type
\t
Max
\t
Unit
\t
Working voltage
\t
8.0
\t
\t
63.0
\t
V
\t
Working power
\t
\t
\t
5.0
\t
mA
\t
Using temperature
\t
0
\t
25
\t
40
\t
℃
\t
Size
\t
60*23*15
\t
mm
\t
Weight
\t
15
\t
g
Dimensions
Installation diagram

Specification adjustment :

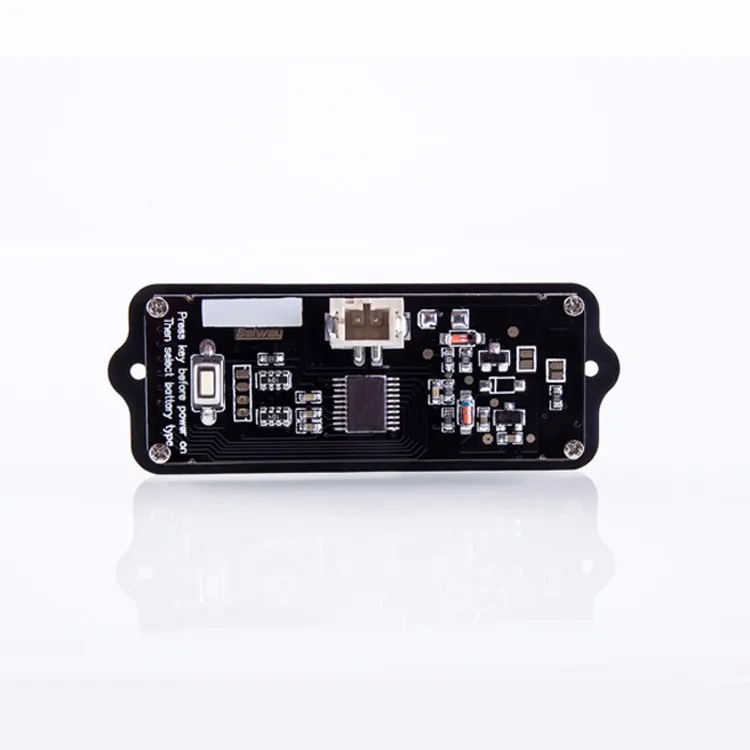

Press and hold the down key on the back when turn off, then power on. LCD displays the present specification. Then use the key to adjust specifications, select suitable specification you need, then turn off and power on again. The battery tester will be work normally (correspond code as below form).

\t
Lithium-ion Battery
\t
Code
\t
Lead-acid
\t
Code
\t
3 cells
\t
3 C
\t
12V
\t
1 P
\t
4 cells
\t
4 C
\t
24V
\t
2 P
\t
5 cells
\t
5 C
\t
36V
\t
3 P
\t
6 cells
\t
6 C
\t
48V
\t
4 P
\t
7 cells
\t
7 C
\t
\t
\t
8 cells
\t
8 C
\t
\t
\t
9 cells
\t
9 C
\t
\t
\t
10 cells
\t
10 C
\t
\t
\t
11 cells
\t
11 C
\t
\t
\t
12 cells
\t
12 C
\t
\t
\t
13 cells
\t
13 C
\t
\t
\t
14 cells
\t
14 C
\t
\t
\t
15 cells
\t
15 C
\t
\t

Connection:

 The battery tester provides a connector consists of plug, black line and red line. Connect the black line to the negative, the red line to the positive, the plug to the socket of battery tester. Then, power on or turn on the switch, it will be work. As shown below:

Our Company

 Shanghai Baiway electronic CO., LTD was founded in 2009. Our company has been focused on the production, design and development of battery applications for years, have rich experience.
The company has a strong development of technical strength, and constantly introduce new products to meet the needs of various customers. Shanghai Baiway electronics Co., integrity, strength and quality of products recognized by the industry. Welcome friends from all walks of life come to visit, guidance and business negotiation.

High quality partner

Our products have been unanimously confirmed by users and established a good long-term cooperation relationship.

Order Process

From the time the order is established, the order information is transferred to the warehouse, the warehouse starts to pick according to the order information, (usually in stock, large batch orders are determined in advance for the delivery cycle), and then the electricity is turned on for product inspection, and after the test, the packaging is started and the box is sealed. The goods will be delivered to your hands through logistics.


Company environment


Certifications
Packing & Delivery

Packing

5 pieces a ground, packing with shielding bag, weight 76g.

Delivery

We can send goods off by sea, land, air and express according to you need.

Receiving:

Please make sure the goods are in good condition before sign for.Please contact us if you have any question about the products.
