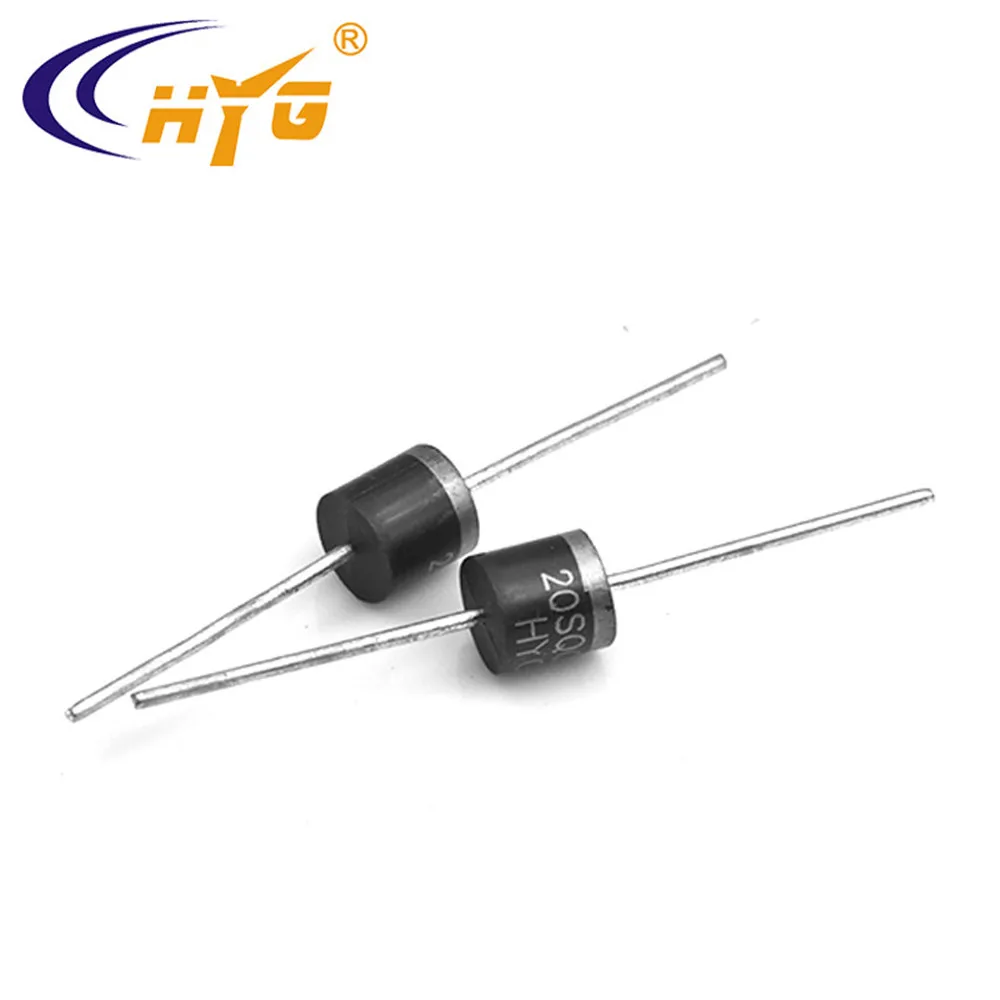

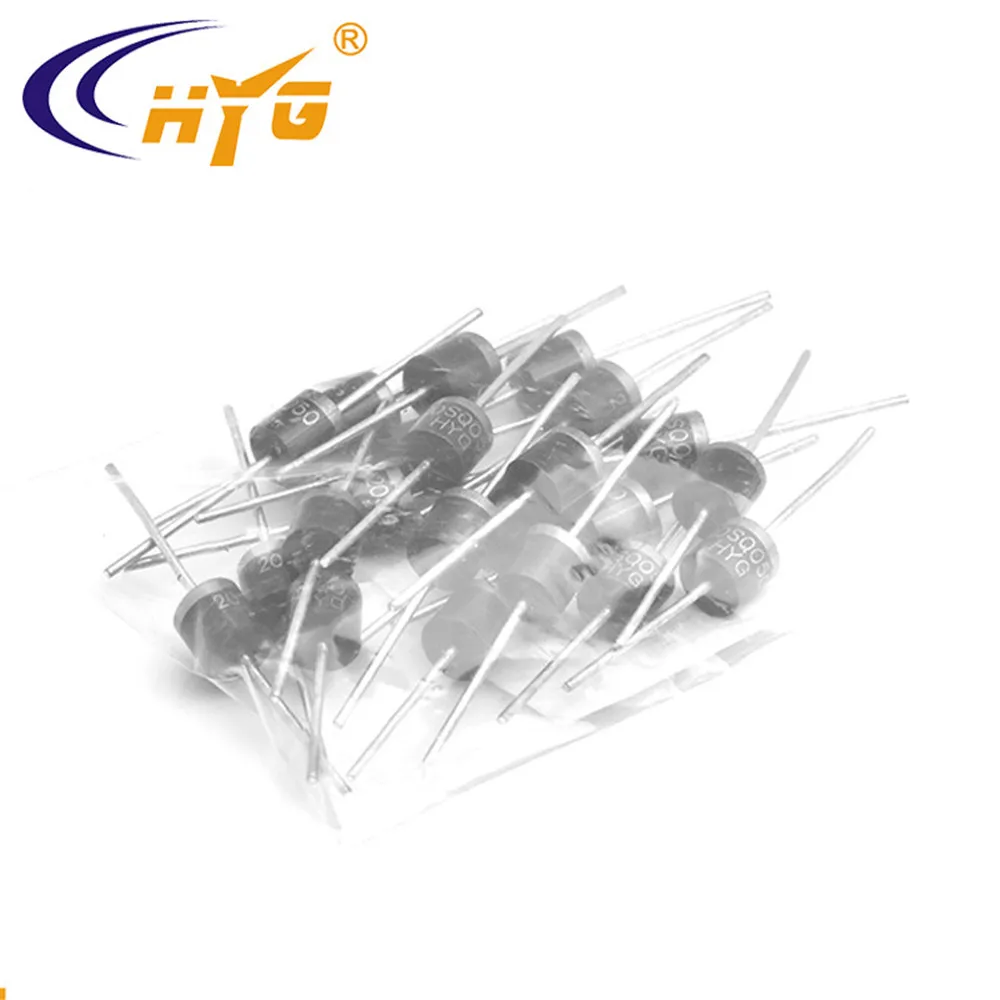

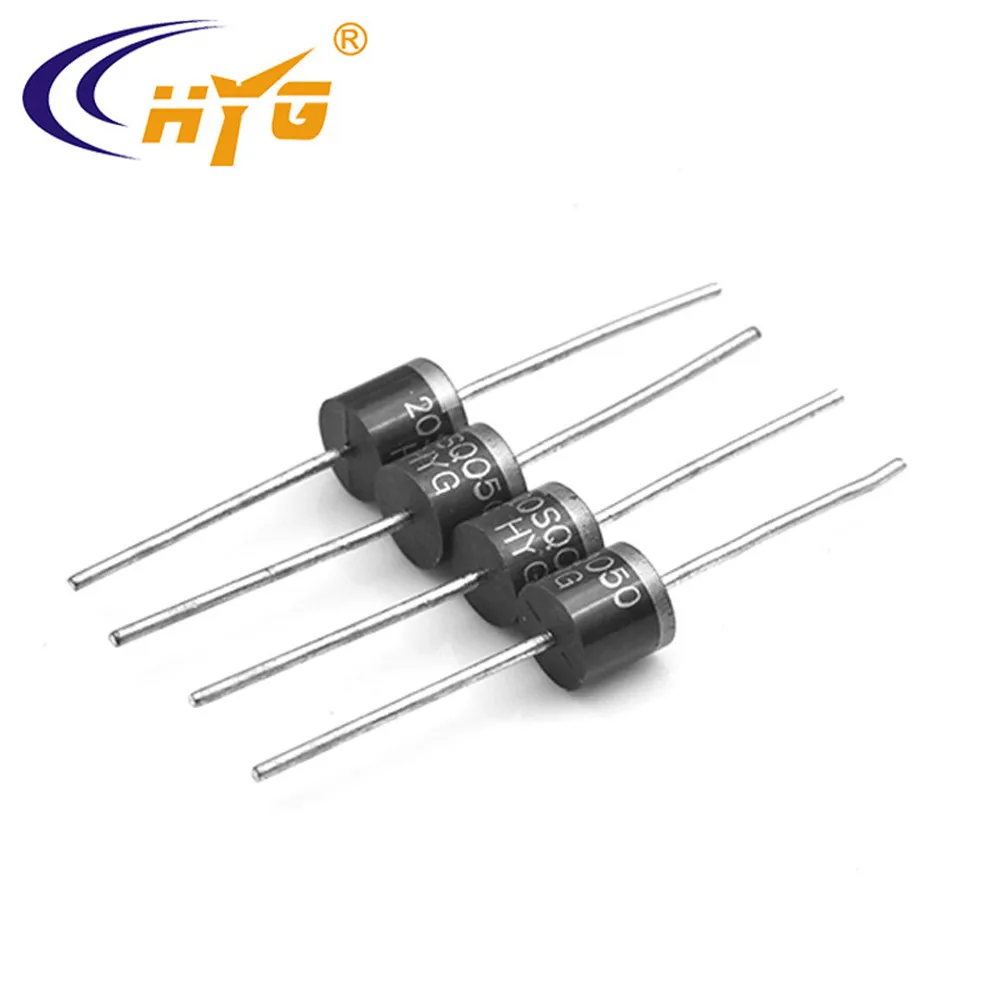

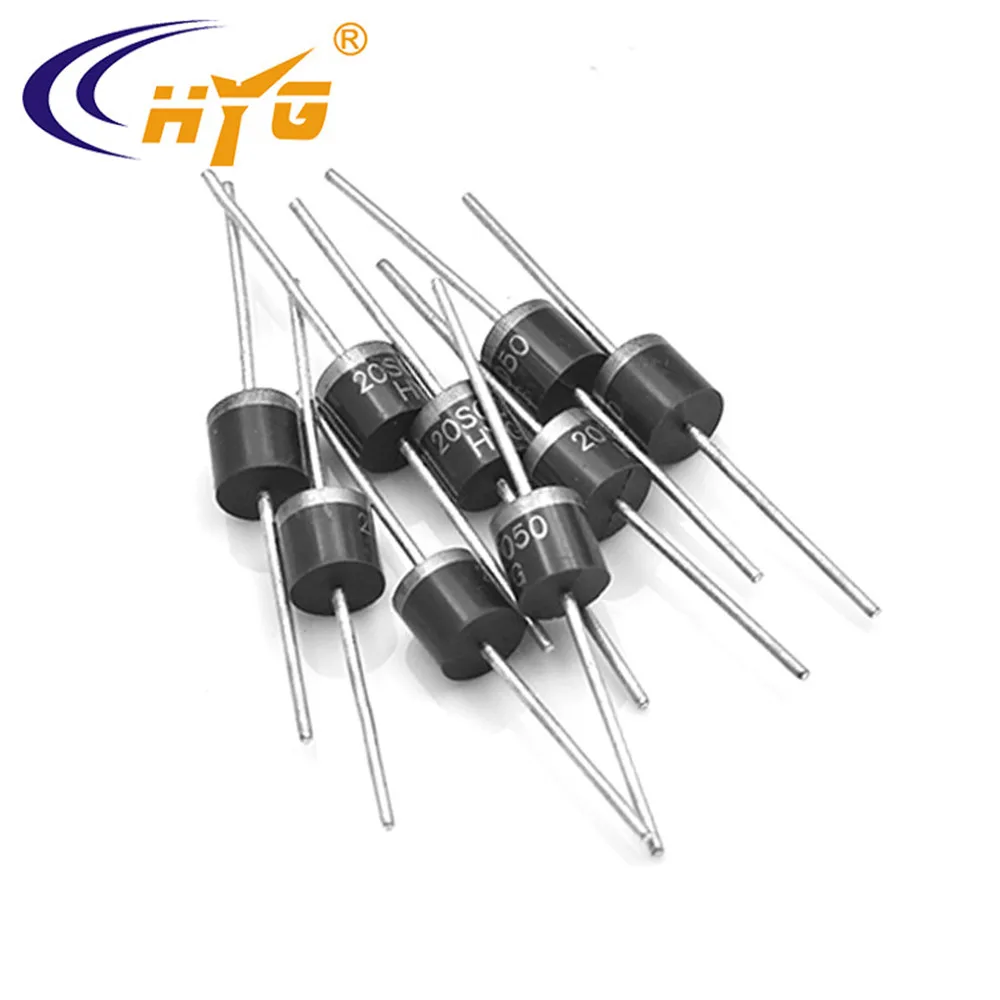

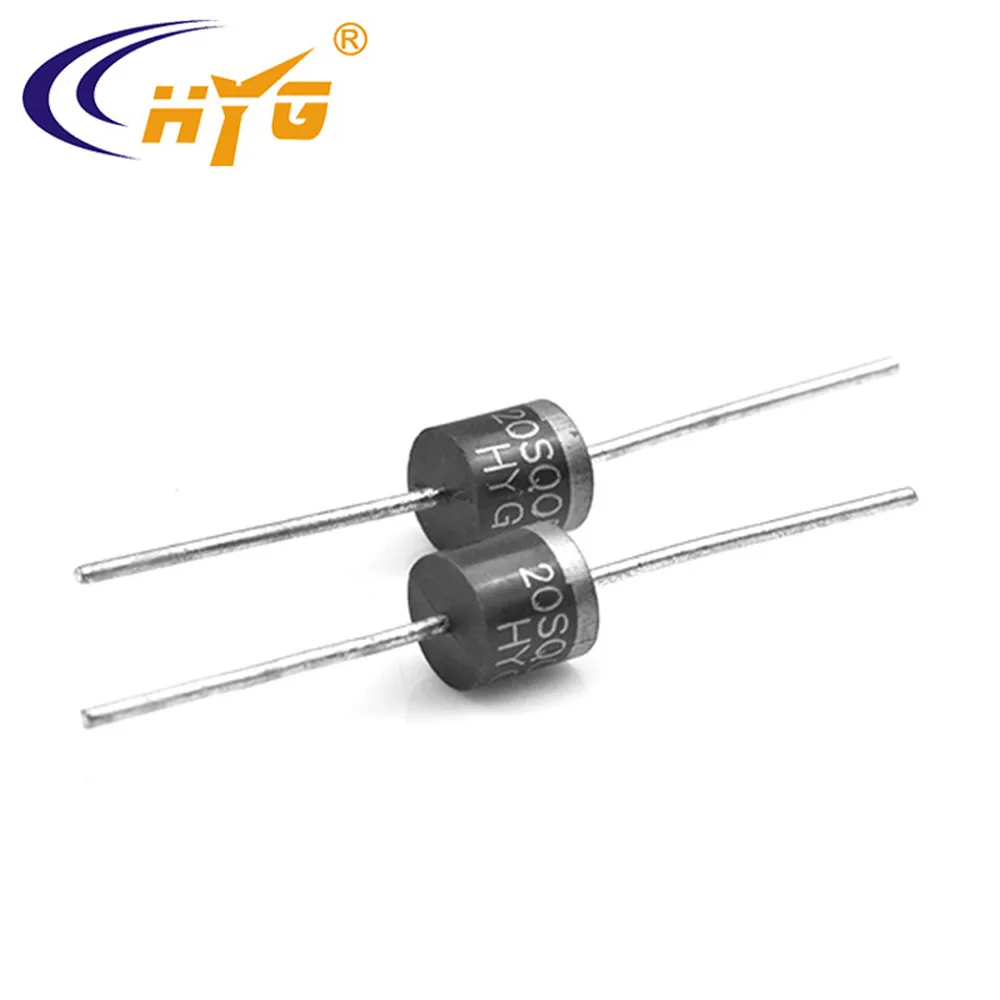

20SQ050 20A 50V solar junction box schottky diode solar panel bypass diode Schottky rectifier diodes 20sq050
Popular products
Picture Show
Product Description
Specification:
15SQ030 thru 15SQ100
SCHOTTKY BARRIER RECTIFIERS
REVERSE VOLTAGE -30 to 100Volts FORWARD CURRENT -15.0 Amperes
FEATURES
Metal of silicon rectifier , majority carrier conduction
Guard ring for transient protection
Low power loss,high efficiency
High current capability,low VF
High surge capacity
For use in low voltage,high frequency inverters,free wheeling,and polarity protection applications
MECHANICAL DATA
Case: JEDEC R-6 molded plastic
Polarity: Color band denotes cathode
Weight: 0.07 ounces , 2.1 grams
Mounting position: Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified. Single phase, half wave ,60Hz, resistive or inductive load. For capacitive load, derate current by 20%
CHARACTERISTICS
SYMBOL
15SQ
030
15SQ
035
15SQ
040
15SQ
045
15SQ
050
15SQ
060
15SQ
080
15SQ
100
UNIT
Maximum Recurrent Peak
Reverse Voltage
VRRM
30
35
40
45
50
60
80
100
V
Maximum RMS Voltage
VRMS
21
24.5
28
31.5
35
42
56
70
V
Maximum DC Blocking Voltage
VDC
30
35
40
45
50
60
80
100
V
Maximum Average Forward
Rectified Current@Tc=95 ℃
I(AV)
15.0
A
Peak Forward Surage Current
8.3ms single half sine-wave super
imposed on rated
load(JEDECMethod)
IFSM
275
A
Peak Forward Voltage
at 10A DC(Note1)
VF
0.55
0.7
0.8
V
Maximum DC Reverse
Current @Tj=25℃ at Rated DC Bolcking
Voltage @Tj=100℃
IR
0.5
50
mA
Tyical Junction Capacitance (Note2)
CJ
450
pF
Tyical Thermal Resistance (Note3)
RqJC
3.5
℃/w
Operating Temperature Range
TJ
"-55--+200
℃
Storage Temperature Range
TSTG
"-55--+200
℃
Notes: 1.300us Pulse Width, 2%Duty Cycle. 2.Measured at 1.0 MHZ and applied reverse voltage of 4.0VDC. 3.Thermal Resistance Junction to case.
