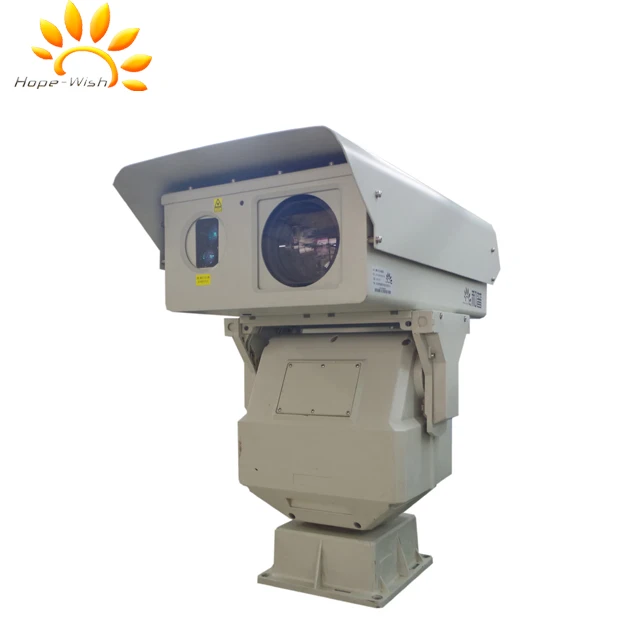

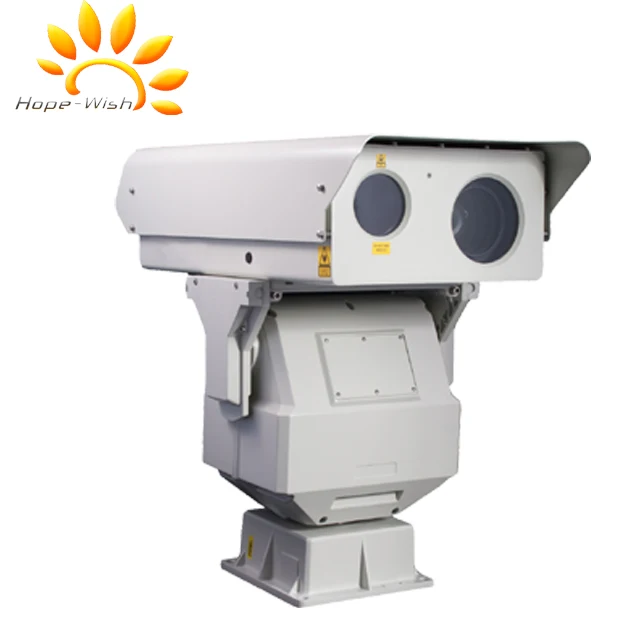

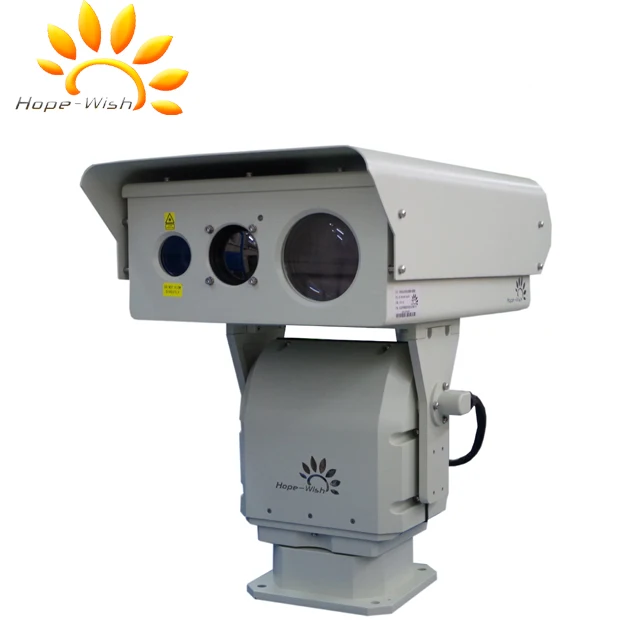

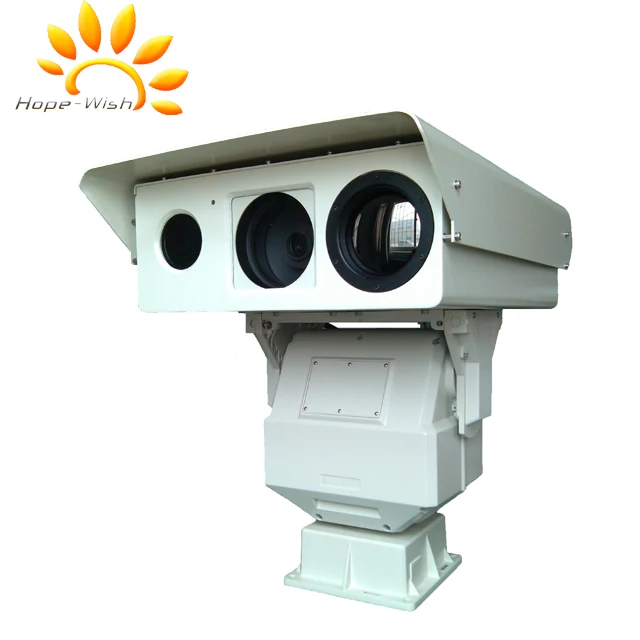

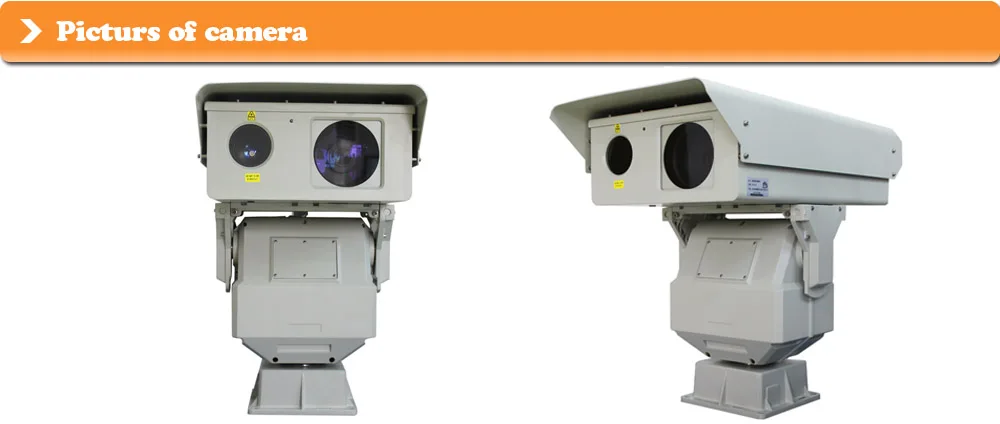

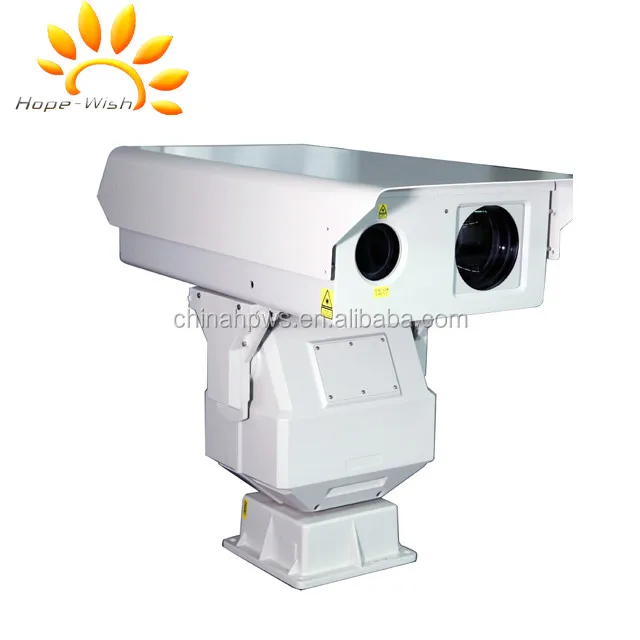

62X Zoom PTZ infrared Laser camera
- Category: Surveillance Systems >>>
- Supplier: Jinan Hope-Wish Photoelectronic Technology Co. Ltd.
Share on (60744615768):
Product Overview
Description
62X zoom long range detection color day night PTZ security camera
Feature

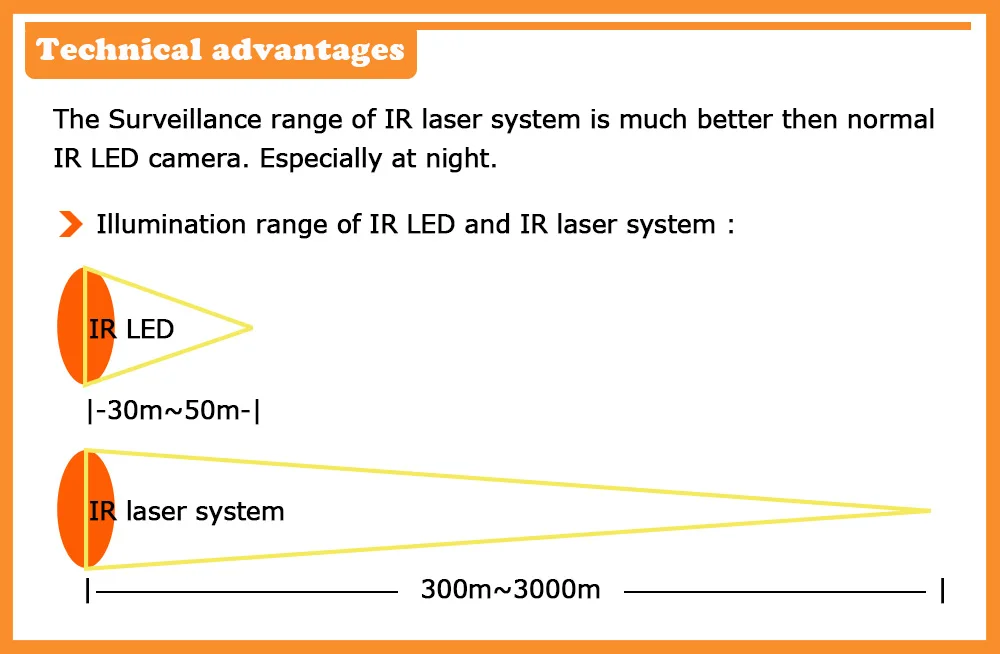

Illumination distance 1000~3000m.

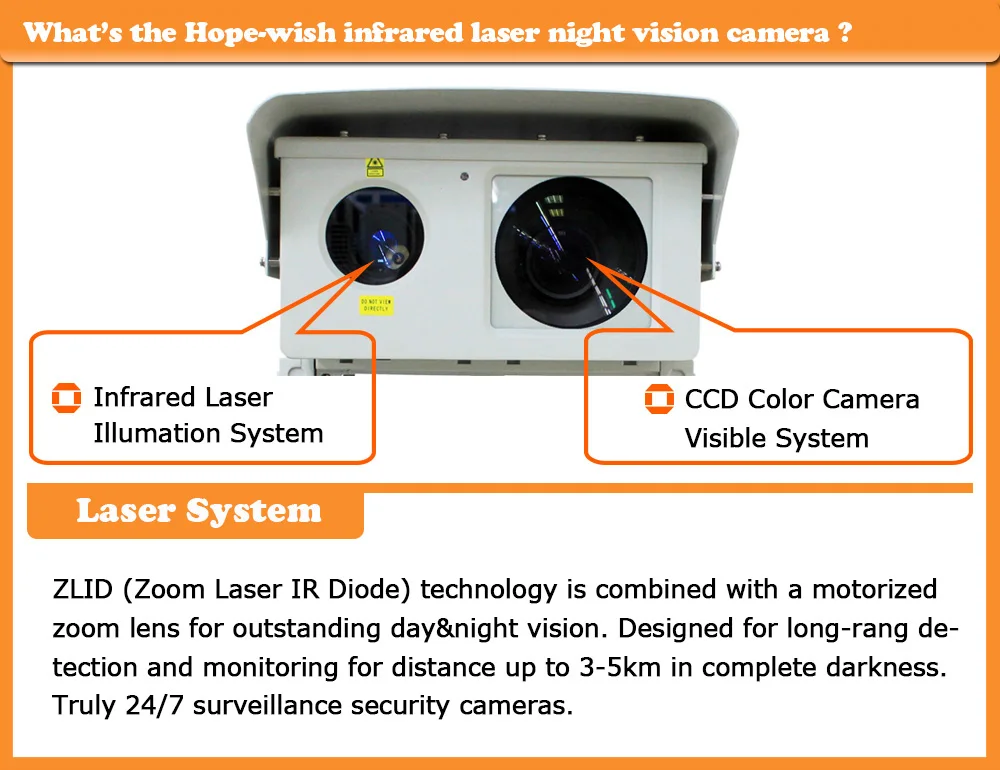

ZLID (Zoom Laser IR Diode) technology allows the synchronization of illuminating angles of NIR laser illuminator and the imaging range of camera..
The NIR illumination GHT enables to illuminate more evenly which helps provide a more smooth and detailed image.

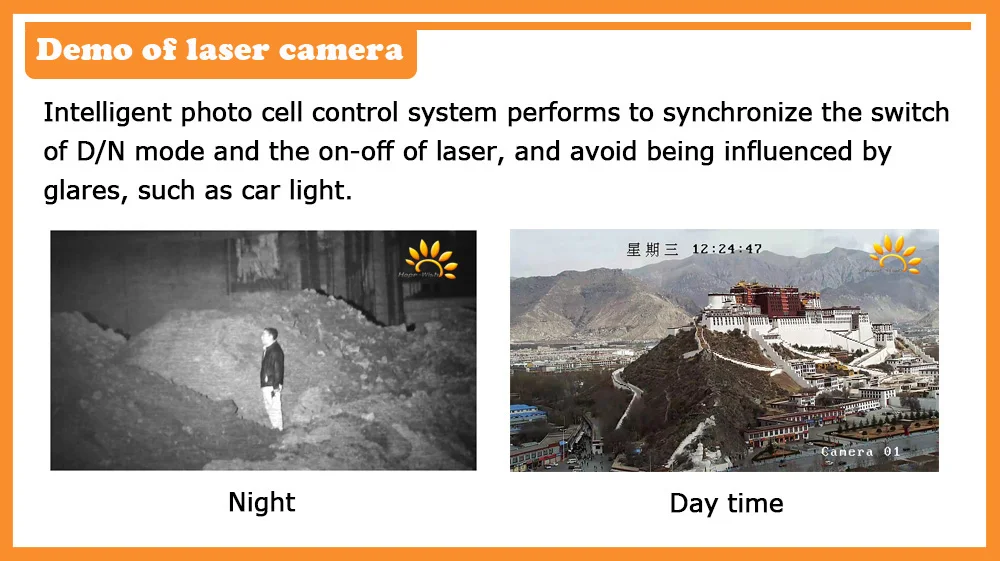

Intelligent analysis functions-avoid headlight influence.
The 360°continuous PT with high load duty provides stable image and ensures that every corner is covered .
IP66 rated aluminum alloy enclosure, anti-dust and water-resistant .
Technical specification
Model | RC2075VB | ||||
Detection | Day: 5km | ||||
Night: 2km | |||||
Consumption | 15W,808nm, NIR | ||||
Laser angle | 0.5°~20° | ||||
Angle and distance matching | DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming | ||||
GHT-II super homogenizing HD illumination technology | |||||
0.01°SLM optical axis aiming and locking | |||||
Camera | 1/2.8'', 0.005lux high sensitive color to B/W CCD ,2 megapixel | ||||
Automatic ICR switch,H.264 video format | |||||
Lens | 25-750 mm HD lens, large apertureinfrared correction,2 mega pixels, motorized zoom | ||||
Penetrate fog | Optional, optical filtering and AFR optoelectronic enhanced image processing technology, color penetrate fog | ||||
Housing | One integral aluminum alloy housing,sealed and waterproof,IP66 | ||||
Load duty | 30kg | ||||
PT | Pan: 360°continuously | ||||
tilt: +45°~-45° | |||||
Rotation speed | Pan: 0.01~30°/S | ||||
Tilt: 0.01~15°/S | |||||
Preset | 80, with patrol and scan function | ||||
Interface | 1*RJ45,1*AC24V | ||||
Power supply | AC24V±10%,50Hz,150W,standard configuration AC220V->AC24V adapter | ||||
Weatherproof | IP66 | ||||
Anti-lighting | Power voltage 4000V,communication signal 2000V | ||||
Protocol | Pelco-P,Pelco-D and so on standard protocol, baud rate 2400,4800,9600,19200 | ||||
Operational temp. | -25℃~+55℃ (-40℃ optional) | ||||
Weight | ≤40kg | ||||
* The detection distance is related to the object and environment etc. Please contact with us for further information.
Contact US
Cameras and systems can be completely custom built to meet your exact requirements.
We will provide you excellent service.
