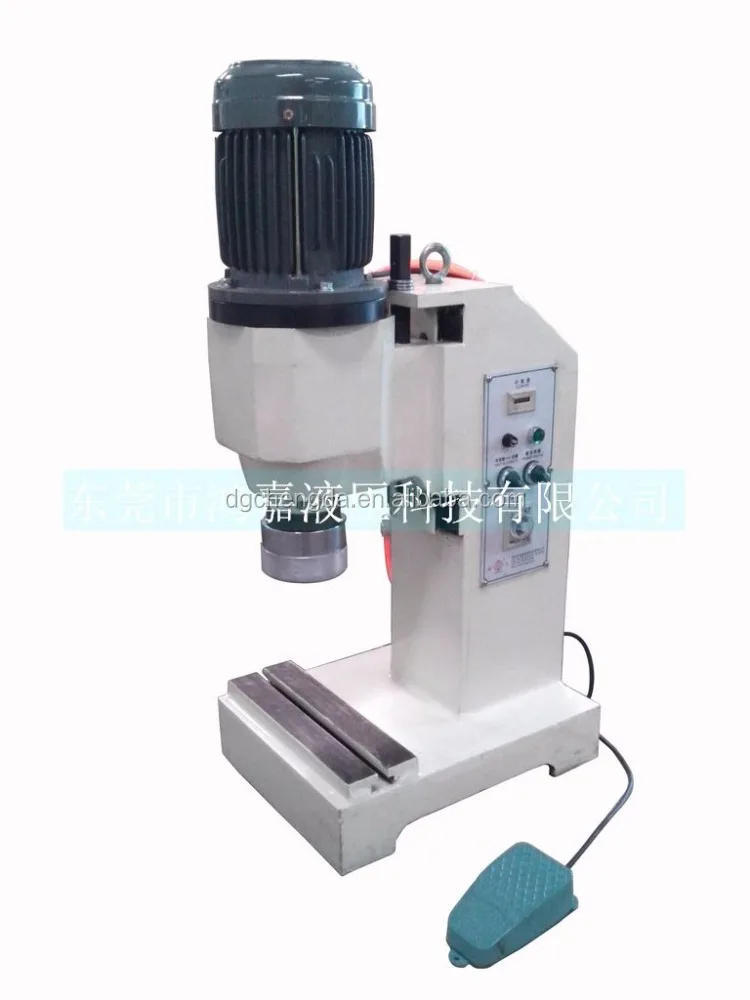

CD table type pneumatic orbital riveting machine
- Category: Riveting Machine >>>
- Supplier: Dongguan Chengda Machine Technology Co. Ltd.
Share on (60745240496):
Product Overview
Description
Product Description

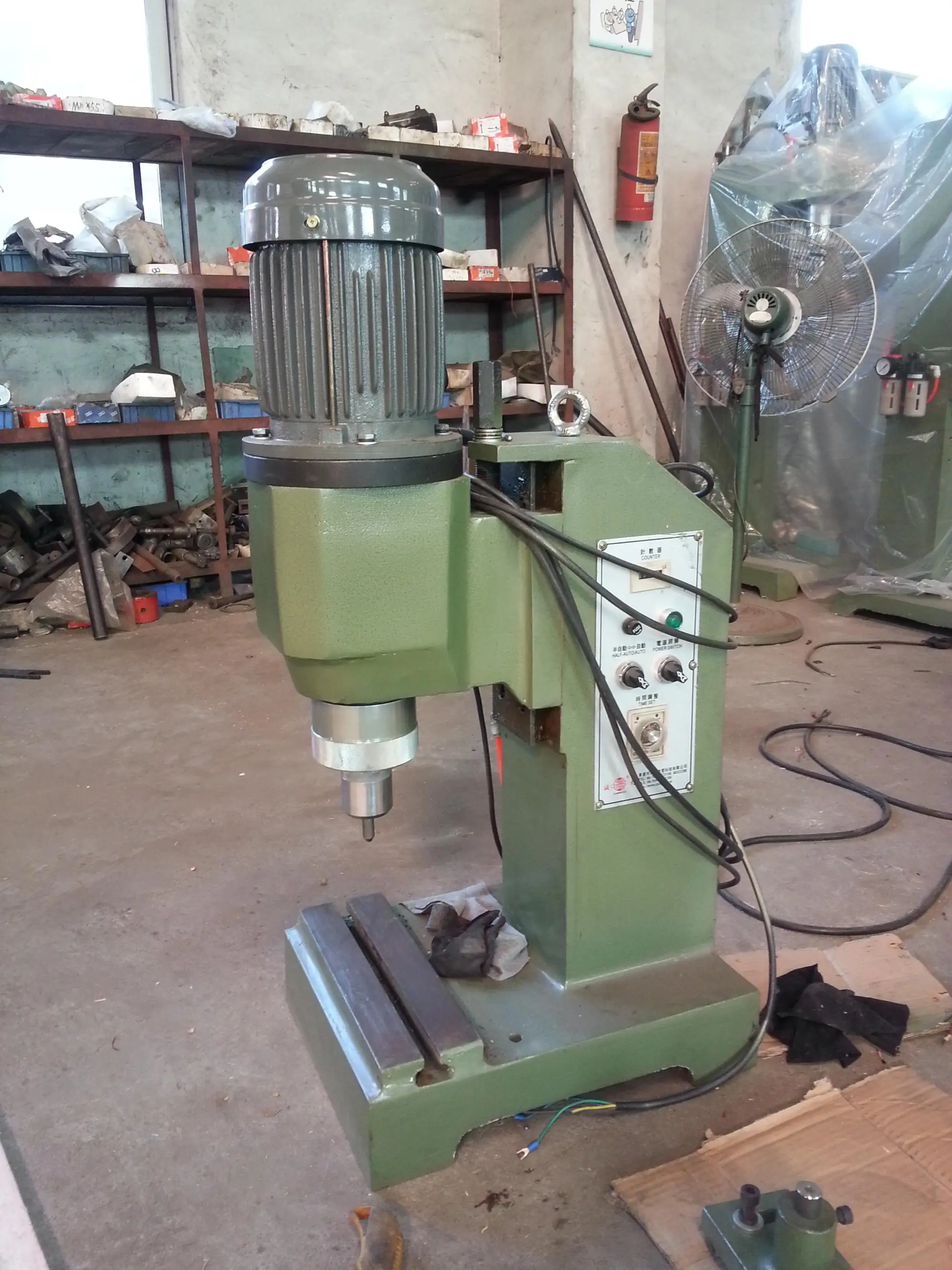

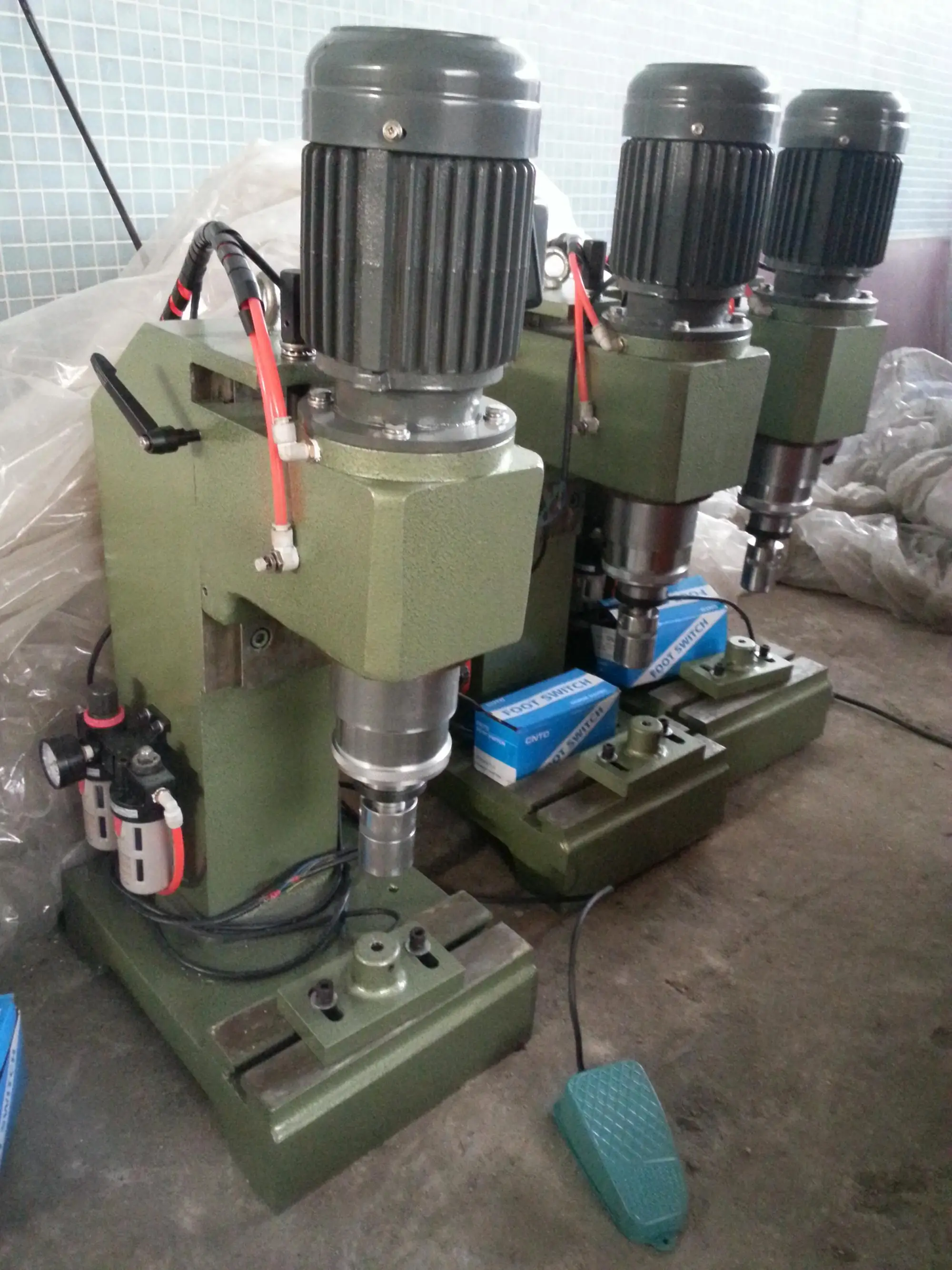

CD-JQL Pneumatic orbital riveting machine
1.Manual or auto-operation is adjustable. Easy to operate, no skilled operator is required, even inexperience male/ female workers can operate.
2.competitive price and high quality
Specific description:
Air consumption | 5.8NL |
Stroke of spin head | 20~60mm |
Riveting capacity | Φ2~6mm(solid) Φ2~10mm( hollow) |
Throat depth | 130mm |
Motor | 1HP 1 or 3Phase |
Gauge pressure(Kgf/cm2) | 2~8kgf/cm2 |
Max.output(kgf) | 960kgf |
Working cycle time(second) | 0.5~5 |
Net weight | 200kgs |
Gross weight | 260kgs |
Machine dimensions(L*W*H) | 500*460*1650mm |
