Rod Eye End LVDT actuated position displacement sensor 10mm 50mm 75mm 150mm 200 300mm
- Category: Sensors >>>
- Supplier: HT Sensor Technology Co. Ltd.
Share on (60745846199):
Product Overview
Description
T-PTS16 POSITION TRAVEL SENSOR (LVDT)
◆T-PTS16 10mm~300mm
◆Diameter 16mm
◆ Rod Eye End Linear Actuated Position Travel Sensor Application for (LVDT) is widely used in aerospace, machinery, textile, construction, railway, coal, metallurgy, plastics, chemical industry and scientific research institutions such as the national economy, is used to measure the elongation, vibration, the thickness of the object, the expansion of high technology products.
Specifications
Stroke length | 10,15,25,30,30,75mm | 100~300mm | |
Linear Precision (±%FS): | ±0.1% | ±0.05% | |
Resistance (±10%): | 1ΚΩ | 5ΚΩ | |
Effective Stroke: | range+3mm | ||
Repeatability Precision: | 0.01mm | ||
Max Speed: | 5m/S | ||
Recommended Current: | ≤1mA | ||
Temperature Range: | -60℃~+150℃ | ||
Output: | 0~100% × input voltage (change with the movement of the rod) resistance output | ||
Note: | If power is 5V, the output is 0~5V basic on the change of stroke legth. If power is 10V, the output is 0~10V basic on the change of stroke legth. If power is 10V or 24V, request 0~5V, 0~10 or 4~20mA, it need additional amplifier. | ||

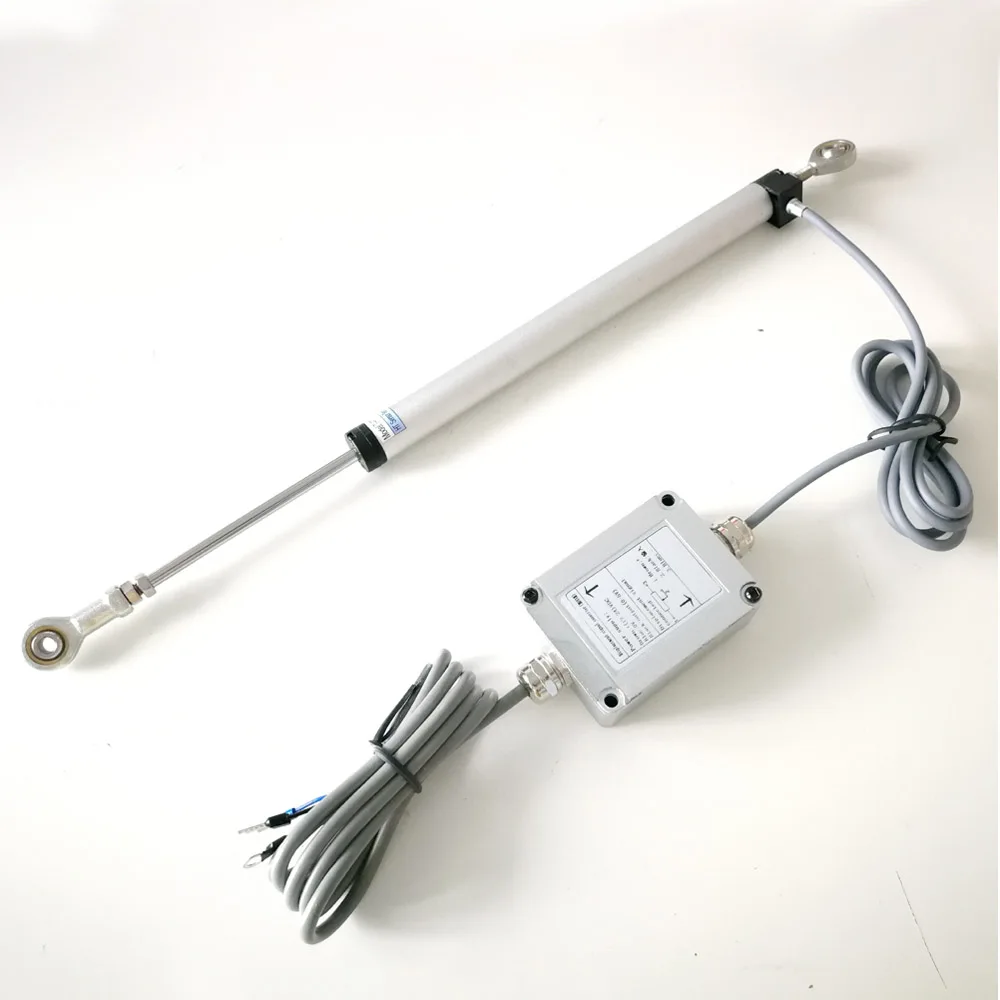

T-PTS16 with amplfier
If power is 10V or 24V, request 0~5V, 0~10V or 4~20mA, it need additional amplfier like this picture.
The unit price is not including this amplfier.
