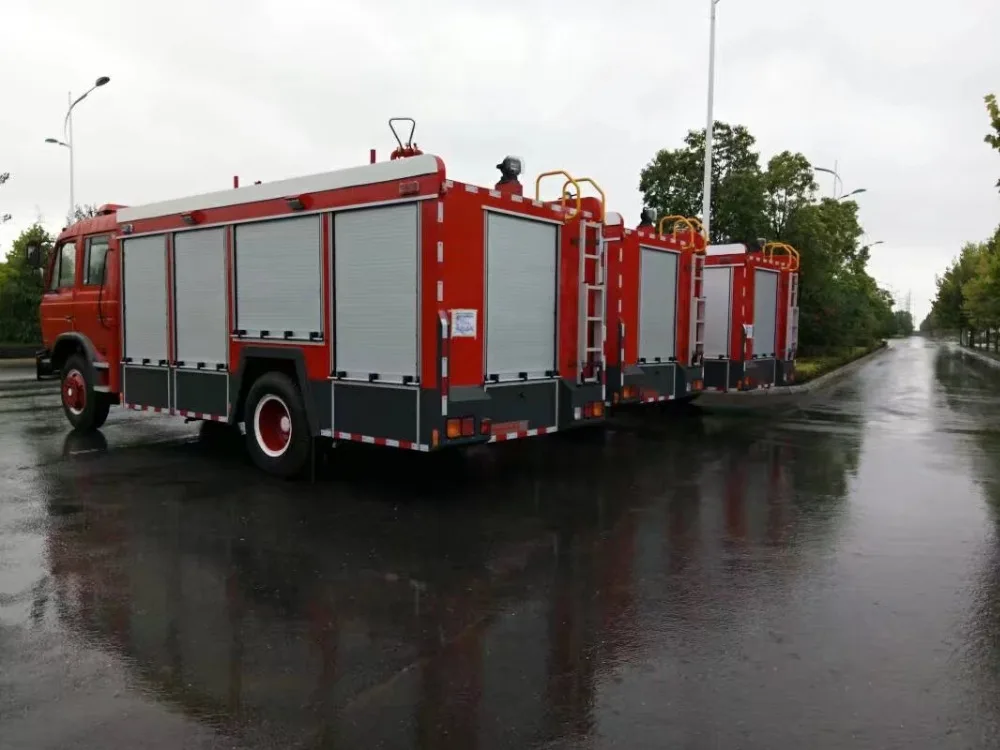

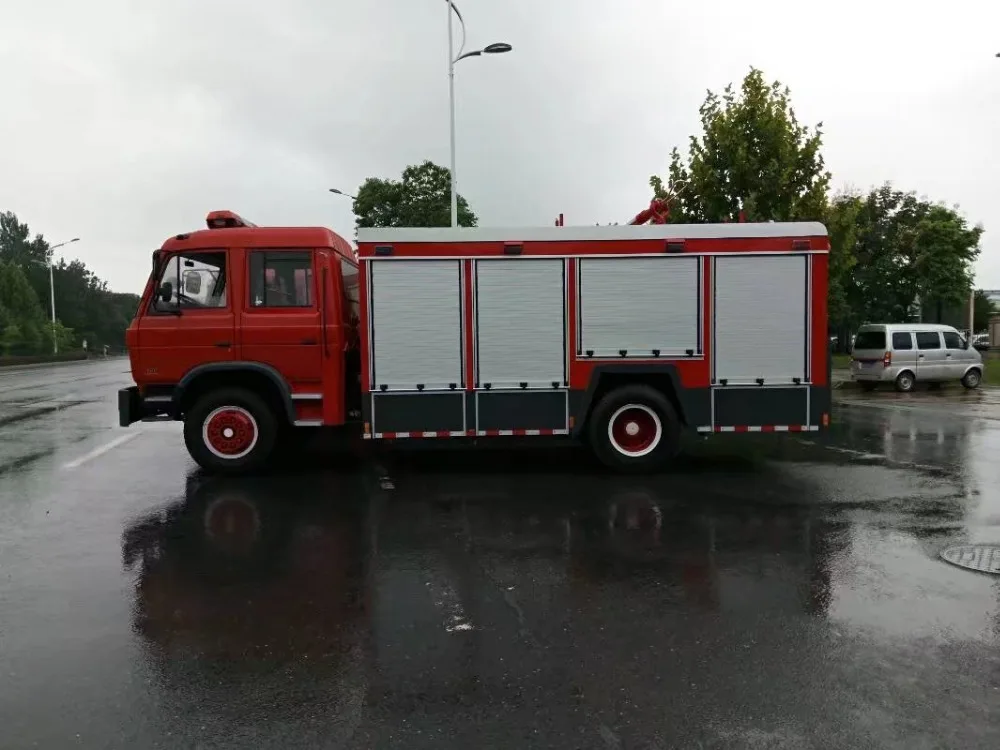

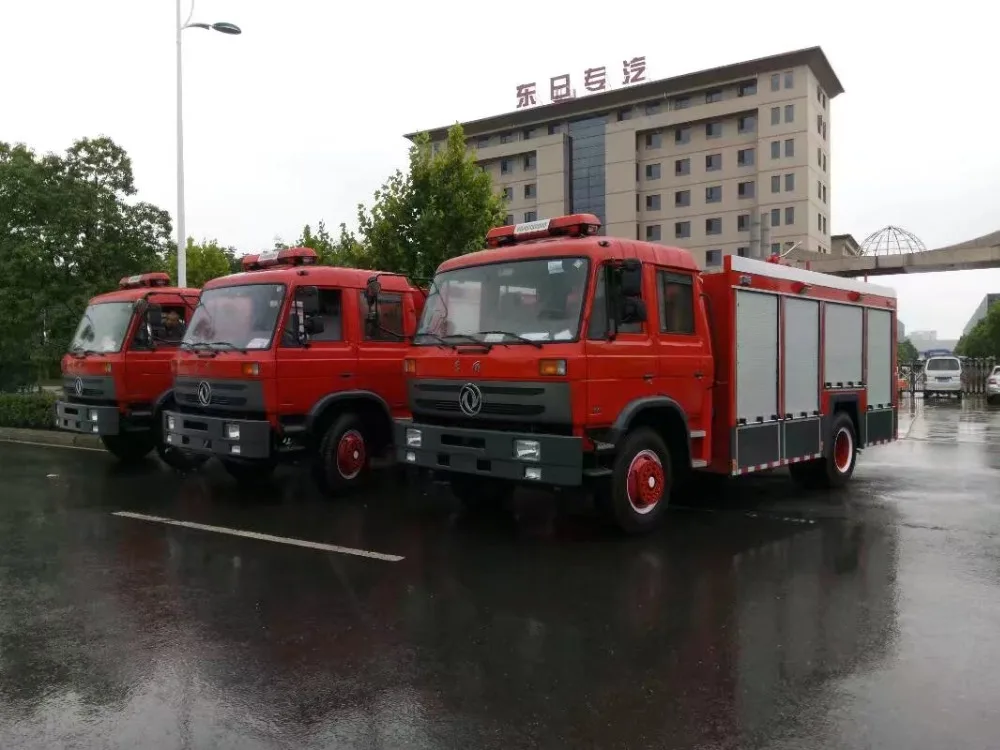

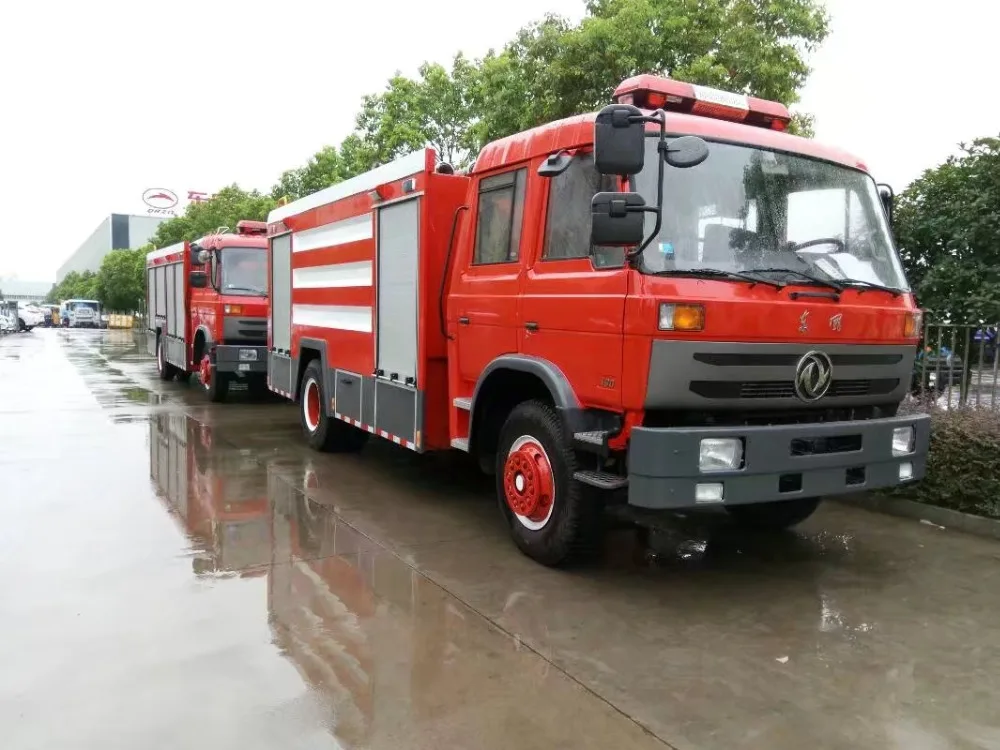

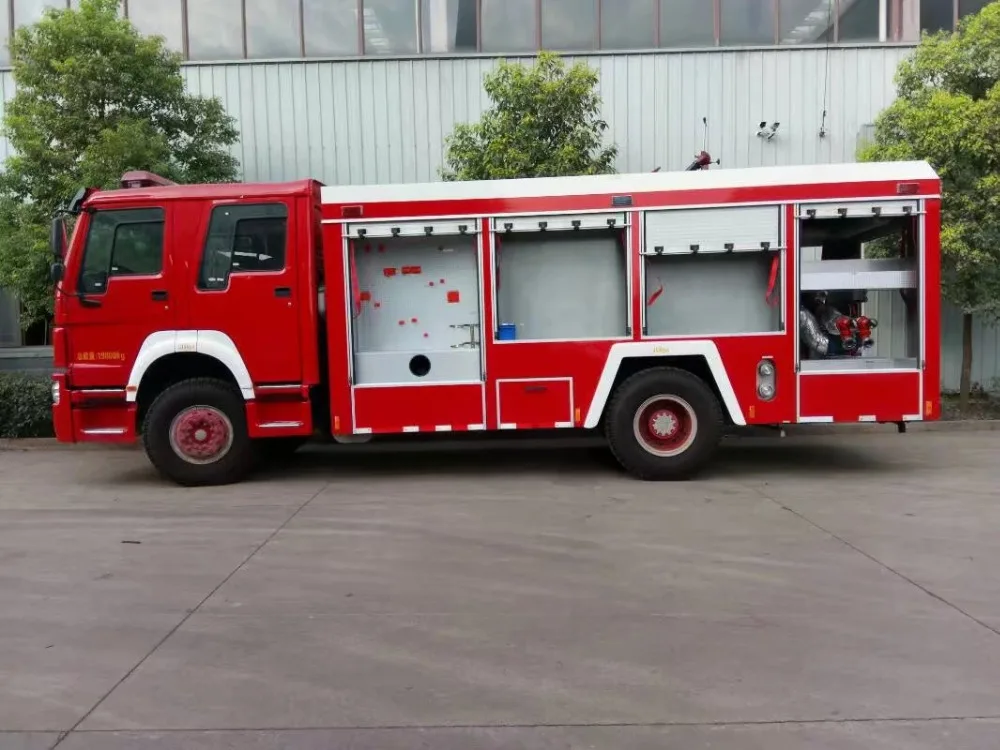

Dongfeng 4*2 fire fighting truck price, firetruck

Product Overview

Description

I. QUICK DETAILS OF FIRE TRUCK / FIRE FIGHTING TRUCK
(1) FIRE TRUCK Chassis: DONGFENG, HOWO, SINOTRUK, SHACMAN, FAW, FOTON, JAC, foton AUMAN, JMC, tec Chinese famous brand.
(2) Engine: Dongfeng, Yuchai, chaochai, weichai(270HP-380HP). Japan brand engine;
(3) Drive model: 4X2, 6X4, 8X4;
(4) Engine: EuroII, EuroIII, and Euro IV emission standard;
(5) Left / Right hand drive;

(6) Allowable passengers in cab: 2+4

(7) Fire house cabin: Can support six Fire water branches

(8) Rear pump: fire pump seated in the rear cabin, independent operation panel, More convenient and quick operation. The pump can select 6.0/4.0

(9) Large-capacity tool cabin

(10) Information about Tanker and other fire equipments:

Water tanker: 6000L/4000L
Middle and low pressure pump: CB40.10/30.30H
Flow:35~40L/S

Pressure:  3.5MPa ~ 4.0MPa
Fire Pump: PL30   Flow: 40L/S
Pressure: 4.0~4.5MPa
Fire distance (water):≥55m





IV. PARAMETERS DATASHEET OF FIRE TRUCK / FIRE FIGHTING TRUCK

Dongfeng 4*2 fire fighting truck (4000~6000L water and foam tank)



Item	unit	parameter
Vehicle model		Fire Fighting Truck
Horse power	Ps	160
Overall dimensions	mm	7500×2500×3100
Fact cubage	L	4000+800
GVW	kg	Appro×10495
Mass in working order		Appro×12000
Water tanker dimensions	mm	2500×2300×850
Foam tanker dimensions		600×2300×550
Wheel base		3950
F/R track base		1250/2300
Approach/departure angle	°	27/13
Exhaust/hp	ml/kw	5880/118
Max speed	km/h	85
Tire specification	9.00-20		Chassis Model	EQ1101GLJ
Traction system	4×2		Engine type	EQB160-20
Brake system instruction	Spring brake		Allowable passengers in cab	2+3
Equipment	water tanker: 4000L Foam Tanker:800L tank material: stainless steel Middle and low pressure pump :CB20.10/20.40H Flow:middle pressure 15L/S   low pressure 30L/S Pressure: middle pressure 2.0MPa low pressure 1.0MPa PL30 Fire Pump Flow: 30L/S Pressure: 1.0~1.2MPa Fire distance (water):≥45m
Engine	Dong-Feng  Environmental Protection, diesel engine
Production cycle	30 to 35 days





VI. FAQ

1.Q:How about the warranty?

   A: 12months or 60,000km whichever comes first.

2.Q:How about the delivery time?

   A: It depends on the style of truck, normally  around 30 working days

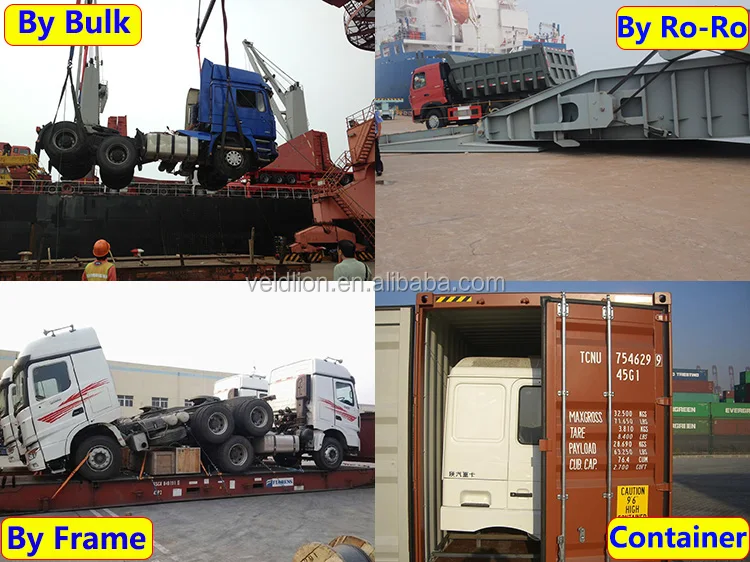

3. Q:How about shipping ?

    A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container ,  small type can shipping by container, Pls contact us to get a shipping quotation .

4. Q: How do you control the quality of product?

    A: Our workers are well-trained, every truck under goes a scrutinizing inspection process.

5. Q: How about your product After-sales service system?

    A: Our main export countries have accepted after-sales service, some of country use the third department service.

6.Q: Do you accept Custom orders? What's is your MOQ order?

   A:Yes, we do, our MOQ is 1 set.

7.Q: What's the payment terms?

   A:By T/T or L/C at sight ,Western Union

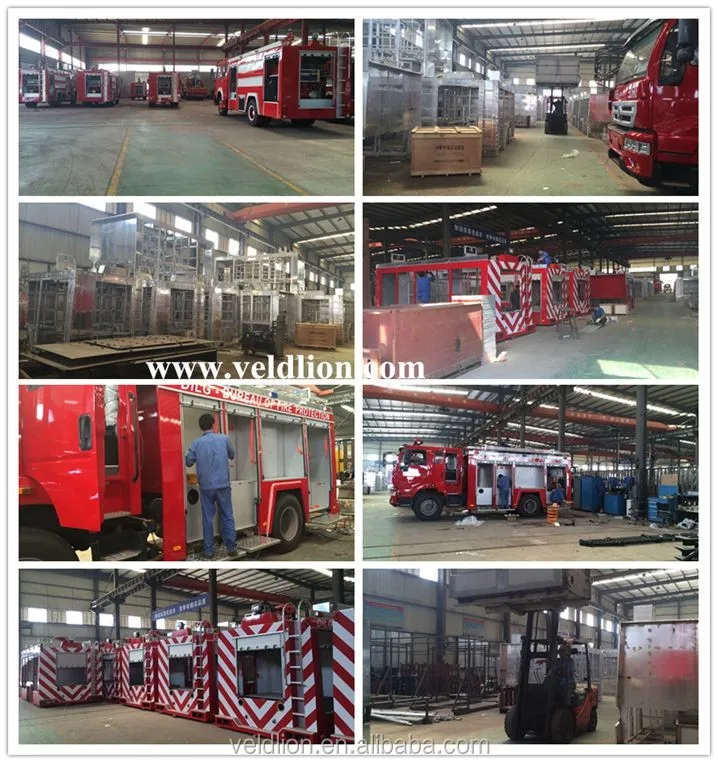

OUR FACTORY Strong advantage:

1. More than 300 workers, large and advanced production;
2. Have professional engineer, can offer the best and cheapest design;
3. Build strict QC team to guarantee the quality;
4. Own profesional sales team, can offer follow-up service;
5. High quality with resonable price;
6. Euro II, III, IV, V emission standard are optional.



VII. Packaging and shipping of trucks:
