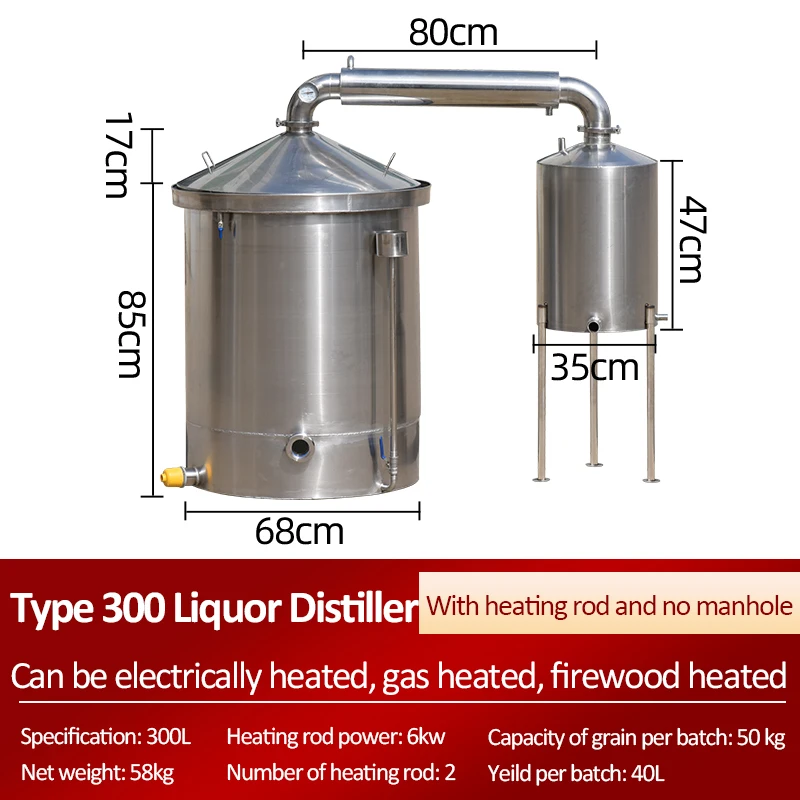

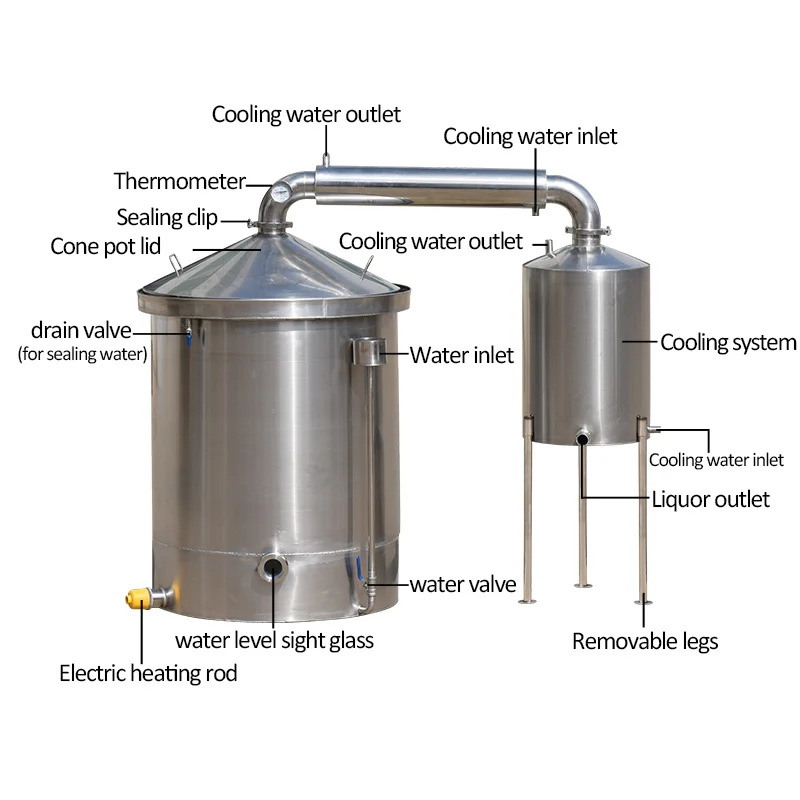

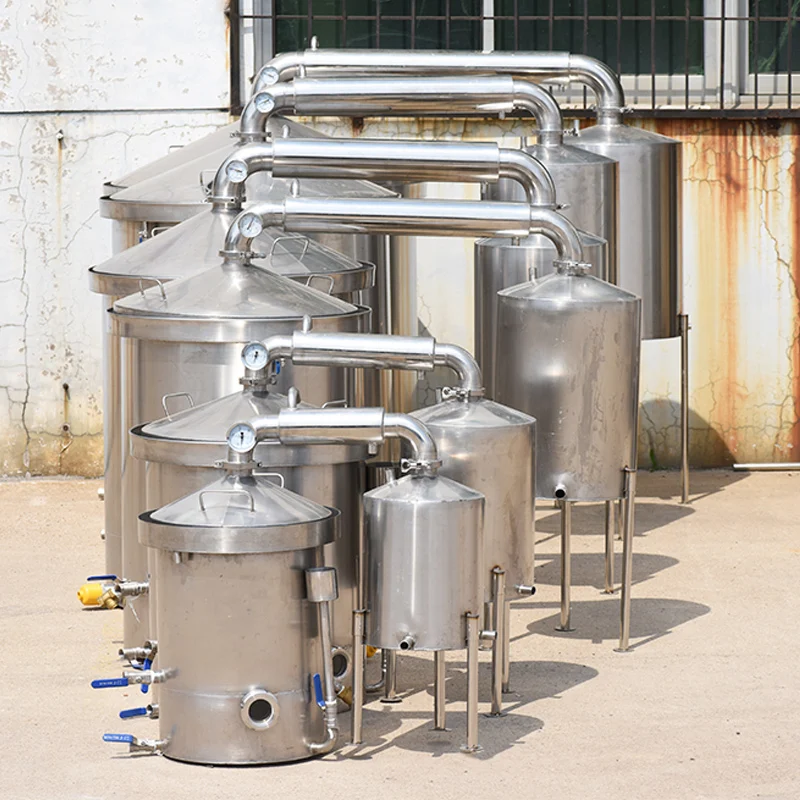

Big model spirit alcohol distiller, which made from 304 SUS,this size is 300L, which can make 40L per batch, it is suitable for small winery use.
Name:
300L distiller
Material
304 SUS
Capacity
300L
Yield per batch
40L
Grain Needed
(per batch)
50 Kg
Heating Method
electric/flame fire/steam generator
Direction for use

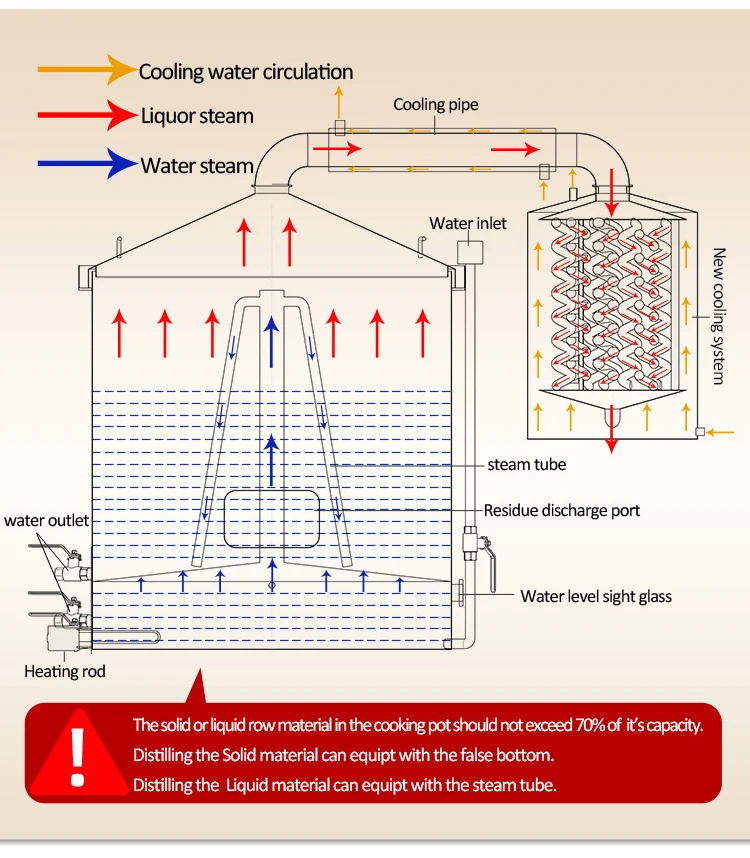

This machine can be powered by electricity (6kw heater *2 / 220V), or directly heating by flame fire, and it can also be heated by steam generator, there is a valve for steam go inside.
It can distilling both the liquid and solid. When distilling liquid, you need to install the liquid distillation tube, which is easy to operate.

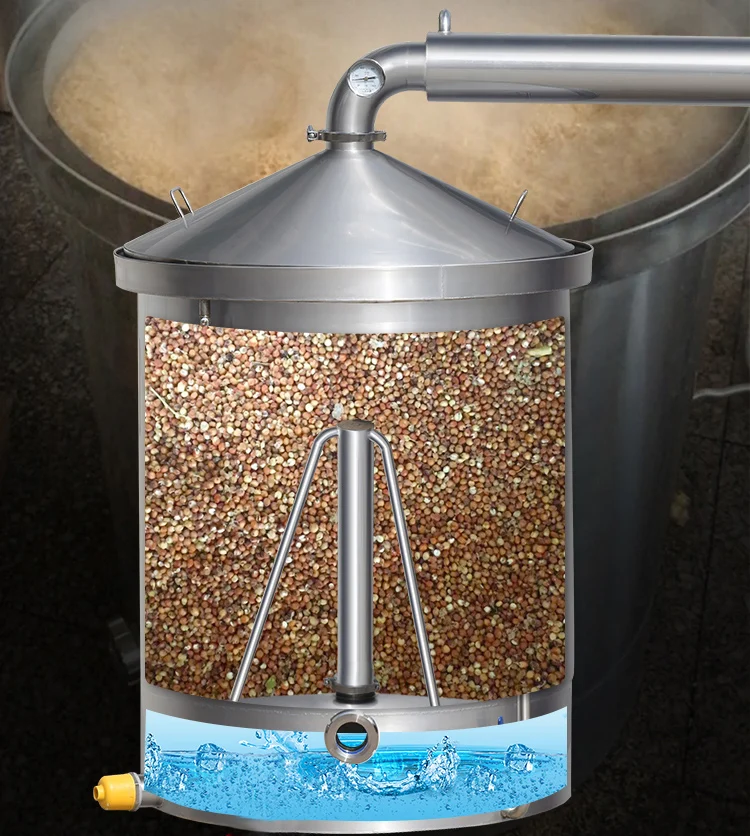

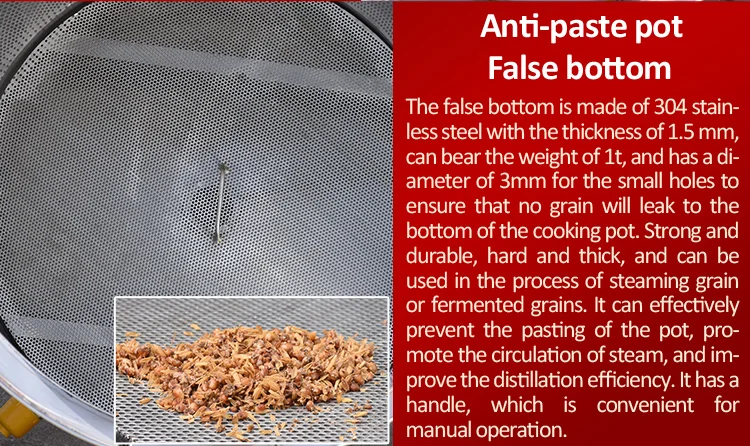

If distilling solid grain, you need to take off this tube, and install the false bottom.
All the accessories are included in the package.
300L can make 40L per batch
(calculated by grain)

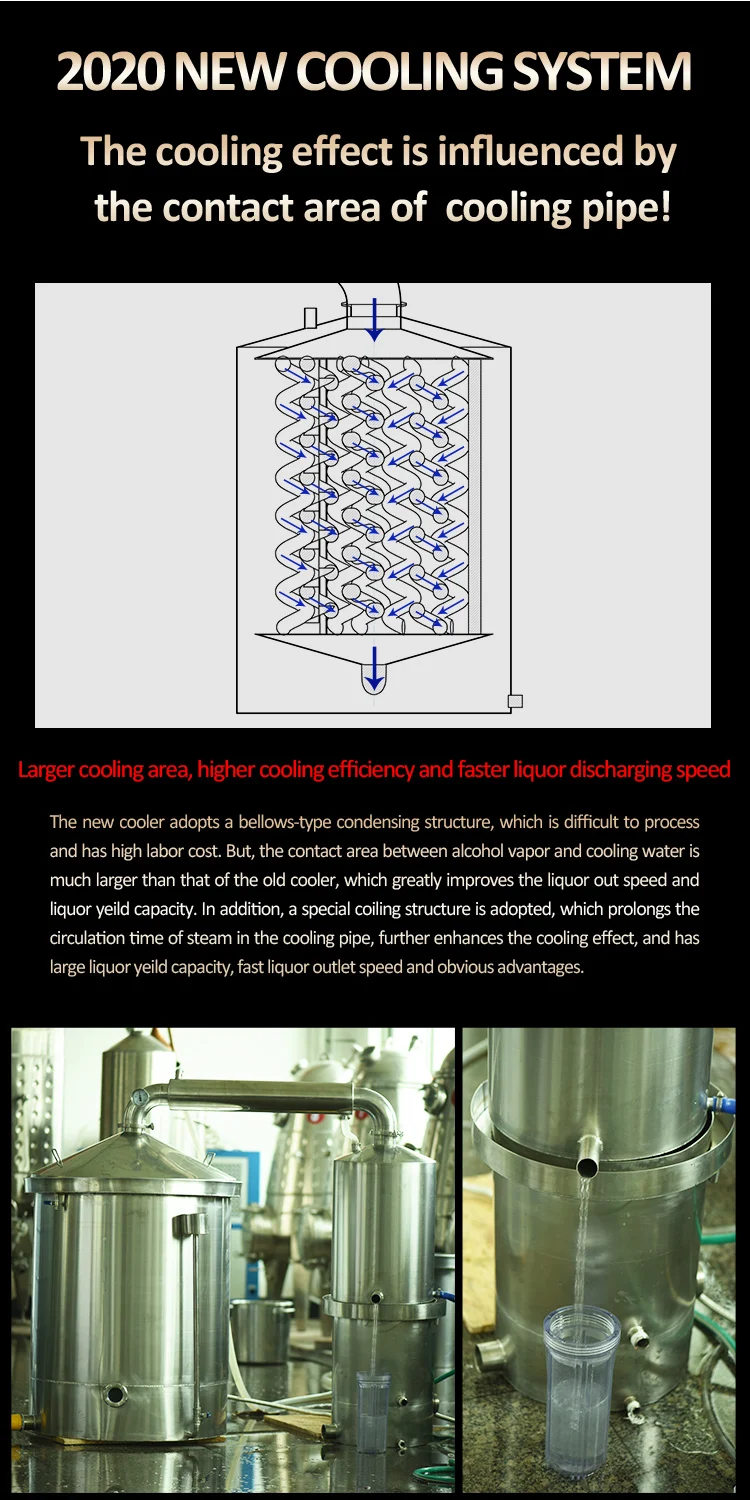

The new cooler adopts stainless steel corrugated pipe condensing structure, which is difficult to manufacture and has high labor cost. But, the contact area between alcohol vapor and cooling water is much larger than that of other suppliers made, which greatly improves the liquor out speed and liquor yeild capacity. In addition, a special coiling structure is adopted, which prolongs the circulation time of steam in the cooling pipe, further enhances the cooling effect, and has large liquor yeild capacity, fast liquor outlet speed and obvious advantages.
